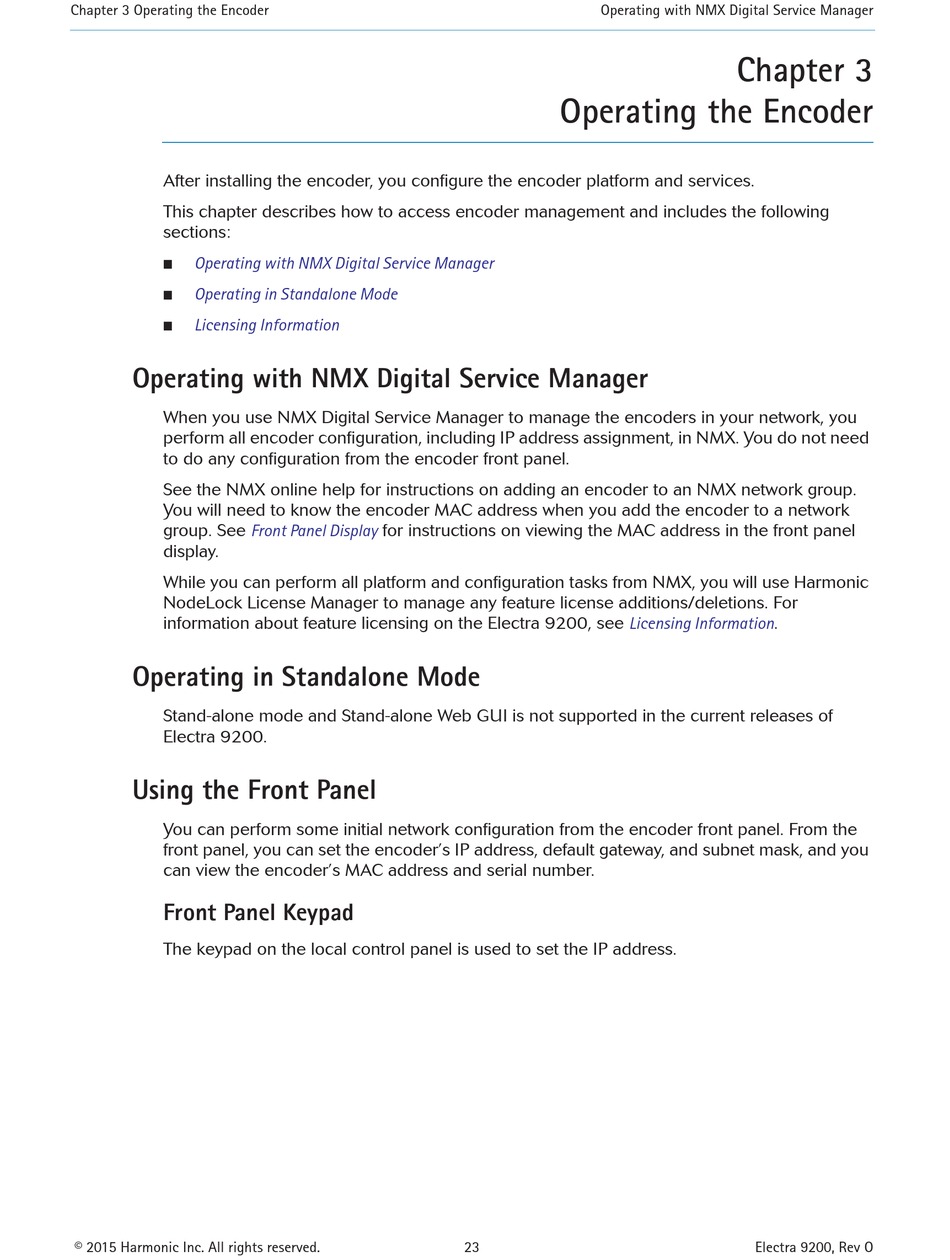

Chapter 3 Operating the Encoder
After installing the encoder, you configure the encoder platform and services.
This chapter describes how to access encoder management and includes the following
sections:
Operating with NMX Digital Service Manager
n
Operating in Standalone Mode
n
Licensing Information
n
Operating with NMX Digital Service Manager
When you use NMX Digital Service Manager to manage the encoders in your network, you
perform all encoder configuration, including IP address assignment, in NMX. You do not need
to do any configuration from the encoder front panel.
See the NMX online help for instructions on adding an encoder to an NMX network group.
You will need to know the encoder MAC address when you add the encoder to a network
group. See
display.
While you can perform all platform and configuration tasks from NMX, you will use Harmonic
NodeLock License Manager to manage any feature license additions/deletions. For
information about feature licensing on the Electra 9200, see
Operating in Standalone Mode
Stand-alone mode and Stand-alone Web GUI is not supported in the current releases of
Electra 9200.
Using the Front Panel
You can perform some initial network configuration from the encoder front panel. From the
front panel, you can set the encoder's IP address, default gateway, and subnet mask, and you
can view the encoder's MAC address and serial number.
Front Panel Keypad
The keypad on the local control panel is used to set the IP address.
© 2015 Harmonic Inc. All rights reserved.
Front Panel Display
for instructions on viewing the MAC address in the front panel
Operating with NMX Digital Service Manager
Operating the Encoder
Licensing
23
Chapter 3
Information.
Electra 9200, Rev O
