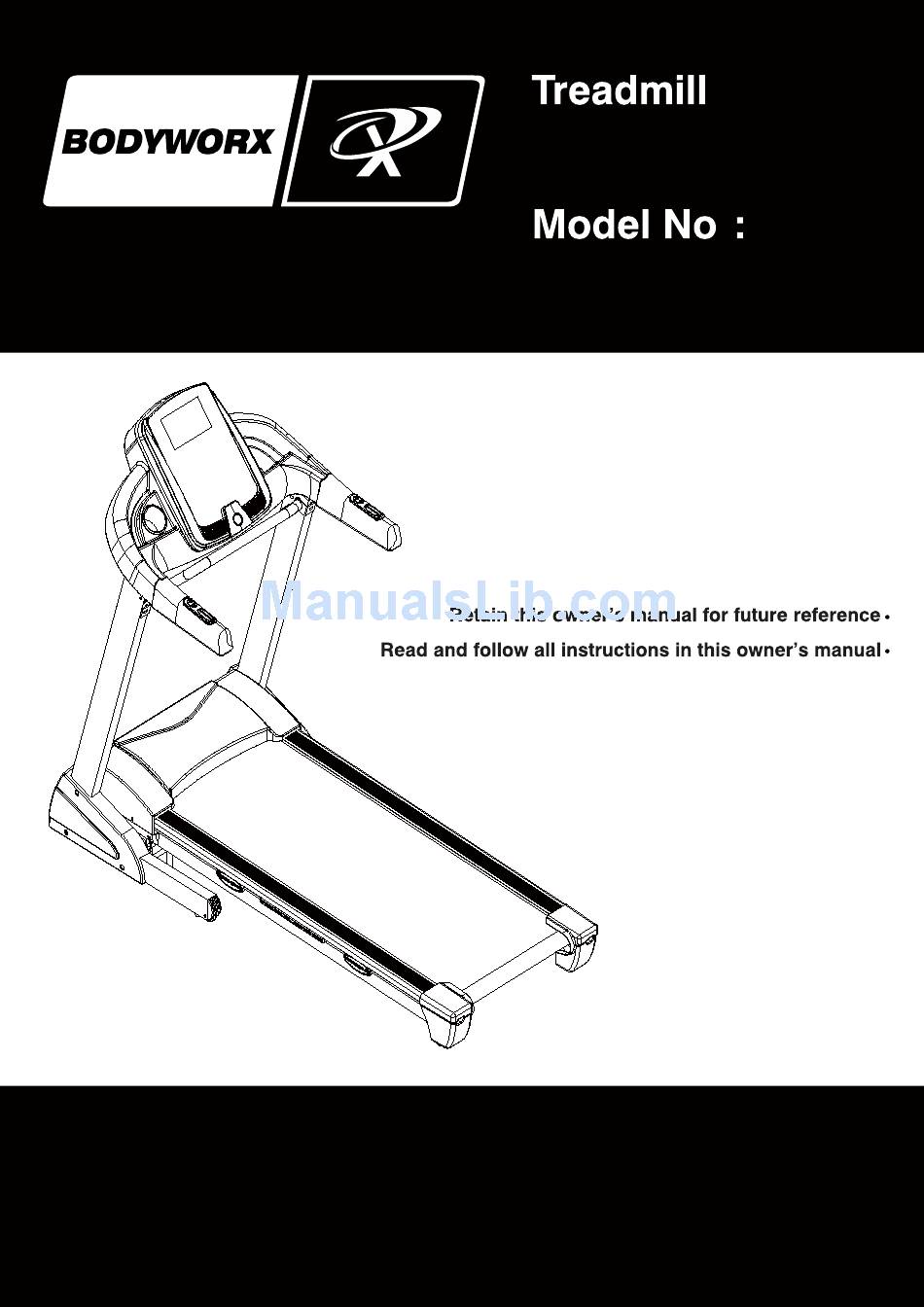

  • Page 1 JSPORT3000...

  • Page 2: Table Of Contents

    CONTENT CONTENT --------------------------------------------------------------------------------------------------------------------------------1 IMPORTANT SAFETY PRECAUTIONS -----------------------------------------------------------------------------------2-3 MAIN TECHNICAL PARAMETERS AND PRODUCT OVERVIEW ------------------------------------- ASSEMBLY INSTRUCTIONS -------------------------------------------------------------------------------------------------4-6 FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------------7 GROUNDING METHODS ----------------------------------------------------------------------------------------------------------8 OPERATION GUIDE ---------------------------------------------------------------------------------------------------------------9-18 GETTING STARTED GUIDE ----------------------------------------------------------------------------------------------------19 SAFETY EXERCISES --------------------------------------------------------------------------------------------------------------20 WARM-UP EXERCISES -----------------------------------------------------------------------------------------------------------21 MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------------22 BELT ADJUSTMENT ---------------------------------------------------------------------------------------------------------------23...

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS WARNING: Before starting any exercise program, consult with your physician or health professional， especially the person who is above 35 years old people or has some health problems before. We take no responsibility for any troubles or hurts due to above reasons. Don't power on until you finish assembly the treadmill and covering the protected top of motor.

  • Page 4: Main Technical Parameters And Product Overview

    16. The treadmill maximum user weight is 150 kgs 17. Please do not overuse the treadmill so can avoid any injury and do not use incorrect way for your safety. 18. When the treadmill is not being used, please keep the safety pull pin in the safety place to avoid others use. The main technical parameters Working temperature: 0-40 ℃...

  • Page 5: Assembly Instructions

    Assembly instruction WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS: 1 Main frame 1set D17 Flat washer M10 D13 Round hex bolt C13 Safety key 1set 10PCS M10*15 6PCS D2 Allen wrench T6 1 PC B18 Silicon oil 1 PC D1 Screw driver 1PC D12 Round hex bolt M10*55 4 PCS...
  • Page 6 STEP 2：According to the picture to tight the bolt M10*55（D12）and washer M10（D21） Step 3: Connect the upper line (C16) and lower line (C17), then lock the Computer bracket and the left / right upright tube (A3L/A3R) with bolt M10*15 (D8) and Flat washer M10 (D21), then attach the front cover L(B11L)&R(B11R) to the base frame with bolt ST4.2*19 (D48).
  • Page 7 Step 4: lock the cross bar (A4A) on the left / right upright tube (A3L/A3R) with bolt M10*15 (D8) and Flat washer M10 (D7). Step 5: Put on the Safety key (C13), MP3 line(C19), Bottle cup(B49) and plug in the power line(C15).

  • Page 8: Folding & Unfolding Instructions

    Folding instruction Lift up the machine and force to pull up until you heard "click" that made by safety casing stuck the pneumatic cylinder. Unfolding instruction Push the safety sleeve with your foot lightly and pull down the machine at the same time as the arrow direction.

  • Page 9: Grounding Methods

    Grounding Methods This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug.

  • Page 10: Operation Guide

    Operation Guide WINDOW DISPLAY 1.1. 1.2. START Normal start after 5 seconds countdown 1.3 PROGRAM 1 manual mode，99 pre-set programs, 3 users, 1 body fat program, 3 countdown function 1.4. SAFETY LOCK FUNCTION The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi" alarm noise.
  • Page 11 1.5.2 “PROGRAM” BUTTON When the treadmill is not running, press this button can circle choose from manual mode to pre-set mode P1-P99,U1-U3 and body fat. 1.5.3 “MODE” BUTTON When the treadmill is not running, press this button to choose countdown modes:”H-1”,”H-2”,”H-3”;:H-1”...
  • Page 12 1.6. DISPLAY FUNCTION 1.6.1 SPEED Display running speed 1.6.2 TIME Display the running time or countdown time 1.6.3 DISTANCE Display the running total distance or distance countdown. 1.6.4 CALORIE Display the calorie or calorie countdown 1.6.5 INCLINE Display the incline 1.6.6 PULSE Display pulse data 1.6.7 ALL WINDOW DISPLAY DATA RANGE...
  • Page 13 1.8 PROGRAM EXERCISE CHART SET TIME /10 = EVERY GRADE TIME TIME MODE...
  • Page 18 1.9 Manual model operation 1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 0.8 km/h 1.9.2 Press speed +/-, you can adjust the speed 1.9.3 Press incline+/-, you can adjust the incline 1.9.4 Press stop, you can stop treadmill at working state 1.9.5 Press quick speed key, you can quickly adjust the speed you want 1.9.6 Press quick incline key, you can quickly adjust the incline you want...
  • Page 19 1.11 BODY TESTER（FAT） At the beginning state, press “ PROGRAM” continually to enter “FAT“ body fat test，window display “FAT”. Press “MODE” to enter (F1 SEX, F2 AGE, F3 HEIGHT, F4 WEIGHT). Press “SPEED+”, “SPEED-” to set. After setting, the computer will display F5 and grasp the hand pulse, the window will display your body quality index.

  • Page 20: Getting Started Guide

    Getting started guide PREPARE f you are around 35 years old, or have health problem, even this is your first time to do fitness exercise, please consult doctor or professional before use it. Before do exercise, please stand on the side to learn how to operate, such as start, stop and speed adjustment. After that stand on the plastic deck of the treadmill board, catch hold of the handrail, start by 1.6--3.2 km/h low speed, stand straight, look forward, one foot try to do few times, then stand on the belt to do exercise.

  • Page 21: Safety Exercises

    SAFETY EXERCISE Please consult professional staff before do exercise. He can help recommendation exercise rate/intension and time according to your age and health condition. When running, if you feel chest tightness or chest pain, irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult professional before you want continually to do exercise.

  • Page 22: Warm-Up Exercises

    Warm-up Exercise It is better to do some warm-up exercise. Warm the muscle easy stretch, so use 5-10 mins to warm-up. Then stop and according below method to do stretch exercise for five times, and each foot do 10 seconds or more every time. After running, do those stretch exercises again 1.

  • Page 23: Maintenance Instructions

    Maintenance Instruction WARNING：Please make sure pull out the treadmill's power plug before cleaning or maintaining the product. CLEANSING：General cleaning or the unit will greatly prolong the treadmill's life. Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the walking belt and also the side rails.

  • Page 24: Belt Adjustment

    Belt Adjustment Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the running belt deviate condition. f the belt has drifted to the right, unplug the safety lock and power switch, and turn the right adjusting bolt 1/4 turn clockwise, then insert the power switch and safety lock, make the treadmill running, observe the running belt deviate condition.

  • Page 25: Exploded Drawing

    Exploded Drawing...

  • Page 26: Parts List

    Parts list A Welding Parts Description Description Main frame Cross bar Incline bracket Base frame Filter bracket Left upright bracket Running board support tube Right upright bracket Computer bracket Motor base Incline bracket Guide belt B Plastic Parts Description Description Console chip set Adjust wheel B1-1...
  • Page 27 C Electrical parts Description Description DC motor Console upper wire Running belt Console lower wire Rear roller MP3 Line Front roller Magnetic ring Running board Inductance Cylinder Filter Motor belt Circuit Breaker Power switch Single line Controller Photoelectric sensors Handle pulse left keyboard Single line Handle pulse right keyboard Single line...

  • Page 28: Error Code And Significance

    Round head hex bolt M8X40 Cross washer bolt M5X15 Round head hex bolt M8X45 Cross washer bolt M5X20 Nylon Nut M10 Cross head self taping bolt ST4.2X19 Cross head self taping bolt Nylon Nut M8 ST4.2X25 Flat washer M10 Cross bolt M5X8 Cross head self taping bolt Flat washer M8 ST4.2X16...
  • Page 29 Current overload Protection , Stop and go into fault status, computer buzzle will ring 3 tones the motor electrical is overload and shows fault code“E3”. Other areas show blank. After 10 seconds will go into ready mode, and can restart. Possible Reasons：Over the rated load cause too much electricity that make system Self-preservation or some parts blocked and make DC motor can’t process.
  • Page 30 BODYWORX BODYWORX Model No: JSPORT3000 To register your warranty, please go to www.gpisports.com.au...
