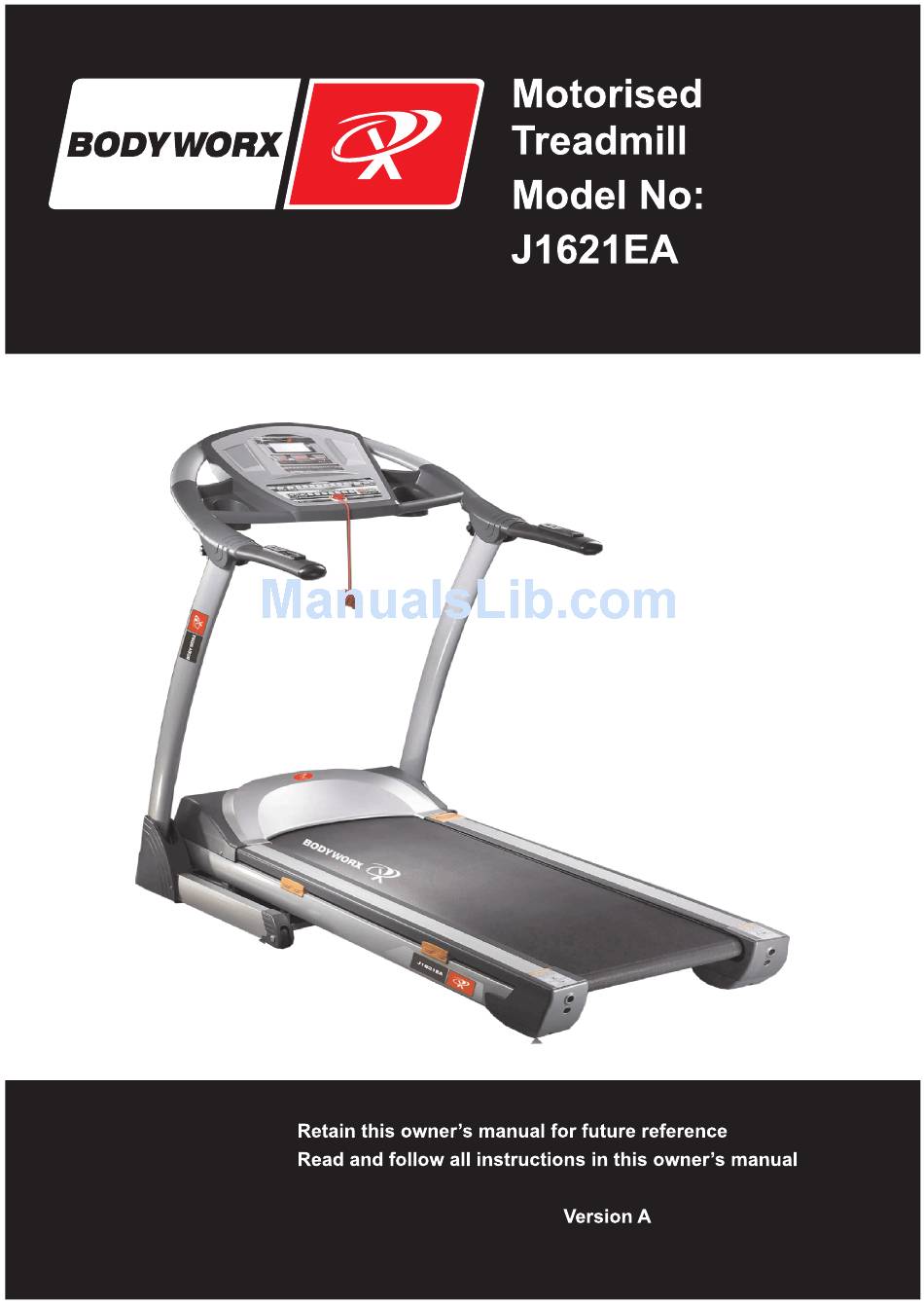

Bodyworx J1621EA Owner's Manual
  1. Manuals
  2. Brands
  3. Bodyworx Manuals
  4. Treadmill
  5. J1621EA
  6. Owner's manual

Bodyworx J1621EA Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J1621EA and is the answer not in the manual?

Questions and answers

Related Manuals for Bodyworx J1621EA

Summary of Contents for Bodyworx J1621EA

  • Page 2: Key Features

    KEY FEATURES Congratulations on choosing this treadmill. You have taken the first step to a healthier and more rewarding lifestyle. This treadmill is especially designed to give you reliable performance and enjoyable workout in the comforts of your home. Please find below the features and benefits of this treadmill.

  • Page 3: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS When using an electrical product, basic precautions should always be followed. Read all instructions before using this treadmill. GROUNDING INSTRUCTIONS This product must be grounded! If treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock.

  • Page 4: Mechanical Safety

    MECHANICAL SAFETY ● Before you start to exercise, make sure the unit functions correctly. To maintain the safety level of the exercise equipment does not use a faulty device. ● Replace defective components immediately and/or keep the equipment out of use until repair.

  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1: Take the machine from the package，put on the level floor；like below: Step 2: Use your left hand to let the upright like below angle at 75 degree.(Please don’t push up the upright,)use you right hand to fix the computer handle bar. Use the Screw M8X50 to fix the upright.
  • Page 6 Step 4: Then assemble the right & left down cover like below, please separate the right and left. Use two ST4*15 to fix the base cover like below. Owner’s Manual...

  • Page 7: Setting Up Your Treadmill

    SETTING UP YOUR TREADMILL PLACEMENT IN YOUR HOME To make exercise a desirable daily activity for you, the treadmill should be placed in a comfortable and attractive setting. This treadmill is designed to use minimal floor space and to go nicely in your home. ·Do not place the treadmill outdoors.

  • Page 8: Getting Started

    LEVELING THE BASE It is important that you place the treadmill on a firm level surface. Check the treadmill to ensure the frame is level once you have moved the treadmill into the position of your choice. CAUTION! Make sure the running deck is level to the ground. If the deck is positioned on uneven surface，it would cause premature damage to the electronic system.

  • Page 9: Getting On And Off The Treadmill

    GETTING ON AND OFF THE TREADMILL Handle with care when getting on or off the treadmill. Try to use the handlebars while getting on or off. While you are preparing to use the treadmill, do not stand on the running belt.

  • Page 10: Moving The Treadmill

    MOVING THE TREADMILL This treadmill is easy to move around safety. To move the treadmill A、 Switch off the power B、 Unplug the power cord； C、 Moving the treadmill by using the PU transportation Wheel Sure the upper point, could use one hand take hold of the end of the big frame, the other hand take hold of the same sides hand bar, incline 30°~40°,could move the treadmill slowly.

  • Page 11: Operating The Console

    OPERATING THE CONSOLE COMPUTER FUNCTION MENU LCD display LED display Program menu Safety Mp3 socket (for customer’s option) 1. Computer function instruction: 1.1 P0 is the training program for the user, P1-P12 is the inner set up training program, FAT is the body fat testing function; 1.2 16”8 lattice high definition LCD display and 3 window LED display, 23 pcs operation keys, heart pulse function quick button on both side handle bar;...
  • Page 12 1.4 Speed range：1.0~16.0KM/H； 1.5 Incline range：0~12%； 1.6 Heart beat test range：50~199BPM； 1.7 Over loading, protect the wire when the large of current pass through and break, protect over charge, protect it is too difficult to control the motor speed, so that the motor is running in high speed all the time, resist electromagnetism interfere and so on protection function;...
  • Page 13 When pressing the program key, it will show the program serial number within 3 seconds; When pressing the speed key, it will show the speed data within 3 seconds; When machine pauses, it will display “PAUS”; when taking off the safety key, it will show “E-07”;...
  • Page 14 3.6 “-“ : Speed down key, under the stop and body fat testing state, is the enactment data of increase by degree key, under the running state, is the speed degression key; 3.7 “QUICK SPEED” : 8 pcs speed quick key, under the running state, it can set directly the speed data appointed of the key;...
  • Page 15 5. MP3 play operation function( depend on the customer’s option) It has the inner set double track sound, steady power supply like the switch, use the matching audio wire to connect with the power of audio and the computer MP3 import hole to play.
  • Page 16 (c) “FAT” is body fat testing program, forfeit the machine running; 6.4 After setting the training mode, press “START” key, the window display 5 seconds time count down, with the prompt sound, when the time count down to 0, the machine will start, and increase the speed to it show, then run placidly with the same speed.
  • Page 17 (i) When the incline control out of the way (E-09), in order to avoid to affect the training, press stop “STOP” key for 2 second, turn off the incline function, the machine can use as usual; (j) Body fat testing way : press “PROG” key to choose FAT, the left window “SPEED / PROGRAM”...
  • Page 18 Automatism program P1-P12 speed and incline sheet： SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED 10.0 10.0 10.0 INCLINE SPEED 10.0 10.0 11.0 INCLINE SPEED 11.0 10.0 11.0 INCLINE SPEED 10.0 11.0 INCLINE SPEED 10.0 11.0 12.0 12.0 INCLINE SPEED 10.0 10.0...

  • Page 19: Exercise Tips And Guidelines

    EXERCISE TIPS AND GUIDELINES STRETCH Stretching prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these stretches with a slow gentle motion. Hold for a count of ten. Do not bounce. Repeat the stretch exercises again after the cool down will help to loosen and relax your muscles to prevent soreness.

  • Page 20: Maintenance

    HOW HARD? How hard you work out is determined by your goal. Regardless of your fitness goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to be beneficial! There are two ways to measure your exercise intensity. The first is by evaluating your perceived exertion level and the second is by monitoring your heart rate.
  • Page 21 IF BELT TOO FAR TO THE LEFT SIDE: Turn the left roller bolt 1/4 turn clockwise (tighten) Turn the right roller bolt 1/4 turn counterclockwise (loosen) IF BELT TOO FAR TO THE RIGHT SIDE: 1. Turn the right roller bolt 1/4 turn clockwise (tighten) 2.
  • Page 22 TO LUBRICATE THE DECK: Stop running belt so that the seam is located on top and in the center of the deck. Insert nozzle into spray head of lubricant can. Lift running belt. Position nozzle between the belt and the board approximately 200mm (8” ) from the front of the treadmill.
  • Page 23 THE ADJUSTMENT OF THE MOTOR BELT Before all the machine leaving the factor, it’s in the best position, but after a period running, the belt may become loose. Adjust the step: ① Use the wrench adjust electrical engineering stud bolt the agreeable hour hand turns to move.

  • Page 24: Troubleshooting

    TROUBLE SHOOTING Problem Reason may happen Mend methods a No electrify Put plug into socket b Not put in the safety key Put in the safety key c Circuit signal system Treadmill will not start Check controller’s port and signal wire turnoff d Power supply not open Put switch on the ‘NO’...
  • Page 25 EXPLODING DIAGRAM Owner’s Manual...

  • Page 26: Part List

    PART LIST NAME SPECIFICATION QUANTITY BASE FRAME MAIN FRAME INCLINE FRAME STAND POST (LEFT) STAND POST (RIGHT) HANDLE BAR FRAME Motor FIX BRACKET M12*14*35*19 INNER HEX BOLT M10*60*20 INNER HEX BOLT INNER HEX BOLT M10*35*20 INNER HEX BOLT M8*55*20 INNER HEX BOLT M8*50*20 INNER HEX BOLT M8*40*20...
  • Page 27 FLAT WASHER FLAT WASHER SCREW FAT FLAT WASHER Powder Metall set Φ24*Φ19*14*14*3 Powder Metall set Φ17*Φ10*12 Wire Knot Wire protection tube SPRING Accessorize Up cover Side Rial Accessorize Rear cover(L) Rear Cover(R) Rear Foot Squar Cover Cushion Wheel Computer Cover Computer panel(L) Computer Pannel(s) HOVEL(L)
  • Page 28 Belt Owner’s Manual Running Belt Foam Incline motor Controller Transformer Safety key Switch Fuse base Mp3 wire(option) Speed sensor Signal wireL1 Signal wireL2 Signal wireL3 Connection wire(Red) Connection wire (black) Speed-Pulse Incline-Pulse Wire Wire knot Protection wire Square cushion Round cushion Owner’s Manual...

  • Page 29: Terms And Conditions

    WARRANTY TERMS AND CONDITIONS This warranty is valid only in accordance with the conditions set forth below. Warranty applies only while the followings three conditions are met. • It remains in the possession of the original purchaser and proof of purchase is demonstrated.
