Summary of Contents for Bodyworx JI1830M
-
Page 1: Table Of Contents

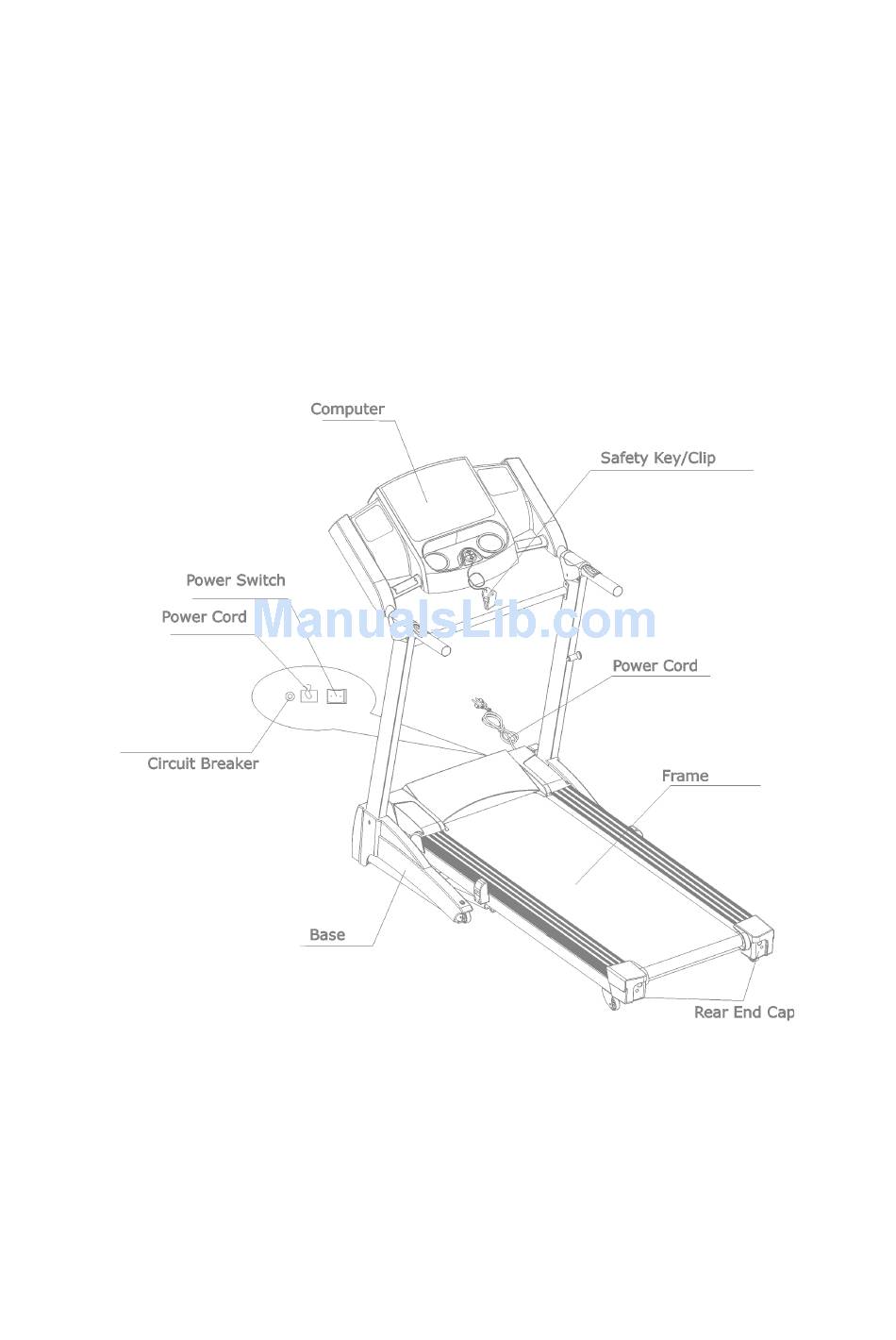

TABLE OF CONTENTS OVERVIEW DRAWING ASSEMBLY STEPS SAFETY INSTRUCTIONS CAUTION GROUNDING INSTRUCTIONS MAINTENANCE PRE-ASSEMBLY CHECK LIST COMPUTER OPERATION INSTRUCTION OVERVIEW DRAWING... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this product, basic precautions should always be followed, including the following: Please read the instructions carefully before starting to use this product. DANGER – To reduce the risk of electric shock: 1. Always unplug this product from the electrical outlet immediately after using and before cleaning the treadmill. -
Page 3: Grounding Methods
The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. DANGER – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether this product is properly grounded. -
Page 4: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST ITEM Description ITEM Description Frame Truss Hex Screw: M8xP1.25x40 Left Decoration Cover Truss Hex Screw: M8xP1.25x15 Right Decoration Cover Truss Philips Screw: M5xP0.8x20 Left Handrail Cover Plastic Washer 8x22x6T Right Handrail Cover Hex Wrench + Screwdriver 5mm (70mm x 70mm) Cup Holder Safety Key / Clip Truss Philips Screw: M5xP0.8x8... -
Page 5: Assembly Steps
ASSEMBLY STEPS Warning: Loin Cloth Don't untie the loincloth until assembly is finished. If you untie the loincloth first, it may cause a hazard Two persons are required to finish the assembly steps. (Caution!! Please follow exactly the assembly steps below to avoid injury.) 1. - Page 6 2. Put up Upright (L & R) as shown in the right drawing and tighten with Hex screws (b) P.S. To avoid unexpected accidents, always assemble the treadmill with more than one worker, do not assemble by yourself. 3. After tightening the left and right uprights, insert the left and right decoration covers (B &...
- Page 7 4. Wedge the left and right handrail covers (D & E) onto the corresponding positions as shown in the right drawing and tighten with Truss Philips screws (g) and washers (h). 5. Wedge cup holder (F) onto the corresponding positions as shown in the right drawing...
-
Page 8: Caution
CAUTION Note: The Cylinder contains high pressure gas. Please avoid crashing with other objects in order to avoid hazards. Note: If the Cylinder is hit, it might be damaged and cause the usage to incorrectly operate normally. The treadmill might fall while folding. This treadmill has a foldable mechanism for storage. -
Page 9: Maintenance
MAINTENANCE 1. If the belt tends to move off the centre, stop the treadmill. Take the L-shaped Wrench and adjust the Hex Screw in the Rear End Cap. For example, if the running belt is moving towards the left side, tighten the left Hex Screw about 1/4 turn (clockwise);... -
Page 10: Computer Operation Instruction
SILICON SERVICING CHART KM / Mile SPEED SERVICE INTERVAL 6 KM/HR Below 1 Year 6 ~ 12 KM / HR 6 Months 12 KM / HR Above 3 Months Mile 4 Mile / HR Below 1 Year 4 ~ 8 Mile / HR 6 Months 8 Mile / HR Above 3 Months... -
Page 11: General Operation
LCD PANEL GENERAL OPERATION: User Weight Setting Mode Press SPEED + / - : Weight setting 23 Kg ~ 130 Kg. • Press ENTER : into the START / READY mode. • Preset Weight is 70 Kg. • Manual Mode ➢... - Page 12 Press START : countdown Press 3 / 6 / 9 : setting speed Press 3 / 6 / 9 : setting incline COUNT DOWN Mode ➢ START / READY MODE Press MODE : User can set TIME MODE DISTANCE CALORIES MODE P1... ...
-
Page 13: Program Mode
PROGRAM Mode ➢ START / READY Mode Press MODE : User can set TIME MODE DISTANCE CALORIES MODE P1... P5 BODYFAT HRC in turn, the setting mode value will blink. Preset timer is 20 minutes. ... -
Page 14: Cool Down Mode
DISTANCE / HEIGHT : Indicate HEIGHT. CALORIES / INCLINE / SEX : Indicate SEX. SPEED : No Indicate. Pulse / WEIGHT : Indicate WEIGHT. ➢ BODY FAT Mode After WEIGHT was setting, and it will detect heart rate, and Pulse display will show “----”, ... - Page 15 OPERATION Mode 1) Turning on the treadmill where all displays will show for 3 seconds and BEEP one time then transitioning into the user WEIGHT setting mode. 2) General Mode : The display will show MENU, then press START. 3) Time Countdown Mode : After turning on the treadmill, press MODE one time, the time display will blink;...
- Page 16 PROGRAM...
