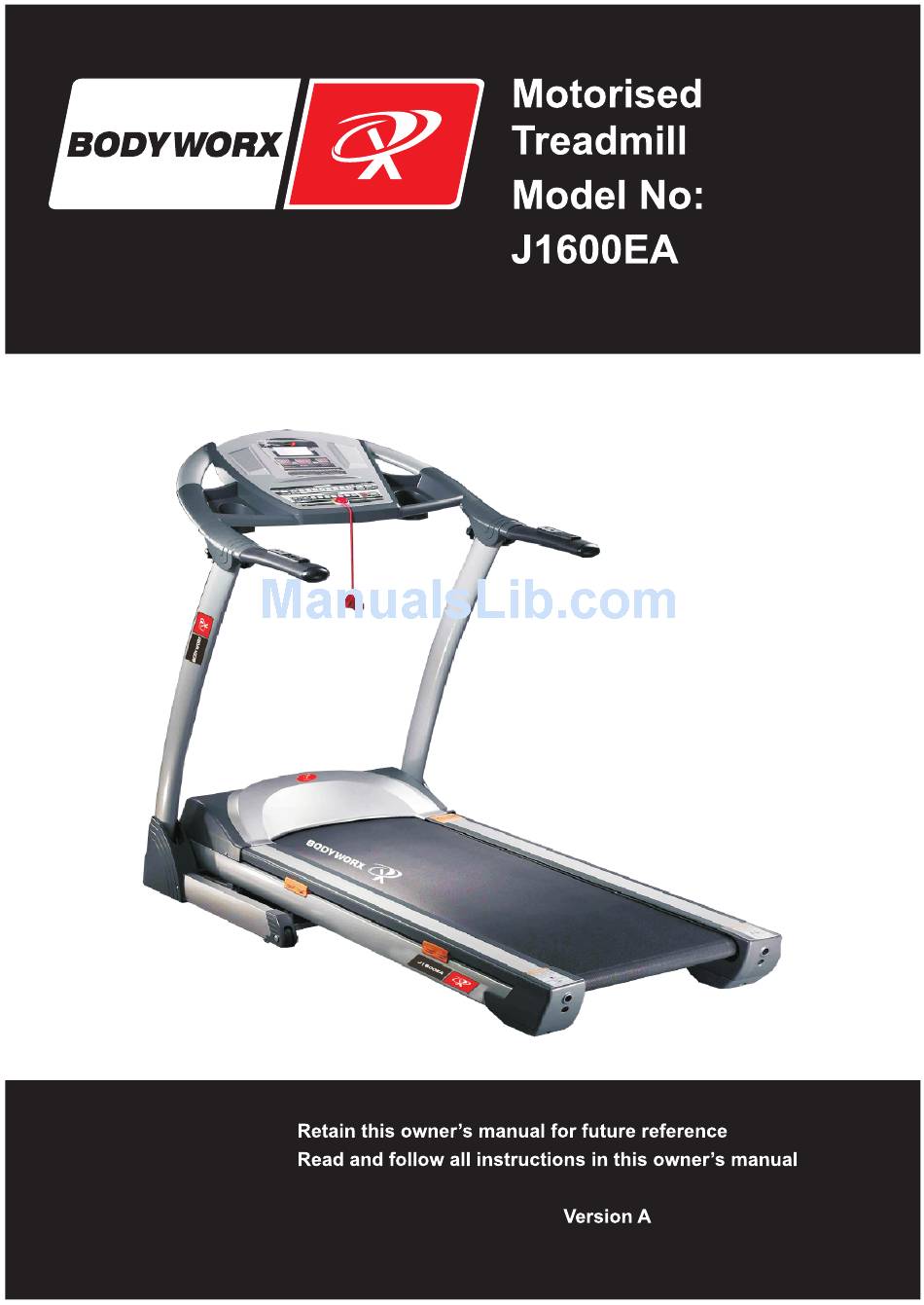

  • Page 2 INTRODUCTION Console Safety key Handle bar Handle pulse Up-right post Motor cover Side rail Base frame Main frame Running belt END CAPS Owner’s Manual...

  • Page 3: Key Features

    KEY FEATURES Congratulations on choosing this treadmill. You have taken the first step to a healthier and more rewarding lifestyle. This treadmill is especially designed to give you reliable performance and enjoyable workout in the comforts of your home. Please find below the features and benefits of this treadmill. ◇...

  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS When using an electrical product, basic precautions should always be followed. Read all the instructions before using this treadmill. GROUNDING INSTRUCTIONS This product must be grounded! If treadmill should malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock.

  • Page 5: Mechanical Safety

    IMPORTANT SAFETY PRECAUTIONS This exercise equipment is designed and built for optimum safety for the home use. However, certain precautions always apply whenever you operate any exercise equipment. Be sure to read the entire manual before assembly and operation of this machine. Also, please note the following safety precautions. MECHANICAL SAFETY Before you start to exercise, make sure the unit functions correctly.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Step 1:. Take the machine from the package, put on the level floor; please keep your hand from the connection between the console and the stand post, the stand post and the bottom frame. Step 2: Follow the arrowhead to put on the stand post (please don’t put your hand on the connection), fix the stand post to the bottom frame with the 2pcs bolt M8*50 for each side.
  • Page 7 Step 3: Follow the arrowhead to put up the console (please don’t put your hand on the connection), fix the console to the stand post with the 2pcs washerΦ8, and 2pcs bolt M8*20. Please tight all the bolt. Step 4: Follow the arrowhead put the plastic cover on the bottom frame, Fix the bottom cover with two bolt (ST4*20) each side, then put the casket on the console.

  • Page 8: Setting Up Your Treadmill

    SETTING UP YOUR TREADMILL PLACEMENT IN YOUR HOME To make exercise a desirable daily activity for you, the treadmill should be placed in a comfortable and convenient setting. This treadmill is designed to use minimal floor space and to go nicely in your home. Do not place the treadmill outdoors.

  • Page 9: Getting Started

    GETTING STARTED TURN POWER ON The On/Off switch for the treadmill is located next to the power supply cord at the back of the motor cover. Flip this switch to the “ON” position. SAFETY TETHER KEY AND CLIP The safety key is designed to cut the main power to the treadmill should your fall. Therefore, the safety key is designed to bring the treadmill to an immediate stop.

  • Page 10: Handling Your Treadmill

    HANDLING YOUR TREADMILL FOLDING THE TREADMILL 1. Restore incline to flat (0) position 2. Unplug from power point before folding 3. Lift deck until it's parallel to the upright post and cylinder locks into position 4. Caution: check to ensure cylinder locking device has engaged UNFOLDING THE TREADMILL 1.

  • Page 11: Operating The Console

    OPERATING THE CONSOLE Ⅰ ﹕ Window and key-press instruction 1,4 Display windows： A: upper Display window: racetrack and program chart B: left Display window: speed and program data C: right Display window: Pulse and Incline data. D: middle Display window: Time and Distance, Calories When the console showing the data that the LED light will shine 2, function key A: “program”...
  • Page 12 count down－distance count down－calorie count down, the 3 running mode and time running mode; During P1-P12 program, It is time count down default（30 minutes）reposition key; During FAT program, choose the body fat testing item serial number：F1、F2、F3、F4、F5； C：“start ”key： when press this key，buzzer will sound, Put “start”, The window display 5---4---3---2---1，then the motor start.
  • Page 13 Ⅳ ﹕ Handle mode： 1﹕ How to enter in manual program： A：Put through the switch., enter in the normal mode of manual program directly. B： When stop, press the “program” key can enter into the normal mode of manual modes. 2：...
  • Page 14 Ⅴ : Operation of manual mode A: press the “start” key, count down the time 5 seconds, motor start moving, original speed is 1.0km/h. B: Press “+”or “-”can adjust the speed. C: press the “Stop” key, the speed will decrease till without moving. D: Press the quick speed key, you can get your desired speed soon.
  • Page 15 the current speed of the window display. 10: Pull off the safety key can stop the motor peremptorily, the LCD window display E07 or”---“, the buzzer sound bi-bi-bi all the time. 11: Press the “Power supply” key, it can stop and open the treadmill. Ⅶ...
  • Page 16 fat is between 23 to 28. If between 23 to 28 it suggests you are a little fat. If exceeds 29, it means you should lose weight. IX : The display range of numerical value original Designed original value Designed range Display range Time (minute : second) 0:00...

  • Page 17: Troubleshooting

    SPEED 3.0 5.0 10.0 10.0 11.0 INCLINE SPEED 4.0 5.0 10.0 11.0 10.0 10.0 11.0 INCLINE SPEED 4.0 6.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0 INCLINE TROUBLE SHOOTING Problem Possible cause Corrective action a. no connect to power supply Plug into socket b.
  • Page 18 Change the computer B、computer is badness Change the controller C、controller is badness E-02 The motor wire don’t contact well with Check and connect again the control Check and revise the position A、the inductor fix incorrectness Change the inductor B、the inductor is badness E-03 C、the inductor don’t connect well with Check and anew connect Chang the controller...

  • Page 19: Maintenance

    MAINTENANCE CLEANING Remove dust on the treadmill with vacuum or slightly damp cloth. Fold up the deck and clean the floor with vacuum periodically will help to prolong the treadmill product life. Never use solvents on the deck or running belt. Use of solvents can reduce critical lubrication of the deck and belt.
  • Page 20 CAUTION! Over tightening of the belt will severely shorten the life of the belt and may cause further damage to other components. NOTE: A well lubricated deck will ensure longevity of your treadmill in addition to providing you with the optimal performance. DANGER! To reduce the risk of electrical shock, always unplug the treadmill from the electrical outlet immediately after use and before cleaning.

  • Page 21: Assembly Picture

    ASSEMBLY PICTURE Owner’s Manual...
  • Page 22 EXPLORDED PARTS FORM NAME QUANTITY Base frame welding Main frame welding Incline frame welding Upright post welding Feet pad welding Handle bar welding Motor board welding Inner hex bolt M12*Φ14*35*19 Inner hex bolt M10*60*20 Inner hex bolt M10*35*20 Inner hex bolt M8*50*20 Inner hex bolt M8*45*20 Inner hex bolt M8*40*20 Inner hex bolt M8*30*20...
  • Page 23 Power metallurgy cover Φ24*Φ19*Φ14*14*3 Power metallurgy cover Φ17*Φ10*12 Plastic flat washer φ26*φ20*t5.0 Plastic flat washer φ25*φ18*t3.0 Spring Decorate piece Motor cover (up) Side rail Decorate strip Rear cover (left) Rear cover (right) Rear cover feet pad Square stuff Taper cushion Wheel Φ62 Computer cover Place with the computer (big)
  • Page 24 Wire L1 Wire L2 Wire L3 Power supply connect wire(red) Power supply connect wire(black) Speed wire and handle pulse wire set Incline wire and handle pulse wire set Power supply wire Wire buckle Wire protect cover Square cushion Column cushion Wire nip Protect wire ring Owner’s Manual...

  • Page 25: Terms And Conditions

    WARRANTY TERMS AND CONDITIONS This warranty is valid only in accordance with the conditions set forth below. Warranty applies only while the followings three conditions are met. ▪ It remains in the possession of the original purchaser and proof of purchase is demonstrated. ▪...
