1. Symbols used in this document

Warning
If these safety instructions are not observed, it may result in personal injury!
Warning
These instructions must be observed for explosion-proof pumps. It is advisable also to follow
these instructions for standard pumps.
If these safety instructions are not observed, it may result in malfunction or damage to the
Caution
equipment!
Notes or instructions that make the job easier and ensure safe operation.
Note

2. Identification

This section shows the nameplate, type key and the codes that can appear in the variant code.
As codes can be combined, a code position may contain more than one code (one letter).
Note

2.1 Nameplate

The nameplate states the operating data and approvals applying to the pump. It is fixed to the side of the stator
housing opposite to the electronic unit.
The additional nameplate supplied with the pump can be fixed close to the pit.

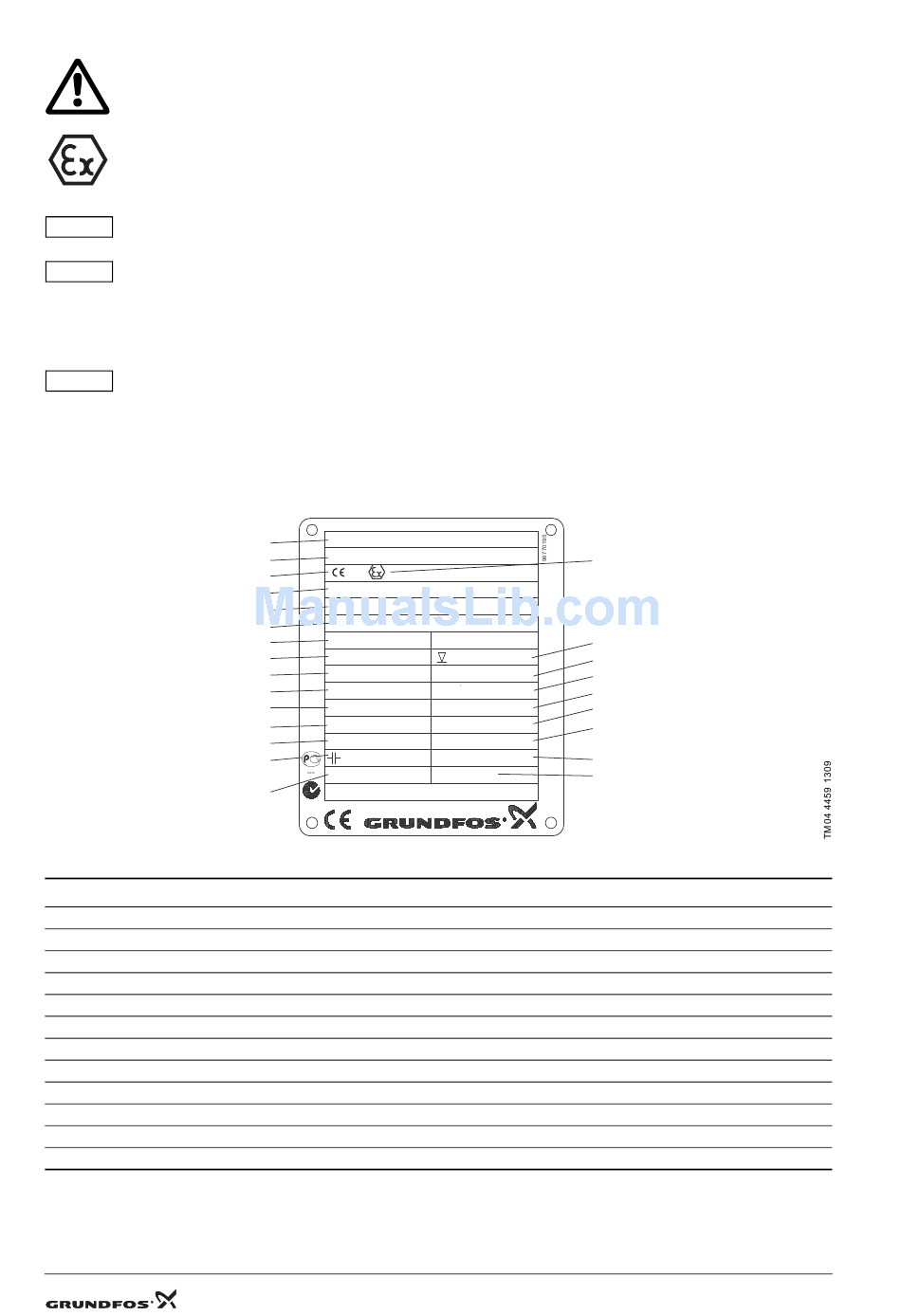

Nameplate
Fig. 1
Pos. Description
1 Type designation
2 Product number
3 CE mark
4 ATEX certificate *
5 IEC Ex mark *
6 IEC Ex certificate *
7 Production code (year and week)
8 Enclosure class to IEC
9 Maximum head
10 Rated input power
11 Number of phases
12 Rated speed
* Only explosion-proof pumps.
Type:
1
Model:
2
3
4
5
6
P.c.
7
IP68
8
Hmax: m Qmax:
9
P1: kW
10
~
11
-1
n: min
12
Weight: kg
13
opr.:: μF
14
Made in Tatabánya, Hungary
15
4 / 10
16
Auto Adapt
17
m
18
l/s
19
P2: kW
20
A 21
Cos φ 22
Tmax: °C
23
Hz
Insul.class: 24
Pos. Description
13 Weight without cable
14 Run capacitor
15 EN approval
16 Ex mark *
17 Maximum installation depth
18 Maximum flow rate
19 Output power
20 Rated current
21 Power factor
22 Maximum liquid temperature
23 Frequency
24 Insulation class
