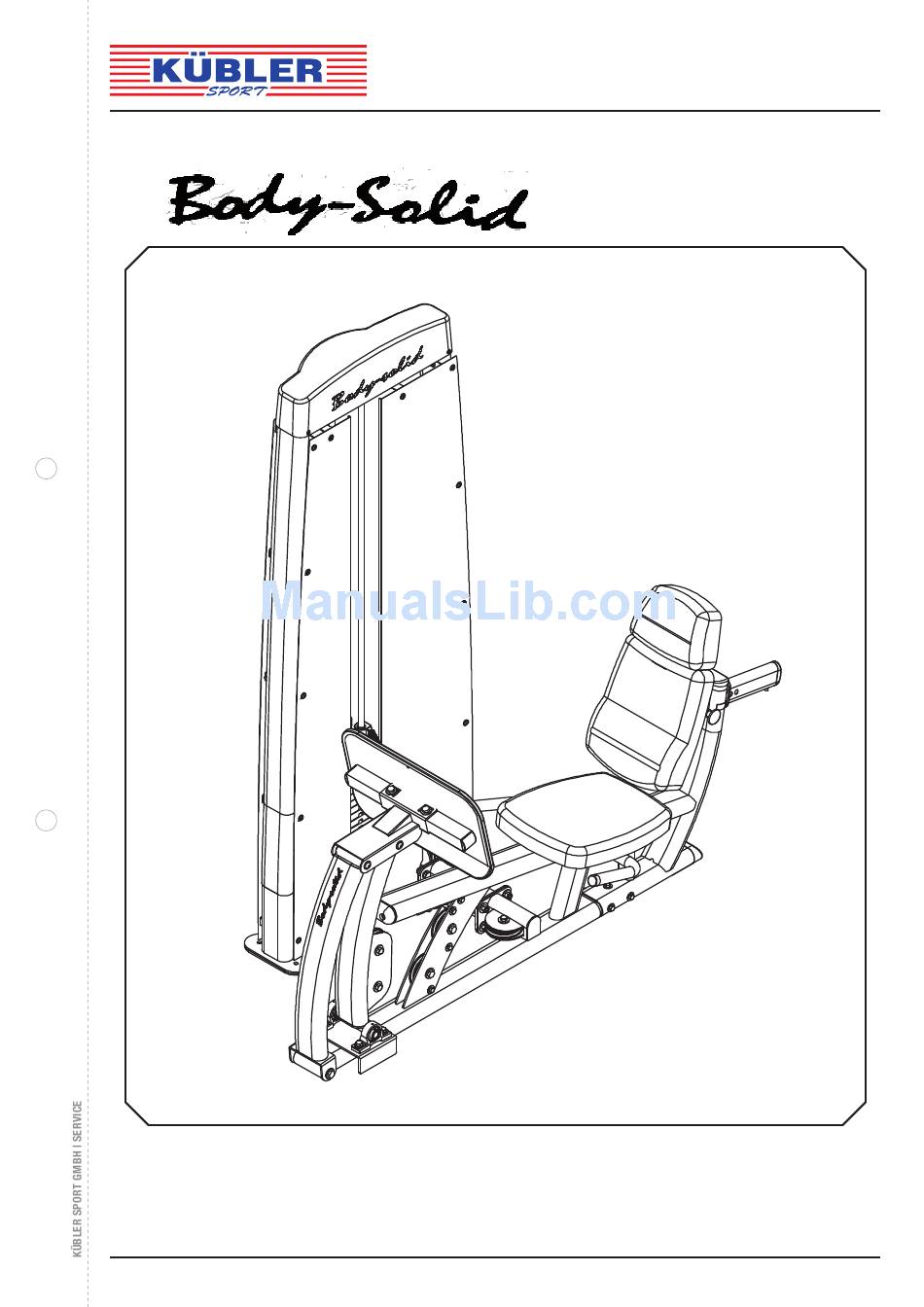

- Page 1 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 1 von 21...
- Page 2 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A1)HEX BOLT 1/2"X1-1/4"L PARTIAL QTY.8 (A2)HEX BOLT 1/2"X1-3/4"L PARTIAL QTY.4 (A3)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.2 (A4)HEX BOLT 1/2"X2-1/2"L PARTIAL QTY.2 (A5)HEX BOLT 1/2"X3-1/2"L PARTIAL QTY.2 Page DCLP.1-042007...
- Page 3 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (A6)HEX BOLT 1/2"X5-3/4"L PARTIAL QTY.2 (A7)HEX BOLT 3/8"X2"L PARTIAL QTY.4 (A8)HEX BOLT 5/16"X1"L PARTIAL QTY.4 (A9)HEX BOLT 5/16X3-1/4"L PARTIAL QTY.2 Page DCLP.1-042007 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de...
- Page 4 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (B1)NYLON LOCK NUT1/2" QTY.20 (C3)3/8"(I.D.)FLAT WASHER 27 QTY.8 (B2)NYLON LOCK NUT 3/8" QTY.4 (C4)5/16"(I.D.)FLAT WASHER 24 QTY.6 (C5)SPRING WASHER 5/16" QTY.6 (C1)1/2"(I.D.)FLAT WASHER 34 QTY.24 (C2)1/2"(I.D.)FLAT WASHER...
- Page 5 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA2)HEX BOLT 1/2"X2-1/4"L PARTIAL QTY.4 (AA4)ROUND INNER HEAD 3/8"X2"L PARTIAL QTY.1 (AA5)ROUND INNER HEAD 3/8"X3-1/2"L PARTIAL QTY.1 (AA6)ROUND INNER HEX SCREW M6X20L PARTIAL QTY.24 (AA7)ROUND CROSS SCREW 5/32"X1/4"L PARTIAL QTY.4...
- Page 6 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (AA8)10LB PIN(8250-071) QTY.1 (CC1)3/8"(I.D.)FLAT WASHER 19 QTY.2 (AA9)ELASTIC BOLT QTY.1 (CC2)1/2"(I.D.)FLAT WASHER 34 QTY.6 (AA11)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1 (CC3)M6(I.D.)FLAT WASHER 13 QTY.24 (AA12)FIRM SHEATH(8890-046) QTY.1...
- Page 7 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS HARDWARW ILLUSTRATION (D1) 8 SPRING SNAP LINK(8810-001) -------------------------------------------[1PCS] (D2) 50X50X1.8t END CAP(9211-087) ------------------------------------------[2PCS] (D3)50X100 NYLON BUSHING(9211-107) ----------------------------------------[2PCS] (D4)58X116X2.5tX65H FOOT CAP(9211-109) ------------------------------------[1PCS] (D5)58X116X2.5t END CAP(9211-112) ----------------------------------------------[1PCS] (D6)40X80X2t END CAP(9211-113)
-
Page 8: Parts Illustration
KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION A [1PCS] C [1PCS] B [1PCS] D [1PCS] E[1PCS] F [1PCS] G [1PCS] H [1PCS] I [1PCS] Direction J [1PCS] K [1PCS] L [1PCS) - Page 9 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION AA[1PCS] AB[1PCS] 6610-003 8380-051 AC[1PCS] AD[1PCS] 8380-049 8380-050 AF[1PCS] AE[2PCS] 9211-111 260159 ( 3/4"X1932L) AG[2PCS] AH[11PCS] 8313-144 8321-040 50.5 AI[1PCS] AJ[2PCS] 8321-040 8321-040 50.5 50.5...
- Page 10 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed A1X4 M10X25L HEX BOLT X2 M10 Washer X2 FLAT ALLEN HEAD M12X20L X2 Page DCLP.1-042007 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de...
- Page 11 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 2 assembled and completed M10 Washer X4 M10X16L Round Bolt X4 5/8"X129L Shaft X2 M10 Washer X6 M10X16L HEX BOLT X6 3/4"X143L Shaft 1/2"X3/4"L HEX Bolt X2...
- Page 12 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 3 assembled and completed Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 12 von 21...
- Page 13 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 5 assembled and completed D8X2 Page Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 13 von 21 DCLP.1-042007...
- Page 14 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 6 assembled and completed AJX2 AGX2 M10X25L Cone Bolt X8 D13X2 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 14 von 21...
- Page 15 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 ASSEMBLY INSTRUCTIONS DCLP NOTE FINGER TIGHTEN PULLEY FASTENERS PULLEYS WILL BE Above shows STEP 7 REMOVED TO INSTALL CABLE assembled and completed D9X2 AEX2 CC3X20 AA6X20 D10X2 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de...
- Page 16 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 16 von 21 Page DCLP.1-042007...
- Page 17 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 9 assembled and completed Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 17 von 21 Page DCLP.1-042007...
- Page 18 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DCLP ASSEMBLY INSTRUCTIONS D14. D15. Above shows STEP 10 assembled and completed Detail View WEIGHT STACK CABLE AA11 AA12 M4 SCREW Selector Rod Detail View C3X4 B2X4 1/2"x1-3/4"L HEX Bolt 1/2"...
- Page 19 KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 ASSEMBLY INSTRUCTIONS DCLP Above shows STEP 11 assembled and completed M6X12L Round Bolt X25 M6 Washer X25 M6 Washer X4 M6X20L Round Bolt X4 AA7X4 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de...
- Page 20 DCLP ASSEMBLY INSTRUCTIONS KÜBLER SPORT GMBH | SERVICE ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 Cable to match illustration Double strength(D9) Cable for DGYM only(D16) Page DCLP.1-042007 Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 20 von 21...
- Page 21 KÜBLER SPORT GMBH | SERVICE DCLP ASSEMBLY INSTRUCTIONS ASSEMBLY AND OPERATiON iNSTRUCTiON | K8439 DGYM DCLP Kübler Sport · Karl-Ferdinand-Braun-Straße 3 · D-71522 Backnang · www.kuebler-sport.de Seite 21 von 21 Page DCLP.1-042007...
