BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

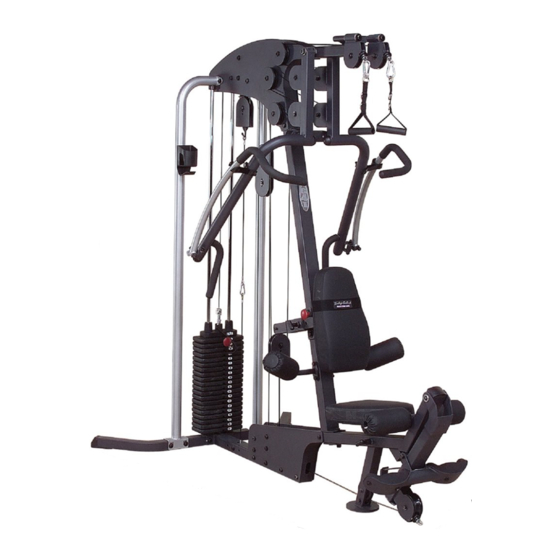

OWNER'S MANUAL
G4I.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the G4I and is the answer not in the manual?

Questions and answers

Related Manuals for Body Solid G4I

Summary of Contents for Body Solid G4I

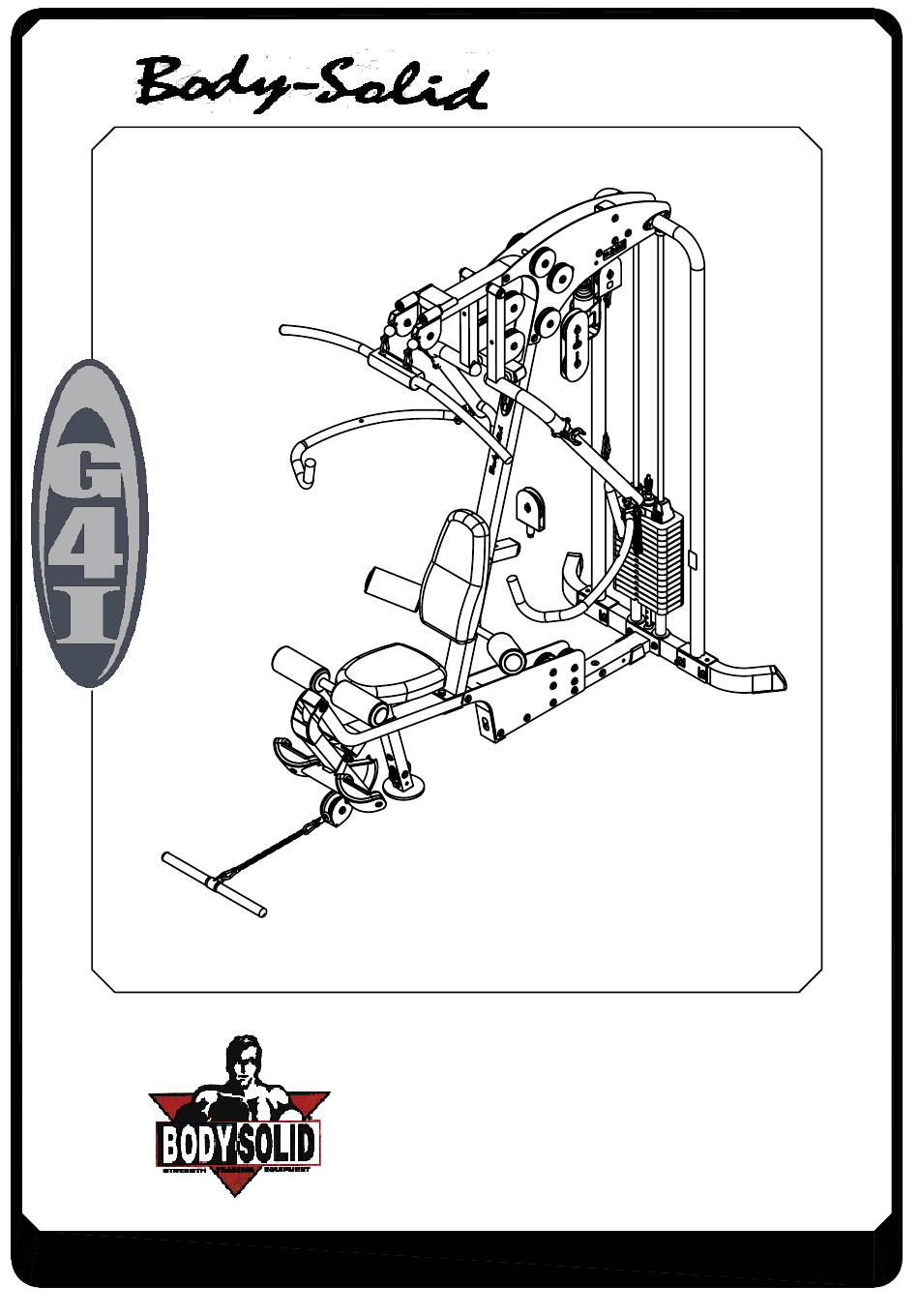

  • Page 1 BODY-SOLID,Inc. 1900 S. Des Plaines Ave. Forest Park, IL 60130 USA Phone:(708)427-3555 Fax:(708)427-3556 www.bodysolid.com OWNER'S MANUAL G4I.2...

  • Page 2: Hardware Illustration

    ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"X3"L PARTIAL THREAD QTY.1 (A2)HEX BOLT 1/2"X3 1/4"L PARTIAL THREAD QTY.5 (A3)HEX BOLT 1/2"X4"L PARTIAL THREAD QTY.2 (A5)HEX BOLT 3/8"X1 3/4"L PARTIAL THREAD QTY.8 (A6)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1 G4I.2-032005 Page...
  • Page 3 (A9)HEX BOLT 3/8"X3 3/4" PARTIAL THREAD QTY.8 (A10)HEX BOLT 3/8"X4" PARTIAL THREAD QTY.9 (A11)HEX BOLT 3/8"X4 1/4"L PARTIAL THREAD QTY.4 (A12)HEX BOLT 3/8"X6 1/2" PARTIAL THREAD QTY.3 (A13)HEX BOLT 5/16"X1 3/4"L PARTIAL THREAD QTY.4 (A14)ROUND ALLEN HEAD 5/16"X3/4"L PARTIAL THREAD QTY.4 G4I.2-032005 Page...
  • Page 4 (A15)ROUND INNER HEX SCREW M4X12L PARTIAL THREAD QTY.2 (A16)ROUND BOLT M10X30L PARTIAL THREAD QTY.1 (A17)ROUND BOLT M10X45L PARTIAL THREAD QTY.2 (A18)ROUND BOLT M10X80L PARTIAL THREAD QTY.2 (A19)10LB PIN (8250-071) QTY.1 (A20) 10 FIXED PIN(8250-023) QTY.1 (A21) ELASTIC BOLT QUT.1 G4I.2-032005 Page...
  • Page 5 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A22)23 STEEL CHAIN (8820-002) QTY.1 (A23)12 STEEL CHAIN (8820-008) QTY.2 (A24)FIRM SHEATH(8890-010) QTY.1 (A25)HEX BOLT 1/2"X1 1/2"L PARTIAL THREAD QTY.1 (A26)HEX BOLT 1/2"X5"L PARTIAL THREAD QTY.1 G4I.2-032005 Page...
  • Page 6 24 QTY.8 (B3)NYLON LOCK NUT M10 QTY.5 (C5)M10(I.D.)FLAT WASHER 19 QTY.4 (C6) M4(I.D.)FLAT WASHER 12 QTY.2 (B5)NUT 1/2"-13UNC QTY.1 (C7) 1/2"SPRING WASHER QTY.1 (C1)1/2"(I.D.)FLAT WASHER 25 QTY.16 (C8) 5/16"SPRING WASHER QTY.8 (C2)1/2"(I.D.)FLAT WASHER 34 QTY.6 (C9) 3/8"SPRING WASHER QTY.1 G4I.2-032005 Page...
  • Page 7 D22. FRAME LEVELER(9212-011)------------------------------------[1PCS] D23. 3"NYLON WASHER (9214-008)-------------------------------[2PCS] D24. 36 FASTENING HOLDER (9219-003)----------------[1PCS] D25. 36 FASTENING HOLDER (9219-004)----------------[1PCS] D26. 1"X2.5t ROUND END CAP (9260-021)-----------------------[6PCS] D27.38X38 RUBBER PAD (9310-001)---------------------------------[1PCS] D28. 2-1/2" RUBBER DOUNT (9310-010)--------------------------[2PCS] D29.38X50 RUBBER PAD (9310-028)---------------------------------[1PCS] D30.70X95 RUBBER PAD (9310-034)---------------------------------[1PCS] G4I.2-032005 Page...
  • Page 8 4"X23X8" FOAM ROLLER (9161-032)--------------[4PCS] D40.TOP PLATE (8400-006)------------------------------------[1PCS] D41.RUBBER DOUNT (9190-006)----------------------------[1PCS] D42.IMMOBILE BOARD (8388-025)-------------------------[1PCS] D43.KETTKE RACK (9260-086)-------------------------------[1PCS] D44. KETTKE (9260-107)---------------------------------------[1PCS] D45.WEIGHT SELECTOR BAR (8210-042A)-------------[1PCS] D46.6885mm STEEL CABLE----------------------------------[1PCS] D47.4475mm STEEL CABLE----------------------------------[1PCS] D48.2800mm STEEL CABLE----------------------------------[1PCS] D49.810mm STEEL CABLE------------------------------------[1PCS] D50.757mm STEEL CABLE------------------------------------[1PCS] G4I.2-032005 Page...
  • Page 9 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET B[1PCS] A2[1PCS] C[1PCS] N1[1PCS] E[1PCS] D[1PCS] G[1PCS] J[2PCS] I[1PCS] H[1PCS] K[1PCS] M[1PCS] R[1PCS] Q[1PCS] S[2PCS] Direction Direction O[1PCS] P[1PCS] G4I.2-032005 Page...

  • Page 10: Parts Illustration

    ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION T[1PCS] U[2PCS] Z[1PCS] V[1PCS] X1[1PCS] Y1[1PCS] AA[2PCS] AF[1PCS] AE[2PCS] AC[2PCS] AD[6PCS] AB[2PCS] 8313-071 9133-007 8360-049 8343-065 8343-069 AG[1PCS] AH[1PCS] AI[2PCS] AJ[1PCS] AK[1PCS] 8313-098 8343-110 9121-045 AL[1PCS] AM[1PCS] AN[1PCS] 9111-048 AP[1PCS] AO[1PCS] 8341-050 G4I.2-032005 Page...
  • Page 11 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed A8x2 C3x2 C1x4 B1x4 A2x4 B2x3 C1x4 C3x3 D28x2 C3x3 A10x3 G4I.2-032005 Page...
  • Page 12 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed B2x2 C3x2 C3x2 A11x2 B2x2 C3x2 C3x2 A10x2 C1x2 G4I.2-032005 Page...
  • Page 13 ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed D3x4 C3x4 A9x4 B2x4 C3x4 D8x2 M12 WASHER x2 M12X20L ROUND BOLT x2 M8X16L ROUND BOLT x2 M8 WASHER x2 BEARING x2 12X100L SHAFT G4I.2-032005 Page...
  • Page 14 C5x2 A18x2 12.7X54L AHAFT x2 D18x2 M10 WASHER 19 x4 M10X16L D26x2 ROUND BOLT x4 Ø12.7X54L SHAFT x2 M10 WASHER 19 x4 A11x2 A3x2 M10X16L ROUND BOLT x4 C3x2 C1x2 5/16"x3/4" BOLT C3x2 B2x2 C1x2 B1x2 D39x2 D12x2 G4I.2-032005 Page...
  • Page 15 ASSEMBLY INSTRUCTIONS 1 assembled Above shows STEP 5 assembled and completed 1 assembled D6x3 D5x3 A12x3 C3x3 D35x3 ADx3 ADx3 D35x3 C3x3 B2x3 G4I.2-032005 Page...
  • Page 16 ASSEMBLY INSTRUCTIONS Cable to constitute illustration Start by attaching the cable between the top side panels here Short Cable WEIGHT STACK CABLE Short Cable Attention : WEIGHT STACK CABLE M4 screw Selector Rod G4I.2-032005 10.1 Page...
  • Page 17 ASSEMBLY INSTRUCTIONS 1 assembled Above shows STEP 6 assembled and completed D35x4 C3x2 B3x2 A17x2 B2x4 Additional Constitute : C3x2 C3x4 A5x4 C3x4 A23x2 D10x2 D35x2 M10 WASHER M10X16L ROUND BOLT 2-032005 G4I. Page...
  • Page 18 ASSEMBLY INSTRUCTIONS Cable to constitute illustration Start by routing cable through the Pivoting Pulley Holder High Pulley cable G4I.2-032005 11.1 Page...
  • Page 19 ASSEMBLY INSTRUCTIONS 2 assembled Above shows STEP 7 assembled and completed A15x2 C6x2 D35x2 D3x4 A10x4 C3x4 C3x4 B2x4 G4I.2-032005 Page...
  • Page 20 ASSEMBLY INSTRUCTIONS Cable to constitute illustration Leg Extension cable Start here at leg Extension station by inserting the metal ball end here. G4I.2-032005 12.1 Page...
  • Page 21 ASSEMBLY INSTRUCTIONS Above shows STEP 8 assembled and completed C4x2 C8x2 A13x2 C4x2 C8x2 A13x2 C4x4 C8x4 A14x4 G4I.2-032005 Page...
  • Page 22 ASSEMBLY INSTRUCTIONS Attach this low pulley lock-down system to your G4I gym as shown below. When connected,the lock-down will keep your gym tight end secure for all low pulley exercises.When disconnected, it allows full 105 range of motion for leg extension and standing leg curl exercises.
