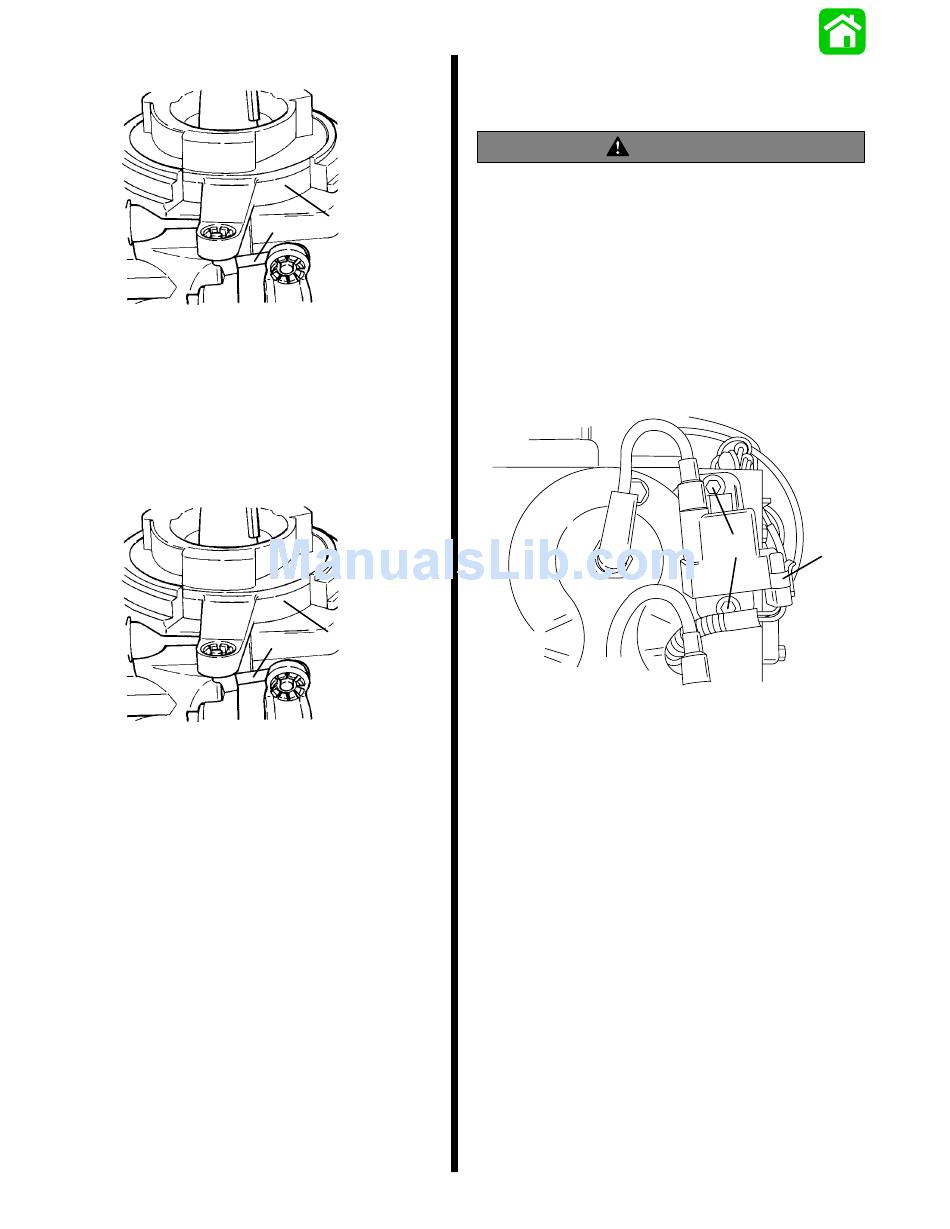

4. Disconnect link arm and remove trigger.
a - Link Arm
b - Trigger
5. Lift trigger off bearing cage.
INSTALLATION
1. Install trigger and connect link arm.
a - Link Arm
b - Trigger
2. Place trigger on bearing cage.
3. Route lead wires under ignition plate and down to
the CDM wire harness.
4. Connect corresponding trigger leads to CDM
wire harness.
5. Install stator. See "Installing Stator" in this sec-
tion.
6. Install flywheel. See "Installing Flywheel" in this
section.
7. Check engine timing. See "Engine Timing" in
Section 2C.
2A-24 - ELECTRICAL
b
a
19459
b
a
19459

CDM

REMOVAL
WARNING
Always disconnect battery and disconnect spark
plug leads from spark plugs before working on
motor.
1. Disconnect CDM wire harness plug.
2. Remove screws securing CDM to ignition plate.
INSTALLATION
1. Position CDM on ignition plate. Install screws,
torque to 60 lb. in. (6.8 N·m).
2. Connect CDM wire harness plug to CDM.
a - Wire Harness Plug
b - Screws
55042
b
a
