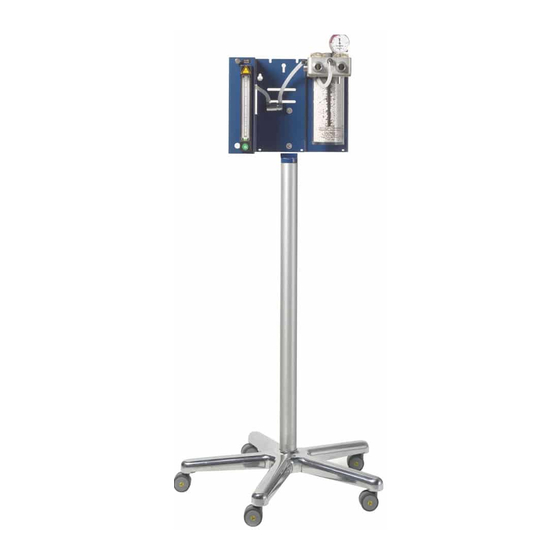

SurgiVet® Universal CDS 9000
Small Animal Anesthesia Machine
Operation Manual
- English
Catalog Number WW V1932
Version 0, January 2009
©
2009 Smiths Medical family of companies. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDS 9000 and is the answer not in the manual?

Questions and answers

ZUBAIDAH BINTI KAMARUDIN
May 9, 2025

Hi. What is the maximum weight of patient to use this type of machine?

User image 681d6d75d481d
1 comments:
Mr. Anderson
May 19, 2025

The maximum patient weight for using the Modified Jackson Rees (MJR) circuit with the Smiths Medical CDS 9000 is 7 kg (15 lbs).

This answer is automatically generated

Summary of Contents for Smiths Medical CDS 9000

  • Page 1 SurgiVet® Universal CDS 9000 Small Animal Anesthesia Machine Operation Manual - English Catalog Number WW V1932 Version 0, January 2009 © 2009 Smiths Medical family of companies. All rights reserved.
  • Page 3: Table Of Contents

    Daily Machine Checklist ..................................4-2 Cleaning and Disinfecting .................................4-3 Patient circuits, hoses, and breathing bags ........................4-3 Machine surfaces ..................................4-3 Absorber Canister ..................................4-3 Inhalation/Exhalation Valves ..............................4-3 Pop-off Valve Removal and Cleaning ...........................4-4 Flowmeter Removal and Cleaning ............................4-7 ® Surgivet CDS 9000 Operation Manual...
  • Page 4 Needle Valve Replacement ..............................4-11 Chapter 5: Troubleshooting ....................5-1 Troubleshooting Guide ..................................5-1 Chapter 6: Supplies and Accessories .................. 6-1 Chapter 7: Specifications ....................7-1 Performance Characteristics ................................7-1 Environment ......................................7-1 Physical ........................................7-1 Calibration .......................................7-1 ® Surgivet CDS 9000 Operation Manual...
  • Page 5 Table of Contents SurgiVet and the Smiths design mark are trademarks of the Smiths Medical family of companies. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners.
  • Page 6 Table of Contents This page is intentionally left blank. ® Surgivet CDS 9000 Operation Manual...
  • Page 7: Warranty And Service Information

    Information contained in this document is copyrighted by Smiths Medical PM, Inc. and may not be duplicated in full or part by any person without prior written approval of Smiths Medical PM, Inc. Its purpose is to provide the user with adequately detailed documentation to efficiently install, operate, maintain and order spare parts for the device supplied.
  • Page 8: Conditions Of Warranty

    Box and inserts should be in original condition. If original shipping material in good condition is not available, it should be purchased from Smiths Medical PM, Inc. Damages occurring in transit in other than original shipping containers are the responsibility of the shipper. All costs incurred returning devices for repair are the responsibility of the shipper.
  • Page 9: Chapter 1: Introduction

    If purchased before that date, they may also be sent for recycling if being replaced Collect separately on a one-for-one, like-for-like basis (this varies depending on the country). Recycling instructions to customers using Smiths Medical products are published on the internet at: http://www.smiths-medical.com/recycle Disposal (other countries) When disposing of this device, its batteries or any of its accessories, ensure that any negative impact on the environment is minimized.
  • Page 10: Warnings

    WARNING! The Universal F-circuit is a rebreathing circuit that should only be used with animals that weigh 7 kg (15 lbs) or greater. WARNING! The Modified Jackson Rees (MJR) is a non-rebreathing circuit that should only be used on animals that weigh 7 kg (15 lbs) or less. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 11: Cautions

    (when looking at the front of the machine). NOTE! A leak in the anesthesia machine may result if the threaded opening at the top of the absorber canister is not covered when filling with absorbent. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 12 Chapter 1: Introduction This page is intentionally left blank. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 13: Chapter 2: Description Of Controls And Features

    Chapter 2: Description of Controls and Features Intended Use ® The SurgiVet Universal CDS 9000 Anesthesia Machine (when used with a vaporizer) delivers anesthetic through a rebreathing or non-rebreathing system for small animal patients. Unpacking the Product and checking the shipment ®...
  • Page 14: Items Included With Wwv9010 Series

    Located on top of the machine behind the exhalation valve. The manometer has two functions: • Used during a pressure test of the anesthesia machine for leak detection. • Provides a visual measurement of the patient airway pressure. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 15 Universal F-Circuit Rebreathing circuit used for patients that weigh 7 kg (15 lbs) or more. Modified Jackson Rees (MJR) Circuit Non-rebreathing circuit used for patients that weigh less than 7 kg (15 lbs). ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 16 Chapter 2: Description of Controls and Features This page is intentionally left blank. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 17: Chapter 3: Machine Operation

    Assembly with Pole Mount Arm Vaporizer (Optional) V7115 Mayo Tray (Optional) 2” Aluminum Pole V7330 O E-Tank Regulator, Double Tank Holder (Regulator not shown) (Optional) Chrome Base with Casters Figure 3-1: Machine Set-up ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 18 The male end cap goes on the outlet of the vaporizer (right side when looking at the front of the vaporizer) and the female end cap goes on the inlet of the vaporizer (left side when looking at the front of the vaporizer). ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 19 CAUTION! Do not apply compressed gas to a machine that is unregulated. Using compressed gas delivered in excess of 65 psi may damage the flowmeter, plumbing and flush valve. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 20: Getting Started

    Attach the corrugated teal tube within the clear tube to the inhalation valve (left). Attach the short clear corrugated tube to the exhalation valve (right). Attach rebreathing bag to the bag port located underneath the exhalation valve. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 21: Attaching The Modified Jackson Rees (Mjr) Circuit

    ‘Thumb Slide Valve - Open/Closed’ . The Thumb Slide Valve located on the main housing acts as a Pop - Off valve. WARNING! The Thumb Slide Valve should be kept in the open position at all times unless you are giving the patient a manual breath. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 22: 32027B1 Manometer

    32405B16 Dome Cap O-Rings V7306 Pop-off Valve Assembly 32369B3 Flutter Disk 32813B1 Pop-Off Base O-Ring 32424B2 Seal Washer (Rubber side toward block) V7117 Flush Valve Assembly 32056B2 Female Endcap Figure 3.4: Machine Parts, View 1 ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 23 32813B2 Inlet/Outlet/Bag Port O-Ring 32056B1 Male Endcap 32813B2 Inlet/Outlet Bag Port O-Ring 32809B1 Absorber Inlet/ Outlet/Bag Port 32814B1 Absorber Gasket (New Style) 32817B1 #6-32 x ¼ Button Head Screw (18-8SS) Figure 3.5: Machine Parts, View 2 ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 24 Chapter 3: Machine Operation This page is intentionally left blank. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 25: Chapter 4: Routine Maintenance

    -1 to +48° C (30 to 120° F) Relative Humidity: 10-95%, non-condensing Periodic Inspection: None required. ® Special Procedures: Store the SurgiVet Universal CDS 9000 Anesthesia Machine in the original packing materials and shipping carton. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 26: Daily Machine Checklist

    Open pop-off valve and relieve pressure to 10 cm H O (centimeters of water). Dial in 300cc of oxygen on the flowmeter. Pressure should begin to rise slowly on the manometer. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 27: Cleaning And Disinfecting

    Ensure the disk completely covers the valve opening. Visually inspect the gaskets for signs of wear or curling. Clean all components with mild soap and water, dry completely. Replacement dome caps, flutter disks, and gaskets are available. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 28: Pop-Off Valve Removal And Cleaning

    Open the Pop-Off Valve to the fully open position (counterclockwise) and then turn 1/4 turn back (clockwise). Unscrew the top black portion of the Pop-off Valve and then unscrew the assembly from the body. (See Figure 4-3) ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 29 Test the sealing function of the Pop-off Valve by performing a Pressure Test. If the Pop-Off Valve leaks between the Chrome Body and the Black Base, the o-ring will need to be replaced. If o-ring needs to be replaced, proceed to steps 15 - 21. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 30 Position Pop-Off as desired and tighten the 3 set screws using a 5/64 inch Allen Wrench. Perform a pressure test to confirm that the o-ring is sealing properly. Contact Clinical Support if you have any questions. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 31: Flowmeter Removal And Cleaning

    Figure 4-10: Loosen Nut on top of Flowmeter While holding the Flowtube, use the 5/32 inch Allen wrench to loosen the nut on the very top of the flowmeter assembly. (See Figure 4-10) ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 32 NOTE! It may be necessary to clean flowtube with a plastic bristle brush or long Q-Tip. Pour alcohol out of tube and properly dispose of used alcohol. Allow Flowtube to dry for about 10 minutes. Clean ball with isopropyl alcohol. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 33 Replace plastic cover. Turn oxygen on. Test Flowmeter by turning it fully On and then fully Off gradually. If the ball continues to stick in the tube, repeat steps 1-16 or contact Clinical Support. ® Surgivet Universal CDS 9000 Operation Manual...
  • Page 34: Minor Repairs

    Once ball is resting on the stop, put knob back onto needle valve. Push on fully and turn knob until it contacts the stopper. (See Figure 4-19) Stoppers Figure 4-19: Put Knob Back Onto Needle Valve ® 4-10 Surgivet Universal CDS 9000 Operation Manual...
  • Page 35: Needle Valve Replacement

    Turn oxygen supply to the anesthesia machine ON and check the flowmeter for proper function. CAUTION! When the ball is resting on the bottom of the stop in the flow tube, the flowmeter is OFF. There is no need to tighten any more. ® Surgivet Universal CDS 9000 Operation Manual 4-11...
  • Page 36 Chapter 4: Routine Maintenance This page is intentionally left blank. ® 4-12 Surgivet Universal CDS 9000 Operation Manual...
  • Page 37: Chapter 5: Troubleshooting

    Leak in anesthesia machine. Perform Pressure Test on Daily Machine inflate. checklist. Too much draw or vacuum coming Decrease the amount of draw or vacuum from Active Waste Gas Scavenger for Active Waste Gas Scavenger. ® SurgiVet Universal CDS 9000 Operation Manual...
  • Page 38 Flush Valve is defective. Check and replace Flush Valve if necessary. ® If the SurgiVet CDS 9000 Anesthesia Machine is still not functioning properly, contact Veterinary Clinical Support for help. Smiths Medical PM, Inc. Telephone: 1-262-513-8500 Attn: Repairs Toll-Free: 1-888-745-6562 (USA only)
  • Page 39: Chapter 6: Supplies And Accessories

    Flush Valve Assembly 32413B2 Needle Valve with Knob, O NOTE! Warranties are subject to change, please contact Smiths Medical PM, Inc. for current warranty information. For ordering information, contact Veterinary Clinical Support at the address or phone number below. Smiths Medical PM, Inc.
  • Page 40 Chapter 6: Supplies and Accessories This page is intentionally left blank. ® SurgiVet Universal CDS 9000 Operation Manual...
  • Page 41: Chapter 7: Specifications

    36.8 cm (14.5 in) Depth: 66 cm (26 in) 26.7 cm (10.5 in) Width: 66 cm (26 in) 36.2 cm (14.25 in) Weight: 10.4 kg (23 lbs) 6.8 kg (15 lbs) Calibration Daily pressure test recommended. ® SurgiVet Universal CDS 9000 Operation Manual...
  • Page 42 Chapter 7: Specifications This page is intentionally left blank. ® SurgiVet Universal CDS 9000 Operation Manual...
  • Page 44 Manufactured By Smiths Medical PM, Inc. N7W22025 Johnson Drive Waukesha, WI 53186-1856 USA www.surgivet.com...
