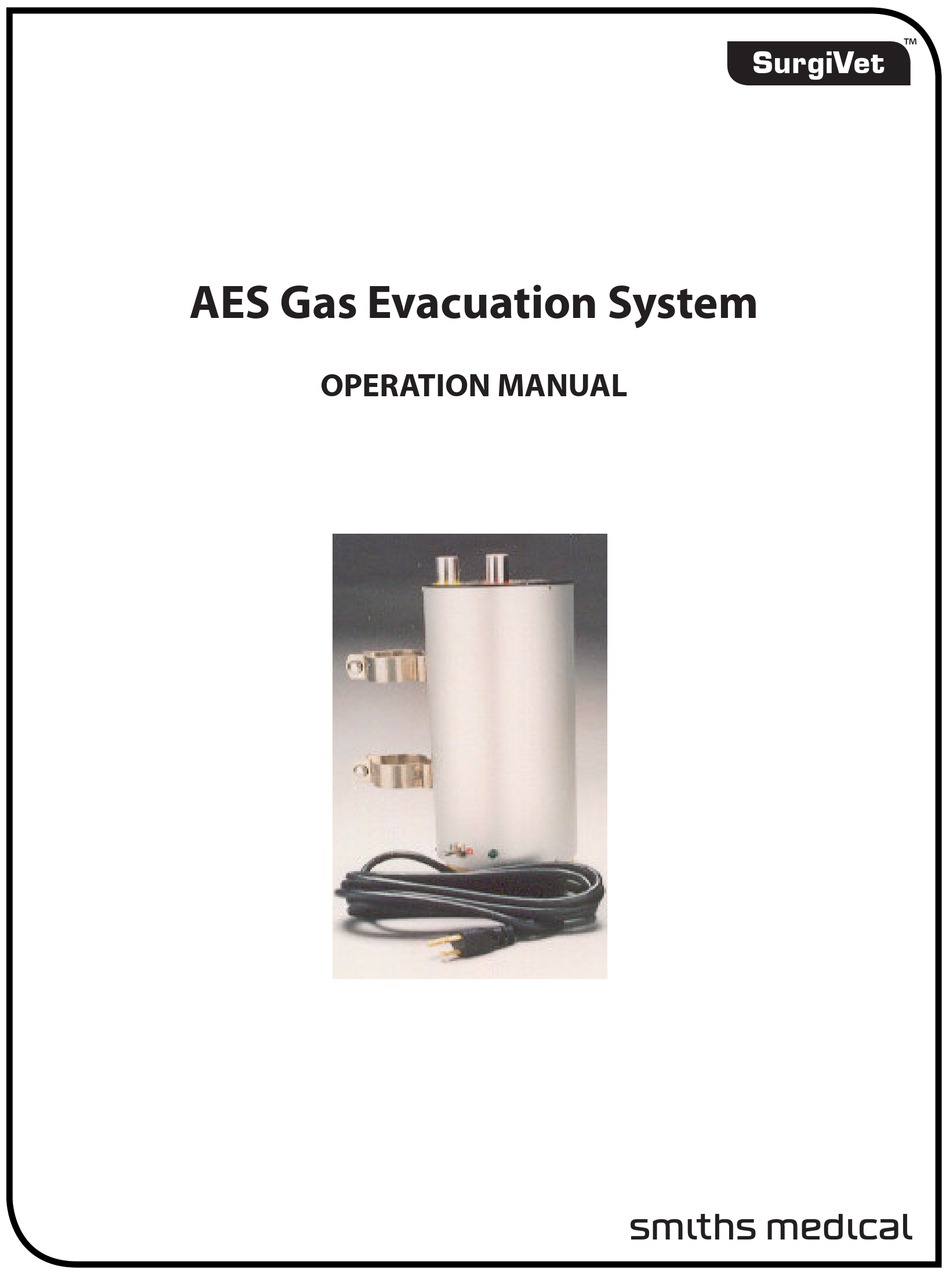

- Page 1 AES Gas Evacuation System OPERATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents AES Gas Evacuation System ....................................1 Set-Up Instructions ......................................1 AES Installation Guide ......................................1 Mounting the Evacuation System ..................................2 AES Installation ......................................... 4 WARRANTY ..........................................5... -
Page 3: Aes Gas Evacuation System
NOTE: Fuse (0.5 amp 250 volt fuse) can be purchased at most hardware or electronics stores. If you have any questions when setting up the AES please call: Smiths Medical ASD, Inc. St. Paul, MN 55112 USA 1 800.258.5361 (USA) 1 214.618.0218... -
Page 4: Mounting The Evacuation System
Mounting the Evacuation System Maximum distance between AES and outside wall,150 feet. AES includes: 18 in. Hose 19mm Diameter 10 ft. Hose 17mm Diameter 1/2 in. PVC Adapter Maximum distance between anesthesia machine and Active Gas Evac. System, 20 feet. - Page 5 Evacuation Ceiling Plate Assembly Kit, PN V7166...
-
Page 6: Aes Installation
AES Installation D. Vent to the outside wall. 1/2” PVC Cover with V7166 mesh screen 19mm Tubing Anesthesia Machine E. Vent through the bathroom stack Bathroom Stack 1/2” PVC Seal with silicone caulk V7166 19mm Tubing Anesthesia Machine... -
Page 7: Warranty
WARRANTY Limited Warranty Smiths Medical (Seller) warrants to the original purchaser that the Products, not including accessories, shall be free from defects in materials and workmanship under normal use, if maintained by Seller and in accordance with Seller’s guidelines, and used in accordance with its labeling, for the period specified in the Operator’s Manual, the package inserts or other documentation packaged with the Product. - Page 8 1 214.618.0218 www.smiths-medical.com SurgiVet and the Smiths Medical design marks are trademarks of Smiths Medical. The symbol ® indicates the trademark is registered in the U.S. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners.
