Assa Abloy TCPWI1 Installation Instructions Manual page 19

ML20700 PWI/PIP Series Mortise Lock

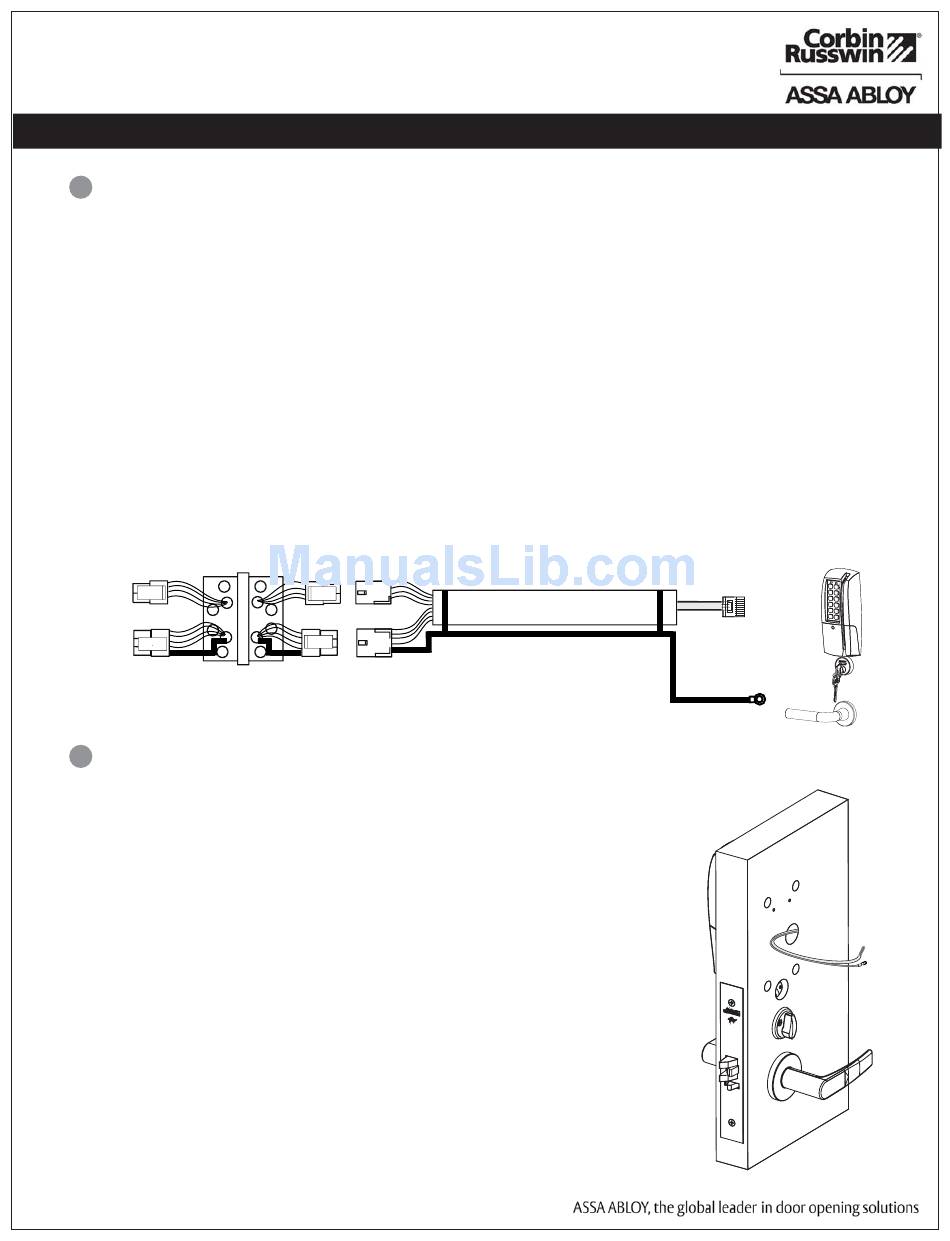

PoE Door Harness
C
Order of installation may vary. Refer to appropriate sections for instructions.
Hinge-side harness connectors:
• 4-pin male Molex connector
• 6-pin male Molex connector with ground wire
Lock-side harness connectors:
• Ring terminal
• Male RJ45 connector (crimped after cable is fed through door)
Notes:
• Connectors go on only one way. They cannot be plugged to incorrect position.
• Do not force and do not offset connectors.
• Be sure they are completely seated (flush).
4-pin F
6-pin F
PoE Lock
D
Order of installation may vary. Refer to appropriate sections for instructions.
1. Prop door open.
2. Using the ring terminal, carefully route the assembly through the door
channel toward lock.
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
6) PIP (PoE) Wiring & Installation (Continued)
PoE Hinge
4-pin F 4-pin M
6-pin F 6-pin M
PoE Door Harness
Drain Wire Cable
: CAT 5e,
26 AWG stranded,
100ohm
19
PoE Lock
RJ45-M
PoE harness
