Installation Instructions
ALP Trim
8200 Mortise Locks
1 - Mortise Lock Handing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2 - Mortise Lock Function Changing Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3 - Mortise Lock Door Preparation & Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4 - ALP Trim Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 - Turn-Piece Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
6 - Coin-Turn Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
QR Codes
To view the QR Code video clips within this document, download a free mobile app and scan the QR Code with your mobile device .
The complete video for Changing Lock Handing can be viewed on YouTube: https://youtu .be/3alaDlEST1k
The complete video for Changing Lock Functions can be viewed on YouTube: https://youtu .be/M_B9fDqIvQY
1-800-727-5477 • www.sargentlock.com
Copyright © 2017, 2024, SARGENT Manufacturing Company. All rights reserved. Reproduction in whole or in part without the express
written permission of SARGENT Manufacturing Company is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
A8053 06/24 Rev 5
Cover Screws
Insert Screws
Insert
Surface Mount Screws
Cover
Paddle
Inside
Mounting
Axle
Paddle
Post Screws
Chassis

Table of Contents

Surface Mount Screws
Axle
Insert
Outside Paddle Chassis
Paddle
Mounting Posts
Insert Screws
Cover Screws
Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SARGENT ALP Trim 8200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Assa Abloy SARGENT ALP Trim 8200

  • Page 1: Table Of Contents

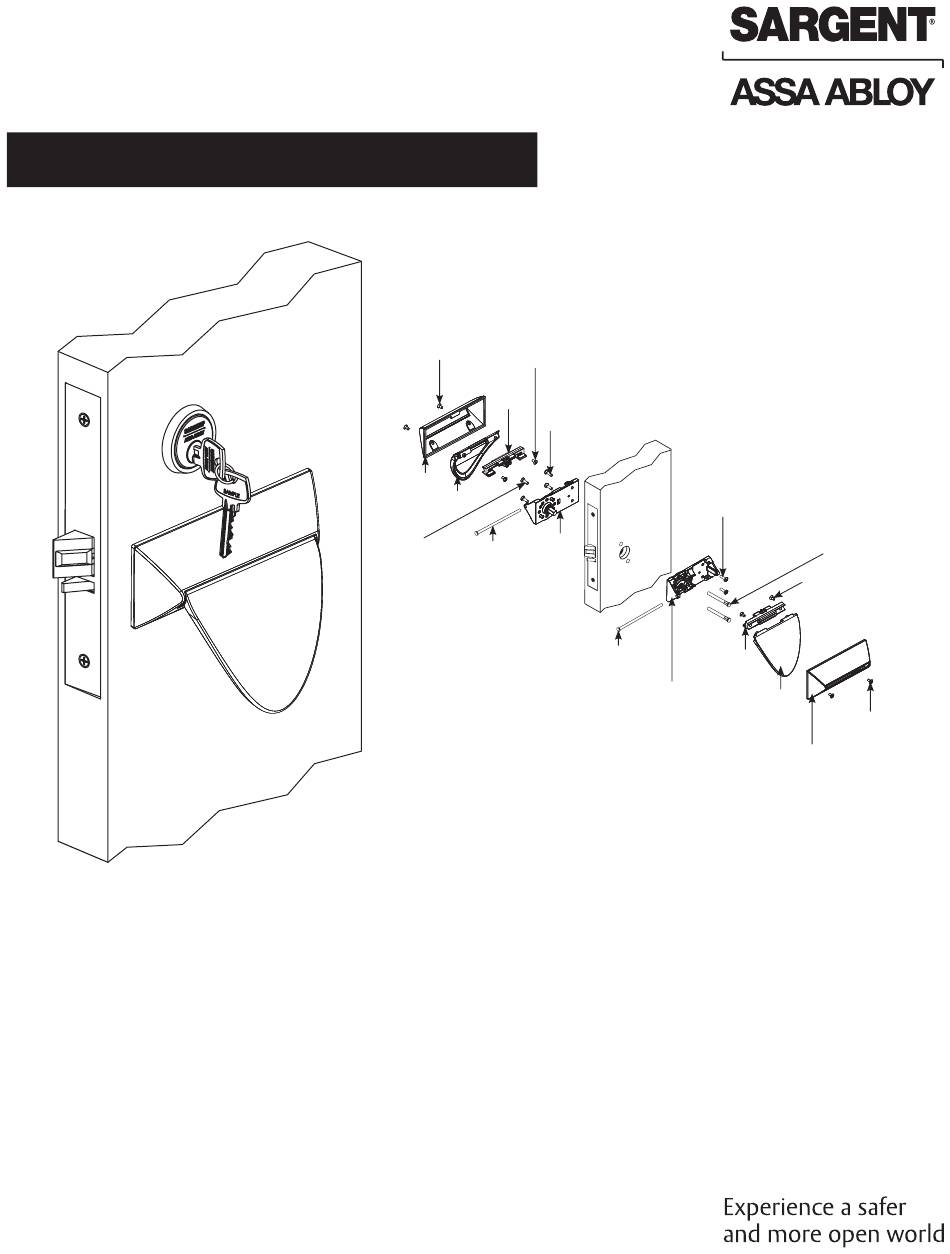

    Installation Instructions ALP Trim 8200 Mortise Locks Cover Screws Insert Screws Insert Surface Mount Screws Cover Paddle Surface Mount Screws Mounting Posts Inside Mounting Axle Paddle Post Screws Chassis Insert Screws Axle Insert Outside Paddle Chassis Paddle Cover Screws Cover Table of Contents 1 - Mortise Lock Handing Instructions .
  • Page 2: Mortise Lock Handing Instructions

    ALP Trim 8200 Mortise Locks Installation Instructions 1 - Mortise Lock Handing Instructions NOTE: RED SURFACE OF LOCKING PIECE MUST FACE SECURE SIDE OF DOOR . To rotate locking piece: 1 . Position lockbody with red surface of locking piece visible . 2 .
  • Page 3: Mortise Lock Function Changing Instructions

    ALP Trim 8200 Mortise Locks Installation Instructions 2 - Mortise Lock Function Changing Instructions Green Catch Screw How to change function of lock: Keep door open during installation . Green catch screw must be located in following three (3) locations as designated on lock case to create desired function: 1 .
  • Page 4: Mortise Lock Door Preparation & Installation

    ALP Trim 8200 Mortise Locks Installation Instructions 3 - Mortise Lock Door Preparation & Installation Important: Be sure to hand the lockbody before installing . See 2 . TURN-PIECE FUNCTIONS ONLY: Insert turn-piece door marker Section 1 . spindle into lockbody on inside of door . NOTE: USE BLADE SIDE OF DOOR MARKER SPINDLE.
  • Page 5 ALP Trim 8200 Mortise Locks Installation Instructions 3 - Mortise Lock Door Preparation & Installation NOTE: THE THRU-BOLT PLATE IS INSTALLED INSIDE THE DOOR 8 . Remove lockbody from door . POCKET. 9 . TURN-PIECE FUNCTIONS ONLY: Drill one middle hole ( .290") and two outer holes (3/8") halfway through door .
  • Page 6: Alp Trim Installation

    ALP Trim 8200 Mortise Locks Installation Instructions 4 - ALP Trim Installation Strike Lip 1 . Install strike using 3/4" strike mounting screws . Figure 10 NOTE: STRIKE MUST BE ORIENTED WITH STRIKE LIP TOWARDS PULL SIDE OF DOOR. (FIGURE 10) 2 .
  • Page 7 ALP Trim 8200 Mortise Locks Installation Instructions 4 - ALP Trim Installation NOTE: Chassis is packed with cover and paddle attached . If necessary, remove prior to starting step 5 . 5 . Choose orientation of trim . Trim can be mounted vertically or horizontally . (Figure 14) Figure 14 Vertical Orientation Horizontal Orientation...
  • Page 8 ALP Trim 8200 Mortise Locks Installation Instructions 4 - ALP Trim Installation NOTE: If retrofit plate is required, refer to instructions supplied with retrofit kit . 6 . Install chassis . (Figure 16) Vertical y Through-bolt two (2) chassis’ to each other in Mounting orientation determined in step 5 .
  • Page 9 ALP Trim 8200 Mortise Locks Installation Instructions 4 - ALP Trim Installation 7 . Determine paddle orientation . y Paddle has three (3) potential orientations: VERTICAL HORIZONTAL-UP HORIZONTAL-DOWN y Insert is attached to paddle using two (2) #8-32 x 5/16" machine screws - VC-3 coated . If trim is mounted VERTICAL and end of paddle will point towards HINGE, attach insert to paddle in Figure 18...
  • Page 10 ALP Trim 8200 Mortise Locks Installation Instructions 4 - ALP Trim Installation 8 . Install chassis . (Figure 16) y Attach paddle to chassis in desired orientation by inserting axle through pivot hole . (Figure 21) Figure 21 9 . Install covers . y Position cover over paddle .
  • Page 11: Turn-Piece Installation

    ALP Trim 8200 Mortise Locks Installation Instructions 5 - Turn-Piece Installation 1 . Install turn-piece loosely using two (2) turnpiece mounting screws . (Figure 24) NOTE: MAKE SURE LOCK IS UNLOCKED AND TURN-PIECE IS ROTATED AWAY FROM LATCH . (FIGURE 25) 2 .
  • Page 12 WARNING This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm . For more information go to www .P65warnings .ca .gov . WARNING Attention Installer: Improper installation may result in damage to the product and void the factory warranty .
