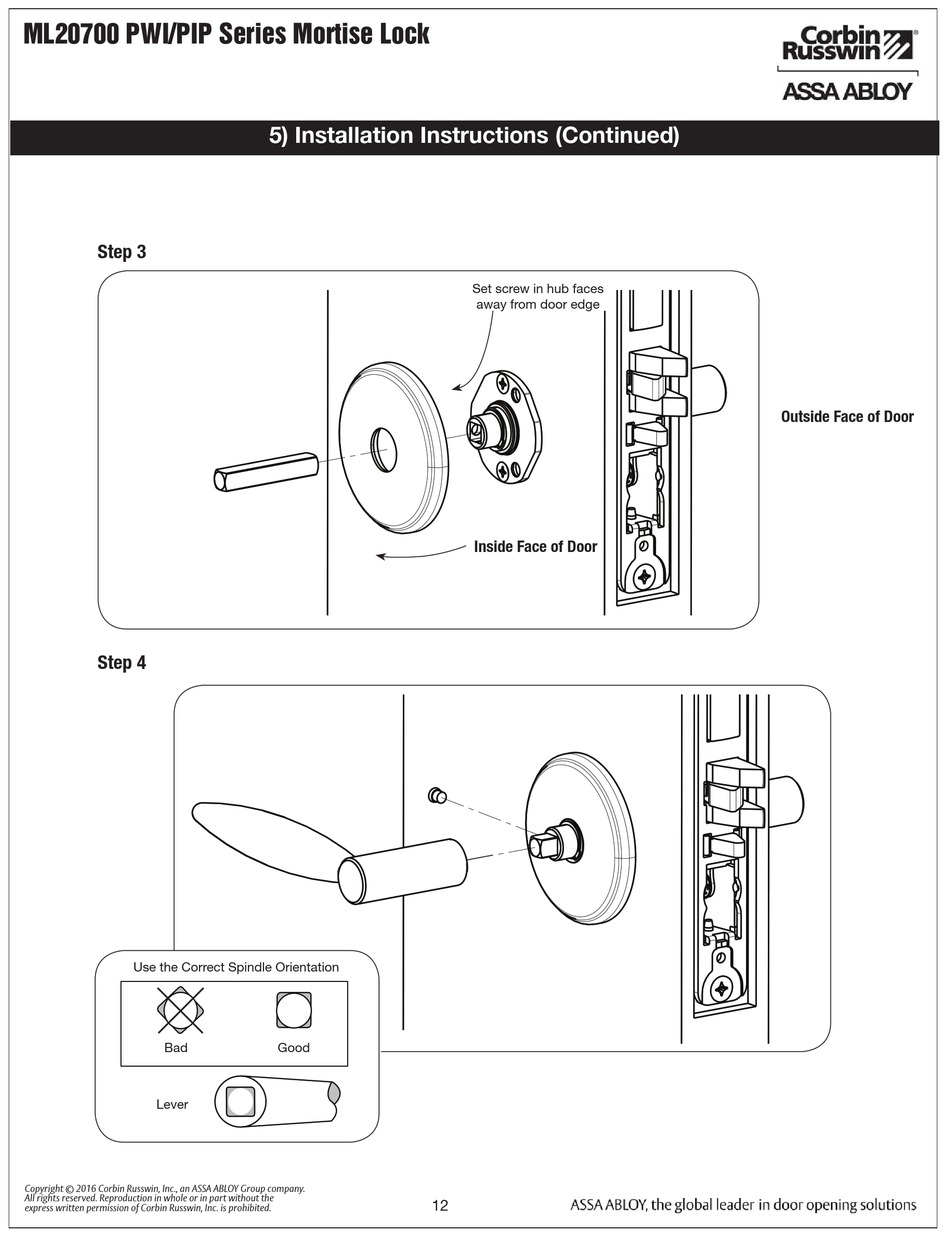

ML20700 PWI/PIP Series Mortise Lock
Step 3
Step 4
Use the Correct Spindle Orientation
STANDARD
Bad
Lever
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
MUSÉO
Good
12
Set screw in hub faces
away from door edge
Inside Face of Door
Outside Face of Door
