Assa Abloy TCPWI1 Installation Instructions Manual page 18

ML20700 PWI/PIP Series Mortise Lock
Frame Harness Installation
A
Supplied by CI
B-Splice
Crimp Connector
RJ45-M
Ceiling
24AWG
Stranded
Drain
Wire for
Earth
Ground in
15' Frame
Harness
Frame-Side
Harness
Assembly
(15' length)
Cable
drain wire
concealed
in shrink
tubing
Molex-M
PoE Data Hinge
B
Frame
4-pin M
6-pin M
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.

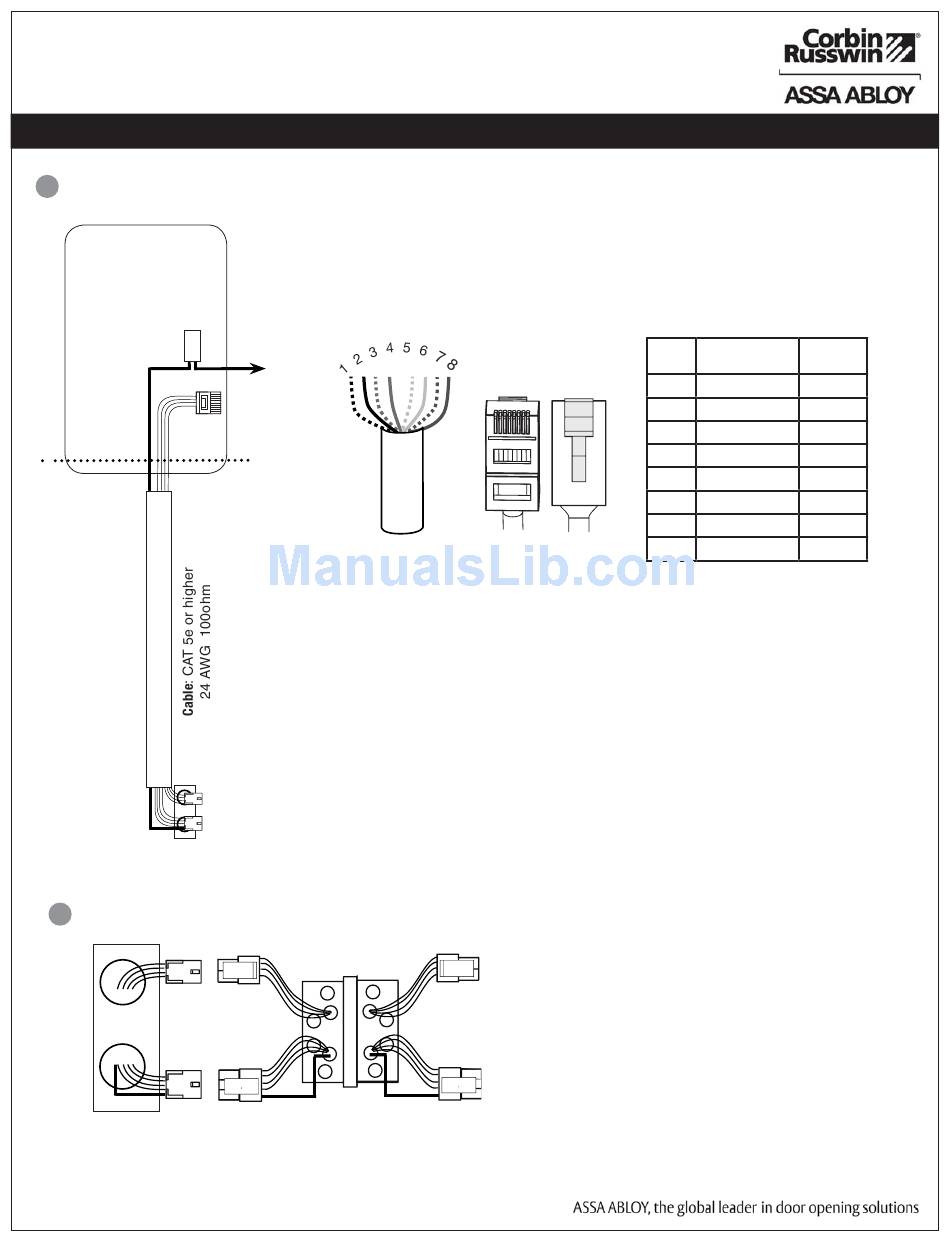

6) PIP (PoE) Wiring & Installation (Continued)
Components and wire harness supplied by McKinney. Suggested installation:
Cut end / ceiling-side PoE harness:
Do not confuse pair numbers with pin numbers. A pair number is
used for reference only (eg: 10BaseT Ethernet uses pairs 2 & 3). The
pin numbers indicate actual physical locations on the plug and jack.
Hinge side of PoE (Frame) harness:
1. Feed cut end of harness into hole on hinge-side through single access hole.
2. Push one connector back through the hole and feed into the other access hole.
Each of the hinge-side harness connectors should end up threaded through
a different access hole and matched to the same size pin connector from
the door harness:
• 4-pin male molex connector
• 6-pin male molex connector with ground wire
4-pin F
PoE Hinge
6-pin F
TIA/EIA 568-B Standard Wiring
pin pin
1 8
8 1
4-pin F
Hinge-side harness connectors:
• 4-pin female molex connector
• 6-pin female molex connector with ground wire
Lock-side harness connectors:
• 4-pin female molex connector
• 6-pin female molex connector with ground wire
6-pin F
18
PIN Wire Pair
Number
1 White/Orange 2
2 Orange 2
3 White/Green 3
4 Blue 1
5 White/Blue 1
6 Green 3
7 White/Brown 4
8 Brown 4
