ML20700 PWI/PIP Series Mortise Lock
7.

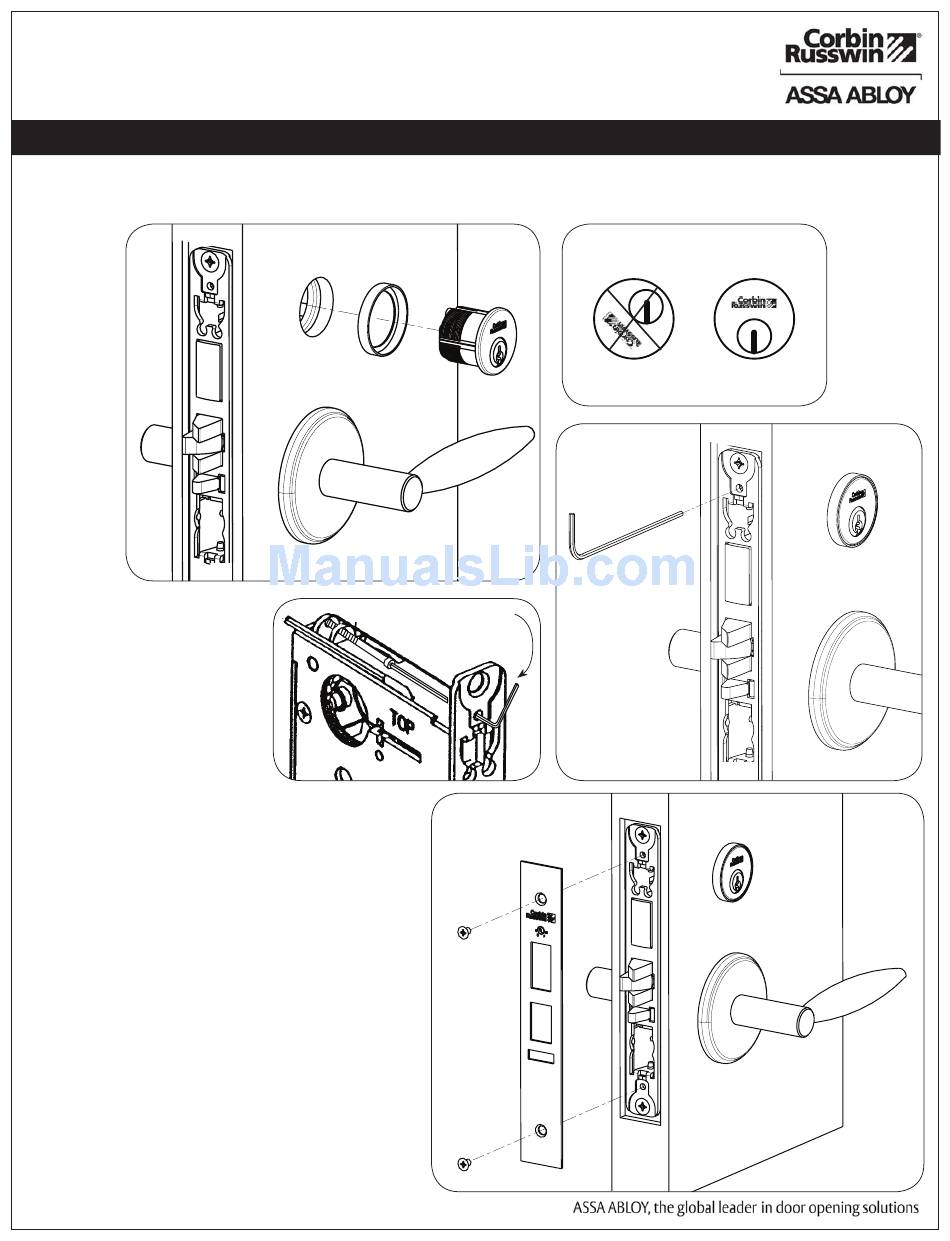

Install Cylinder and Scalp:
Step 1
Step 2
Copyright © 2016 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the
express written permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
7/64" Allen Wrench
Step 3
13
Key and cylinder
must be rotated.
Incorrect
Correct
