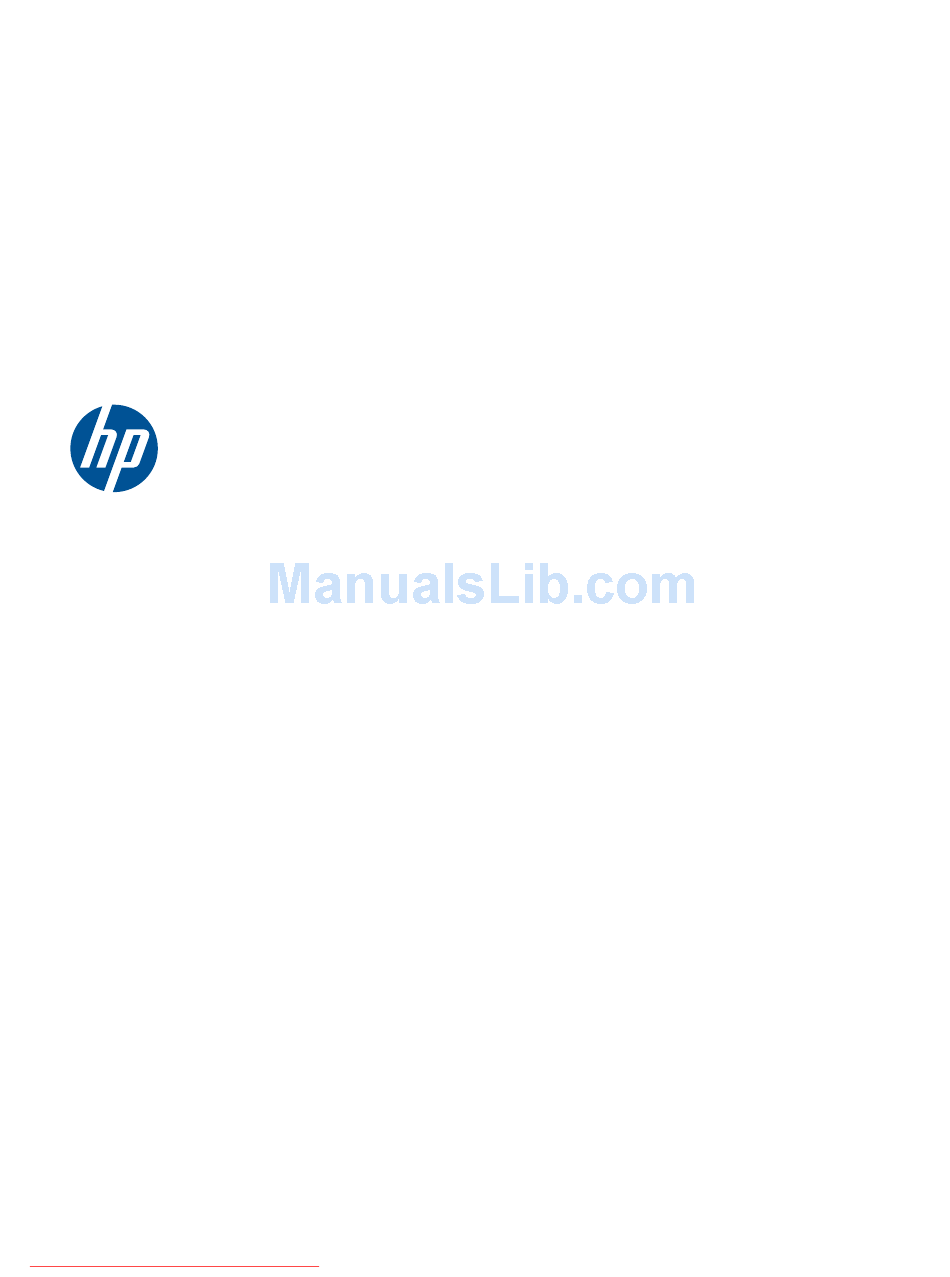

HP ProBook 6360b Notebook PC
Maintenance and Service Guide
Downloaded from LpManual.com Manuals

Advertisement

Table of Contents
loading

Related Manuals for HP ProBook 6360b

Summary of Contents for HP ProBook 6360b

  • Page 1 HP ProBook 6360b Notebook PC Maintenance and Service Guide Downloaded from LpManual.com Manuals...
  • Page 2 SD Logo is a trademark of its proprietor. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3 Safety warning notice WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow.
  • Page 4 Safety warning notice Downloaded from LpManual.com Manuals...

  • Page 5: Table Of Contents

    Table of contents 1 Product description ......................1 2 External component identification ..................8 Display ........................... 8 Top components ........................10 Pointing devices (select models only) ................. 10 Lights ........................11 Buttons, switches, and fingerprint reader ..............12 Keys ........................14 Front components ........................
  • Page 6 Plastic parts ..................... 43 Cables and connectors ................44 Drive handling ..................44 Grounding guidelines ....................45 Electrostatic discharge damage ..............45 Packaging and transporting guidelines ........46 Workstation guidelines .............. 46 Equipment guidelines ..............47 Component replacement procedures ..................48 Service tag ......................
  • Page 7 Using Computer Setup ......................109 Navigating and selecting in Computer Setup ............109 Restoring factory settings in Computer Setup ............. 110 Computer Setup menus ......................111 File menu ......................111 Security menu ....................... 112 System Configuration menu ..................113 6 Specifications ....................... 117 Computer specifications ......................
  • Page 8 9 Recycling ........................138 Battery ..........................138 Display ..........................138 Index ..........................144 viii Downloaded from LpManual.com Manuals...

  • Page 9: Product Description

    Product description Category Description Product Name HP ProBook 6360b Notebook PC Processors Intel® Core™ i7 processor, Dual Core 2nd Generation Intel Core i7-2620M, 2.70GHz (Turbo up to 3.40GHz) 4MB L3 Cache, 4 threads Intel Core i5 processors, Dual Core 2nd Generation Intel Core i5-2540M, 2.60-GHz (Turbo up to 3.30) processor 3-MB L3 cache, 4 threads 2nd Generation Intel Core i5-2520M, 2.50-GHz (Turbo up to 3.20)
  • Page 10 ● 250-GB, 7200-rpm Supports the following solid-state drives: ● 160-GB ● 128-GB HP Mobile Data Protection System 3D Upgrade bay Fixed (removal of 1 screw required) Customer-accessible Serial ATA 12.7-mm tray load Supports “No Drive” option (weight saver) Chapter 1 Product description...
  • Page 11 Category Description Supports the following 12.7-mm SATA optical drives: ● DVD±RW SuperMulti DL LightScribe Drive ● Blu-ray ROM DVD±RW SuperMulti DL LightScribe Drive ● DVD-ROM Drive Supports the following 9.5-mm SATA hard drive: ● 500-GB, 7200-rpm Microphone Webcam: Integrated dual-array microphone Non-Webcam: Integrated mono microphone Audio HD audio...
  • Page 12 1394a 3-pin AC power Docking connector Docking HP 90W Docking Station HP 120W Advanced Docking Station Keyboard/pointing devices Full-size keyboard Supports TouchPad only or dual point (pointing stick and TouchPad) Spill-resistant design, HP DuraKeys Three launch buttons (QuickWeb, WLAN on/off, and Mute)
  • Page 13 3-cell, 2.80-Ah (31-Wh) Li-ion battery Supports ST09 Extended Life Notebook Battery Supports BB09 Ultra Extended Life Notebook Battery Support for 6-cell, 2.80-Ah (62-Wh) battery HP Fast Charge Technology (does NOT support 9-cell, 3.00-Ah (100-Wh) Li-ion battery) Security Integrated fingerprint reader...
  • Page 14 Category Description Windows 7 Professional 32 with Microsoft Office 2010 pre-loaded (purchase of a Product Key required to activate a full Office 2010 suite) Windows 7 Home Premium 64 with Microsoft Office 2010 Professional Windows 7 Home Premium 64 with Microsoft Office 2010 Home & Business Windows 7 Home Premium 64 with Microsoft Office 2010 Personal Windows 7 Home Premium 64 with Microsoft Office 2010 pre-loaded...
  • Page 15 Category Description Windows Vista 32/64 Business Windows 7 Enterprise 32/64 (SP1) Windows 7 Ultimate 32/64 (SP1) Certified: Novell™: SuSE Linux™ Enterprise Desktop Serviceability Customer service replaceable parts: AC adapter Battery (system) Hard drive/SSD Memory module Optical drive Mini-PCI components (WLAN, WWAN, Bluetooth, Flashcache, SIM) Downloaded from LpManual.com Manuals...

  • Page 16: External Component Identification

    External component identification Display Component Description Internal display switch Turns off the display or initiates Sleep if the display is closed while the power is on. NOTE: The display switch is not visible from the outside of the computer. WLAN antennas (2)* Send and receive wireless signals to communicate with wireless local area networks (WLAN).
  • Page 17 Webcam (select models only) Records video and captures still photographs. To use the webcam, select Start > All Programs > HP > HP Webcam. *The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

  • Page 18: Top Components

    Top components Pointing devices (select models only) Component Description Pointing stick Moves the pointer and selects or activates items on the screen. Left pointing stick button Can be used with the pointing stick and functions like the left button on an external mouse. TouchPad on/off button Turns the TouchPad on and off.

  • Page 19: Lights

    On: The computer is on. ● Off: The computer is off or in Hibernation. NOTE: For more information, refer to “HP QuickWeb” in this guide and to the HP Quickweb software Help ● Mute light Amber: Computer sound is off.

  • Page 20: Buttons, Switches, And Fingerprint Reader

    Windows Vista—Select Start > Control Panel > System and Maintenance > Power Options ● Or refer to the HP Notebook Reference Guide. Wireless button Turns the wireless feature on or off but does not establish a wireless connection. Chapter 2 External component identification...
  • Page 21 Web browser. NOTE: For more information, refer to “HP QuickWeb” in this guide and to the HP QuickWeb software Help. If your computer does not have HP QuickWeb software, the button does not perform any action or function.

  • Page 22: Keys

    Keys Component Description Displays system information when pressed in combination with the key. Function keys Execute frequently used system functions when pressed in combination with the key. Turns the embedded numeric keypad on and off when pressed in combination with the num lk key.

  • Page 23: Front Components

    ● Drive light Blinking turquoise: The hard drive or optical drive is being accessed. ● Amber: HP 3D DriveGuard has temporarily parked the hard drive. Front components Downloaded from LpManual.com Manuals...

  • Page 24: Left-Side Components

    Component Description Speakers (2) Produce SRS Premium Sound. NOTE: To use the SRS Premium Sound software, select Start > All Programs > SRS Premium Sound. Media Card Reader Supports the following optional digital card formats: ● MultiMediaCard ● Secure Digital (SD) Memory Card Left-side components Component Description...

  • Page 25: Rear Components

    Rear components The vent enables airflow to cool internal components. NOTE: The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation. Component Description Vent Enables airflow to cool internal components.
  • Page 26 Component Description RJ-11 (modem) jack Connects a modem cable. Power connector Connects an AC adapter. Chapter 2 External component identification Downloaded from LpManual.com Manuals...

  • Page 27: Bottom Components

    Holds the battery. Accessory battery connector Connects an optional accessory battery. Wireless and memory module compartments and Hold an HP Mobile Broadband Module, the memory modules, and hard drive bay the hard drive. NOTE: To prevent an unresponsive system, replace the wireless...

  • Page 28: Wireless Antennas (Select Models Only)

    Component Description Bluetooth compartment Contains a Bluetooth device. Vents (2) Enable airflow to cool internal components. NOTE: The computer fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation. Wireless antennas (select models only) The antennas send and receive signals from one or more wireless devices.

  • Page 29: Illustrated Parts Catalog

    Illustrated parts catalog Service tag When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag. ● Product name (1). This is the product name affixed to the front of the computer. ●...

  • Page 30: Computer Major Components

    Computer major components Chapter 3 Illustrated parts catalog Downloaded from LpManual.com Manuals...
  • Page 31 Item Description Spare part number Display assembly (includes 2 WLAN antenna transceivers and cables and 2 WWAN antenna transceivers and cables (select models only)) ● 33.8-cm (13.3-in) HD AntiGlare LED SVA (1366x768) for use in computers without a 650164-001 webcam ●...
  • Page 32 Item Description Spare part number For use in Spain 639477-071 For use in Sweden 639477-B71 For use in Switzerland 639477-BG1 For use in Taiwan 639477-AB1 For use in Thailand 639477-281 For use in Turkey 639477-141 For use in the United Kingdom 639477-031 For use in the United States 639477-001...
  • Page 33 Item Description Spare part number For use in Sweden 639478-B71 For use in Switzerland 639478-BG1 For use in Taiwan 639478-AB1 For use in Thailand 639478-281 For use in Turkey 639478-141 For use in the United Kingdom 639478-031 For use in the United States 639478-001 Top cover (includes TouchPad button and bracket) Top cover includes fingerprint reader and TouchPad (2 button)
  • Page 34 Item Description Spare part number Intel Wi-Fi Link 6205, 802.11a/b/g/n for use in Andorra, Antigua and Barbuda, 631954-001 Argentina, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium, Bermuda, Bolivia, Bosnia and Herzegovina, Brazil, Brunei, Bulgaria, Canada, Cayman Islands, Chile, the People's Republic of China, Colombia, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Dominican Republic, Ecuador, Egypt, El Salvador, Estonia, Finland, France, French Guiana, Georgia, Germany, Ghana, Greece, Guadeloupe, Guam, Guatemala, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel,...
  • Page 35 Item Description Spare part number Broadcom 4322 AGN 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, 582564-002 Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,...
  • Page 36 Speaker assembly 639484-001 (15) Battery 9-cell Li-ion battery 100-Wh battery 631243-001 6-cell Li-ion battery 62-Wh battery 628668-001 55-Wh HP Long Life battery 628670-001 55-Wh battery 628666-001 3-cell Li-ion battery 31-Wh battery 628664-001 (16) Base enclosure (includes rubber feet) 639468-001 (17)
  • Page 37 Bluetooth module cable is included in the Cable Kit, spare part number 639473-001. See Cable Kit on page 32 for more Cable Kit spare part number information. HP F5521 Broadband Module (WWAN) (not illustrated) 632155-001 Fingerprint reader board (not illustrated; includes fingerprint reader board cable) 651913-001 Cable Kit (not illustrated;...

  • Page 38: Display Components

    Display components Item Description Spare part number Display bezel For use with computer models with a webcam 639469-001 For use with computer models without a webcam 639470-001 Webcam module 641735-001 Display hinges (Hinge kit includes left and right hinges, brackets, and covers) 639476-001 Display cable kit includes LCD cable, LCD cable (system board to color mapping board), LCD cable (color mapping board to panel)

  • Page 39: Plastics Kit

    Plastics Kit Item Description Spare part number Plastics Kit: 639482-001 Base enclosure cover Bottom cover ExpressCard slot protective insert (not illustrated) LCD hinge covers (left and right; not illustrated) Plastics Kit Downloaded from LpManual.com Manuals...

  • Page 40: Cable Kit

    Cable Kit Item Description Spare part number Cable Kit: 639473-001 RJ-11 connector cable Bluetooth module cable TouchPad cable Power connector cable ExpressCard cable Hinge Kit Chapter 3 Illustrated parts catalog Downloaded from LpManual.com Manuals...
  • Page 41 Item Description Spare part number Hinge Kit: 639476-001 Left hinge assembly Right hinge assembly LCD hinge covers (left and right; not illustrated) Hinge Kit Downloaded from LpManual.com Manuals...

  • Page 42: Mass Storage Devices

    Mass storage devices Item Description Spare part number Optical drive DVD±RW SuperMulti DL LightScribe Drive 647673-001 Blu-ray ROM DVD±RW SuperMulti DL LightScribe Drive 647674-001 DVD-ROM Drive 647672-001 Hard drive (includes bracket and screws) 750-GB, 7200-rpm 633252-001 500-GB, 7200-rpm 634926-001 500-GB, 7200-rpm (for use in the upgrade bay) 595762-001 320-GB, 7200-rpm 634862-001...

  • Page 43: Miscellaneous Parts

    Miscellaneous parts Description Spare part number AC adapter 65-W AC adapter 609948-001 Battery latch kit (includes latch, knob, and spring) 595750-001 Power cords: For use in Argentina 490371-D01 For use in Australia 490371-011 For use in Brazil 490371-201 For use in Denmark 490371-081 For use in Europe, the Middle East, and Africa 490371-021...

  • Page 44: Sequential Part Number Listing

    Description Spare part number Rubber Kit (includes rubber feet and rubber screw covers) 639483-001 Screw Kit 647676-001 ● Phillips PM2.0×5.0 captive screw ● Black Phillips PM2.5×12.0 captive screw ● Silver Phillips PM2.5×12.0 captive screw ● Phillips PM2.0×7.0 captive screw ● Phillips PM2.0×4.0 screw ●...
  • Page 45 Spare part Description number 490371-AB1 Power cord for use in Taiwan 490371-AD1 Power cord for use in South Korea 490371-AR1 Power cord for use in South Africa 490371-BB1 Power cord for use in Israel 490371-D01 Power cord for use in Argentina 490371-D61 Power cord for use in India 537921-001...
  • Page 46 6-cell, 55-Wh Li-ion battery 628668-001 6-cell, 62-Wh Li-ion battery 628670-001 6-cell, 55-Wh HP Long Life Li-ion battery 628824-001 Modem module for use in all countries and regions NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is included in the Cable Kit, spare part number 639473-001.
  • Page 47 Taiwan, Tanzania, Thailand, Trinidad and Tobago, Tunisia, Turkey, the United Arab Emirates, the United Kingdom, the United States, Uruguay, the U.S. Virgin Islands, Venezuela, Vietnam, Yemen, Zambia, and Zimbabwe 632155-001 HP F5521 Broadband Module (WWAN) 633252-001 750-GB, 7200-rpm hard drive (includes hard drive bracket and screws) 634091-001...
  • Page 48 Spare part Description number 639477-BA1 Keyboard without pointing stick for use in Slovenia 639477-171 Keyboard without pointing stick for use in Saudi Arabia 639477-A41 Keyboard without pointing stick for use in Belgium 639477-261 Keyboard without pointing stick for use in Bulgaria 639477-A81 Keyboard without pointing stick for use in the Czech Republic and Slovakia 639477-081...
  • Page 49 Spare part Description number 639478-A41 Keyboard with pointing stick for use in Belgium (includes keyboard and pointing stick cables) 639478-261 Keyboard with pointing stick for use in Bulgaria (includes keyboard and pointing stick cables) 639478-A81 Keyboard with pointing stick for use in the Czech Republic and Slovakia (includes keyboard and pointing stick cables) 639478-081 Keyboard with pointing stick for use in Denmark (includes keyboard and pointing stick cables)
  • Page 50 Spare part Description number 639736-001 1-GB memory module (PC3-10600, 1333-MHz, DDR3) 641674-001 320-GB, 7200-rpm hard drive (Self Encrypting Drive, includes hard drive bracket and screws) 641733-001 System board (HM65 includes WWAN and RTC battery) for use in all countries and regions except for Russia and China 641734–001 System board (QM67 includes RTC battery) for use in all countries and regions except for Russia and China...

  • Page 51: Removal And Replacement Procedures

    Removal and replacement procedures Preliminary replacement requirements Tools required You will need the following tools to complete the removal and replacement procedures: ● Flat-bladed screwdriver ● Phillips P0 and P1 screwdrivers ● Torx T8 screwdriver Service considerations The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

  • Page 52: Cables And Connectors

    Cables and connectors CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the computer. Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion.

  • Page 53: Grounding Guidelines

    Grounding guidelines Electrostatic discharge damage Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

  • Page 54: Packaging And Transporting Guidelines

    Packaging and transporting guidelines Follow these grounding guidelines when packaging and transporting equipment: ● To avoid hand contact, transport products in static-safe tubes, bags, or boxes. ● Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging. ● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

  • Page 55: Equipment Guidelines

    Equipment guidelines Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation. ● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times.

  • Page 56: Component Replacement Procedures

    Component replacement procedures This chapter provides removal and replacement procedures. There are as many as 95 screws and screw locks, in 15 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and screw lock size and location during removal and replacement.

  • Page 57: Computer Feet

    Computer feet The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare part number 639483-001. There are 5 rubber feet that attach to the base enclosure cover/bottom cover in the locations illustrated below. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 58: Battery

    631243-001 6-cell, 62-Wh Li-ion battery 628668–001 6-cell, 55-Wh Li-ion battery 628666-001 6-cell, 55-Wh HP Long Life Li-ion battery 628670-001 3-cell, 31-Wh Li-ion battery 628664-001 Before disassembling the computer, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 59: Sim

    NOTE: This section applies only to computer models with WWAN capability. NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer. Before removing the SIM, follow these steps: Shut down the computer.

  • Page 60: Wlan Module

    Description Spare part number Bottom cover 646077-001 Before removing the bottom cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 61 Description Spare part number Intel Wi-Fi Link 1000, 802.11b/g/n WLAN module for use in Andorra, Antigua and Barbuda, 572520-001 Argentina, Aruba, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Barbados, Belgium, Bermuda, Bolivia, Bosnia and Herzegovina, Brazil, Brunei, Bulgaria, Canada, Cayman Islands, Chile, the People's Republic of China, Colombia, Costa Rica, Croatia, Cyprus, Czech Republic, Denmark, Dominican Republic, Ecuador, Egypt, El Salvador, Estonia, Finland, France, French Guiana, Georgia, Germany, Ghana, Greece, Guadeloupe, Guam, Guatemala, Haiti, Honduras, Hong...
  • Page 62 Description Spare part number Broadcom 4322 AGN 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, 582564-002 Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor,...
  • Page 63 Before removing the WLAN module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer. Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then unplugging the AC adapter from the computer.
  • Page 64 Reverse this procedure to install the WLAN module. Chapter 4 Removal and replacement procedures Downloaded from LpManual.com Manuals...

  • Page 65: Optical Drive

    Optical drive NOTE: All optical drive spare part kits include an optical drive bezel. Description Spare part number DVD±RW SuperMulti DL LightScribe Drive 647673-001 Blu-ray ROM DVD±RW SuperMulti DL LightScribe Drive 647674-001 DVD-ROM Drive 647672-001 Before removing the optical drive, follow these steps: Shut down the computer.

  • Page 66: Upgrade Bay

    Remove the optical drive (3) from the computer. If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward you. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical drive.
  • Page 67 Before removing a drive from the upgrade bay, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 68: Hard Drive

    Hard drive NOTE: All hard drive spare part kits include a hard drive bracket and screws. Description Spare part number 750-GB, 7200-rpm hard drive 633252-001 500-GB, 7200-rpm hard drive 634926-001 320-GB, 7200-rpm hard drive 634862-001 320-GB, 7200-rpm hard drive (Self Encrypting Drive) 641674-001 250-GB, 7200-rpm hard drive 634861-001...
  • Page 69 Use the plastic tab to lift the connector side of the hard drive up at an angle (3) and remove the drive (4) from the hard drive bay. If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×5.0 hard drive bracket screws (1) from each side of the hard drive.

  • Page 70: Bluetooth Module

    Bluetooth module NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module cable is included in the Cable Kit, spare part number 639473-001. See Cable Kit on page 32 for more Cable Kit spare part number information. Description Spare part number Bluetooth module...
  • Page 71 Reverse this procedure to install the Bluetooth module. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 72: Expansion Memory Modules

    Expansion memory modules NOTE: There are two memory slots. Expansion memory is installed in a compartment containing a single slot (slot 2) on the bottom of the computer and the primary memory is installed in a compartment containing a single slot (slot 1) under the keyboard. Slot 2 cannot be populated if slot 1 is not populated.
  • Page 73 Remove the expansion memory module (2) by pulling the module away from the slot at an angle. NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot. Reverse this procedure to install an expansion memory module. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 74: Keyboard

    Keyboard For use in: Spare part number For use in: Spare part number Keyboards with pointing stick (includes pointing stick cable): Belgium 639478-A41 Latin America 639478-161 Brazil 639478-201 The Netherlands and Europe 639478-B31 Bulgaria 639478-261 Norway 639478-091 Czech Republic and Slovakia 639478-A81 Portugal 639478-131...
  • Page 75 Release the keyboard by pressing down on the keyboard release cut-out (2). Turn the computer right-side up, with the front toward you. Open the computer as far as possible. Lift the top edge of the keyboard, and then rotate the keyboard forward until it rests upside-down on top of the TouchPad.
  • Page 76 Release the ZIF connector to which the pointing stick cable (2) is attached, and then disconnect the pointing stick cable from the system board. Remove the keyboard. Reverse this procedure to install the keyboard. Chapter 4 Removal and replacement procedures Downloaded from LpManual.com Manuals...

  • Page 77: Wwan Module

    Ericsson modules are only available in EMEA on certain computers. Description Spare part number HP F5521 Broadband Module (WWAN) 632155-001 Before removing the WWAN module, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 78 Remove the WWAN module (3) by pulling the module away from the slot at an angle. NOTE: WWAN modules are designed with a notch (4) to prevent incorrect insertion. Figure 4-1 Ericsson module antenna locations Figure 4-2 Qualcomm module antenna locations NOTE: If the WWAN antennas are not connected to the terminals on the WWAN module, the protective sleeves must be installed on the antenna connectors, as shown in the following illustration.
  • Page 79 Reverse this procedure to install the WWAN module. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 80: Modem Module

    Modem module NOTE: The modem module spare part kit does not include a modem module cable. The modem module cable is included in the Cable Kit, spare part number 639473-001. See Cable Kit on page 32 for more Cable Kit spare part number information. Description Spare part number Modem module for use in all countries and regions...
  • Page 81 Disconnect the modem module cable (3) from the modem module. Reverse this procedure to install the modem module. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 82: Primary Memory Module

    Primary memory module NOTE: There are two memory slots. Expansion memory is installed in a compartment containing a single slot (slot 2) on the bottom of the computer and the primary memory is installed in a compartment containing a single slot (slot 1) under the keyboard. Slot 2 cannot be populated if slot 1 is not populated.
  • Page 83 Remove the primary memory module (2) by pulling the module away from the slot at an angle. NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot. Reverse this procedure to install a primary memory module. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 84: Fan

    Description Spare part number 639474-001 Before removing the fan, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 85 NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-in) clearance on the left side of the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements.

  • Page 86: Heat Sink

    Heat sink All heat sink spare part kits include replacement thermal material. Description Spare part number Heat sink (does not include fan) 639475-001 Before removing the heat sink, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 87 Lift the right side of the heat sink (1) to disengage it from the system board. Rotate and lift the heat sink counter-clockwise (2) to clear the base enclosure, and then remove it from the computer. NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) each time the heat sink is removed.

  • Page 88: Processor

    Processor NOTE: All processor spare part kits include replacement thermal material. Description Spare part number Intel Core i7 processor, Dual Core 2nd Generation Intel Core i7-2620M, 2.70GHz (Turbo up to 3.40GHz) 4MB L3 Cache, 4 threads 631252-001 Intel Core i5 processors, Dual Core 2nd Generation Intel Core i5-2540M, 2.60-GHz (Turbo up to 3.30) processor 3-MB L3 cache, 4 631255-001 threads...
  • Page 89 Lift the processor (2) straight up and remove it. NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on the processor slot when you install the processor. Reverse this procedure to install the processor. Component replacement procedures Downloaded from LpManual.com Manuals...

  • Page 90: Base Enclosure Cover

    Base enclosure cover All models include the base enclosure cover. Description Spare part number Base enclosure cover 646076-001 Before removing the base enclosure cover, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 91 Remove the Two Torx T8M2.5×7.0 screws from under the keyboard. Position the computer right-side up, with the rear toward you. Remove the Four Torx T8M2.5×7.0 screws from the back of the unit that secure the display assembly to the computer. Position the computer upside-down, with the front toward you.
  • Page 92 Remove the following covers and Torx screws: (1) Four rubber screw covers (2) Eight Torx T8M2.5×7.0 screws Remove the following Phillips screws: (1) Three Phillips PM2.0×3.0bh screws in the battery bay (2) Two Phillips PM2.0×3.0 screws in the ODD drive bay Lift the base enclosure cover (1) up and forward.
  • Page 93 Remove the base enclosure cover. CAUTION: When installing the base enclosure cover, be sure that the wireless antenna cables routed out of the display assembly are routed and arranged properly. Failure to follow these routing instructions can result in degradation of the computer's WLAN and WWAN performance.

  • Page 94: Speaker Assembly

    Speaker assembly Description Spare part number Speaker assembly (kit) 639484-001 Before removing the speaker assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.
  • Page 95 Remove the Bluetooth cable (1) by unplugging it from the system board (2). Remove the two Phillips PM2.5×5.0 screws (1) that secure the speaker assembly to the base enclosure. Remove the tape (2) from the speaker cable. Slide the large speaker to the left (3) until the cutout in the speaker lines-up with the metal clip. Remove the speaker assembly (4) from the base enclosure.
  • Page 96 Reverse this procedure to install the speaker assembly. Chapter 4 Removal and replacement procedures Downloaded from LpManual.com Manuals...

  • Page 97: Display Assembly

    Display assembly All display assemblies include 2 WLAN antenna transceivers and cables, and 2 WWAN antenna transceivers and cables (select models only). Description Spare part number 33.8-cm (13.3-in) HD AntiGlare LED SVA (1366x768) for use in computers without a webcam 650164-001 33.8-cm (13.3-in) HD AntiGlare LED SVA (1366x768) for use in computers with a WWAN module 650165-001...
  • Page 98 Push the display panel cable through the pass-thru cutout in the base enclosure (3). Position the computer upside-down, with the front toward you. Chapter 4 Removal and replacement procedures Downloaded from LpManual.com Manuals...
  • Page 99 Remove the following: (1) Display panel cable and tape from top cover (2) Display panel cable from clips in top cover (3) Two WLAN cables from routing out of hole in top cover and clips in upper right side of top cover (4) Two WLAN cables and tape from top cover (5) Two WLAN cables from clips in top cover...
  • Page 100 Pull the display assembly out away from the base enclosure and lift the display assembly (1) straight up and remove it. CAUTION: When installing the display assembly, be sure that the wireless antenna cables routed out of the display right hinge are routed and arranged properly. Failure to follow these routing instructions can result in degradation of the computer's WLAN and WWAN performance.
  • Page 101 Flex the top of the bezel, the inside edges of the left and right sides (1), and then the top and bottom (2) of the bezel until it disengages from the display enclosure. Remove the display bezel (3). The display bezel is available using spare part numbers 639469-001 (for use with computer models with a webcam), and 639470-001 (for use with computer models equipped without a webcam).
  • Page 102 Remove the display panel (4). If it is necessary to remove the display panel cable, remove the tape (1) covering the display panel cable along with the cable from the back of the display. Disconnect the video board cable (2). Also, it is necessary to disconnect the webcam/microphone cable and tape that secures this cable to the display, and then lift the cable and tape away from the display panel (3).
  • Page 103 If it is necessary to remove the WWAN antenna transceivers (1) and cables, remove them from the display enclosure back cover by lifting them (2) from the clips in the display enclosure back cover. If it is necessary to remove the WLAN antenna transceivers (1) and cables, remove them from the display enclosure back cover by lifting them (2) from the clips in the display enclosure back cover.

  • Page 104: System Board

    Remove the display hinges (2). The left and right display hinges are available using spare part number 639476-001. Reverse this procedure to reassemble and install the display assembly. System board NOTE: All system board spare part kits include replacement thermal material. Description Spare part number System board (HM65 includes WWAN and RTC battery) for use in all countries and regions except...
  • Page 105 Remove the battery (see Battery on page 50). Remove the following components: Hard drive (see Hard drive on page Optical drive (see Optical drive on page Keyboard (see Keyboard on page Modem module (see Modem module on page Fan (see Fan on page Heat sink (see Heat sink on page...
  • Page 106 Disconnect the power connector cable (9) from the system board (10). Position the system board upside-down (top cover upside-down) Remove the two Phillips PM2.5×5.0 screws (1) that secure the system board to the top cover. Lift up the front edge (2) of the system board. Disconnect the ExpressCard cable (3) swinging ZIF connector from the system board (4).

  • Page 107: Rtc Battery

    Reverse the preceding procedure to install the system board. RTC battery Description Spare part number RTC battery 651038-001 Before removing the RTC battery, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 108: Power Button Board

    Pull the battery out of the socket and remove it from the system board. Reverse this procedure to install the RTC battery. Power button board NOTE: The power button board assembly spare includes the power button cable. Description Spare part number Power button board assembly 639481-001 Before removing the Power button board assembly, follow these steps:...

  • Page 109: Wireless/Web/Mute Function Board

    Modem module (see Modem module on page Fan (see Fan on page Heat sink (see Heat sink on page Base enclosure cover (see Base enclosure cover on page Display assembly (see Display assembly on page System board (see System board on page Remove the Power button board assembly: Position the top cover upside-down, with the front toward you.

  • Page 110: Fingerprint Reader Board

    Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then unplugging the AC adapter from the computer. Remove the battery (see Battery on page 50). Remove the following components: Hard drive (see Hard drive on page Optical drive (see Optical drive on page...
  • Page 111 Description Spare part number Fingerprint reader board assembly 651913-001 Before removing the Fingerprint reader board assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system. Disconnect all external devices connected to the computer.

  • Page 112: Expresscard Assembly

    Remove the Fingerprint reader board and cable (3) from the top cover. Reverse this procedure to install the Fingerprint reader board assembly. ExpressCard assembly Description Spare part number ExpressCard assembly 639479-001 Before removing the ExpressCard assembly, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

  • Page 113: Rj-11 Connector Cable

    Fan (see Fan on page Heat sink (see Heat sink on page Base enclosure cover (see Base enclosure cover on page Display assembly (see Display assembly on page System board (see System board on page Remove the ExpressCard assembly: Position the top cover upside-down, with the front toward you. Remove the three Phillips PM2.5×5.0 screws (1) that secure the assembly to the top cover.
  • Page 114 Disconnect the power from the computer by first unplugging the power cord from the AC outlet, and then unplugging the AC adapter from the computer. Remove the battery (see Battery on page 50). Remove the following components: Hard drive (see Hard drive on page Optical drive (see Optical drive on page...

  • Page 115: Power Connector Cable

    Power connector cable NOTE: The power connector cable is included in the Cable Kit, spare part number 639473-001. Before removing the power connector cable, follow these steps: Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
  • Page 116 Remove the power connector cable from the enclosure. Reverse this procedure to install the power connector cable. Chapter 4 Removal and replacement procedures Downloaded from LpManual.com Manuals...

  • Page 117: Computer Setup

    Computer Setup Starting Computer Setup Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load. NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your computer.

  • Page 118: Restoring Factory Settings In Computer Setup

    NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the keyboard to navigate and make selections in Computer Setup. Press to enter BIOS Setup. Select the File, Security, Diagnostics, or System Configuration menu. To exit Computer Setup menus, choose one of the following methods: ●...

  • Page 119: Computer Setup Menus

    Computer Setup menus The menu tables in this section provide an overview of Computer Setup options. NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your computer. File menu Select To do this System Information ●...

  • Page 120: Security Menu

    User Tools Change Password Enter, change, or delete a BIOS administrator password. HP SpareKey Enrollment Enroll or reset HP SpareKey, which is a set of security questions and answers used if you forget your password. Anti Theft AT-p Enable/disable Anti-Theft Protection.

  • Page 121: System Configuration Menu

    Select To do this TPM Embedded Security Enable/disable support for Trusted Platform Module (TPM) Embedded Security, which protects the computer from unauthorized access to owner functions available in Embedded Security for ProtectTools. For more information, refer to the ProtectTools software Help. NOTE: You must have a setup password to change this setting.
  • Page 122 Availability of these options varies by computer model. ● Enable/disable secondary battery fast charge (enabled by default). ● Enable/disable HP QuickLook (enabled by default). ● Enable/disable Preboot Authentication on HP QuickLook Boot (enabled by default). ● Enable/disable HP QuickWeb (enabled by default).
  • Page 123 Select To do this ● Built-In Device Options Enable/disable the wireless button state (enabled by default). ● Enable/disable embedded WLAN device radio (select models only; enabled by default). ● Enable/disable the embedded Bluetooth device radio (enabled by default). ● Enable/disable the Network Interface Controller (NIC) (enabled by default).
  • Page 124 Select To do this NOTE: Port Options All port options are enabled by default. ● Enable/disable the serial port. ● Enable/disable the parallel port. ● Enable/disable the flash media reader. ● Enable/disable the USB port. CAUTION: Disabling the USB port also disables MultiBay devices and ExpressCard devices on the advanced port replicator.

  • Page 125: Specifications

    Specifications Computer specifications Metric U.S. Dimensions Length 22.0 cm 8.7 in Width 32.2 cm 12.7 in Height (front to rear) 3.4 to 3.6 cm 1.32 to 1.41 in Weight (equipped with 33.8-cm (13.3-in) HD display, DVD 1.95kg 4.30 lbs drive, 1-GB DIMM, 250-GB hard drive, 3-cell battery) Input power Operating voltage 18.5 V dc @ 3.5 A –...

  • Page 126: 33.8-Cm (13.3-In) Hd Display Specifications

    Metric U.S. Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this range of temperatures.

  • Page 127: Hard Drive Specifications

    Hard drive specifications 750-GB* 500-GB* 320-GB* 250-GB* Dimensions Height 9.5 mm 9.5 mm 9.5 mm 9.5 mm Width 70 mm 70 mm 70 mm 70 mm Weight 101 g 101 g 101 g 101 g Interface type SATA SATA SATA SATA Transfer rate 100 MB/sec...

  • Page 128: Dvd±Rw Supermulti Dl Lightscribe Drive Specifications

    DVD±RW SuperMulti DL LightScribe Drive specifications Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-R and CD-RW CD-ROM XA, MIXED MODE CD, CD-I, CD-I DVD+R, DVD+RW, DVD-R, DVD- Bridge (Photo-CD, Video CD), Multisession CD RW, DVD-RAM (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM...

  • Page 129: Blu-Ray Rom Dvd±Rw Supermulti Dl Lightscribe Drive

    Blu-ray ROM DVD±RW SuperMulti DL LightScribe Drive Applicable disc Read: Write: CD-DA, CD+(E)G, CD-MIDI, CDTEXT, CD-R and CD-RW DVD+R, DVD+R(9), CD-ROM, CD-ROM XA, DVD+RW, DVD-R, DVD-R(9),DVD-RW, MIXED MODE CD, CD-I, CD-I Bridge DVD-RAM (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R,...

  • Page 130: Dvd-Rom Drive Specifications

    DVD-ROM Drive specifications Applicable disc DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form 2), CD-R, CD-RW, Photo CD (single and multisession), CD-Bridge Center hole diameter 1.5 cm (0.59 in) Disc diameter...

  • Page 131: Specification Information In Device Manager

    Specification information in Device Manager Device Manager allows you to view and control the hardware attached to the computer, as well as provides hardware specification information. You can also add hardware or modify device configurations using Device Manager. NOTE: Windows 7 and Windows Vista include the User Account Control feature to improve the security of your computer.

  • Page 132: Backup And Recovery

    NOTE: For detailed instructions, perform a search for these topics in Help and Support. NOTE: In case of system instability, HP recommends that you print the recovery procedures and save them for later use. Backing up your information Recovery after a system failure is as complete as your most current backup. You should create system repair discs (select models only) and your initial backup immediately after software setup.
  • Page 133 Note the following when backing up: ● Store personal files in the Documents library, and back it up regularly. ● Back up templates that are stored in their associated programs. ● Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot of your settings.

  • Page 134: Performing A Recovery

    Recovery disc (both purchased separately). For additional information, refer to the “Using a Windows 7 operating system DVD (purchased separately)” section in this guide. If the Windows partition and the HP Recovery partition are listed, restart the computer, and then press before the Windows operating system loads.

  • Page 135: Using F11

    The recovery tool reinstalls the operating system and HP programs and drivers that were installed at the factory. Software not installed at the factory must be reinstalled.
  • Page 136 NOTE: This process takes several minutes. If possible, back up all personal files. Restart the computer, and then insert the Windows 7 operating system DVD into the optical drive before the Windows operating system loads. When prompted, press any keyboard key. Follow the on-screen instructions.

  • Page 137: Windows Vista

    NOTE: For detailed instructions, perform a search for these topics in Help and Support. NOTE: In case of system instability, HP recommends that you print the recovery procedures and save them for later use. Backing up your information Recovery after a system failure is as complete as your most current backup. You should create your initial backup immediately after software setup.

  • Page 138: Performing A Recovery

    The screen image is added to the document. Save the document. ● When backing up to discs, use any of the following types of discs (purchased separately): CD-R, CD-RW, DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you use will depend on the type of optical drive installed in your computer.

  • Page 139: Using F11

    If possible, back up all personal files. If possible, check for the presence of the Windows partition and the HP Recovery partition. To find the partitions, select Start > Computer. NOTE:...

  • Page 140: Using A Windows Vista Operating System Dvd (Purchased Separately)

    (stored on discs or on an external drive) is easily accessible. To order a Windows Vista operating system DVD, go to http://www.hp.com/support, select your country or region, and then follow the on-screen instructions. You can also order the DVD by calling technical support. For contact information, refer to the Worldwide Telephone Numbers booklet included with the computer.

  • Page 141: Windows Xp

    NOTE: For detailed instructions, perform a search for these topics in Help and Support. NOTE: In case of system instability, HP recommends that you print the recovery procedures and save them for later use. Backing up your information Recovery after a system failure is as complete as your most current backup. You should create your initial backup immediately after software setup.

  • Page 142: Performing A Recovery

    The recovery process reinstalls the original operating system, software, and drivers. Software, drivers, and updates not installed by HP must be manually reinstalled. To recover your operating system and programs, follow these steps: If possible, back up all personal files.
  • Page 143 Follow the on-screen instructions to install the operating system. After the operating system is installed, remove the Operating System disc and insert the Driver Recovery disc. Follow the on-screen instructions to install the drivers and programs. Windows XP Downloaded from LpManual.com Manuals...

  • Page 144: Power Cord Set Requirements

    Power cord set requirements The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC, or from 220 to 240 volts AC. The 3-conductor power cord set included with the computer meets the requirements for use in the country or region where the equipment is purchased.

  • Page 145: Requirements For Specific Countries And Regions

    Requirements for specific countries and regions Country/region Accredited agency Applicable note number Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan METI The Netherlands KEMA Norway NEMKO The People's Republic of China South Korea Sweden SEMKO Switzerland Taiwan...

  • Page 146: Recycling

    NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
  • Page 147 Perform the following steps to disassemble the display assembly: Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
  • Page 148 Disconnect all display panel cables (1) from the display inverter and remove the inverter (2). Remove all screws (1) that secure the display panel assembly to the display enclosure. Remove the display panel assembly (2) from the display enclosure. Turn the display panel assembly upside-down. Remove all screws that secure the display panel frame to the display panel.
  • Page 149 Remove the display panel frame (2) from the display panel. Remove the screws (1) that secure the backlight cover to the display panel. Lift the top edge of the backlight cover (2) and swing it outward. Remove the backlight cover. Turn the display panel right-side up.
  • Page 150 Remove the backlight cables (1) from the clip (2) in the display panel. Turn the display panel upside-down. WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury. Remove the backlight frame from the display panel.
  • Page 151 Remove the backlight from the backlight frame. Disconnect the display panel cable (1) from the LCD panel. Remove the screws (2) that secure the LCD panel to the display rear panel. Release the LCD panel (3) from the display rear panel. Release the tape (4) that secures the LCD panel to the display rear panel.

  • Page 152: Index

    Index Symbols/Numerics removal 82 Notebook Upgrade Bay 115 1394 port, identifying 17 spare part number 42, 82 Power Monitor Circuit 115 battery Wake on LAN 115 removal 50 wireless button 115 AC adapter, spare part numbers spare part number 28, 50 WLAN device radio 115 35, 38 battery bay 19...
  • Page 153 ExpressCard slot, identifying 16 spare part number 30, 96 external media cards, product HP QuickLook 114 display hinge kit description 4 HP QuickWeb light 11 spare part number 39 external monitor port HP SpareKey enrollment 112 display panel identifying 17...
  • Page 154 74 optical drive eject button caps lock 11 processor identifying 16 drive 15 product description 1 HP QuickWeb 11 removal 80 local area network (LAN) 15 spare part numbers 25, 80 packing guidelines 46 mute 11 product description...
  • Page 155 DVD-ROM Drive 122 security cable slot, identifying 16 DVD±RW SuperMulti DL Security menu LightScribe Drive webcam always prompt for HP SpareKey hard drive 119 product description 3 enrollment 112 optical drive 120, 121, 122 spare part number 42 Automatic DriveLock 112...
  • Page 156 webcam, identifying 9 Windows 7 operating system DVD 127 Windows applications key, identifying 14 Windows Backup utility 133, Windows logo key, identifying Windows recovery 134 Windows Vista operating system DVD 132 wireless antennas disconnecting 55, 69 location 20 wireless antennas, identifying 8 wireless button, identifying 12 wireless light, identifying 15 wireless lights 11...
  • Page 157 Downloaded from LpManual.com Manuals...
