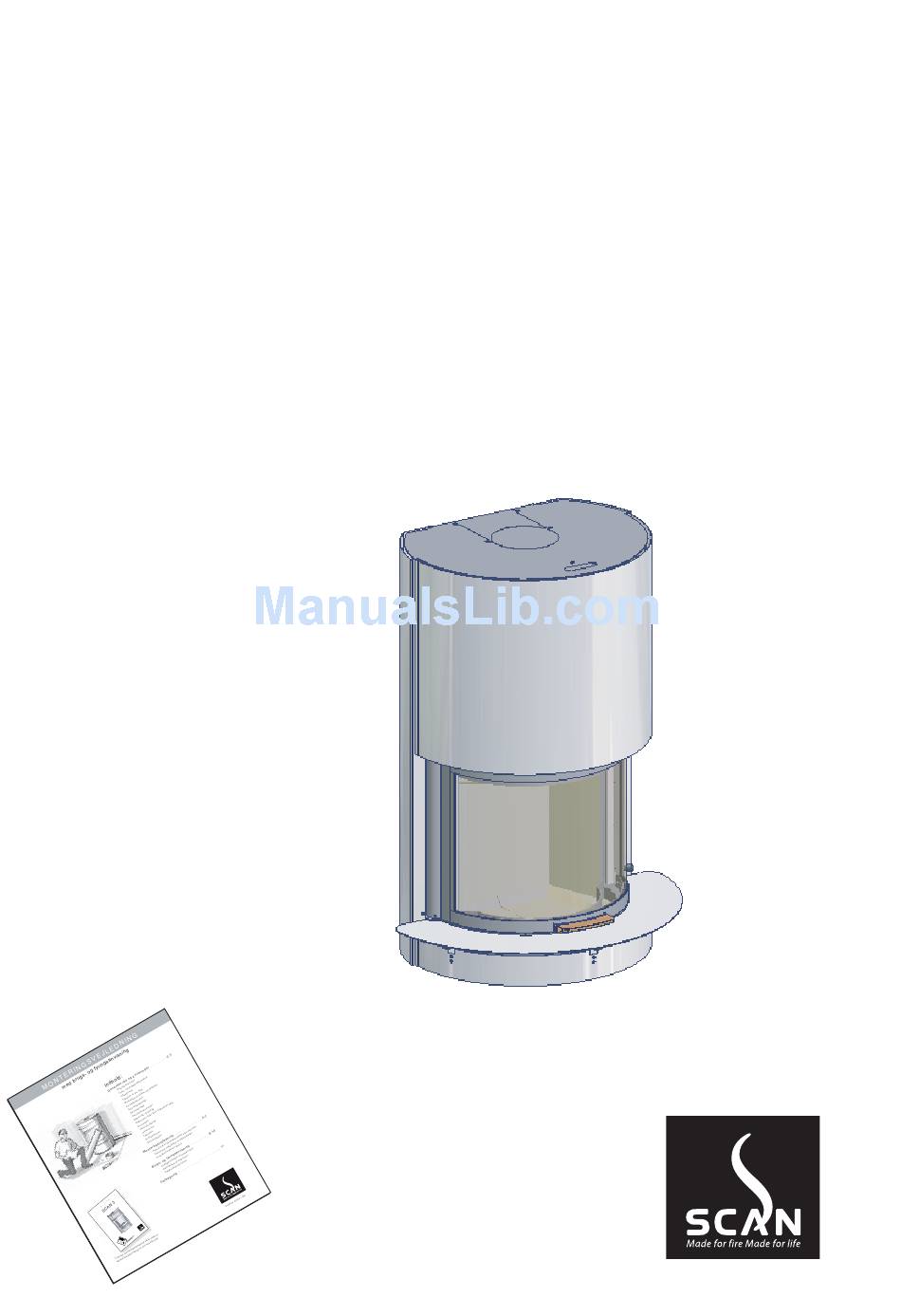

- Page 1 I N S T A L L A T I O N A N D U S E SCAN DSA 5 WALL MODEL Approved according to DIN 18891 and EN 13240 This manual is accompanied by a pamphlet with General Instructions for Edition 12/05 - GB - 01 Installation.
-
Page 2: Connection To The Chimney
Opening of the door The DSA 5 weighs approx. 190 kg. We therefore recommend At the delivery of the stove, the door is locked. You can open that you demount the steel mantle before mounting the it by pulling out and turning the locking button at the same stove. - Page 3 SCAN DSA 5 WALL MODEL fig. 2 Ceramic smoke deflector After the chimney has been swept, you have to remove the soot that has fallen down onto the ceramic smoke deflector. Lift up the deflector in one side and tilt it down in the other side so that the soot falls into the combustion chamber.
-
Page 4: Warranty Conditions
SCAN DSA 5 WALL MODEL Warranty conditions All SCAN wood-burning stoves and inserts are made of first-class material and are subject to a strict quality control before they leave the factory. However, if an error Production number should occur, we back all SCAN wood-burning stoves and inserts with an extensive, five-year limited warranty.
