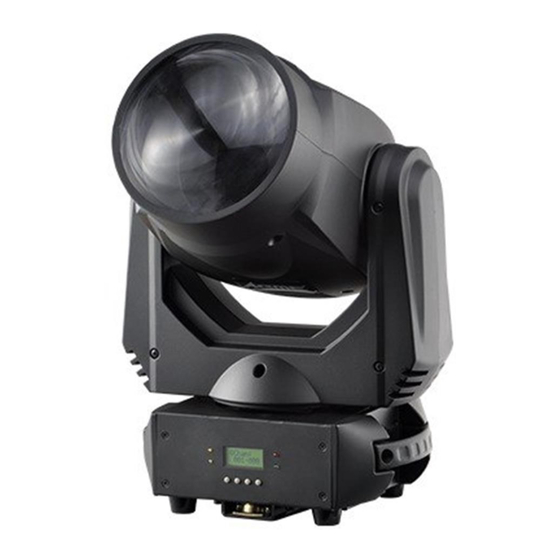

ACME LED-MB500 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

LED-MB500
User Manual
Please read the instruction carefully before use

Advertisement

Table of Contents
loading

Related Manuals for ACME LED-MB500

Summary of Contents for ACME LED-MB500

  • Page 1 LED-MB500 User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ....................2 2. Technical Specifications ..................3 3. How To Set The Unit ....................4 3.1 Control Panel ....................4 3.2 Main Function ....................5 3.3 Home Position Adjustment ................11 4. How to Control the Unit ..................12 4.1 Master/Slave Built In Preprogrammed Function ..........

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. ...

  • Page 4: Technical Specifications

    moisture.  DO NOT open the unit within five minutes after switching off.  The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. For AC 120V, 60Hz power supply, maximum fixtures that can be connected together from the same mains outlet is 3pcs;...

  • Page 5: How To Set The Unit

    Specification:  Power Voltage: AC 100~240V, 50/60Hz  Power Consumption: 170W  Light Source: 1 x 100W White LED  Beam Angle: 6°  Dimension: 292 x 189 x 458 mm  Weight: 8.2Kgs 3. How To Set The Unit 3.1 Control Panel 1.

  • Page 6: Main Function

    3. Function Display: Used to show the various menus and the selected functions. 4. Fuse (T 3.15A): Used to protect the fixture from damage of over current. 5. Power IN/OUT: Used to connect the fixture to mains power. 6. DMX IN: For DMX512 link, use 3-pin XLR plug cable to link the DMX controller and the fixture, and input the DMX signal.

  • Page 8: Channel Mode

    DMX Address To select the DMX Address, press the ENTER button to show the DMX ADDRESS on the display. Use the DOWN/UP button to adjust the address from 001 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any changes press the MENU button again.
  • Page 9 press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. Black Out To select the Black Out, press the ENTER button to show the BLACK OUT on the display.
  • Page 10 Tilt Inverse To select he Tilt Inverse, press the ENTER button to show the TILT INVERSE on the display. Use the DOWN and UP button to select the Yes (tilt inversion) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
  • Page 11 unit will run a self-test. To go back to the functions press the MENU button again. Hold and press the MENU button about one second or wait for one minute to exit the menu mode. Temp. To select the Temp., press the ENTER button to show the TEMP. on the display and the display will show the temperature of the unit.

  • Page 12: Home Position Adjustment

     Function Delay  3S Delay AUTO Defaults: Mostly automatic mode, for non professional users, detailed explanation as followings:  8Chan  Channel Mode  Split Color Mode  No  Slave Mode  Slave 1  Black Out  No ...

  • Page 13: How To Control The Unit

    PAN OFFSET —Pan home position adjustment To select the Pan Offset, press the ENTER button to show the PAN OFFSET on the display. Use the DOWN and UP button to adjust the value from -127 to 127, press the ENTER button to store. Press the MENU button to exit.

  • Page 14: Master/Slave Built In Preprogrammed Function

    move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built in programs. 4.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show.

  • Page 15: Dmx Controller

    4.3 DMX Controller Using a universal DMX controller to control the units, you have to set DMX address from 1 to 512 channel so that the units can receive DMX signal. Press the MENU button up to when the DMX Address is showing on the display. Press the ENTER button and the display will blink.

  • Page 16: Dmx512 Configuration

    5. DMX512 Configuration 8 Channels Mode (Mode 1): CHANNEL VALUE FUNCTION PAN: 0 – 255 0°  540° TILT: 0 – 255 0°  270° STROBE: 000-007 Close 008-015 Open 016-131 Strobe: Slow Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231...
  • Page 17 COLOR: (Normal) 000-014 Color 1 015-028 Color 2 029-042 Color 3 043-056 Color 4 057-070 Color 5 071-084 Color 6 085-098 Color 7 099-112 Color 8 113-127 Color 9 128-189 CCW Rotation: Fast  Slow 190-193 Stop 194-255 CW Rotation: Slow->Fast (Split Color Mode) 000-007 Color 1...
  • Page 18 070-079 Enable Blackout while Pan/Tilt Moving 080-089 Disable Blackout while Pan/Tilt Moving 090-099 Enable Blackout while Color Change 100-109 Disable Blackout while Color Change 110-119 Enable Blackout while Gobo Change 120-129 Disable Blackout while Gobo Change 130-199 Null 200-209 Reset All 210-255 Null 11 Channels Mode (Mode 2):...
  • Page 19 029-042 Color 3 043-056 Color 4 057-070 Color 5 071-084 Color 6 085-098 Color 7 099-112 Color 8 113-127 Color 9 128-189 CCW Rotation: Fast  Slow 190-193 Stop 194-255 CW Rotation: Slow->Fast (Split Color Mode) 000-007 Color 1 008-014 Color 2 015-022 Color 3...
  • Page 20 110-127 Gobo 1-6 Shaking 128-189 CW Rotation: Fast  Slow 190-193 Stop 194-255 CCW Rotation: Slow->Fast GOBO WHEEL 1 ROTATION: Index：0° 360° 000-127 CW Rotation：Fast  Slow 128-189 Stop 190-193 CCW Rotation：Slow  Fast 194-255 FUNCTION: 000-069 Null 070-079 Enable Blackout while Pan/Tilt Moving 080-089 Disable Blackout while Pan/Tilt Moving 090-099...

  • Page 21: Dmx Connection

    6. DMX Connection Unit 1 Unit 2 Unit 3 Unit 4 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 22: Troubleshooting

    3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) Pin 4/5: Not used. 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 23: Fixture Cleaning

    E. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. 8. Fixture Cleaning The cleaning must be carried out periodically to optimize light output.
  • Page 24 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
