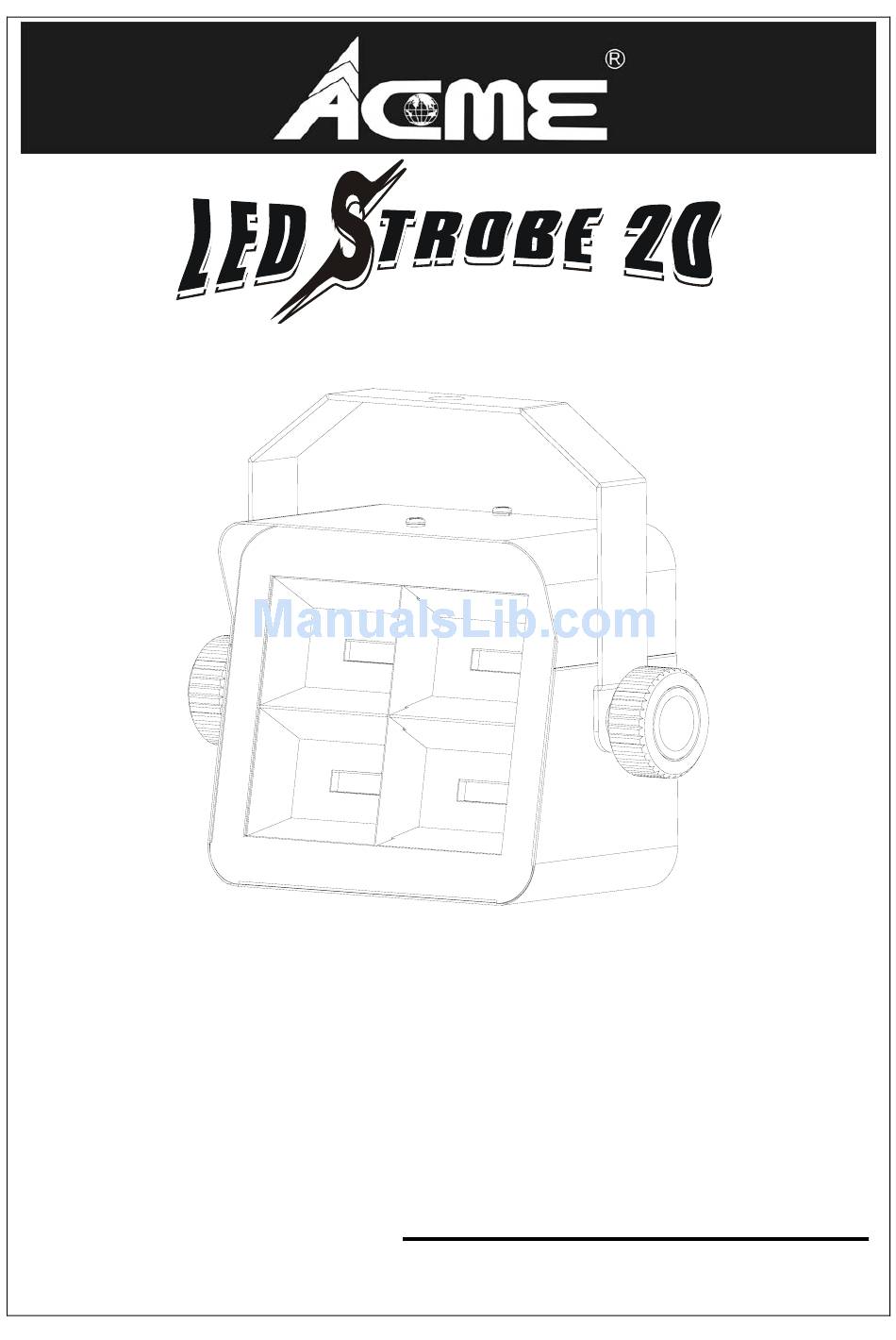

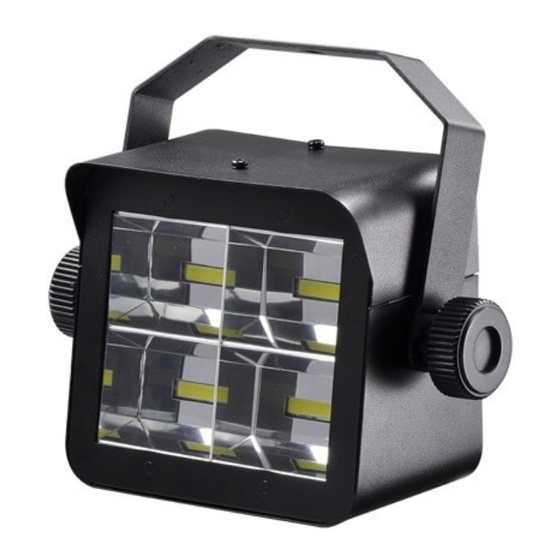

  • Page 1           LED‐ST20                                                                      User Manual  ...
  • Page 2   Contents    1. Safety Instruction .....................2  2. Technical Specification....................3  3. How to Use the Unit ....................4  4. Troubleshooting......................4  5. Fixture Cleaning......................5                               ...
  • Page 3 1. Safety Instruction    Please read carefully the instruction, which includes important     information about the installation, usage and maintenance. WARNING  PLEASE keep this User Manual for future consultation. If you sell the unit to another user, be  sure that they also receive this instruction booklet.  PLEASE unpack and check carefully there is no transportation damage before using the unit.  Before  operating,  ensure  that  the  voltage  and  frequency  of  power  supply  match  the  power  requirements of the unit.    It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.  The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent ...
  • Page 4 Cautions:  1. The machine should be kept away from moisture.  2. Always use the same type of spare parts.  3. Always remember to unplug the unit from the power mains before any service is done. There  are no user serviceable parts inside. Service should be done by qualified personnel only.    2. Technical Specification    Feature with 4pcs powerful 5W LED for strobe effect  NON DMX, just plug and play  Compact housing, variable strobe speed adjustable by potentiometer at the rear of the unit  Ideal for small applications, like clubs, bars, discos, parties, Mobile DJs, etc    Power Voltage:                AC 100V‐240V 50/60HZ    Power Consumption:      12W    Light Source:                    4×5W White LEDs  Dimension: ...
  • Page 5 3. How to Use the Unit      ○ 1   Safety Ring: Used to keep the installation safe.  ○ 2   Sound Switch: Used to turn On/Off the sound switch.  ○ 3   Manual Strobe: Used to adjust the strobe speed.  ○ 4   Power Cable: Used to connect to the power supply.  4. Troubleshooting    Following  are  a  few  common  problems  that  may  occur  during  operation.  Here  are  some  suggestions for easy troubleshooting:  A. The fixture does not work  1. Check the connection of power and main fuse.  2. Measure the mains voltage on the main connector.  B. No response to the sound ...
  • Page 6 5. Fixture Cleaning    The cleaning of internal and external optical lenses and/or mirrors must be carried out  periodically to optimize light output. Cleaning frequency depends on the environment in which the  fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of  dirt on the unit’s optics.  Clean with soft cloth using normal glass cleaning fluid.  Always dry the parts carefully.  Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60  days.                                             ...
  • Page 7       Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009;...
  • Page 8                                               Innovation, Quality, Performance     ...
