XP-15R SZ
User Manual
Please read the instruction carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xperior 15R spot XP-15R SZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACME xperior 15R spot XP-15R SZ

Summary of Contents for ACME xperior 15R spot XP-15R SZ

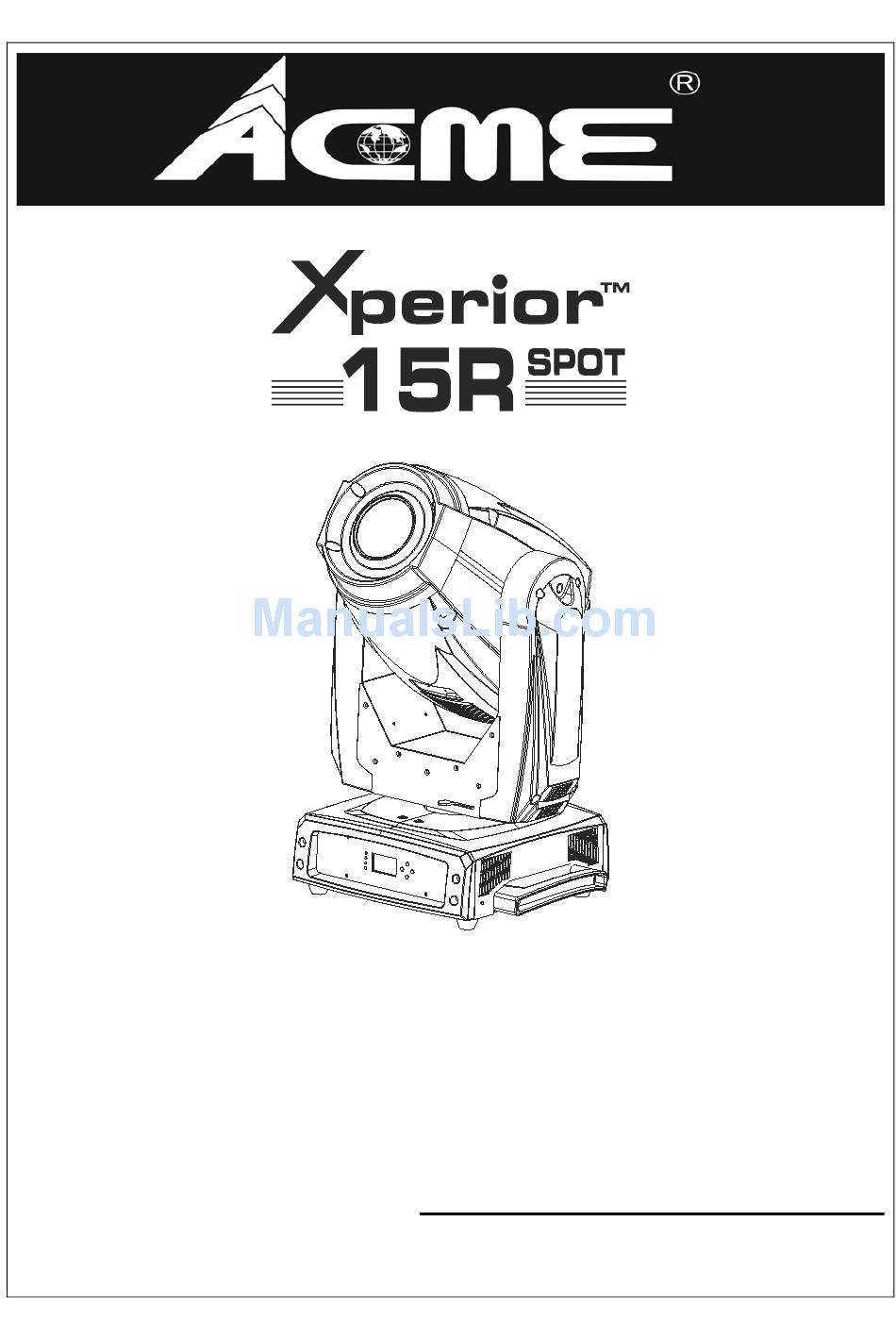

  • Page 1 XP-15R SZ User Manual Please read the instruction carefully before use...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ..................3 3. Description ......................6 3.1 Description of the fixture ................6 3.2 Control Panel ....................6 4. Gobo and Lamp ...................... 7 4.1 Gobo Wheel ....................7 4.2 Lamp ......................8 4.3 Changing the Lamp ..................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read carefully the instruction manual, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

    DO NOT operate in dirty or dusty environment, do clean fixtures regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables.  The minimum distance between light output and the illuminated surface must be more than 12 ...
  • Page 5 Light Source - Philips MSD Platinum 15R Battery backup display - Setting DMX address or other functions without connecting to mains power. - Battery for LCD display charges automatically when the fixtures connects to the mains power. - No need to change battery. Optical system - High efficiency optical system, delivering extremely powerful output - High quality dichroic lenses...
  • Page 6 Frost - Variable, separate effect. Focus - Focus effect. Iris - Motorized Zoom - Motorized linear zoom for smooth adjustment of beam size and beam sharpness. Cool - Fan cooled Protocols - DMX 512 - Date input/output: 3/5 Pin XLR socket Weight - 23Kg Dimension...

  • Page 7: Description

    3. Description 3.1 Description of the fixture 1. Front panel 2. Base 3. Tilt lock 4. head 5. Arm 6. Pan lock 7. Handle 3.2 Control Panel Front view Rear view 1. Monitor (Batter Back-up display): 2. LED: POWER Power on BATTERY Battery status WIRELESS...

  • Page 8: Gobo And Lamp

    4. DMX input/output: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together 5. Power Cable: To connect to the mains supply 6. Fuse (T 10A): Protect the unit from damage of over current. 7. Power Switch: Turns On/Off the power 4.

  • Page 9: Lamp

    4.2 Lamp Philips MSD Platinum 15R Because of its high internal pressure, there might be a risk that the Discharge lamp would  explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The high luminance of the arc can cause severe damage to the retina if you take a close look at the lamp.
  • Page 10 3. Lift the lamp out of its recess, disconnect the lamp and connect a new lamp that must be the same type with the old one. And then place the new lamp into the lamp recess. Finally reinstall the head cover, fastening it securely before reapplying power. Warning: The installing direction of lamp:...

  • Page 11: How To Set The Unit

    5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.

  • Page 13: Dmx Functions

    DMX Functions To select DMX Functions, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode or View DMX Value. DMX Address —DMX512 address setting To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 14 Fixture Setting To select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN button to select Pan Inverse, Tile Inverse, P/T Feedback, BL.O. P/T Moving, BL.O. Color Change or BL.O. Gobo Change. Pan Inverse To select Pan Inverse, press the ENTER button to confirm. Use the UP/DOWN button to select No (normal) or Yes (pan inverse), press the ENTER button to store.
  • Page 15 button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Lamp Setting To select Fixture Setting, press the ENTER button to confirm, use the UP/DOWN button to select On/Off, State/Power on, Off via DMX, On if DMX on, Off if DMX off, Ignition Delay or Low Power Delay..
  • Page 16 use the UP/DOWN button to select Yes (Lamp turns off when DMX signal is cut off), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Ignition Delay —...

  • Page 17: Fixture Information

    display, use the UP/DOWN button to adjust backlight intensity from 1 (dark) to 10 (bright), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode. Temperature Unit Select Temperature Unit, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select ℃...
  • Page 18 UP/DOWN button to select Fixture use time, Lamp On time or Firmware Version. Fixture use time Select Fixture use time, press the ENTER button to confirm, fixture use time will show on the display, press the MENU button to exit. Lamp On time Select Lamp On time, press the ENTER button to confirm, lamp on time will show on the display, press the ENTER button to confirm, use the UP/DOWN button to select Exit or Reset Time, press...
  • Page 19 Gobo/Iris — Reset Gobo/Iris Select Gobo/Iris, press the ENTER button to confirm, use the UP/DOWN button to select Yes (the unit will run built-in program to reset Gobo wheel and Iris to their home positions) or No, press the ENTER button to store. Press the MENU button to exit. Focus/Zoom /Frost/Prism —...

  • Page 20: Home Position Adjustment

    5.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu. Press MENU button to exit.
  • Page 21 Color—Color home position adjustment Enter offset mode, Select Color, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 22 Iris—Iris home position adjustment Enter offset mode, Select Iris, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit.

  • Page 23: Error Information

    5.3 Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 24: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 Connection ATTENTION Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal (Resistance 120 ohm 1/4W between pin2 (DMX-) and pin3 (DMX+) of the last fixture). 1.

  • Page 25: Address Setting

    5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.
  • Page 26 P/T SPEED 000-255 Fast  Slow SPECIAL FUNCTION 000-069 No function 070-079 Enable blackout while pan/tilt moving 080-089 Disable blackout while pan/tilt moving 090-099 Enable blackout while color changing 100-109 Disable blackout while color changing 110-119 Enable blackout while gobo changing 120-129 Disable blackout while gobo changing 130-139...
  • Page 27 064-085 Color 3 086-106 Color 4 107-127 Color 5 128-148 Color 6 149-170 Color 7 171-191 Color 8 192-212 Color 9 213-233 Color 10 234-255 Color 11 CMY SPEED 000-255 Fast  Slow GOBO WHEEL 1 000-007 Open 008-014 Gobo 1-1 015-021 Gobo 1-2 022-028...
  • Page 28 038-042 Gobo 2-8 043-047 Gobo 2-9 048-052 Gobo 2-10 053-056 Gobo 2-11 057-061 Gobo 2-12 062-066 Gobo 2-13 067-071 Gobo 2-14 072-075 Gobo 2-1 shaking 076-079 Gobo 2-2 shaking 080-083 Gobo 2-3 shaking 084-087 Gobo 2-4 shaking 088-091 Gobo 2-5 shaking 092-095 Gobo 2-6 shaking 096-099...

  • Page 29: Troubleshooting

    132-167 Slow open, fast close 168-203 Fast open, slow close 204-239 Slow open, slow close 240-247 Random strobe 248-255 Open DIMMER 000-255 0%  100% 7. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A.

  • Page 30: Maintenance And Cleaning

    E. If The pan belt is broken 1. Turn off the mains power. 2. Loosen the screws (A)，open the cover (B). 3. Loosen the screws (C). 4. Unplug all the connect wires over the belt. 5. Change a new belt (D), put the belt around the axis gear and motor gear.
  • Page 31 B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures. Negligence of maintenance would cause malfunction of the fixture. Cleaning: The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output.
  • Page 32 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
