Summary of Contents for ACME CM-70Z

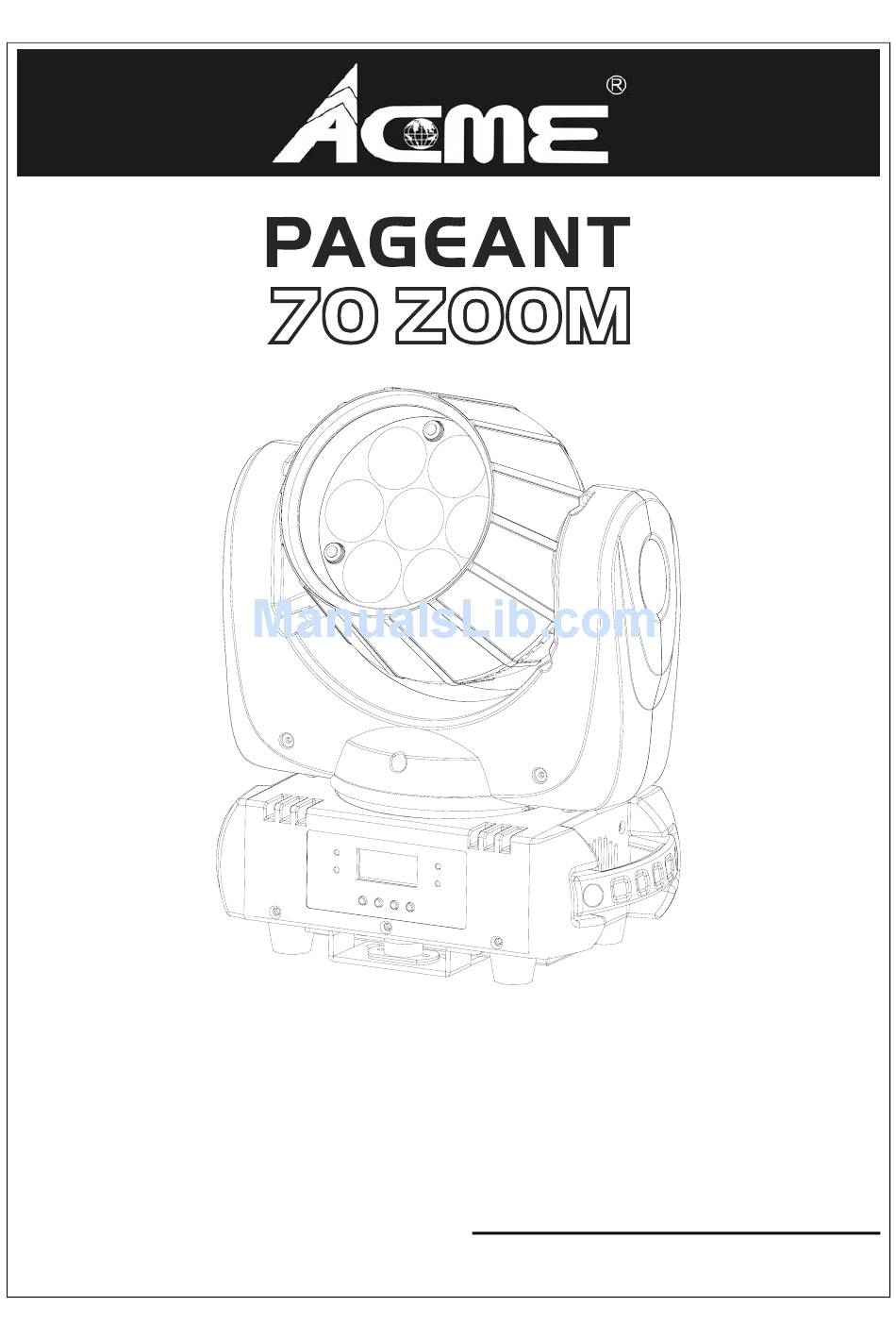

- Page 1 CM‐70Z User Manual Please read the instruction carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions....................2 2. Technical Specifications ....................3 3. How To Set The Unit ....................4 3.1 Control Panel ......................4 3.2 Main Function ....................5 3.3 Home Position Adjustment................11 4. How to Control the Unit ..................12 4.1 Master/Slave Built In Preprogrammed Function ..........12 4.2 DMX Controller....................12 4.3 DMX 512 Configuration ..................13 ... -
Page 3: Safety Instructions
1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Please unpack and check carefully there is no transportation damage before using the unit. Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. It’s important to ground the yellow/green conductor to earth in order to avoid electric shock. The unit is for indoor use only. Use only in a dry location. The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked. Please disconnect main power before replacement or servicing. Please make sure there are no flammable materials close to the unit while operating as it is fire hazard. Please use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always by taking its base. ... -
Page 4: Technical Specifications
Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution: There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact your nearest dealer. ... -
Page 5: How To Set The Unit
Specification: ◇ Power Voltage: AC 100‐240V, 50/60HZ ◇ Power Consumption: 105W ◇ Power Cable Daisy Chains: 8 Fixtures Max. (230V, 50Hz) 4 Fixtures Max. (120V, 60Hz) ◇ Light Source: ... -
Page 6: Main Function
2. LED: DMX On DMX input present MASTER On Master Mode SLAVE On Slave Mode SOUND Flashing Sound activation 3. Button: MENU To select the programming functions DOWN To go backward in the selected functions UP To go forward in the selected functions ENTER To confirm the selected functions 4. MAINS IN: PowerCon connection from main power supply 5. MAINS OUT: PowerCon loop connection for main power supply to the next unit 6. Fuse (T 6.3A): Protects the unit from over‐voltage or short circuit ... - Page 7 ...
- Page 8 DMX Address To select DMX Address, press the ENTER button to show the DMX ADDRESS on the display. Use the DOWN/UP button to adjust the address from 001 to 512. Once the address has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Show Mode To select Show Mode, press the ENTER button to show the SHOW MODE on the display. Use the DOWN/UP button to select the Show 1, Show 2, Show 3 or Show 4 mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Slave Mode To select Slave Mode, press the ENTER button to show the SLAVE MODE on the display. Use the DOWN/UP button to select the Slave 1 or Slave 2 mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Dimmer Curve To select Dimmer Curve, press the ENTER button to show the DIMMER CURVE on the display. Use the DOWN/UP button to select the Mode 1, Mode 2, Mode 3 or Mode 4. Once the dimmer mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or ...
- Page 9 Mode 1(Optically Linear): The increase in light intensity appears to be linear as DMX value is increased. Mode 2(Square Law): Light intensity control is finer at low levels and coarser at high levels. Mode 3(Inverse Square Law): Light intensity control is coarser at low levels and finger at high levels. Mode 4(S‐cure): Light intensity control is finger at low levels and high levels and coarser at medium levels. Sound State To select Sound State, press the ENTER button to show the SOUND STATE on the display. Use the DOWN/UP button to select the On (turn on the Sound Mode) or Off (Sound Mode off). Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Sound Sense To select Sound Sense, press the ENTER button to show the SOUND SENSE on the display. Use the DOWN/UP button to adjust the sensitivity level, the sensitivity level can be adjusted between 0 (the lowest) and 100 (most sensitive). Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Black Out To select Black Out, press the ENTER button to show the BLACK OUT on the display. Use the DOWN/UP ...
- Page 10 Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Back Light To select Back Light, press the ENTER button to show the BACK LIGHT on the display. Use the DOWN/UP button to select the On (LED display always on) or Off (LED display off when not use). Once selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Pan Inverse To select Pan Inverse, press the ENTER button to show the PAN INVERSE on the display. Use the DOWN/UP button to select the Yes (pan inversion) or No (normal) mode. Once the mode has been selected, press the ENTER button to setup, to go back to the functions without any change ...
- Page 11 White Balance To select White Balance, press the ENTER button to show the WHITE BALANCE on the display. Use the DOWN/UP button to select the Red or Green, Blue. Once the mode has been selected, press the ENTER button to setup, use the DOWN/UP button to adjust the value (125~255). Once selected, press the ENTER button to setup, go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. Manual Test To select Manual Test, press the ENTER button to show the MANUAL TEST on the display. Use the DOWN/UP button to select the Pan/Tilt/Red/Green/Blue/White/Zoom/Dimmer or Strobe. Once you ...
-
Page 12: Home Position Adjustment
MENU button about one second or wait for one minute to exit the menu mode. Firmware Version To select Firmware Version, press the ENTER button and the display will show the version of software of the unit. To go back to the functions press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. PRO defaults To select PRO defaults, press the ENTER button to show the PRO DEFAULTS on the display. Use the DOWN/UP button to select the Yes (run built‐in program to set the fixture to PRO Defaults settings) or No. Press the ENTER button to setup, to go back to the functions without any change press the MENU button again. Press and hold the MENU button for about one second or wait for one minute to exit the menu mode. ... -
Page 13: How To Control The Unit
4. How to Control the Unit You can operate the unit in two ways: 1. Master/slave built‐in preprogram function 2. Universal DMX controller You do not need to turn the unit off when you change the DMX address, the new DMX address setting will take effect immediately. Every time you turn the unit on, it will show “CM‐70Z” on the display and move all the motors to their ‘home’ position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built in programs. 4.1 Master/Slave Built In Preprogrammed Function By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. This function is good when you want an instant show. You have to set the first unit in master mode Show Mode and select show 1 or show 2 or show 3 or show 4 mode. Its DMX input jack will have nothing plugged into it, and its master LED will be constantly on and sound LED will flash to the music. The other units will have to set in slave mode and select Slave 1 (normal) or Slave 2 (2 light show) mode, Their DMX cables plugged into the DMX input jacks (daisy chain) and the slave led lights will constantly on. 2‐light show In slave mode, Slave 1 means the unit works normally and Slave 2 means 2‐light show. In order to create a great light show, you can set Slave 2 on the second unit to get contrast movement to each other, even if you have two units only. 4.2 DMX Controller By using a universal DMX controller to control the units, you will need to set DMX address from 1 ... -
Page 14: Dmx 512 Configuration
second or wait for one minute to exit the menu mode. Please refer to the following diagram to address your DMX512 channel for the first 4 units： Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 14 channels 1 15 29 43 4.3 DMX 512 Configuration 14 Channels Mode: CHANNEL VALUE FUNCTION 1 000‐255 PAN 2 000‐255 PAN FINE 3 000‐255 TILT 4 000‐255 TILT FINE 5 PAN/TILT SPEED 000‐255 fast ... - Page 15 190‐204 Strobe 8: random burst pulse (fast slow) 205‐209 Open 210‐224 Strobe 9: sine wave (fast slow) 225‐229 Open 230‐244 Strobe 10: burst (fast slow) 245‐255 Open 9 000‐255 RED (0% 100%) 10 000‐255 GREEN (0% 100%) 11 000‐255 BLUE (0% 100%) 12 000‐255 WHITE (0% 100%) 13 COLOR MACRO 000‐009 Open 010‐014 LEE 790 – Moroccan Pink 015‐019 LEE 157 – Pink 020‐024 ...
-
Page 16: Dmx512 Connection
165‐169 LEE 135 – Deep Gold Amber 170‐174 LEE 164 – Flame Red 175‐179 Open Color wheel rotation effect 180‐201 Clockwise, fast slow 202‐207 Stop (this will stop wherever the color is at the time) 208‐229 Counter‐clockwise, slow fast 230‐234 Open Random color 235‐239 Fast 240‐244 Medium 245‐249 Slow 250‐255 Open 14 ZOOM 000‐255 wide narrow 5. DMX512 Connection The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. ... -
Page 17: Troubleshooting
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter‐cable. 2. The last units DMX cable has to be terminated with a 120 ohm 1/4W resistor between pin 2(DMX‐) and pin 3(DMX+) of a 3‐pin XLR‐plug and plug it in the DMX‐output of the last unit. 3. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very ... -
Page 18: Fixture Cleaning
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4. Try to use another DMX controller. 5. Check if the DMX cables run near or run alongside to high voltage cables that may cause damage or interference to DMX interface circuit. C. Some units don’t respond to the easy controller 1. You may have a break in the DMX cabling. Check the LED for the response of the master/ slave mode signal. 2. Wrong DMX address in the unit. Set the proper address. D. No response to the sound 1. Make sure the unit does not receive DMX signal. 2. Check microphone to see if it is good by tapping the microphone 3. Make sure the fixture is not set into Blackout mode E. One of the channels is not working well 1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. 7. Fixture Cleaning The cleaning must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. Clean with soft cloth using normal glass cleaning fluid. Always dry the parts carefully. Clean the external optics at least every 30 days. ... - Page 19 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103‐1: 2009 ; EN55103‐2: 2009; EN62471: 2008; EN61000‐3‐2: 2006 + A1:2009 + A2:2009; EN61000‐3‐3: 2008. & Harmonized Standard EN 60598‐1:2008 + All:2009; EN 60598‐2‐17:1989 + A2:1991; EN 62471:2008; EN 62493: 2010 Safety of household and similar electrical appliances Part 1: General requirements ...
- Page 20 Innovation, Quality, Performance ...
