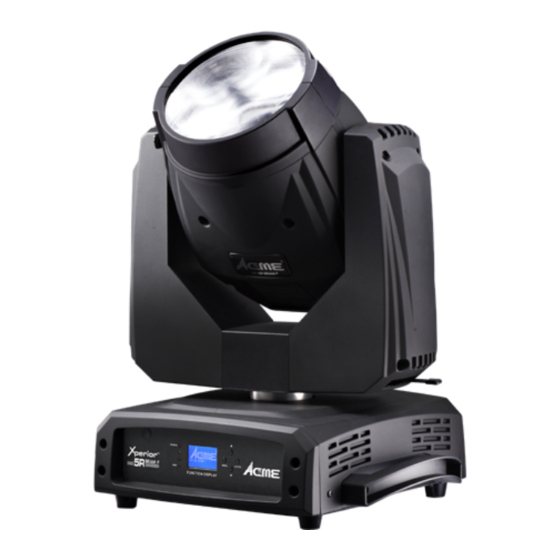

ACME Xperior 5R BEAM F User Manual

Flood light
Hide thumbs Also See for Xperior 5R BEAM F:
Table of Contents

Advertisement

Quick Links

TM
Xperior
5R BEAM F
User Guide
Please read these instructions carefully before use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Xperior 5R BEAM F and is the answer not in the manual?

Questions and answers

Related Manuals for ACME Xperior 5R BEAM F

Summary of Contents for ACME Xperior 5R BEAM F

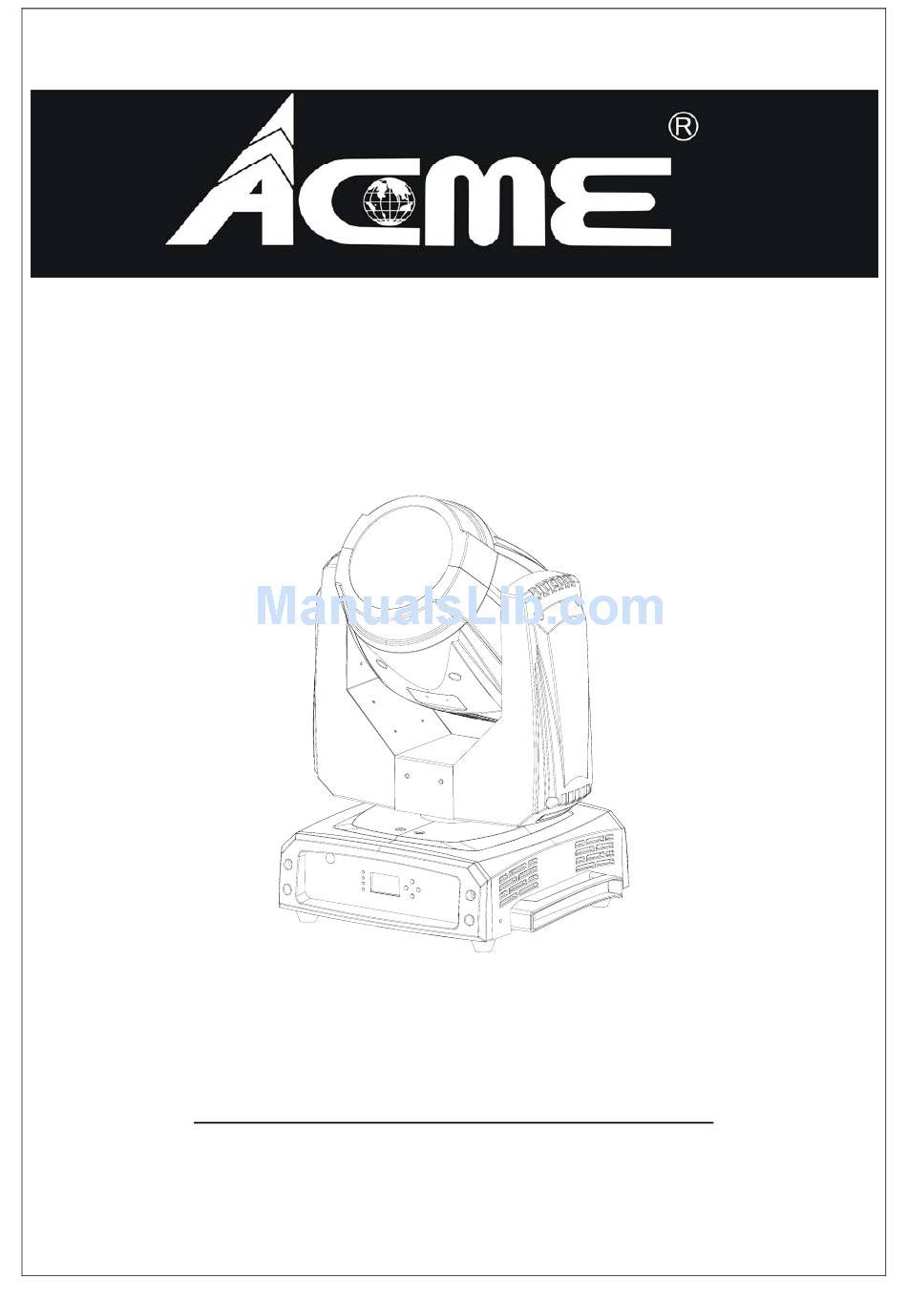

  • Page 1 Xperior 5R BEAM F User Guide Please read these instructions carefully before use...

  • Page 2: Table Of Contents

    XP-5R Beam F TABLE OF CONTENTS 1. Safety Instruction................2 2. Installation ..................4 3. Technical Specification ..............5 4. Description ..................8 4.1 Description of the fixture ............8 4.2 Control Panel ................8 5. Gobo-wheel and Lamp ..............9 5.1 Gobo-wheel .................

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction manual, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 XP-5R Beam F during its operation, and allow about 15 minutes for cooling the unit down before replacing bulb or maintenance as it could be very hot. Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut off the mains power immediately.

  • Page 5: Installation

    2. Installation Unpacking the fixture (for flight case pack only) 1. Stop the flight case via the brake sheet above the wheels. 2. Unlock the lock modules (1) and open the cover board. 3. Prop the cover board with lid bracket. 4.

  • Page 6: Technical Specification

    XP-5R Beam F Also always use a safety cable that can hold 12 times of the weight of the unit when installing the fixture. Make absolute sure that the unit is firmly fixed in way that no vibrating or slipping would occur during operation.
  • Page 7 Dimmer/Shutter - Mechanical dimmer - Mechanical shutter and adjustable speed strobe effect Color wheel - Color wheel: 14 fixed colors - Rainbow effect in both directions. - Easy calibration and maintenance by magnetic home positioning. Gobo wheel - Gobo Wheel: 17 fixed gobos, index able, - Easy calibration and maintenance by magnetic home positioning.
  • Page 8 XP-5R Beam F DMX Channels Mode Mode 1 Mode 2 Mode 3 15-CH 14-CH 18-CH COLOUR WHEEL COLOUR WHEEL PAN FINE STOP / STROBE STOP / STROBE TILT DIMMER DIMMER TILT FINE STATIC GOBO STATIC GOBO CHANGE CHANGE PAN /TILT SPEED PRISM INSERTION PRISM INSERTION FUNCTION PRISM ROTATION PRISM ROTATION COLOR...

  • Page 9: Description

    4. Description 4.1 Description of the fixture 1. Front panel 2. Head 3. Arm 4. Tilt arm self-locking handle 5. pan self-locking handle 6. Handle 7. Base Caution: The head and arm must be unlocked before operation! 4.2 Control Panel Front view Rear view ○...

  • Page 10: Gobo-Wheel And Lamp

    XP-5R Beam F ○ Button MENU To enter into, move backward or leave the menu Move up in the menu DOWN Move down in the menu ENTER Enter the desired functions ○ 4 DMX input/output: For DMX 512 operation, use 3/5-pin XLR plug cable to link the units together ○...

  • Page 11: Lamp

    5.2 Lamp Philips MSD Platinum 5R (8000K) Because of its high internal pressure, there might be a risk that the Discharge lamp would explode during operation. The lamp emits intense UV radiation which is harmful to the eyes and skin. The high luminance of the arc can cause severe damage to the retina if you take a close look at the lamp.

  • Page 12: How To Set The Unit

    XP-5R Beam F Fig4 Fig3 2. Follow the Fig.3 and Fig.4: Loosen the two screws and apart the entire assembly Fig5 Fig6 3. Follow the Fig.5 and Fig.6: Unplug all the connect wires over the lamp and wear Anti-static gloves to take on the lamp 4.

  • Page 13: Main Function

    Fig.4 Fig.5 Explanation of fig.5: Base 40°C Show temperature of base CPU is 40°C Show start address Md.1 15Ch. Show channel mode is mode 1 (15 channels mode) 6.2 Main Function Turn on the unit, press MENU button into menu mode, press UP and DOWN button until the required function is shown on the monitor.
  • Page 14 XP-5R Beam F...
  • Page 15 DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP and DOWN button to select DMX Address, DMX Channel Mode or View DMX Value — DMX Address DMX512 address setting Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP and DOWN button to adjust the address from 1 to 512, press ENTER button to store.
  • Page 16 XP-5R Beam F to exit menu mode. View DMX Value Select View DMX Value, press ENTER button to confirm. Channel function and its value will show on the display, use UP and DOWN button to view other DMX value. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 17 Change or BL.O. Gobo Change. Pan Inverse Select Pan Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal) or Yes (pan inverse), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 18 XP-5R Beam F — BL.O. Gobo Change Blackout while change gobo Select BL.O. Gobo Change, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal while changing gobo) or Yes (blackout while changing gobo), press ENTER button to store.
  • Page 19 “yes” mode). — On If DMX On Lamp turns on when DMX signal is detected Select On If DMX On, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select Yes (Lamp turns on when DMX signal is detected) or No (keep the present state), press ENTER button to store.
  • Page 20 XP-5R Beam F or Temperature unit. Display Inverse Select Display Inverse, press ENTER button to confirm, present mode will blink on the display, use UP and DOWN button to select No (normal display) or Yes (inverse display), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 21 automatically test pan, tilt, color, gobo, gobo rotation, shutter, dimmer, prism, prism rotation, frost, focus, and lamp on/off. . Press MENU button back to the last menu or exit menu mode after auto test. Manual Test Select Manual Test, press ENTER button to confirm, the present channel will show on the display, use Up and DOWN button to select channel, press ENTER button to confirm, then use UP and DOWN button to adjust the value, press ENTER button to store, the fixture will run as the channel value indicates.
  • Page 22 XP-5R Beam F Reset Functions Enter menu mode, select Reset Function, press ENTER button to confirm, use UP and DOWN button to select Pan/Tilt, Shutter/Prism/Frost, Color, Gobo or All. — Pan/Tilt Reset Pan/Tilt Select Pan/Tilt, press ENTER button to confirm, use UP and DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No, press ENTER button to store.

  • Page 23: Home Position Adjustment

    Special Functions Enter menu mode, select Special Functions, press ENTER button to confirm, use UP and DOWN button to select Fixture Maintenance or Factory Setting. Fixture Maintenance Select Fixture Maintenance, press ENTER button to confirm, use UP and DOWN button to select Interval or Remain Time. Interval Select Interval, press ENTER button to confirm, the interval time will show on the display.
  • Page 24 XP-5R Beam F — pan home position adjust Enter offset mode, Select Pan, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store.
  • Page 25 — Gobo Gobo home position adjust Enter offset mode, Select Gobo, press ENTER button to confirm, the present position will blink on the display, use UP and DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. —...

  • Page 26: Error Information

    XP-5R Beam F 6.4. Error Information Lamp Startup Fail It appears when there is no lamp or some wires are damaged. Temperature Sense Error It appears when temperature check board is damaged. Lamp Too Hot Power Off It appears when temperature is detected higher than 110℃. Check if the unit is properly ventilated, or fans or temperature check board may is damaged.

  • Page 27: Control By Universal Dmx Controller

    7. Control By Universal DMX Controller 7.1 Connection unit 1 unit 2 unit3 unit4 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 28: Channel Mode Setting

    XP-5R Beam F 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR connectors are more popular than 5 pins XLR. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) 5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+), Pin4, Pin5 not used.

  • Page 29: Dmx 512 Configuration

    7.4 DMX 512 Configuration Please refer to below configurations to control the fixtures Attention: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 5 seconds, then the corresponding function will take into effect.
  • Page 30 XP-5R Beam F 15 Channels mode1：...
  • Page 32 XP-5R Beam F 14 Channels mode 2:...
  • Page 34 XP-5R Beam F 18 Channels mode 3:...

  • Page 36: Lighting Library Download

    The whole series of Xperior fixtures’ personalities have been built into the most widely used consoles from Avolites, Compulite, Daslight, MA Lighting, Wholehog and Zero 88. Please visit their websites or ours: http://www.acme.com.cn/ to download the latest Fixture Personality Library.

  • Page 37: Troubleshooting

    9. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 38 XP-5R Beam F E. If The pan belt is broken 1. Turn off the mains power. 2. Loosen the screws (A)，open the cover (B). 3. Loosen the screws (C). 4. Unplug all the connect wires over the belt. 5. Change a new belt (D), put the belt around the axis gear and motor gear.

  • Page 39: Maintenance And Cleaning

    10. Maintenance and Cleaning Maintenance: Ballast A. As the pictures shown above, please replace the cable or cable joints immediately once they’ve turned yellow. B. Do maintain the fixtures every two months and make sure that all the screws and terminals have been locked firmly to make sure the normal performance of the fixtures.
  • Page 40 Innovation, Quality, Performance 39393610525212112112222222222222236...
