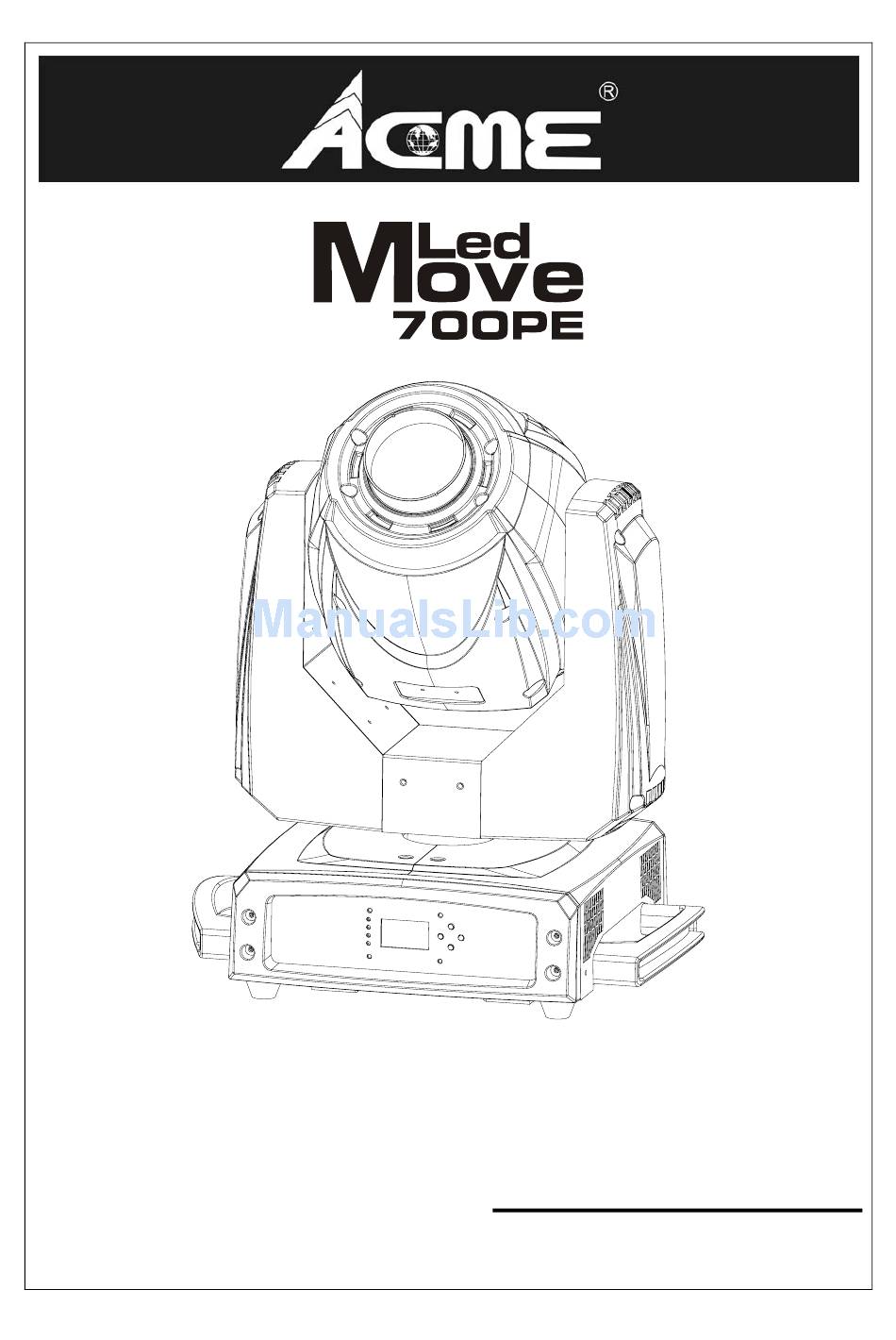

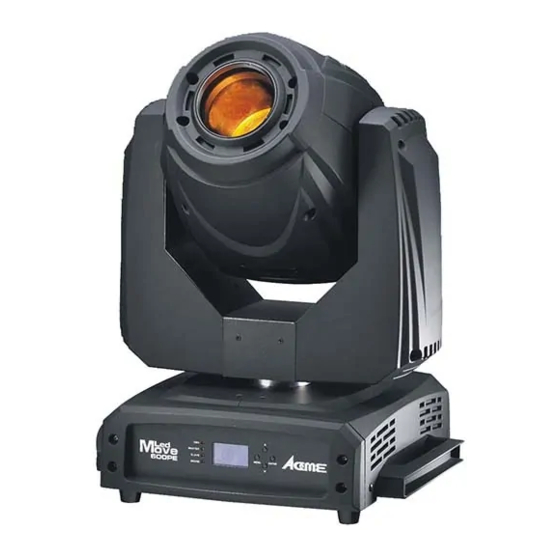

  • Page 1 LED‐MS700PE                    User Guide Professional LED Moving Head...

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instruction ....................2 2. Installations ....................... 3 3. Technical Specifications..................4 4. How To Set The Unit..................5 4.1 Control Panel....................5 4.2 Gobo Wheel....................6 4.3 Power On Display ..................6 4.4 Main Function ..................... 7 4.5 Home Position Adjustment................

  • Page 3: Safety Instruction

    1. Safety Instruction Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Installations

    Avoid power wires together twist other cables. Disconnect mains power before fuse/lamp replacement or servicing. Replace fuse/lamp only with the same type. In the event of serious operating problem, stop using the unit immediately. Never turn on and off the unit time after time. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

  • Page 5: Technical Specifications

    4. Take out the fixture. 5. Unlock the lock module take out omega clamps. Installations: 1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the holder. 2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock fasteners (3) into the holes of the base and tighten fully clockwise.

  • Page 6: How To Set The Unit

    Color wheel with seven colors plus white Prism, rotating prism and iris included Automatic pan/tilt position correction No mercury, No IR or UV light radiation Voltage： AC 100-240V~50/60Hz Power consumption: 330W Light Source: 1 x180W LED Beam Angle: 13° Fuse: 6.3A Dimension: 436 x 344 x 588mm...

  • Page 7: Gobo Wheel

    ⑤ Fuse (T 6.3A): Protect the unit from damage of over current. ⑥ Mains input: Connect to supply mains power. ⑦ Mains output: Connect to supply mains power for the next unit. 4.2 Gobo Wheel DANGER! Install the gobos with the device switched off only. Unplug from mains before changing gobos! 4.3 Power On Display Every time you turn on the unit, it will run built-in program to reset all motors to their home...

  • Page 8: Main Function

    Explanation: Show start address 17 Channel Show channel mode is 17channels mode Base 30°C Show temperature of base is 30°C Lamp 29°C Show temperature of lamp is 29°C 4.4 Main Function To select any of the given functions, press the MENU button up to when the required one is showing on the display.
  • Page 10 DMX Functions Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP/DOWN button to select DMX Address, Mode or View DMX Value. DMX Address—DMX512 address setting Select DMX Address, press ENTER button to confirm, the present address will blink on the display, use UP/DOWN button to adjust the address from 0 to 512, press ENTER button to store.
  • Page 11 Show Settings Enter menu mode, select Show Settings, press ENTER button to confirm, use UP/DOWN button to select Offline Mode, Show Mode, Slave Mode, Focus 1, Focus 2, Sound Trigger or Sound Sensitivity. Offline Mode Select Offline Mode, press ENTER button to confirm, present mode will blink on the display, use UP/DOWN button to select M/S (Master/ Slave Show), Hold or Blackout, once selected, press ENTER button to store.
  • Page 12 Sound Trigger—Sound Mode Select Sound Trigger, press ENTER button to confirm, present mode will blink on the display, use UP/DOWN button to select Off (Sound Mode off) or On (Sound Mode On), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 13 or Yes (Feedback while pan/tilt out of step. ), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode. Iris Inverse Select Iris Inverse, press ENTER button to confirm, present mode will blink on the display, use UP/DOWN button to select No (normal) or Yes (iris inverse), press ENTER button to store.
  • Page 14 Display Inverse Select Display Inverse, press ENTER button to confirm, present mode will blink on the display, use UP/DOWN button to select No (normal display) or Yes (inverse display), press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.
  • Page 15 Auto Test Select Auto Test, press ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, gobo, gobo rotation, prism, prism rotation, frost. Press MENU button back to the last menu or exit menu mode after auto test. Manual Test Select Manual Test, press ENTER button to confirm, the present channel will show on the display, use UP/DOWN button to select channel, press ENTER button to confirm, then use...
  • Page 16 Pan/Tilt—Reset Pan/Tilt Select Pan/Tilt, Press ENTER button to confirm, use UP/DOWN button to select Yes (the unit will run built-in program to reset pan and tilt to their home positions) or No, press ENTER button to store. Press MENU button back to the last menu or let the unit idle one minute to exit menu mode.

  • Page 17: Home Position Adjustment

    run built-in program to reset all motors to their home positions) or No, press ENTER button to store. Press MENU button to exit. Special Functions Enter menu mode, select Special Functions, press ENTER button to confirm, the Factory Setting will show on the display, press ENTER button to confirm, then use UP/DOWN button to select Yes (the unit will run build-in program to reset to factory settings) or No.
  • Page 18 Tilt—Tilt home position adjust Enter offset mode, Select Tilt, press ENTER button to confirm, the present position will blink on the display, use UP/DOWN button to offset the value from -128 to 127, press ENTER button to store. Press MENU button to exit. Color1—Color1 home position adjust Enter offset mode, Select Color1, press ENTER button to confirm, the present position will blink on the display, use UP/DOWN button to offset the value from -128 to 127, press ENTER...

  • Page 19: Control By Universal Dmx Controller

    Prism—Prism home position adjust Enter offset mode, Select Prism, press ENTER button to confirm, the present position will blink on the display, use UP/DOWN button to offset the value from 0 to 255, press ENTER button to store. Press MENU button to exit. R Prism—Prism rotation home position adjust Enter offset mode, Select R Prism, press ENTER button to confirm, the present position will blink on the display, use UP/DOWN button to offset the value from -128 to 127, press ENTER...

  • Page 20: Dmx Address Setting

    input of the next unit. The cable can not branched or split to a `Y` cable. DMX 512 is a very high-speed signal. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system. 3.

  • Page 21: Dmx512 Configuration

    5.3 DMX512 Configuration 16 Channels Mode:...
  • Page 22 17 Channels Mode:...

  • Page 23: Troubleshooting

    6. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: The unit does not work, no light and the fan does not work 1. Check the connect power and main fuse. 2.
  • Page 24 E. If the pan belt is broken 1. Turn off the mains power. 2. Loosen the screws (A)，open the cover (B). 3. Loosen the screws (C). 4. Unplug all the connect wires over the belt. 5. Change a new belt (D), put the belt around the axis gear and motor gear. 6.

  • Page 25: Fixture Cleaning

    7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 27 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
