Another mistake can occur, if you have antenna connected to the wrong output. In such a case „SWR
is too high" error message appears. Change antenna output using S4 button.

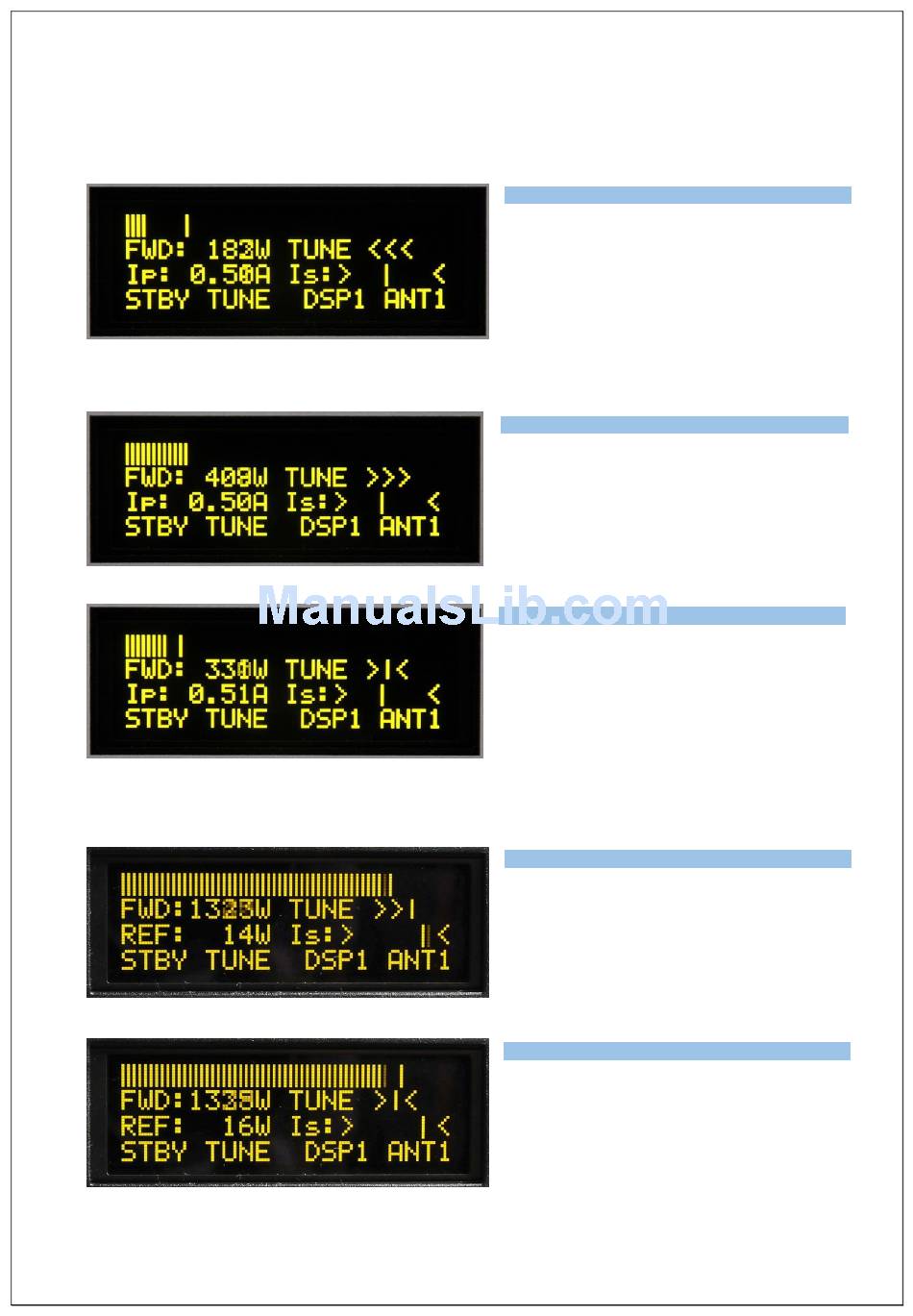

Now increase input power slowly and watch the display.
This is not an optimal result, TUNE indicator
must go between both arrows. Use TUNE
knob to get maximum output power and
Type of supported TCVR and working
LOAD knob to get indicator between
arrows. frequency are visible on the display.
Another example of not optimal result, TUNE
indicator must go between both arrows. Use
TUNE knob to get maximum output power
Type of supported TCVR and working
and LOAD knob to get indicator between
arrows (in arrows direction). frequency are visible on the display.
This is a good result of tuning.
Type of supported TCVR and working
frequency are visible on the display.
Two of important information is visible –
screen current increased, but still is within
the allowed limits. Turn LOAD knob slightly
Type of supported TCVR and working
in arrows direction to get TUNE indicator
between arrows. frequency are visible on the display.
Display indicates correct tuning of the Power
Type of supported TCVR and working
amplifier.
frequency are visible on the display.
AUTO LED is ON.
AUTO LED is ON.
AUTO LED is ON.
AUTO LED is ON.
AUTO LED is ON.
