Preparation For Operation - OM POWER OM2000+ User Manual

ON AIR - Transmitting mode LED
STBY - Standby mode LED
FAULT - Failure LED
ON - PA is „ON" LED
S1 - OPER / STBY - Press to switch between Standby and Operation mode
ESC
S2 - MENU
DOWN
S3 - DSP
UP
S4 - ANT
ENT
More functions of S1-S4 buttons will be described in next parts of this manual.
5.2. Preparation for use
The first necessary thing after connecting AC to the power amplifier is switching main (green) switch
to „ I ". Welcome message and then starting information appears on the display:
- Return to the previous level
- Enter the Menu
- Scroll down
- Change display (DSP1, DSP2, DSP3)
- Scroll up
- Change Antenna output (ANT1, ANT2, ANT3)
- Confirm the selection

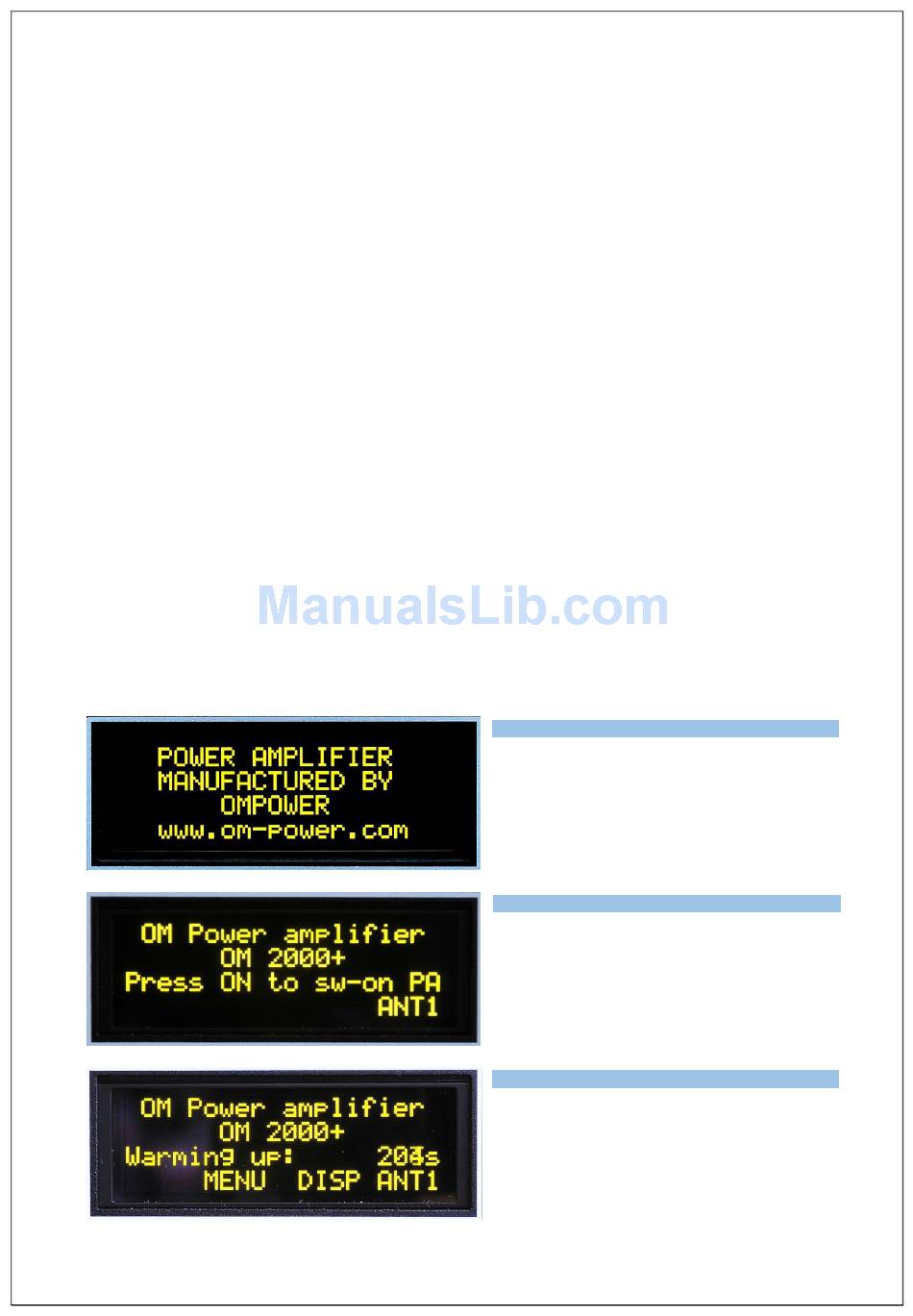

After switching main switch ON welcome
Type of supported TCVR and working
message appears shortly.
frequency are visible on the display.
Starting message shows which antenna is
Type of supported TCVR and working
connected. To switch PA ON press ON-OFF
button for abt. 1 second.
frequency are visible on the display.
Warming time takes abt. 210 seconds. It is
possible to enter MENU during this time, but
with limited possibilities (display settings can
Type of supported TCVR and working
be changed, for example).
You can change ANT output, if necessary.
frequency are visible on the display.
AUTO LED is ON.
AUTO LED is ON.
13
AUTO LED is ON.
