Summary of Contents for Exxentric kBox
- Page 1 PRODUCT MANUAL kBox VERSION 2.5...
- Page 2 This Manual covers a description of the Kinetic Box, or kBox, a Flywheel Exercise Platform, a guide to its use, and how to maintain it. Always check EXXENTRIC.COM for latest info and manuals. INTRODUCTION Page 3 FEATURES OF THE KBOX...

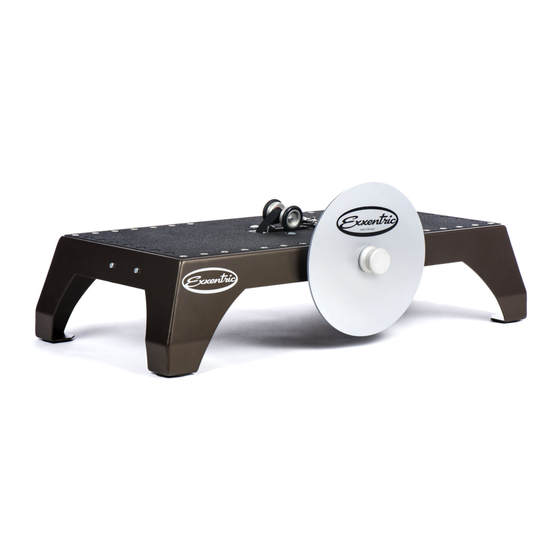

- Page 3 How Does It Work? The kBox has an adjustable-length strap wound around a shaft located beneath the platform. Different combinations of flywheels are mounted on the end of the shaft.
- Page 4 The Flywheel There are two different weight flywheels included with the kBox giving different rotational weights. The flywheels are heavy (0.05 kgm2) and light (0.025 kgm2). You can mount 4 flywheels at the same time giving a range of 0.025-0.2 kgm2).
-
Page 5: Features Of The Kbox
FEATURES OF THE KBOX Principle of the kBox The kBox is a flywheel exercise device, often referred to as an FWED. What muscle is being exercised depends on which exercise is being performed. The principle is through muscle force you accelerate and decelerate a flywheel (or flywheels). - Page 6 With tall people, people with a weak core, or with back problems, squatting is almost impossible or accompanied with a lot of discomfort or pain. With the kBox you are able to work out maximally or closer to maximum intensity since the harness equalizes the pressure over the shoulders and reduces the pressure on the lumbar spine.
-
Page 7: Using The Kbox
Using the Harness Attach the Harness to the reel with the harness twisted inwards which give a smoother contact with the thigh. Observe that in kBox 2.5 there is a snap shackle (left picture) instead of a closing hook (below right). - Page 8 USING THE KBOX (cont.) Using the Harness (cont.) Set the Strap Length Adjustment Dial to allow the strap to fully reach the upper end of the exercise movement. For beginners, rehab patients, and upper body exercises, the top position should be just before all active joints are fully extended.
- Page 9 USING THE KBOX (cont.) Using the Grip/Bar Attach the desired Grip or Bar. Position your feet as described above. Use the Strap Length Adjustment Dial to set the top position for the actual exercise. As with the harness, for beginners, rehab patients, and upper body exercises, the top position should be just before all active joints are fully extended.
- Page 10 USING THE KBOX (cont.) Centering yourself on the platform You’ll notice that the lift center is approximately half way between the two straps. So position yourself slightly to one side to be over this line. kBox - Version 2.5...
- Page 11 Strap Cautions The Strap and its attachment to the axle is the most sensitive part of the kBox. Be attentive to wear and check regularly When the Strap shows signs of wear, cut off the damaged area or replace it with an original spare Strap.
- Page 12 • Attach the new strap. • Check that the new strap is not twisted • Reassemble the strap, pressure pin and re tighten the screws • After the first training, re-tighten the screws on the strap lock. kBox - Version 2.5...
- Page 13 Do not stop the motion in the top position but start to decelerate the motion on the way down and stop in a lowered position. Exxentric AB - PO Box 508 , S 645 25 Strangnas, Sweden. +46 (0)152 33 11 60 info@exxentric.com - www.exxentric.com (art.no 18593)
