Exxentric kPulley Upgrade Kit Assembly Instructions

kPulley Upgrade Kit: assembly instructions

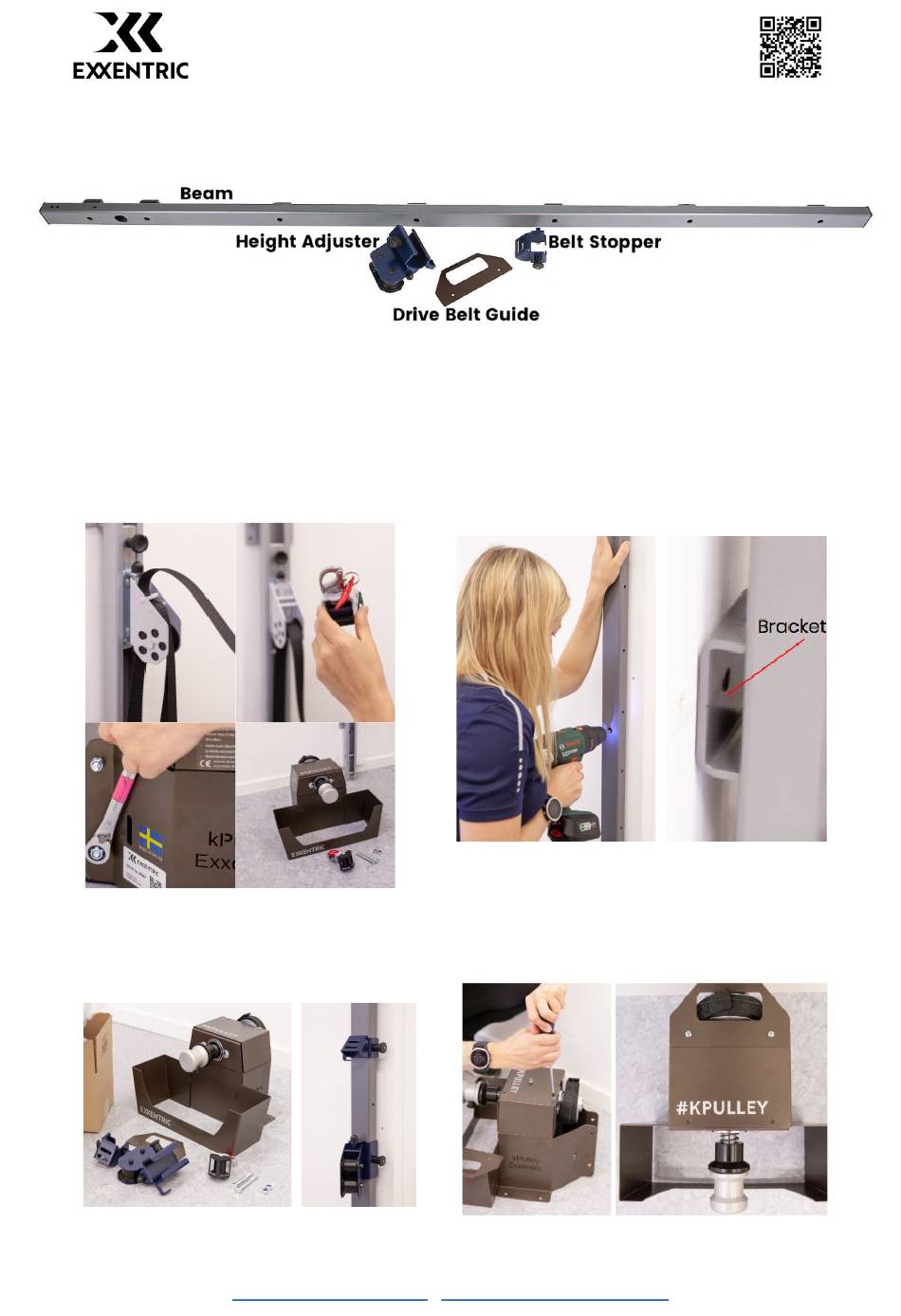

The kPulley Upgrade Kit enables owners of the original kPulley device to benefit from most of the
upgrades and features available in the kPulley2 and it consists of the following components.
Step 1 ​ - ​ P ull out the Drive Belt from the Belt
Stopper Hook, Height Adjuster and Pulley
Block. Roll up the Drive Belt around the
shaft and keep it stationary. Remove the
M8 nuts and screws fixating the chassi to
the bottom beam. Unscrew and remove
the beams from your wall.
Step 3 - Slide the Height Adjuster on the
Beam followed by the Belt Stopper.
support@exxentric.com​
Step 2 - Position the new Beam against
your wall with the oval opening visible and
set low to the ground. Attach the new
Beam to the wall with seven suitable
screws (not included in the upgrade kit). ​
attach the Beam to a pole or a rack, use
the brackets on the back of the Beam and
strong belts with cam locks.
Step 4 ​ - Unscrew the shaft cover to
position the Drive Belt Guide on top of it
and screw it back in.
| ​ w ww.exxentric.com/support
