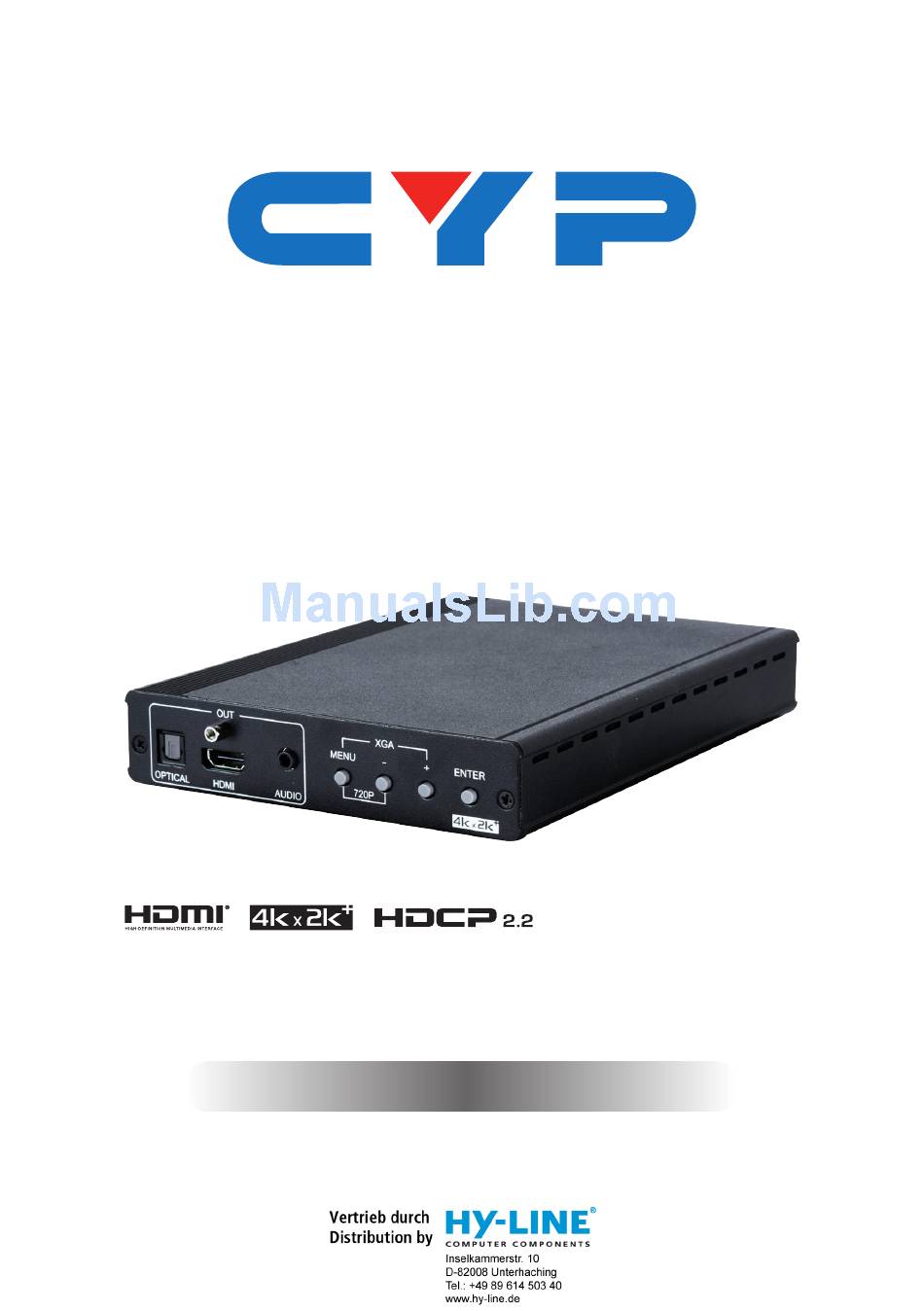

- Page 1 CSC-6011 4K UHD+ HDMI and PC/HD to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 OSD Menu ..........5 7. Connection Diagram ........9 8. -
Page 6: Introduction
1. INTRODUCTION This is a compact yet versatile 4K UHD HDMI and PC/HD to HDMI Scaler. It accepts a wide range of resolutions from 480i up to 1080p/ WUXGA for PC/HD and up to 4K@60Hz (4:4:4) for HDMI with the ability to scale the output to a selectable resolution up to 4K@60Hz (4:4:4) with simultaneous de-embedded, digital optical and analog audio output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as media players, video game consoles, set-top boxes, PCs or laptops • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers • The use of “Premium High Speed HDMI” cables is highly recommended 5. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU ENTER 720P OPTICAL HDMI AUDIO OPTICAL OUT: Connect to powered speakers or an amplifier for digital audio output using an appropriate optical cable. Supports LPCM 2.0 audio only. Bitstream formats will be muted. HDMI OUT: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. -
Page 9: Rear Panel
6.2 Rear Panel POWER DC 5V HDMI AUDIO OPTICAL SERV. PC IN: Connect to VGA source equipment such as a PC or laptop. YUV sources, such as DVD players, are also supported with the use of a 15-pin to 3-RCA adapter. HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. -
Page 10: Osd Menu
6.3 OSD Menu MAIN MENU SUB MENU PARAMETER DEFAULT PICTURE CONTRAST 0~100 BRIGHTNESS 0~100 EXIT FINETUNE 0~100 [HDMI/YPbPr SATURATION 0~100 source only] SHARPNESS 0~100 MIDDLE HIGH EXIT FINETUNE PHASE 0~100 [PC source only] CLOCK 0~100 H-POSITION 0~100 V-POSITION 0~100 EXIT COLOR 0~100 GREEN... - Page 11 MAIN MENU SUB MENU PARAMETER DEFAULT OUTPUT RESOLUTION 1280×1024@60 NATIVE (Cont.) (Cont.) 1440×900@60 1400×1050@60 1680×1050@60 1600×1200@60 1920×1200@60 (RB) 480P@60 576P@50 720P@50 720P@60 1080P@50 1080P@60 4K2K@24 4K2K@25 4K2K@30 4K2K@50 4K2K@60 4K2K@50 (4:2:0) 4K2K@60 (4:2:0) NATIVE UHD BYPASS BYPASS SCALER SCALER SIZE* FULL BEST FIT OVER SCAN...
- Page 12 MAIN MENU SUB MENU PARAMETER DEFAULT AUDIO HDMI INPUT AUTOMATIC AUTOMATIC EMBEDDED ANALOG OPTICAL PC INPUT ANALOG ANALOG OPTICAL VOLUME 0~100 100 [=2Vrms] [Analog audio only] EXIT TIMER 5~100 DISPLAY INFO INFO EXIT EDID MANAGE EDID COPY DEF. 1080P DEF. 1080P [HDMI source DEF.
- Page 13 MAIN MENU SUB MENU PARAMETER DEFAULT ADVANCED AUTO ADJUST (Cont.) EXIT FACTORY RESET EXIT Note: • W hen outputting a 4K resolution with the same refresh rate as the 4K source (or when bypass mode is enabled) the OSD items marked with an asterisk (*) will be disabled.
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM PC/Laptop DVD or Blu-ray Player Media Streamer Analog HDMI Digital Input Audio Input Audio Input Input Power Supply POWER DC 5V HDMI AUDIO OPTICAL SERV. MENU ENTER 720P OPTICAL HDMI AUDIO Digital HDMI Analog Audio Output Audio Output Output AV Receiver... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600MHz/18Gbps Input Ports 1×HDMI, 1×VGA [15-pin D-sub], 1×Optical Audio, 1×3.5mm Audio Output Ports 1×HDMI, 1×Optical Audio, 1×3.5mm Audio Supported Resolutions 408i@60Hz - 4K@60Hz (4:4:4, 8-bit) VGA@60Hz - WUXGA@60Hz (RB) Cable Length 10 m (1080p@60Hz, 12-bit) 5 m (4K@60Hz, 4:4:4, 8-bit) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL... -
Page 16: Video Specifications
8.2 Video Specifications 8.2.1 Supported Resolutions HDMI HDMI PC Resolution (Hz) Input Input Output 640×480@60/72/75/85 800×600@56/60/72/75/85 60Hz only 1024×768@60/70/75/85 1280×1024@60/75/85 1360×768@60 1280×800@60 1280×1024@60 1440×900@60 ... -
Page 17: Scaled Resolutions
8.2.2 Scaled Resolutions UHD BYPASS SCALER BYPASS Input Output Bypass Scaler Bypass Scaler Resolution Resolution Path Path Path Path Non-4K Timing Any Timing 4K but not 24Hz 4K@24Hz 4K but not 25Hz 4K@25Hz 4K but not 30Hz 4K@30Hz ... -
Page 18: Audio Specifications
8.3 Audio Specifications Formats HDMI Optical Analog LPCM 2.0 LCPM 5.1 LPCM 7.1 Bitstream HD Bitstream Sampling Rates (kHz) HDMI Optical 44.1 88.2 176.4 ... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Decibel EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface LPCM Linear Pulse-Code Modulation Signal-to-Noise Ratio THD+H Total Harmonic Distortion plus Noise Ultra-High-Definition Video Graphics Array Extended Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
