Summary of Contents for CYP CSC-5500

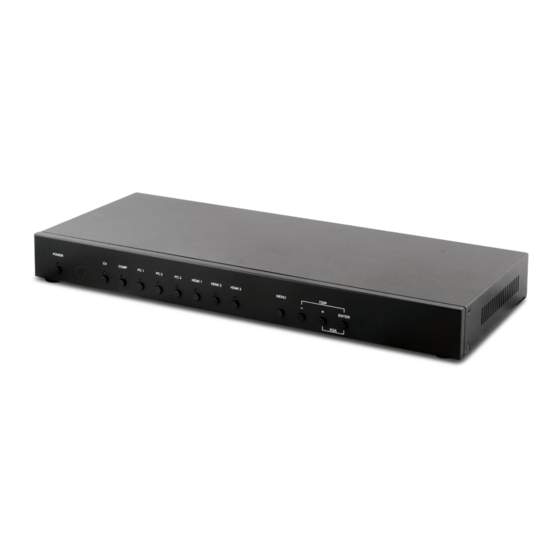

- Page 1 CSC-5500 Multi Input Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 RS-232 Protocols .......5 6.5 RS-232 Commands ......6 6.6 OSD MENU .........8... -
Page 6: Introduction
1. INTRODUCTION The Multi Input Scaler has CV, Component, PC, and HDMI inputs and can scale the signal into HDMI, VGA with audio output ports. This high performance multi input scaler supports HDMI output resolution up to 1080p /WUXGA and Analog Digital Conversion (ADC) & Digital Analog Conversion (DAC) allowing a wide range of AV signal to be insert to a high-Definition signal and displaying. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel 720P POWER COMP PC 1 PC 2 PC 3 HDMI 1 HDMI 2 HDMI 3 MENU ENTER POWER & LED: Press this button to switch ON or set the device to standby mode. Once the device is connected with power supply the LED will illuminate and the device will switch to ON automatically. -
Page 8: Rear Panel
6.2 Rear Panel IR IN SERVICE INPUT AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD HDMI 1 HDMI 2 HDMI 3 PC 1 PC 2 PC 3 Cr/Pr Cb/Pb IR IN: Plug in the IR extender cable for IR signal receiving from the included remote control. -
Page 9: Remote Control
sending.The priority audio input of HDMI is from HDMI, only when HDMI input has no audio signal the L/R audio will be inserted into. YCbCr/HDPbPr + L/R: Connect to source equipment such as video/ DVD player for both video and audio signal sending. CV + L/R: Connect to source equipment such as video/DVD player for both video and audio signal sending. -
Page 10: Rs-232 Protocols
AUTO ADJUST: Press this button when output image is not fitting the display's screen perfectly. The device will auto adjust the image to full screen. ◄►: Press right and left buttons to increase and decrese the volume. 6.4 RS-232 Protocols CSC-5500 Remote Control Assignment Assignment ► ◄... -
Page 11: Rs-232 Commands
6.5 RS-232 Commands Command Description Contents S SOURCE 1~8 Select input source HDMI1(1) / HDMI2(2) / HDMI3 (3) / YPBPR(4) / R SOURCE Inquire input source VIDEO(5) / PC(6) / PC2(7) / PC3(8) S OUTPUT 0~21 Select output timing 640*480(0)/800*600(1)/ 1024*768(2)/1280*768(3)/ R OUTPUT Inquire output timing... - Page 12 S NR 0~3 Noise reduction setting OFF(0) / LOW (1) / MIDDLE(2) / HIGH(3) R NR Inquire noise reduction setting S VOLUME 0~100 Volume Setting R VOLUME Inquire Volume setting S AUDIODELAY 0~3 Audio delay setting OFF(0) / 40ms (1) / 110ms(2) / 150ms(3) R AUDIODELAY Inquire audio delay...
-
Page 13: Osd Menu
6.6 OSD MENU Layer Layer Layer Layer 480 60 800x600 60 1024x768 60 1280x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 OUTPUT 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50... - Page 14 CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) R 0~1023 (512) G 0~1023 (512) B 0~1023 (512) R OFFSET COLOR 0~1023 (512) G OFFSET 0~1023 (512) COLOR B OFFSET 0~1023 (512) 0~60 (30) SATURATION 0~60 (30) SHARPNESS 0~30 (0) MIDDLE HIGH VOLUME 0~100 (100) 40mS DELAY...
- Page 15 Factory default setting. *1 When Audio Source is set on Auto, the device will send audio signal according to input source. If input signal is with HDMI, the device will use internal signal and if input signal is with DVI, the device will use external L/R audio.
-
Page 16: Connection And Installation
7. CONNECTION AND INSTALLATION Wireless Router(with Internet Connection) PC/NB DVI to HDMI source AVR with Coaxial Input Smartphone or Tablet Component with Stereo Audio from DVD Player IR IN SERVICE INPUT AUDIO RS232 COAX AUDIO CONTROL OUTPUT POWER DC 5V HDMI 1 HDMI 2 PC/HD... -
Page 17: Specifications
8. SPECIFICATIONS Input Port 1 x Component, 3 x VGA, 3 x HDMI, 6 x LR , 1 x USB (service only), 1 x RS-232 (Control Only) Output Port 2 x HDMI, 1 x PC/HD, 1 x Coaxial, 1 x L/R Supports Input Resolution Up to UXGA &... -
Page 18: Support I/O Resolution
8.1 Support I/O Resolution Input Component HDMI Resolution NTSC/PAL 480i/576i 480p/576p 720p@50/60Hz 1080i@50/60Hz 1080p@50/60Hz VGA@60/72/75Hz SVGA@56/60/72/75Hz XGA@60/70/75Hz SXGA@60/75Hz UXGA@60Hz 1280x800@60Hz 1680x1050RB@60Hz 1920x1080@60Hz Output PC/HD HDMI Resolution 480p/576p V (HD) 720p@50/60Hz V (HD) 1080i@50/60Hz V (HD) 1080p@50/60Hz V (HD) VGA@60Hz SVGA@60Hz XGA@60Hz SXGA@60Hz... - Page 19 UXGA@60Hz 1280x768@60Hz 1280x800@60Hz 1360x768@60Hz 1400x1050@60Hz 1440x900@60Hz 1680x1050@60Hz 1920x1200@60Hz...
- Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121224 MPM-CSC5500...
