PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide
DS A/D START TRIGGER
DS A/D STOP TRIGGER
DS D/A START TRIGGER
14-pin Ribbon Cable

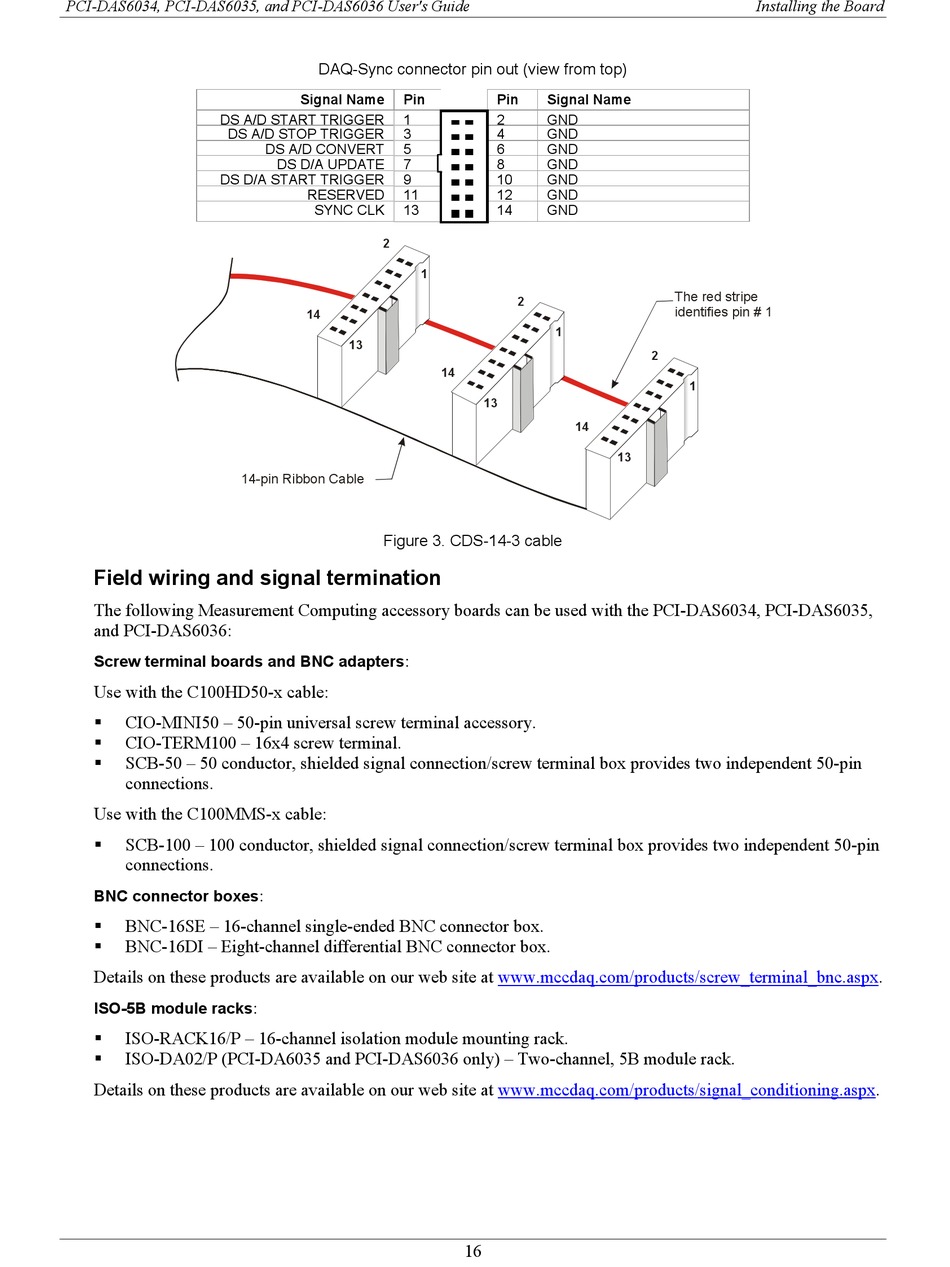

Field wiring and signal termination

The following Measurement Computing accessory boards can be used with the PCI-DAS6034, PCI-DAS6035,
and PCI-DAS6036:
Screw terminal boards and BNC adapters
Use with the C100HD50-x cable:
CIO-MINI50 – 50-pin universal screw terminal accessory.

CIO-TERM100 – 16x4 screw terminal.

SCB-50 – 50 conductor, shielded signal connection/screw terminal box provides two independent 50-pin

connections.
Use with the C100MMS-x cable:
SCB-100 – 100 conductor, shielded signal connection/screw terminal box provides two independent 50-pin

connections.
BNC connector boxes
BNC-16SE – 16-channel single-ended BNC connector box.

BNC-16DI – Eight-channel differential BNC connector box.

Details on these products are available on our web site at www.mccdaq.com/products/screw_terminal_bnc.aspx.
ISO-5B module racks
ISO-RACK16/P – 16-channel isolation module mounting rack.

ISO-DA02/P (PCI-DA6035 and PCI-DAS6036 only) – Two-channel, 5B module rack.

Details on these products are available on our web site at www.mccdaq.com/products/signal_conditioning.aspx.
DAQ-Sync connector pin out (view from top)
Signal Name Pin
1
3
DS A/D CONVERT 5
DS D/A UPDATE 7
9
RESERVED 11
SYNC CLK 13
2
1
14
13
Figure 3. CDS-14-3 cable
:
:
:
Pin Signal Name
■ ■ 2 GND
■ ■ 4 GND
■ ■
6 GND
■ ■
8 GND
■ ■ 10 GND
■ ■
12 GND
■ ■
14 GND
2
1
14
13
14
13
16
Installing the Board
The red stripe
identifies pin # 1
