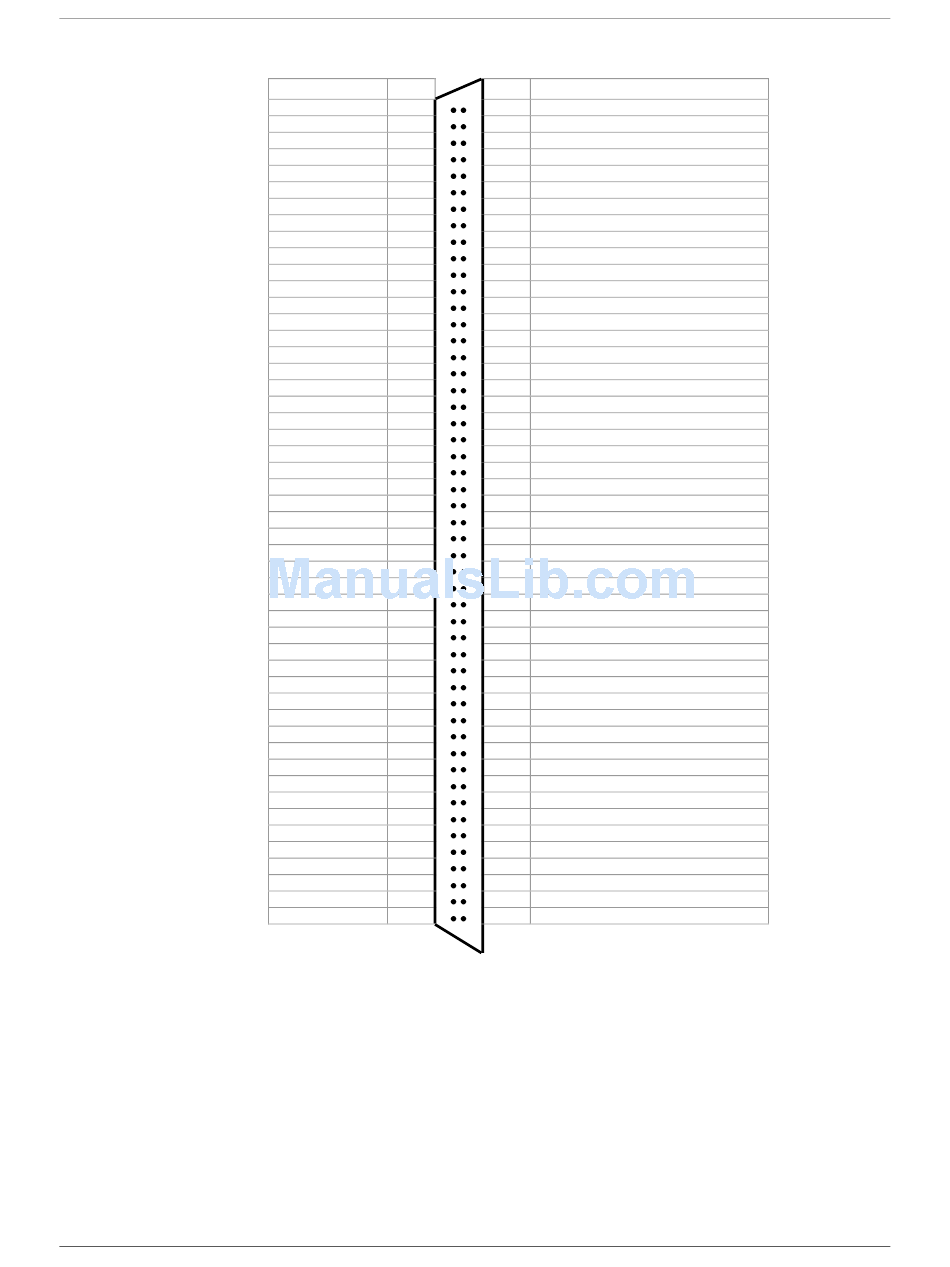

PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide
16-channel single-ended
mode
* Not available on the PCI-
DAS6034
Signal Name Pin
GND 100
CTR2 OUT 99
CTR2 GATE 98
CTR2 CLK 97
GND 96
CTR1 OUT 95
CTR1 GATE 94
CTR1 CLK 93
DIO7 92
DIO6 91
DIO5 90
DIO4 89
DIO3 88
DIO2 87
DIO1 86
DIO0 85
n/c 84
n/c 83
n/c 82
n/c 81
n/c 80
n/c 79
n/c 78
n/c 77
n/c 76
n/c 75
n/c 74
n/c 73
n/c 72
n/c 71
n/c 70
n/c 69
n/c 68
n/c 67
n/c 66
n/c 65
n/c 64
n/c 63
n/c 62
n/c 61
n/c 60
n/c 59
n/c 58
n/c 57
n/c 56
n/c 55
n/c 54
n/c 53
n/c 52
n/c 51
↓
PCI slot
Pin Signal Name
50 GND
49 AUXIN5 / A/D PACER GATE
48 AUXIN4 / D/A START TRIGGER
47 AUXIN3 / D/A UPDATE
46 AUXIN2 / A/D STOP TRIGGER
45 AUXIN1 / A/D START TRIGGER
44 n/c
43 AUXIN0 / A/D CONVERT
42 AUXOUT2 / SCANCLK
41 AUXOUT1 / A/D PACER OUT
40 AUXOUT0 / D/A PACER OUT
39 PC +5 V
38 D/A OUT1*
37 D/A GND*
36 D/A OUT 0*
35 AISENSE
34 n/c
33 n/c
32 n/c
31 n/c
30 n/c
29 n/c
28 n/c
27 n/c
26 n/c
25 n/c
24 n/c
23 n/c
22 n/c
21 n/c
20 n/c
19 n/c
18 LLGND
17 CH15 IN
16 CH7 IN
15 CH14 IN
14 CH6 IN
13 CH13 IN
12 CH5 IN
11 CH12 IN
10 CH4 IN
9 CH11 IN
8 CH3 IN
7 CH10 IN
6 CH2 IN
5 CH9 IN
4 CH1 IN
3 CH8 IN
2 CH0 IN
1 LLGND
