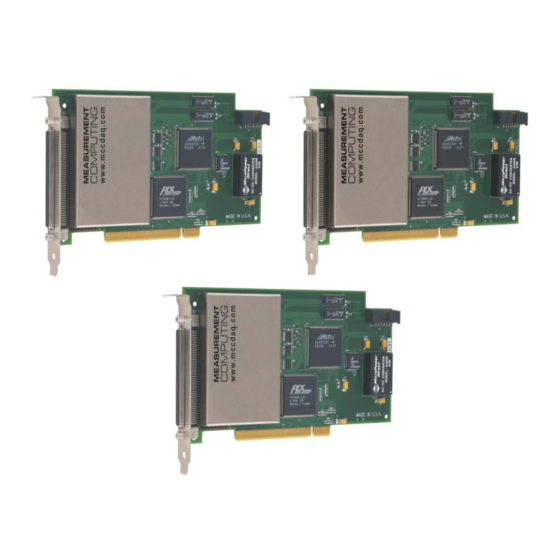

Summary of Contents for Measurement Computing PCI-DAS6034

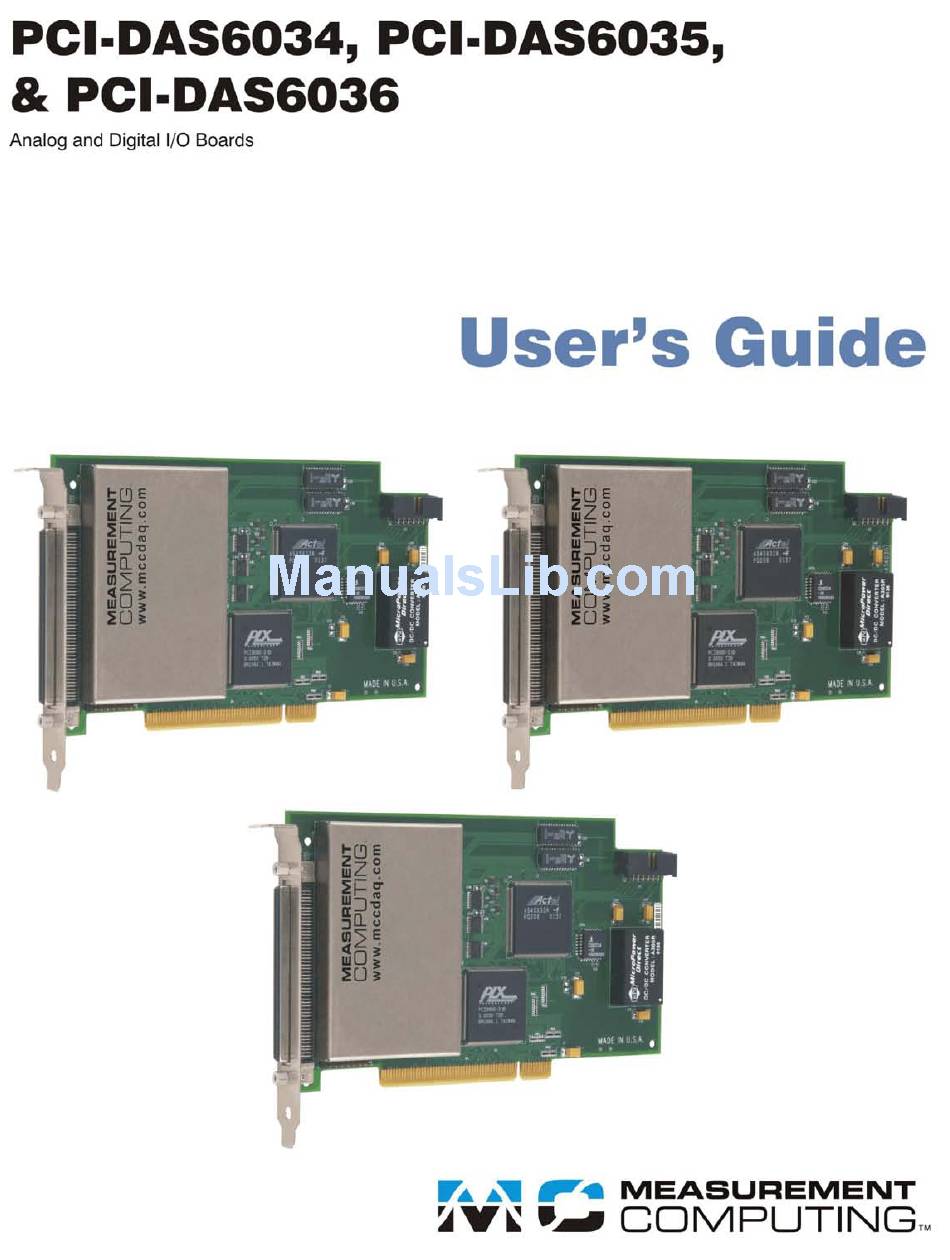

- Page 2 PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 Analog and Digital I/O User's Guide Document Revision 4, May, 2009 © Copyright 2009, Measurement Computing Corporation...
- Page 3 Management committed to your satisfaction! Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission: To provide PC-based data acquisition hardware and software that will save time and save money.
- Page 4 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 5: Table Of Contents
Overview: PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 features ............8 Software features ..............................8 Chapter 2 Installing the Board ..........................9 What comes with your PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 shipment? ........9 Hardware ..................................9 Additional documentation ..............................9 Optional components ...............................10 Unpacking the PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 .............. - Page 6 PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide CTR2 OUT signal ................................28 Chapter 4 Calibrating the Board .......................... 29 Introduction ..............................29 Calibration theory ............................. 29 Chapter 5 Specifications ............................30 Analog inputs ..............................30 Accuracy ..................................30 System throughput ................................31 Settling time ..................................31 Parametrics ..................................31...
-
Page 7: Preface
What you will learn from this user's guide This user's guide explains how to install, configure, and use a PCI-DAS6034, PCI-DAS6035, and PCI- DAS6036 board so that you get the most out of the analog, digital, and timing I/O features. -
Page 8: Introducing The Pci-Das6034, Pci-Das6035, And Pci-Das6036
PCI-DAS6036 Overview: PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 features This user's guide all of the information you need to install and use the PCI-DAS6034, PCI-DAS6035, and PCI- DAS6036. The three versions differ in the following ways: The PCI-DAS6035 and PCI-DAS6036 have two digital-to-analog outputs, while the PCI-DAS6034 has no ... -
Page 9: Installing The Board
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 and information regarding installation of that software. Please read this booklet completely before installing any software or... -
Page 10: Optional Components
Email: techsupport@mccdaq.com Installing the software Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software- Quick-Start.pdf. Installing the hardware The PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 boards are completely plug-and-play. There are no switches or jumpers to set on the board. -
Page 11: Configuring The Hardware
Configuring the hardware All hardware configuration options on the PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 are software controlled. You can select some of the configuration options using InstaCal, such as the analog input configuration (16 single-ended or eight differential channels), the edge used for triggering when using an external pacer, and the source for the two independent counters. -
Page 12: Daq-Sync Configuration
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Installing the Board DAQ-Sync configuration You can interconnect multiple boards in the PCI-DAS6000 series to synchronize data acquisition or data output. To do this, order and install a CDS-14-x cable at the DAQ-Sync connectors (P2) between the boards to be synchronized. -
Page 13: Pin Out - Main I/O Connector
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Installing the Board Signal Name Signal Name Pin out – main CTR2 OUT AUXIN5 / A/D PACER GATE I/O connector CTR2 GATE AUXIN4 / D/A START TRIGGER CTR2 CLK AUXIN3 / D/A UPDATE AUXIN2 / A/D STOP TRIGGER... - Page 14 PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Installing the Board Signal Name Signal Name 16-channel single-ended mode CTR2 OUT AUXIN5 / A/D PACER GATE CTR2 GATE AUXIN4 / D/A START TRIGGER CTR2 CLK AUXIN3 / D/A UPDATE * Not available on the PCI-...
-
Page 15: Daq-Sync Connector And Pin Out
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Installing the Board Strain relief is stamped “Pins 1-50”. Pins 1-50 are on the long side of the “D” connector. The red stripe identifies pin # 1 Pins 51-100 are on the short side of Strain relief is the “D”... -
Page 16: Field Wiring And Signal Termination
# 1 14-pin Ribbon Cable Figure 3. CDS-14-3 cable Field wiring and signal termination The following Measurement Computing accessory boards can be used with the PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036: Screw terminal boards and BNC adapters Use with the C100HD50-x cable: CIO-MINI50 –... -
Page 17: Functional Details
Functional Details Basic architecture Figure 4 on page 19 is a simplified block diagram of the PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036. These boards provide all of the functional elements shown in the figure. The System Timing and Control (STC) is the logical center for all DAQ, DIO, and DAC (if applicable) operations. -
Page 18: Daq-Sync Signals
The DAQ-Sync hardware provides the capability of triggering or clocking up to four slave boards from a master board to synchronize data input and/or output. The PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 boards provide the capability of inter-board synchronization between boards in the PCI-DAS6000 family. There are five trigger/strobes and a synchronizing clock provided on a 14-pin header. - Page 19 SYNC CLK is the 40 MHz time base used to derive all board timing and control. The master provides this clock to the slave boards so that all boards in the DAQ-sync- enabled system are timed from the same clock. Figure 4. Block diagram – PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036...
-
Page 20: Daq Signal Timing
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details DAQ signal timing The DAQ timing signals are: SCANCLK A/D START TRIGGER A/D STOP TRIGGER STARTSCAN A/D CONVERT A/D PACER GATE A/D EXTERNAL TIME BASE ... -
Page 21: A/D Start Trigger Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details A/D START TRIGGER signal Use the A/D START TRIGGER signal for conventional triggering (when you only need to acquire data after a trigger event). Figure 7 shows the A/D START TRIGGER signal timing for a conventionally triggered acquisition. -
Page 22: A/D Stop Trigger Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details A/D STOP TRIGGER signal Pre-triggered data acquisition continually acquires data into a circular buffer until a specified number of samples have been collected after the trigger event. Figure 10 illustrates a typical pre-triggered DAQ sequence. -
Page 23: Ssh Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details SSH signal The SSH signal can be used as a control signal for external sample/hold circuits. The SSH signal is a programmable polarity pulse that is asserted throughout a channel scan. The state of this signal changes after the start of the last conversion in the scan. -
Page 24: A/D External Time Base Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details A/D EXTERNAL TIME BASE signal The A/D EXTERNAL TIME BASE signal can serve as the source for the on-board pacer circuit rather than using the 40 MHz internal time base. Any AUXIN pin can be set programmatically as the source for this signal. -
Page 25: D/A Convert Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details Rising Edge Polarity Falling Edge Polarity = 37.5 ns minimum Figure 18. D/A START TRIGGER input signal timing = 50 ns Figure 19. D/A START TRIGGER output signal timing D/A CONVERT signal The D/A CONVERT signal causes a single output update on the D/A converters. -
Page 26: D/A External Time Base Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details D/A EXTERNAL TIME BASE signal The D/A EXTERNAL TIME BASE signal can serve as the source for the on-board DAC pacer circuit rather than using the internal time base. Any AUXIN pin can be set programmatically as the source for this signal. The polarity is programmable. -
Page 27: Ctr1 Gate Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details CTR1 GATE signal You can use the CTR1 GATE signal for starting and stopping the counter, saving counter contents, etc. It is polarity programmable and is available at the CTR1 GATE pin. -
Page 28: Ctr2 Gate Signal
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Functional Details CTR2 GATE signal You can use the CTR2 GATE signal for starting and stopping the counter, saving counter contents, etc. It is polarity programmable and is available at the CTR2 GATE pin. -
Page 29: Calibrating The Board
Chapter 4 Calibrating the Board Introduction You should calibrate the board (using the InstaCal utility) after the board has fully warmed up. The recommended warm-up time is 15 minutes. For best results, calibrate the board immediately before making critical measurements. The high resolution analog components on the board are somewhat sensitive to temperature. -
Page 30: Specifications
Chapter 5 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog inputs A/D converter Successive approximation type, min 200 kS/s conversion rate. Resolution 16 bits, 1-in-65536 Number of channels 16 single ended /8 differential, software selectable Input ranges ±10 V, ±5 V, ±500 mV, ±50 mV, software selectable A/D pacing... -
Page 31: System Throughput
0.001 0.062 Averaged measurements assume averaging of 100 single-channel readings. Each PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 is tested at the factory to assure the board’s overall error does not exceed accuracy limits described in Table 1. Table 3. Differential non-linearity specifications All ranges ±0.5 LSB typ... -
Page 32: Noise Performance
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications Absolute maximum input voltage ±25 V powered on, ±15 V powered off. Protected inputs: CH<15:0> IN AISENSE Crosstalk Adjacent channels: -75 dB All other channels: -90 dB Noise performance Table 4 summarizes the noise performance for the PCI-DAS6036/6035/6034. Noise distribution is determined by gathering 50 K samples with inputs tied to ground at the user connector. -
Page 33: Analog Output Pacing And Triggering
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications Each PCI-DAS6035 and PCI-DAS6036 is tested at the factory to assure the board’s overall error does not exceed the absolute accuracy specification listed in Table 5. Table 7. Relative accuracy specifications Product Range... -
Page 34: Interrupts
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications Data transfer Programmed I/O Power-up / reset state Input mode (high impedance) Interrupts Interrupts PCI INTA# - mapped to IRQn via PCI BIOS at boot-time Interrupt enable Programmable through PLX9080 ADC interrupt sources DAQ_ACTIVE: Interrupt is generated when a DAQ sequence is active. -
Page 35: Configurable Auxin<5:0>, Auxout<2:0> External Trigger/Clocks
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications Configurable AUXIN<5:0>, AUXOUT<2:0> external trigger/clocks The PCI-DAS6036/6035/6034 provides nine user-configurable trigger/clock pins available at the 100-pin I/O connector. Of these, six are configurable as inputs while three are configurable as outputs. AUXIN<5:0> sources... -
Page 36: Power Consumption
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications Power consumption +5 V 0.9 A typical, 1.1 A max. Does not include power consumed through the I/O connector. +5 V available at I/O connector 1 A max, protected with a resettable fuse... -
Page 37: 8-Channel Differential Mode Pin Out
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications 8-channel differential mode pin out Signal Name Signal Name LLGND CH0 IN HI CH0 IN LO CH1 IN HI CH1 IN LO CH2 IN HI CH2 IN LO CH3 IN HI CH3 IN LO... -
Page 38: 16-Channel Single-Ended Mode
PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 User's Guide Specifications 16-channel single-ended mode Signal Name Signal Name LLGND CH0 IN CH8 IN CH1 IN CH9 IN CH2 IN CH10 IN CH3 IN CH11 IN CH4 IN CH12 IN CH5 IN CH13 IN CH6 IN... -
Page 39: Declaration Of Conformity
Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS6034, PCI-DAS6035, and PCI-DAS6036 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: General Requirements, EN 61326-1:2006 (IEC 61326-1:2005). - Page 40 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
