DAQ-Sync connector and pin out

Connector type
Compatible cables
Pins 51-100 are on
the short side of
the "D" connector.
Stamped "Pins 51-100".

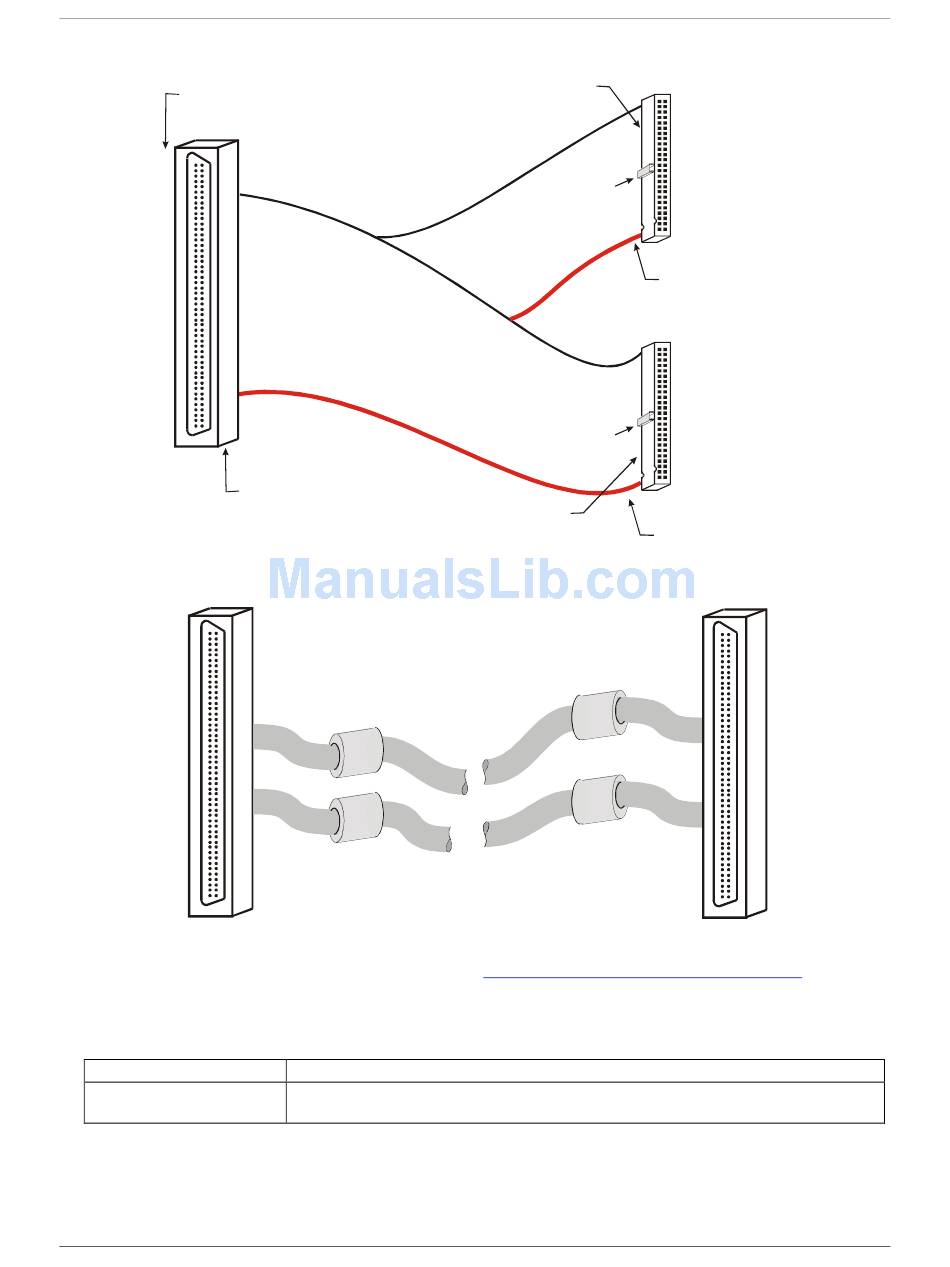

Figure 1. C100HD50-x cable
Figure 2. C100MMS-x cable
DAQ-Sync connector & cable types
14-pin right-angle 100 mil box header
MCC p/n: CDS-14-x, 14 pin ribbon cable for board-to board DAQ-Sync connection;
x = number of boards (Figure 3)
Strain relief is
stamped "Pins 1-50".
Key
Key
Strain relief is
15
Installing the Board
49 50
2
1
The red stripe
identifies pin # 1
99 100
51 52
The red stripe
identifies pin # 51
50 100
1 51
