3) To schedule an all-day recording, check the checkbox after the All Day item.
4) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.
Up to 8 periods can be configured for each day. And the time periods cannot be overlapped with each other.
 To enable Event, Motion, Alarm, M | A (motion or alarm) and M & A (motion and alarm) triggered
recording, you must configure the motion detection settings, alarm input settings or VCA settings as well. For
detailed information, refer to Chapter 8.1, Chapter 8.8 and Chapter 9.

The VCA settings are only available to the smart IP cameras.
Repeat the above steps 1)-4) to schedule recording for other days in the week. If the schedule can also be set
to other days, click Copy.
Digital Video Recorder User Manual

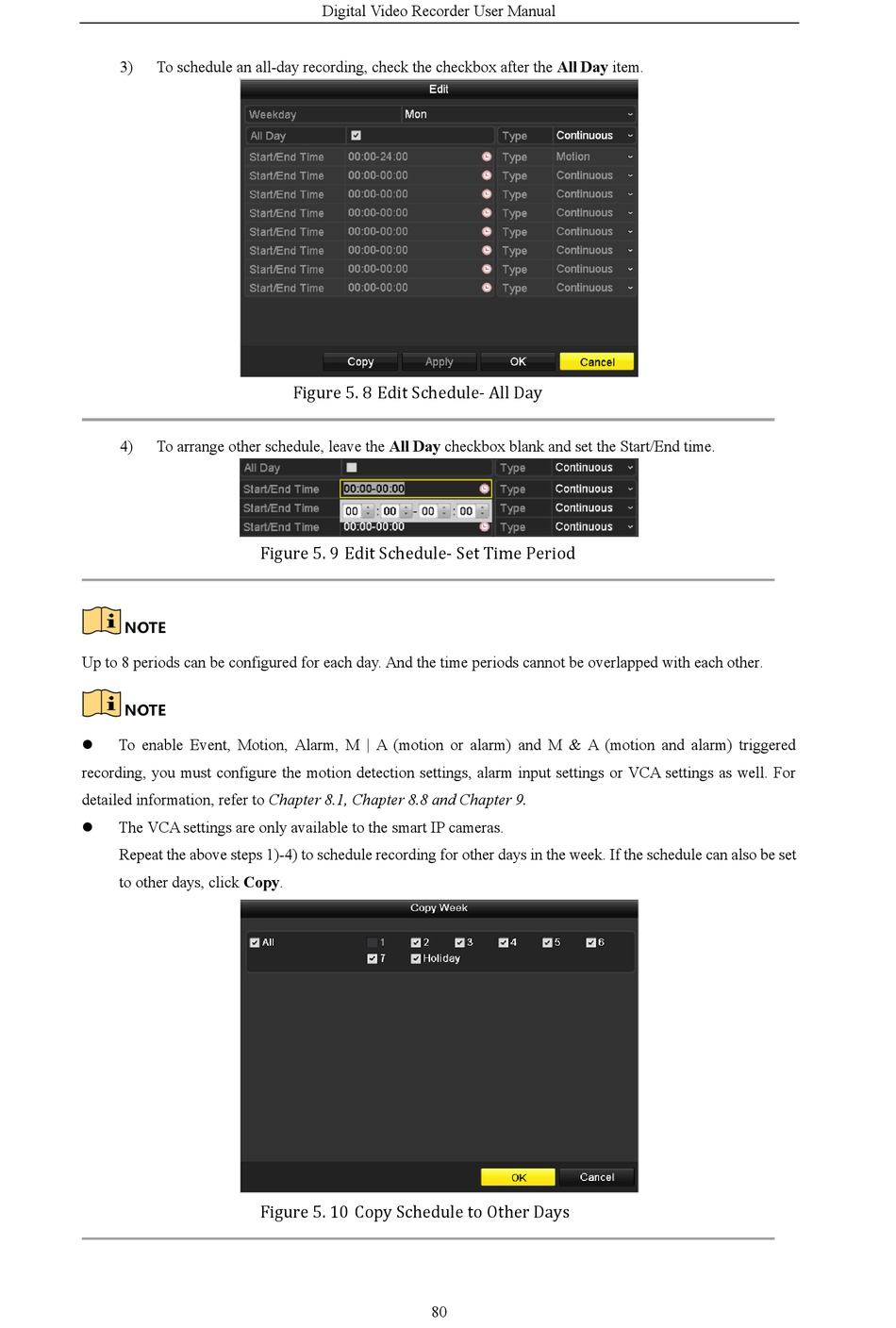

Figure 5. 8 Edit Schedule- All Day
Figure 5. 9 Edit Schedule- Set Time Period
Figure 5. 10 Copy Schedule to Other Days
80
