Managing Hdd Group; Setting Hdd Groups - HIKVISION DS-7104HGHI-SH User Manual

12.4 Managing HDD Group

12.4.1 Setting HDD Groups

Purpose:
Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD
group through HDD settings.
Steps:
1. Enter the Storage Mode interface.
Menu > HDD > Advanced
2. Set the Mode to Group, as shown in Figure 12. 13.
3. Click the Apply button and the following Attention box will pop up.
4. Click the Yes button to reboot the device to activate the changes.
5. After reboot of device, enter the HDD Information interface.
Menu > HDD > General
6. Select HDD from the list and click the
12. 15.
Digital Video Recorder User Manual

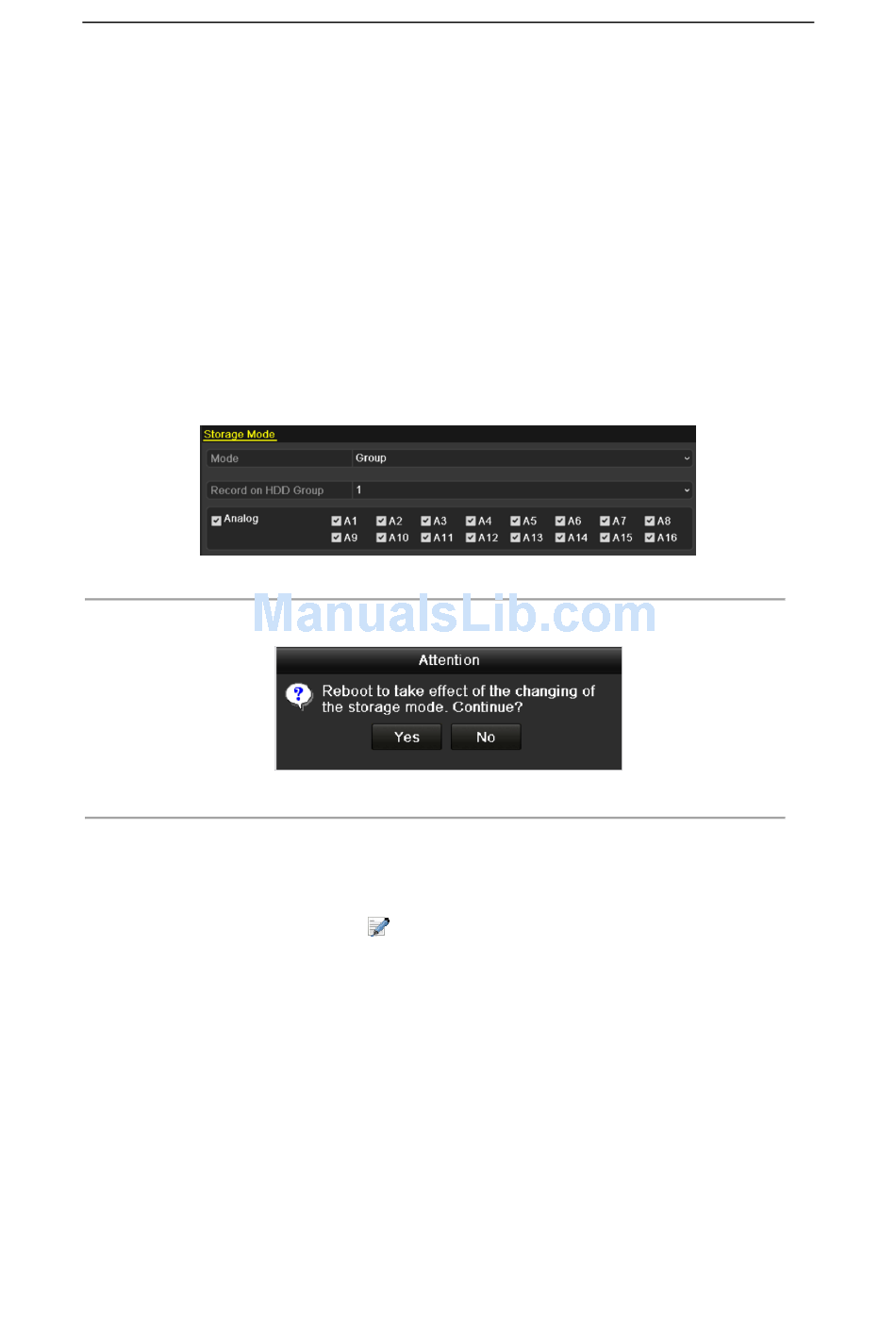

Figure 12. 13 Storage Mode Interface
Figure 12. 14 Attention for Reboot
icon to enter the Local HDD Settings interface, as shown in Figure
181
