INSTALLATION AND OPERATION MANUAL
RLXE4GE24MODMS
HARDENED LAYER 3 MANAGED 10 GIGABIT
MODULAR ETHERNET SWITCH

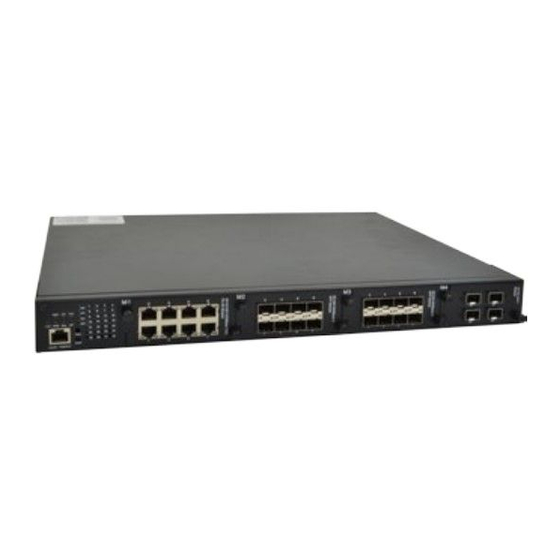

The ComNet RLXE4GE24MODMS is a Layer-3 modular managed redundant ring
configurable Ethernet switch. It has four slots that can accommodate individual
modules that feature different combinations of SFP and electrical TX ports. One of
the slots can accommodate a 10 gigabit module with either 2 or 4 10 Gbps or 1 Gbps
SFP ports. The switch is designed for security, ITS, power substation and rolling stock
applications, and is fully compliant with the requirement of IEC 61850-3 and IEEE
1613 as well as NEMA TS1/TS2. The RLXE4GE24MODMS switch supports multiple
Ethernet Redundancy protocols, including C-Ring (recovery time < 30ms over 250
units of connection) and MSTP (RSTP/STP compatible). This switch can protect critical
applications from network interruptions or temporary malfunctions with its fast
recovery technology. This environmentally hardened switch is designed for direct
deployment in difficult out-of-plant or roadside operating environments.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLXE4GE24MODMS and is the answer not in the manual?

Questions and answers

Related Manuals for Comnet RLXE4GE24MODMS

Summary of Contents for Comnet RLXE4GE24MODMS

  • Page 1 SFP ports. The switch is designed for security, ITS, power substation and rolling stock applications, and is fully compliant with the requirement of IEC 61850-3 and IEEE 1613 as well as NEMA TS1/TS2. The RLXE4GE24MODMS switch supports multiple Ethernet Redundancy protocols, including C-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible).

  • Page 2: Table Of Contents

    Introduction Software Features Hardware Features Hardware Installation Installing RJ-45 Module in RLXE4GE24MODMS Installing SFP Module in RLXE4GE24MODMS Installing 10 Gbps SFP+ Module in RLXE4GE24MODMS Installing Power Module in RLXE4GE24MODMS Hardware Overview Front Panel Power Panel Rack mount kit assembly Ethernet Cables...
  • Page 3 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VRRP LLDP Backup/Restore Configuration Firmware Update DHCP Server Port Setting Port Trunk LACP Redundancy MSTP VLAN VLAN Setting Example Voice VLAN Voice VLAN OUI SNMP Traffic Prioritization Multicast Security RADIUS Overview TACACS+ Server Configuration Help...
  • Page 4 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Command Line Interface Management About CLI Management Commander Groups Using the Routing Function Static Routing Setting Example RIP Routing Setting Example: VRRP Setting Example TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 4...

  • Page 5: About This Guide

    » SFP Modules Data sheet About ComNet ComNet develops and markets the next generation of video solutions for the CCTV, defense, and homeland security markets. At the core of ComNet’s solutions are a variety of high-end video servers and the ComNet IVS software, which provide the industry with a standard platform for analytics and security management systems enabling leading performance, compact and cost effective solutions.

  • Page 6: Overview

    Overview Introduction The RLXE4GE24MODMS is a Layer-2/3 modular managed redundant ring Ethernet switch with 4 slots. This switch is designed for industrial applications, power substation applications and rolling stock applications, RLXE4GE24MODMS is compliant with the requirement of IEC 61850-3 and IEEE 1613.

  • Page 7: Software Features

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Software Features » Designed for power substation / Railway application and fully compliant with the requirement of IEC 61850-3 and IEEE 1613 » Modular design makes network planning and upgrades easy » Supports Layer 3 static routing, RIP and VRRP function »...

  • Page 8: Hardware Features

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Hardware Features » Supports redundant Power Inputs (Modular DC/AC Power, supports two power modules in redundant operation) » Supports maximum 3 slots 8 x 10/100/1000Base-T(X) RJ-45 Module » Supports maximum 3 slots 8 x 100/1000Base-X SFP Module »...

  • Page 9: Hardware Installation

    Installing SFP Module in RLXE4GE24MODMS Each RLXE4GE24MODMS Switch supports a maximum of three SFP Modules. To install the module users must turn off the RLXE4GE24MODMS Power and plug-in the SFP Module into Slot 1 ~ Slot 3. Once installed turn on the power.

  • Page 10: Installing 10 Gbps Sfp+ Module In Rlxe4Ge24Modms

    Installing 10 Gbps SFP+ Module in RLXE4GE24MODMS Each RLXE4GE24MODMS Switch supports a maximum of one 10G SFP+ Module. To install the module users must turn off the RLXE4GE24MODMS Power and plug-in the SFP Module into Slot 4. Once installed turn on the power.

  • Page 11: Hardware Overview

    Hardware Overview Front Panel RLXE4GE24MODMS supports four different module types. Module Description RLXE4GE24MODMS/HV RLXE4GE24MODMS Chassis With Dual High Voltage Power Supplies RLXE4GE24MODMS/LV RLXE4GE24MODMS Chassis With Dual Low Voltage Power Supplies RLXE4GE24MODMS/8TX 8 x 10/100/1000Base-T(X) RLXE4GE24MODMS/8SFP 8 x 100 / 1000 Base-X...
  • Page 12 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS RJ-45 Module SFP Module 10 Gbps Module 8 × 10/100/1000Base-T(X) 8 × 100/1000Base-X SFP 4 × 10 Gigbit SFP Power Module TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 12...

  • Page 13: Power Panel

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Power Panel RLXE4GE24MODMS are redundant power switches with support for two power inputs. Note: At the factory, power GND and chassis GND are connected as shown in the picture below. RLY CM: Relay Common RLY NO: Relay Normally Open RLY NC: Relay Normally Closed TECH SUPPORT: 1.888.678.9427...

  • Page 14: Rack Mount Kit Assembly

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Rack mount kit assembly You can find the rack mount kit and the screws in the packing box. Please assembly the rack mount kit on the switch with screws as shown below: TECH SUPPORT: 1.888.678.9427...

  • Page 15: Ethernet Cables

    RLXE4GE24MODMS Ethernet Cables The RLXE4GE24MODMS series switches have standard Ethernet ports. According to the link type, the switches use CAT 3, 4, 5,5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications.

  • Page 16: Sfp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS The RLXE4GE24MODMS Series switches support auto MDI/MDI-X operation. You can use a straight-through cable to connect PC to switch. The following table below shows the 10BASE-T/ 100BASE-TX MDI and MDI-X port pin outs. 10/100 Base-T MDI/MDI-X pins assignment...

  • Page 17: Console Cable

    RLXE4GE24MODMS Console Cable RLXE4GE24MODMS switches can be managed by the console port. The DB-9 to RJ-45 cable can be found in the package. You can connect them to a PC via a RS-232 cable with DB-9 female connector and the other end (RJ-45 connector) connects to console port of the switch.

  • Page 18: Web Management

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS WEB Management Attention: While installing and upgrading firmware, please remove physical loop connection first. DO NOT power off equipment while the firmware is upgrading! Configuration by Web Browser This section introduces the configuration by Web browser.
  • Page 19 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS System Login 1. Launch Internet Explorer. 2. Type http:// and the IP address of the switch. Press “Enter”. 3. The login screen appears. Login screen 4. Key in the username and password. The default username and password is admin.

  • Page 20: Main Interface

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Main Interface Main interface TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 20...

  • Page 21: Basic Setting

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Basic Setting System Information The switch system information is provided here. System Information interface Label Description System Name An administratively assigned name for this managed node. By convention, this is the node’s fully-qualified domain name. A domain name is a text string drawn from the alphabet (A-Za-z), digits (0-9), minus sign (-).

  • Page 22: Admin & Password

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Admin & Password This page allows you to configure the system password required to access the web pages or log in from CLI. Label Description Old Password Enter the current system password. If this is incorrect, the new password will not be set.

  • Page 23: Auth Method

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Auth Method This page allows you to configure how a user is authenticated when he logs into the switch via one of the management client interfaces. Label Description Client The management client for which the configuration below applies.

  • Page 24: Ip Setting

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS IP Setting Configure IP basic settings, control IP interfaces and IP routes. The maximum number of interfaces supported is 128 and the maximum number of routes is 1024. Label Description Mode Configure whether the IP stack should act as a Host or a Router.

  • Page 25: Rip

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Delete Select this option to delete an existing IP route. Network The destination IP network or host address of this route. Valid format is dotted decimal notation or a valid IPv6 notation. A default route can use the value 0.0.0.0or IPv6 :: notation.

  • Page 26: Vrrp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VRRP The user can configure VRRP Function on this page. Label Description VRRP Group For each VRRP Group, we provide several options: VRID: Virtual Router ID, from 1 to 254. Priority: Priority, from 1 to 254.

  • Page 27: Ssh

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS HTTPS Label Description Mode Indicates the HTTPS mode operation. When the current connection is HTTPS, to apply HTTPS disabled mode operation will automatically redirect web browser to an HTTP connection. Possible modes are: Enabled: Enable HTTPS mode operation.

  • Page 28: Lldp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LLDP LLDP Configuration This page allows the user to inspect and configure the current LLDP port settings. Label Description Port The switch port number of the logical LLDP port. Mode Select LLDP mode. Disabled The switch will not send out LLDP information, and will drop LLDP information received from neighbors.
  • Page 29 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LLDP Neighbor Information This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an LLDP neighbor is detected. The columns hold the following information:...
  • Page 30 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Statistics This page provides an overview of all LLDP traffic. Two types of counters are shown. Global counters are counters that refer to the whole stack, switch, while local counters refer to counters for the currently selected switch.
  • Page 31 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Local Counters Label Description Local Port The port on which LLDP frames are received or transmitted. Tx Frames The number of LLDP frames transmitted on the port. Rx Frames The number of LLDP frames received on the port.

  • Page 32: Backup/Restore Configuration

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Backup/Restore Configuration You can save/view or load the switch configuration. The configuration file is in XML format with a hierarchy of tags: Firmware Update This page facilitates an update of the firmware controlling the switch.
  • Page 33 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS DHCP Dynamic Client List When the DHCP server function is activated, the system will collect the DHCP client information and display in here. DHCP Client List You can assign the specific IP address which is in the assigned dynamic IP range to the specific port.

  • Page 34: Port Setting

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Setting Port Control This page displays current port configurations. Ports can also be configured here. Label Description Port This is the logical port number for this row. Link The current link state is displayed graphically. Green indicates the link is up and red that it is down.

  • Page 35: Port Trunk

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Trunk Trunk Configuration This page is used to configure the Aggregation hash mode and the aggregation group. Label Description Source MAC The Source MAC address can be used to calculate the destination port for the frame.
  • Page 36 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Group ID Indicates the group ID for the settings contained in the same row. Group ID “Normal” indicates there is no aggregation. Only one group ID is valid per port. Port Members Each switch port is listed for each group ID. Select a radio button to include a port in an aggregation, or clear the radio button to remove the port from the aggregation.

  • Page 37: Lacp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LACP Port Configuration This page allows the user to inspect the current LACP port configurations, and possibly change them as well. Label Description Port Indicates the group ID for the settings contained in the same row. Group ID “Normal”...
  • Page 38 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LACP System Status This page provides a status overview for all LACP instances. Label Description Aggr ID The Aggregation ID associated with this aggregation instance. For LLAG the id is shown as ‘isid:aggr-id’ and for GLAGs as ‘aggr-id’...
  • Page 39 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LACP Status This page provides a status overview for LACP status for all ports. Label Description Port The switch port number. LACP ‘Yes’ means that LACP is enabled and the port link is up. ‘No’ means that LACP is not enabled or that the port link is down.
  • Page 40 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LACP Statistics This page provides an overview for LACP statistics for all ports. Label Description Port The switch port number LACP Shows how many LACP frames have been sent from each port Transmitted LACP Received Shows how many LACP frames have been received at each port.

  • Page 41: Redundancy

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Redundancy C-Ring C-Ring is one of the most powerful Ring technologies in the world. The recovery time of C-Ring is less than 30 ms. It can reduce unexpected damage caused by network topology change. C-Ring supports 3 different Ring topologies: Ring, Coupling Ring and Dual Homing.

  • Page 42: Mstp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MSTP Bridge Settings This page allows you to configure RSTP system settings. The settings are used by all RSTP Bridge instances in the Switch Stack. Label Description Protocol Version The STP protocol version setting. Valid values are STP, RSTP and MSTP.
  • Page 43 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MSTI Mapping This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. Label Description Configuration The name identifying the VLAN to MSTI mapping. Bridges must share the name and...
  • Page 44 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MSTI Priorities This page allows the user to inspect the current STP MSTI bridge instance priority configurations, and possibly change them as well. Label Description MSTI The bridge instance. The CIST is the default instance, which is always active.
  • Page 45 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS CIST Ports This page allows the user to inspect the current STP CIST port configurations, and possibly change them as well. This page contains settings for physical and aggregated ports. The aggregation settings are stack global.
  • Page 46 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Restricted TCN If enabled, causes the port not to propagate received topology change notifications and topology changes to other ports. If set it can cause temporary loss of connectivity after changes in a spanning trees active topology as a result of persistent incorrectly learned station location information.
  • Page 47 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MSTI Ports This page allows the user to inspect the current STP MSTI port configurations, and possibly change them as well. A MSTI port is a virtual port, which is instantiated separately for each active CIST (physical) port for each MSTI instance configured and applicable for the port.

  • Page 48: Stp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS STP Bridges This page provides a status overview for all STP bridge instances. The displayed table contains a row for each STP bridge instance, where the column displays the following information: Label Description MSTI The Bridge Instance. This is also a link to the STP Detailed Bridge Status.
  • Page 49 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS STP Port Status This page displays the STP CIST port status for port physical ports in the currently selected switch. Label Description Port The switch port number of the logical STP port. CIST Role The current STP port role of the CIST port. The port role can be one of the following values: AlternatePort BackupPort RootPort DesignatedPort.
  • Page 50 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS STP Statistics This page displays the RSTP port statistics counters for bridge ports in the currently selected switch. Label Description Port The switch port number of the logical RSTP port. RSTP The number of RSTP Configuration BPDU’s received/transmitted on the port.

  • Page 51: Vlan

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN VLAN Membership Configuration The VLAN membership configuration for the selected stack switch unit switch can be monitored and modified here. Up to 64 VLANs are supported. This page allows for adding and deleting VLANs as well as adding and deleting port members of each VLAN.

  • Page 52: Vlan Port Configuration

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN Port Configuration TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 52...
  • Page 53 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Ethertype for This field specifies the ether type used for Custom S-ports. This is a global setting for customer S-Ports all the Custom S-ports. Port This is the logical port number of this row.
  • Page 54 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS How to use Unaware / C-Port / S-Port / S-Custom-Port Port can be one of the following types: Unaware, C-port, S-port, and S-custom-port. Ingress action Egress action Unaware When the port received untagged frames, an...
  • Page 55 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Packet Packet No VLAN No VLAN QinQ Packet Packet RLXE4GE24MODMS VID: 5 VID: 5 Unaware VID: PVID TPID: 8100 TPID: 8100 TPID: 8100 Packet Packet VID: 5 Discarded TPID: 88A8 Packet Packet No VLAN No VLAN...

  • Page 56: Vlan Setting Example

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN Setting Example VLAN Access Mode Setting VLAN 10 VLAN 10 VLAN Trunk VLAN Trunk 10,20 10,20 RLXE4GE24MODMS RLXE4GE24MODMS RLXE4GE24MODMS Switch A Switch B Switch C VLAN 20 VLAN 20 In the topology above, for Switch A,...
  • Page 57 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN 1Q Trunk mode VLAN 10 VLAN 10 VLAN Trunk VLAN Trunk 10,20 10,20 RLXE4GE24MODMS RLXE4GE24MODMS RLXE4GE24MODMS Switch A Switch B Switch C VLAN 20 VLAN 20 In the topology above, for Switch B, Port 1 = VLAN 1Qtrunk mode = tagged 10,20...

  • Page 58: Vlan Qinq Mode

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN Hybrid mode To set Port 1 VLAN Hybrid mode = untagged 10 Tagged 10,20 Configure the VLAN for the Switch as shown VLAN QinQ mode Below is an example of the VLAN QinQ Mode, which is typically used in an environment with unknown VLAN.
  • Page 59 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 59...
  • Page 60 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Private VLAN The Private VLAN membership configurations for the switch can be monitored and modified here. Private VLANs can be added or deleted here. Port members of each Private VLAN can be added or removed here. Private VLANs are based on the source port mask, and there are no connections to VLANs.
  • Page 61 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Port Number A check box is provided for each port of a private VLAN. When checked, port isolation is enabled for that port. When unchecked, port isolation is disabled for that port. By default, port isolation is disabled for all ports.

  • Page 62: Voice Vlan

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Voice VLAN The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN, then the switch can classify and schedule network traffic. It is recommended that there be two VLANs on a port - one for voice, one for data.
  • Page 63 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description VLAN ID Indicates the Voice VLAN ID. It should be a unique VLAN ID in the system and cannot equal each port PVID. It is a conflict in configuration if the value equals management VID, MVR VID, PVID etc.

  • Page 64: Voice Vlan Oui

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Voice VLAN OUI Configure VOICE VLAN OUI table on this page. The maximum number of entries is 16. Modifying the OUI table will restart auto detection of OUI process. Label Description Delete Check to delete the entry. It will be deleted during the next save.

  • Page 65: Snmp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS SNMP SNMP-System Label Description Mode Indicates the SNMP mode operation. Possible modes are: Enabled: Enable SNMP mode operation. Disabled: Disable SNMP mode operation. Version Indicates the SNMP supported version. Possible versions are: SNMP v1: Set SNMP supported version 1.
  • Page 66 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Trap Mode Indicates the SNMP trap mode operation. Possible modes are: Enabled: Enable SNMP trap mode operation. Disabled: Disable SNMP trap mode operation. Trap Version Indicates the SNMP trap supported version. Possible versions are: SNMP v1: Set SNMP trap supported version 1.
  • Page 67 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Trap Security Indicates the SNMP trap security engine ID. SNMPv3 sends traps and informs using Engine ID USM for authentication and privacy. A unique engine ID for these traps and informs is needed. When “Trap Probe Security Engine ID” is enabled, the ID will be probed automatically.
  • Page 68 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS SNMP-Users Configure SNMPv3 users table on this page. The entry index keys are Engine ID and User Name. Label Description Delete Check to delete the entry. It will be deleted during the next save. Engine ID An octet string identifying the engine ID that this entry should belong to.
  • Page 69 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS SNMP-Groups Configure SNMPv3 groups table on this page. The entry index keys are Security Model and Security Name. Label Description Delete Check to delete the entry. It will be deleted during the next save. Security Model Indicates the security model that this entry should belong to.
  • Page 70 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS View Type Indicates the view type that this entry should belong to. Possible view types are: included: An optional flag to indicate that this view subtree should be included. excluded: An optional flag to indicate that this view subtree should be excluded.

  • Page 71: Traffic Prioritization

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Traffic Prioritization Storm Control There is a unicast storm rate control, broadcast storm rate control, and an unknown storm rate control. These only affect flooded frames, i.e. frames with a (VLAN ID, DMAC) pair not present on the MAC Address table.
  • Page 72 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Classification QoS is an acronym for Quality of Service. It is a method to guarantee a bandwidth relationship between individual applications or protocols. Label Description Port The port number for which the configuration below applies QoS Class Controls the default QoS class.
  • Page 73 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS DP level Controls the default Drop Precedence Level. All frames are classified to a DP level. If the port is VLAN aware and the frame is tagged, then the frame is classified to a DP level that is equal to the DEI value in the tag.
  • Page 74 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Tag Remarking This page provides an overview of QoS Egress Port Tag Remarking for all switch ports. Label Description Port The logical port for the settings contained in the same row. Click on the port number in order to configure tag remarking Mode Shows the tag remarking mode for this port.
  • Page 75 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port DSCP This page allows you to configure the basic QoS Port DSCP Configuration settings for all switch ports. Label Description Port The Port column shows the list of ports for which you can configure dscp ingress and egress settings.
  • Page 76 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Egress Port Egress Rewriting can be one of – • Disable: No Egress rewrite. • Enable: Rewrite enabled without remapping. • Remap DP Unaware: DSCP from analyzer is remapped and frame is remarked with remapped DSCP value. The remapped DSCP value is always taken from the ‘DSCP Translation->Egress Remap DP0’...
  • Page 77 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Queue Policing This page allows you to configure the Queue Policer settings for all switch ports. Label Description Port The port number for which the configuration below applies. Enable(E) Controls whether the queue policer is enabled on this switch port.
  • Page 78 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Shaping This page provides an overview of QoS Egress Port Shapers for all switch ports. Label Description Port The logical port for the settings contained in the same row. Click on the port number in order to configure the shapers.
  • Page 79 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS DSCP Translation This page allows you to configure the basic QoS DSCP Translation settings for all switches. DSCP translation can be done in Ingress or Egress. Label Description DSCP Maximum number of supported DSCP values are 64 and valid DSCP value ranges from 0 to 63.

  • Page 80: Dscp Classification

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS DSCP Classification This page allows you to configure the mapping of QoS class and Drop Precedence Level to DSCP value. Label Description QoS Class Actual QoS class Actual Drop Precedence Level. DSCP Select the classified DSCP value (0-63).
  • Page 81 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS QoS Control List This page allows to edit|insert a single QoS Control Entry at a time. A QCE consists of several parameters. These parameters vary according to the frame type that you select. Label Description Port Members Check the checkbox button to include the port in the QCL entry.
  • Page 82 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS 2. Ethernet Ethernet Type Valid Ethernet type can have a value within 0x600-0xFFFF or ‘Any’ but excluding 0x800(IPv4) and 0x86DD(IPv6), default value is ‘Any’. 3. LLC SSAP Address Valid SSAP(Source Service Access Point) can vary from 0x00 to 0xFF or ‘Any’, the default value is ‘Any’.
  • Page 83 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS QoS Counters This page provides statistics for the different queues for all switch ports. Label Description Port The logical port for the settings contained in the same row. There are 8 QoS queues per port. Q0 is the lowest priority queue.
  • Page 84 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS QCL Status This page shows the QCL status by different QCL users. Each row describes the QCE that is defined. It is a conflict if a specific QCE is not applied to the hardware due to hardware limitations.

  • Page 85: Multicast

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Multicast IGMP Snooping This page provides IGMP Snooping related configuration. Label Description Snooping Enable the Global IGMP Snooping. Enabled Unregistered Enable unregistered IPMC traffic flooding. IPMCv4Flooding enabled Router Port Specify which ports act as router ports. A router port is a port on the Ethernet switch that leads towards the Layer 3 multicast device or IGMP querier.
  • Page 86 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS IGMP Snooping – VLAN Configuration Each page shows up to 99 entries from the VLAN table, default being 20, selected through the “entries per page” input field. When first visited, the web page will show the first 20 entries from the beginning of the VLAN Table.
  • Page 87 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS IGMP Snooping Status This page provides IGMP Snooping status. Label Description VLAN ID The VLAN ID of the entry. Querier Version Working Querier Version currently. Host Version Working Host Version currently. Querier Status Show the Querier status is “ACTIVE” or “IDLE”.
  • Page 88 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS IGMP Snooping Groups Information Entries in the IGMP Group Table are shown on this page. The IGMP Group Table is sorted first by VLAN ID, and then by group. Label Description VLAN ID VLAN ID of the group.

  • Page 89: Security

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Security Ports Configure the ACL parameters (ACE) of each switch port. These parameters will affect frames received on a port unless the frame matches a specific ACE. Label Description Port The logical port for the settings contained in the same row.
  • Page 90 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Rate Limiters Configure the rate limiter for the ACL of the switch. Label Description Rate Limiter ID The rate limiter ID for the settings contained in the same row. Rate The rate unit is packet per second (pps), configure the rate as 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1K, 2K, 4K, 8K, 16K, 32K, 64K, 128K, 256K, 512K, or 1024K.
  • Page 91 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS ACL Control List Configure an ACE (Access Control Entry) on this page. An ACE consists of several parameters. These parameters vary according to the frame type that you select. First select the ingress port for the ACE, and then select the frame type. Different parameter options are displayed depending on the frame type that you selected.
  • Page 92 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Logging Specify the logging operation of the ACE. The allowed values are: Enabled: Frames matching the ACE are stored in the System Log. Disabled: Frames matching the ACE are not logged. Please note that the System Log memory size and logging rate is limited.

  • Page 93: Aaa

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Common Server Configuration This page allows you to configure the Authentication Servers Label Description Timeout The Timeout, which can be set to a number between 3 and 3600 seconds, is the maximum time to wait for a reply from a server.
  • Page 94 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS RADIUS Authentication Server Configuration The table has one row for each RADIUS Authentication Server and a number of columns, which are: Label Description The RADIUS Authentication Server number for which the configuration below applies. Enabled Enable the RADIUS Authentication Server by checking this box.

  • Page 95: Radius Overview

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS RADIUS Overview This page provides an overview of the status of the RADIUS servers configurable on the Authentication configuration page. RADIUS Authentication Servers Label Description The RADIUS server number. Click to navigate to detailed statistics for this server.
  • Page 96 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS RADIUS Accounting Servers Label Description The RADIUS server number. Click to navigate to detailed statistics for this server. IP Address The IP address and UDP port number (in <IP Address>:<UDP Port> notation) of this server.
  • Page 97 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Packet Counters RADIUS authentication server packet counter. There are seven receive and four transmit counters. Other Info This section contains information about the state of the server and the latest round-trip time. TECH SUPPORT: 1.888.678.9427...
  • Page 98 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Packet Counters RADIUS accounting server packet counter. There are five receive and four transmit counters. Other Info This section contains information about the state of the server and the latest TECH SUPPORT: 1.888.678.9427...
  • Page 99 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS NAS(802.1x) This page allows you to configure the IEEE 802.1X and MAC-based authentication system and port settings. The IEEE 802.1X standard defines a port-based access control procedure that prevents unauthorized access to a network by requiring users to first submit credentials for authentication.
  • Page 100 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Overview of MAC-Based Authentication Unlike 802.1X, MAC-based authentication is not a standard, but merely a best-practices method adopted by the industry. In MAC-based authentication, users are called clients, and the switch acts as the supplicant on behalf of clients. The initial frame (any kind of frame) sent by a client is snooped by the switch, which in turn uses the client’s MAC address as both username and...
  • Page 101 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Mode Indicates if 802.1X and MAC-based authentication is globally enabled or disabled on the switch. If globally disabled, all ports are allowed forwarding of frames. Reauthentication If checked, clients are reauthenticated after the interval specified by the Enabled Reauthentication Period.
  • Page 102 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Admin State If NAS is globally enabled, this selection controls the port’s authentication mode. The following modes are available: Force Authorized In this mode, the switch will send one EAPOL Success frame when the port link comes up, and any client on the port will be allowed network access without authentication.
  • Page 103 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port State The current state of the port. It can undertake one of the following values: Globally Disabled: NAS is globally disabled. Link Down: NAS is globally enabled, but there is no link on the port.
  • Page 104 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS This page provides detailed IEEE 802.1X statistics for a specific switch port running port-based authentication. For MAC-based ports, it shows selected backend server (RADIUS Authentication Server) statistics, only. Use the port select box to select which port details to be displayed.
  • Page 105 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Backend Server These backend (RADIUS) frame counters are available for the following administrative Counters states: • 802.1X • MAC-based Auth. Last Supplicant/ Information about the last supplicant/client that attempted to authenticate. This Client Info information is available for the following administrative states: •...

  • Page 106: Tacacs+ Server Configuration Help

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS TACACS+ Server Configuration Help This page allows you to configure the TACACS+ servers. Global Configuration These settings are common for all of the TACACS+ servers. Label Description Timeout Timeout is the number of seconds, in the range 1 to 1000, to wait for a reply from a TACACS+ server before it is considered to be dead.

  • Page 107: Warning

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Label Description Adding a New Click to add a new TACACS+ server. An empty row is added to the table, and the Server TACACS+ server can be configured as needed. Up to 5 servers are supported.

  • Page 108: System Warning

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS System Warning SYSLOG Setting The SYSLOG is a protocol to transmit event notification messages across networks. Please refer to RFC 3164 – The BSD SYSLOG Protocol System Warning – SYSLOG Setting interface The following table describes the labels in this screen.
  • Page 109 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Event Selection SYSLOG is the warning method supported by the system. Check the corresponding box to enable system event warning method you wish to choose. Please note that the checkbox cannot be checked when SYSLOG is disabled.

  • Page 110: Monitor And Diag

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Monitor and Diag MAC Table Configuration The MAC Address Table is configured on this page. Set timeouts for entries in the dynamic MAC Table and configure the static MAC table here. Aging Configuration By default, dynamic entries are removed from the MAC after 300 seconds. This removal is also called aging.
  • Page 111 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MAC Table Learning If the learning mode for a given port is grayed out, another module is in control of the mode, so that it cannot be changed by the user. An example of such a module is the MAC-Based Authentication under 802.1X.
  • Page 112 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS MAC Table Each page shows up to 999 entries from the MAC table, default being 20, selected through the “entries per page” input field. When first visited, the web page will show the first 20 entries from the beginning of the MAC Table.

  • Page 113: Port Statistic

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port Statistic Traffic Overview This page provides an overview of general traffic statistics for all switch ports. Label Description Port The logical port for the settings contained in the same row. Packets The number of received and transmitted packets per port.
  • Page 114 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Detailed Statistics This page provides detailed traffic statistics for a specific switch port. Use the port select box to select which switch port details to display. The displayed counters are the totals for receive and transmit, the size counters for receive and transmit, and the error counters for receive and transmit.
  • Page 115 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Short frames are frames that are smaller than 64 bytes. Long frames are frames that are longer than the configured maximum frame length for this port. Port Monitoring Configure port Mirroring on this page. To debug network problems, selected traffic can be copied, or mirrored, to a mirror port where a frame analyzer can be attached to analyze the frame flow.

  • Page 116: System Log Information

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS System Log Information The switch system log information is provided here. Label Description The ID (>= 1) of the system log entry. Level The level of the system log entry. The following level types are supported: Info: Information level of the system log.

  • Page 117: Cable Diagnostics

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Cable Diagnostics This page is used for running the VeriPHY Cable Diagnostics. Press Start to run the diagnostics. This will take approximately 5 seconds. If all ports are selected, this can take approximately 15 seconds. When completed, the page refreshes automatically, and you can view the cable diagnostics results in the cable status table.

  • Page 118: Sfp Monitor

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS SFP Monitor DDM function, can pass SFP module which supports DDM function, measure the temperature of the apparatus and manage and set up event alarm module through DDM WEB TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 118...

  • Page 119: Ping

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Ping This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues. After you press Start, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs.

  • Page 120: Syncronization-Ptp

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Syncronization-PTP This page allows the user to configure and inspect the current PTP clock settings. PTP External Clock Mode Label Description One_pps_mode This Selection box will allow you to select the One_pps_mode configuration. The following values are possible: 1.
  • Page 121 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS PTP Clock Configuration Label Description Delete Check this box and click on ‘Save’ to delete the clock instance. Clock Instance Indicates the Instance of a particular Clock Instance [0..3]. Click on the Clock Instance number to edit the Clock details.

  • Page 122: Factory Defaults

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Factory Defaults You can reset the configuration of the stack switch on this page. Only the IP configuration is retained. Label Description Click to reset the configuration to Factory Defaults. Click to return to the Port State page without resetting the...

  • Page 123: Command Line Interface Management

    Command Line Interface Management About CLI Management In addition to WEB-base management, the RLXE4GE24MODMS also supports CLI management. You can use console or telnet to management the switch by CLI. CLI Management by RS-232 Serial Console (115200, 8, none, 1, none) Before Configuring by RS-232 serial console, use an DB-9-M to DB-9-F cable to connect the switches’...
  • Page 124 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Step 2. Input a name for new connection Step 3. Select to use COM port number TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 124...
  • Page 125 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Step 4. The COM port properties setting, 115200 for baud rate, 8 for Data bits, None for Parity, 1 for Stop bits and none for Flow control. Step 5. The Console login screen will appear. Use the keyboard to enter the Username and Password (these are the same as the credentials for Web Browser), and then press Enter.
  • Page 126 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS CLI Management by Telnet Users can use “TELNET” to configure the switches. The default value is as below: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin Follow the steps below to access the console via Telnet.

  • Page 127: Commander Groups

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Commander Groups System Configuration [all] [<port_list>] Reboot Restore Default [keep_ip] Contact [<contact>] Name [<name>] System> Location [<location>] Description [<description>] Password <password> Username [<username>] Timezone [<offset>] Log [<log_id>] [all|info|warning|error] [clear] TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 127...
  • Page 128 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Configuration DHCP [enable|disable] IP> Setup [<ip_addr>] [<ip_mask>] [<ip_router>] [<vid>] Ping <ip_addr_string> [<ping_length>] SNTP [<ip_addr_string>] Port Configuration [<port_list>] [up|down] State [<port_list>] [enable|disable] Mode [<port_list>] [auto|10hdx|10fdx|100hdx|100fdx|1000fdx|sfp_auto_ams] Flow Control [<port_list>] [enable|disable] MaxFrame [<port_list>] [<max_frame>] Port> Power [<port_list>] [enable|disable|actiphy|dynamic] Excessive [<port_list>] [discard|restart]...
  • Page 129 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VLAN Configuration [<port_list>] PVID [<port_list>] [<vid>|none] FrameType [<port_list>] [all|tagged|untagged] IngressFilter [<port_list>] [enable|disable] tx_tag [<port_list>] [untag_pvid|untag_all|tag_all] PortType [<port_list>] [unaware|c-port|s-port|s-custom-port] EtypeCustomSport [<etype>] Add <vid>|<name> [<ports_list>] VLAN> Forbidden Add <vid>|<name> [<port_list>] Delete <vid>|<name> Forbidden Delete <vid>|<name> Forbidden Lookup [<vid>] [(name <name>)] Lookup [<vid>] [(name <name>)] [combined|static|nas|all]...
  • Page 130 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Security Switch Password <password> Auth Authentication Security/switch> SSH Secure Shell HTTPS Hypertext Transfer Protocol over Secure Socket Layer RMON Remote Network Monitoring Security Switch Authentication Configuration Security/switch/auth> Method [console|telnet|ssh|web] [none|local|radius] [enable|disable] Security Switch SSH Configuration Security/switch/ssh>...
  • Page 131 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Security Network Psec Port Security Status NAS Network Access Server (IEEE 802.1X) Security/Network> ACL Access Control List DHCP Dynamic Host Configuration Protocol Security Network Psec Switch [<port_list>] Security/Network/ Psec> Port [<port_list>] Security Network NAS Configuration [<port_list>] Mode [enable|disable] State [<port_list>] [auto|authorized|unauthorized|macbased]...
  • Page 132 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Security Network ACL Configuration [<port_list>] Action [<port_list>] [permit|deny] [<rate_limiter>][<port_redirect>] [<mirror>] [<logging>] [<shutdown>] Policy [<port_list>] [<policy>] Rate [<rate_limiter_list>] [<rate_unit>] [<rate>] Add [<ace_id>] [<ace_id_next>][(port <port_list>)] [(policy <policy> <policy_ bitmask>)][<tagged>] [<vid>] [<tag_prio>] [<dmac_type>][(etype [<etype>] [<smac>] [<dmac>]) | (arp [<sip>] [<dip>] [<smac>] [<arp_opcode>] [<arp_ flags>]) | (ip [<sip>] [<dip>] [<protocol>] [<ip_flags>]) | (icmp [<sip>] [<dip>]...
  • Page 133 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Configuration Version [<stp_version>] Non-certified release, v Txhold [<holdcount>]lt 15:15:15, Dec 6 2007 MaxAge [<max_age>] FwdDelay [<delay>] bpduFilter [enable|disable] bpduGuard [enable|disable] recovery [<timeout>] CName [<config-name>] [<integer>] Status [<msti>] [<port_list>] Msti Priority [<msti>] [<priority>] Msti Map [<msti>] [clear] Msti Add <msti>...
  • Page 134 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LACP Configuration [<port_list>] Mode [<port_list>] [enable|disable] Key [<port_list>] [<key>] LACP> Role [<port_list>] [active|passive] Status [<port_list>] Statistics [<port_list>] [clear] LLDP Configuration [<port_list>] Mode [<port_list>] [enable|disable] LLDP> Statistics [<port_list>] [clear] Info [<port_list>] DSCP Map [<dscp_list>] [<class>] [<dpl>] DSCP Translation [<dscp_list>] [<trans_dscp>]...
  • Page 135 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Configuration [<port_list>] Mirror> Port [<port>|disable] Mode [<port_list>] [enable|disable|rx|tx] Dot1x Configuration [<port_list>] Mode [enable|disable] State [<port_list>] [macbased|auto|authorized|unauthorized] Authenticate [<port_list>] [now] Reauthentication [enable|disable] Dot1x> Period [<reauth_period>] Timeout [<eapol_timeout>] Statistics [<port_list>] [clear|eapol|radius] Clients [<port_list>] [all|<client_cnt>] Agetime [<age_time>] Holdtime [<hold_time>] IGMP Configuration [<port_list>]...
  • Page 136 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Configuration [<port_list>] Action [<port_list>] [permit|deny] [<rate_limiter>] [<port_copy>][<logging>] [<shutdown>] Policy [<port_list>] [<policy>] Rate [<rate_limiter_list>] [<packet_rate>] Add [<ace_id>] [<ace_id_next>] [switch | (port <port>) | (policy <policy>)] [<vid>] [<tag_prio>] [<dmac_type>][(etype [<etype>] [<smac>] [<dmac>]) |(arp ACL> [<sip>] [<dip>] [<smac>] [<arp_opcode>] [<arp_flags>]) |(ip [<sip>] [<dip>] [<protocol>] [<ip_flags>]) |(icmp [<sip>] [<dip>] [<icmp_type>] [<icmp_code>]...
  • Page 137 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Trap Inform Retry Times [<retries>] Trap Probe Security Engine ID [enable|disable] Trap Security Engine ID [<engineid>] Trap Security Name [<security_name>] Engine ID [<engineid>] Community Add <community> [<ip_addr>] [<ip_mask>] Community Delete <index> Community Lookup [<index>] User Add <engineid> <user_name> [MD5|SHA] [<auth_password>] [DES] [<priv_password>]...
  • Page 138 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Configuration [<clockinst>] PortState <clockinst> [<port_list>] [enable|disable|internal] ClockCreate <clockinst> [<devtype>] [<twostep>] [<protocol>] [<oneway>] [<clockid>] [<tag_enable>] [<vid>] [<prio>] ClockDelete <clockinst> [<devtype>] DefaultDS <clockinst> [<priority1>] [<priority2>] [<domain>] CurrentDS <clockinst> ParentDS <clockinst> Timingproperties <clockinst> [<utcoffset>] [<valid>] [<leap59>] [<leap61>] [<timetrac>] [<freqtrac>] [<ptptimescale>] [<timesource>] PTP PortDataSet <clockinst>...
  • Page 139 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS IPMC Configuration [igmp] Mode [igmp] [enable|disable] Flooding [igmp] [enable|disable] VLAN Add [igmp] <vid> VLAN Delete [igmp] <vid> State [igmp] [<vid>] [enable|disable] IPMC> Querier [igmp] [<vid>] [enable|disable] Fastleave [igmp] [<port_list>] [enable|disable] Router [igmp] [<port_list>] [enable|disable] Status [igmp] [<vid>] Groups [igmp] [<vid>]...
  • Page 140 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Ring Mode [enable|disable] Master [enable|disable] 1stRingPort [<port>] 2ndRingPort [<port>] Ring> Couple Mode [enable|disable] Couple Port [<port>] Dualhoming Mode [enable|disable] Dualhoming Port [<port>] syslog [enable|disable] SFP> temp [<temperature>] Info TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 140...

  • Page 141: Using The Routing Function

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Using the Routing Function Static Routing Setting Example VLAN 1 VLAN 10 192.168.10.1 192.168.20.1 RLXE4GE24MODMS PC 1 PC 2 Layer 3 Switch B 192.168.10.X 192.168.20.X Two PCs in different subnets, use static route function for routing between the two subnets.
  • Page 142 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port 1 PVID = 1 Port 2 PVID = 10 2. Static Routing Setting Mode = Router Create IP interfaces VLAN 1 = 192.168.10.1 VLAN 10 = 192.168.20.1 Setup is complete PC 1 = 192.168.10.X PC 2 = 192.168.20.X...
  • Page 143 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS PC 1 can ping to PC 2 ( 192.168.10.X routing to 192.168.20.X) TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 143...

  • Page 144: Rip Routing Setting Example

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS RIP Routing Setting Example: PC 3 PC 4 192.168.30.X 192.168.40.X VLAN 1 VLAN 10 192.168.10.1 192.168.20.1 RLXE4GE24MODMS L3 Switch PC 1 PC 2 192.168.10.X 192.168.20.X 1. VLAN Setting Port 1 = VLAN Group 1 Port 2 = VLAN Group 10...
  • Page 145 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Port 1 PVID = 1 Port 2 PVID = 10 Port 3 PVID = 1 Port 4 PVID =10 2. Static Routing Setting Mode = Router TECH SUPPORT: 1.888.678.9427 INS_RLXE4GE24MODMS_REV– 1 Jul 2016 PAGE 145...
  • Page 146 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Create IP interfaces VLAN 1 = 192.168.10.1 VLAN 10 = 192.168.20.1 3. RIP Routing Setting RIP Mode = Enabled Setup is complete PC 1 = 192.168.10.X PC 2 = 192.168.20.X PC 3 = 192.168.30.X PC 4 = 192.168.40.X...

  • Page 147: Vrrp Setting Example

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VRRP Setting Example Internet RLXE4GE24MODMS RLXE4GE24MODMS L3 Switch A L3 Switch B 192.168.10.1 192.168.10.2 Virtual Router IP = Virtual Router L3 Switch A Virtual IP Switch A Setting VRRP Configuration VRID = 10 (The two switches need the same VRID)
  • Page 148 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS VRRP Configuration VRID = 10 (The two switches need the same VRID) Priority = 10 AuthCode = 10 (The two switches need the same AuthCode) Switch B Setting VRRP Configuration VRID = 10 (The two switches need the same VRID)
  • Page 149 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Setup is complete Switch A Priority = 10 Switch B Priority = 20 Switch A is high priority, So the Virtual Router will follow Switch A Settings. Virtural Router IP = Switch A VRIP = 192.168.10.60 Switch B is low priority.

  • Page 150: Technical Specifications

    INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Technical Specifications ComNet Switch Model RLXE4GE24MODMS Physical Ports Slot Number 1-3 8 × 1Gb Ports Per Slot Slot Number 4 4 × 10Gb SFP+ Ports Technology Ethernet Standards IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3ab for 1000Base-T...
  • Page 151 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS Software Features Hardware routing, RIP, VRRP and static routing IEEE 1588v2 clock synchronization IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static) MSTP (RSTP/STP compatible) Redundant Ring (C-Ring) with recovery time less than 30ms over 250...
  • Page 152 INSTALLATION AND OPERATION MANUAL RLXE4GE24MODMS LED indicators System Ready (PWR) Green: System is ready. Blinking: System is upgrading firmware. Power (PWR1 / PWR2) Green: Power is connected Ring Master (R.M.) Green: System is operating in C-Ring Master Mode C-Ring (Ring)
