4.4 Simplicity Connector

The Simplicity Connector featured on the Wireless Starter Kit Mainboard enables advanced debugging features such as the AEM, the
Virtual COM port and the Packet Trace Interface to be used towards an external target. The pinout is illustrated in the figure below.
Note: Current drawn from the VMCU voltage pin is included in the AEM measurements, while the 3V3 and 5V voltage pins are not. To
monitor the current consumption of an external target with the AEM, unplug the WSTK Radio Board from the WSTK Mainboard to avoid
that the Radio Board current consumption is added to the measurements.
Pin number(s) Function
1 VMCU
3 3V3
5 5V
2 VCOM_TX_MOSI
4 VCOM_RX_MISO
6 VCOM_CTS_SCLK
8 VCOM_RTS_CS
10 PTI0_SYNC
12 PTI0_DATA
14 PTI0_CLK
16 PTI1_SYNC
18 PTI1_DATA
20 PTI1_CLK
17 EXT_ID_SCL
19 EXT_ID_SDA
7, 9, 11, 13, 15 GND
silabs.com | Smart. Connected. Energy-friendly.
VMCU
1
3V3 3
5V 5
GND 7
GND 9
GND 11
GND 13
15
GND
Board ID SCL 17
Board ID SDA 19

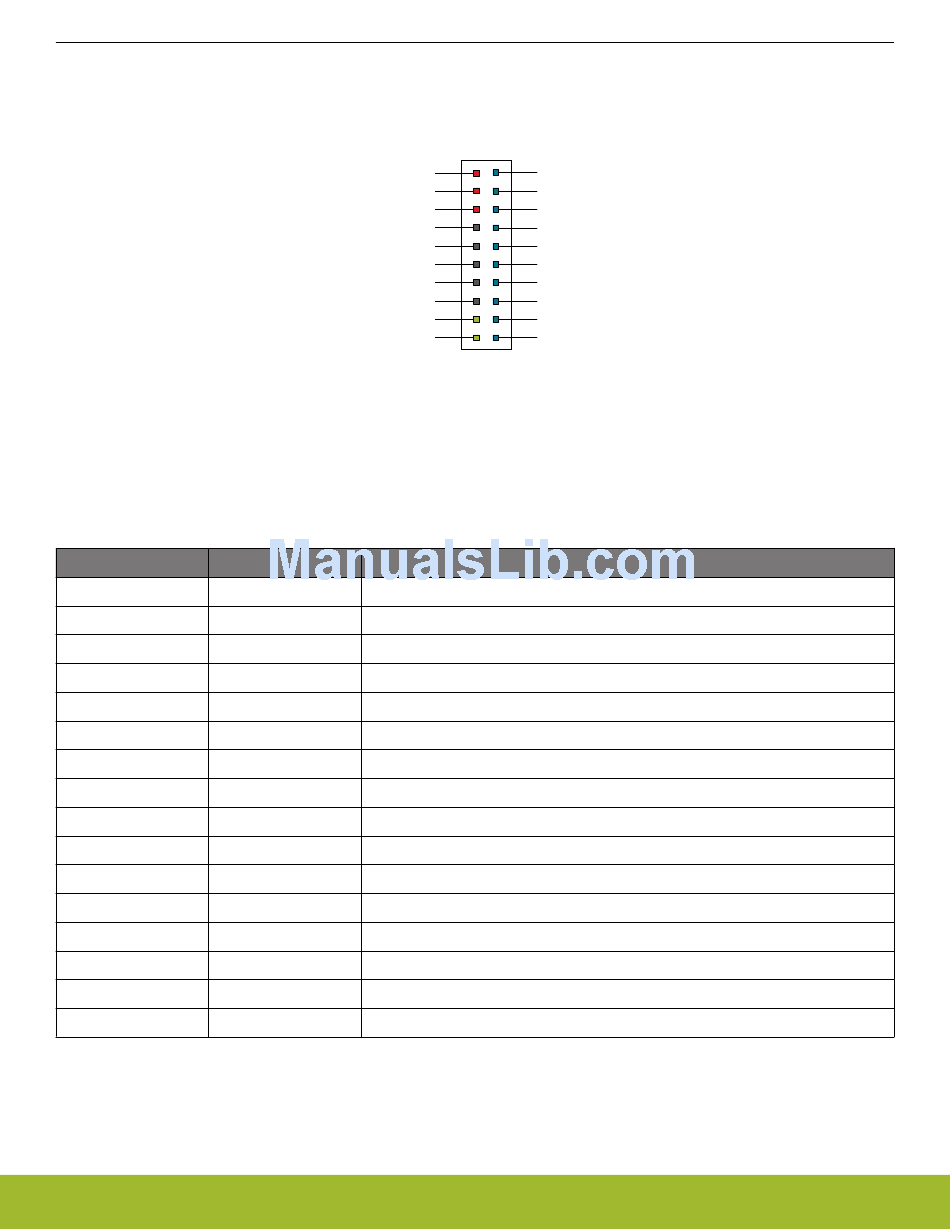

Figure 4.5. Simplicity Connector
