4. Connectors

This chapter gives you an overview of the Wireless Starter Kit Mainboard connectivity. The placement of the connectors can be seen in
the figure below.

4.1 Breakout Pads

Most of the EFR32's pins are routed from the radio board to breakout pads at the top and bottom edges of the Wireless Starter Kit
Mainboard. A 2.54 mm pitch pin header can be soldered on for easy access to the pins. The figure below shows you how the pins of
the EFR32 maps to the pin numbers printed on the breakout pads. To see the available functions on each, please refer to the
EFR32MG1P233F256GM48 Data Sheet.
VMCU
GND
VCOM_CTS / PA2 / P0
VCOM_RTS / PA3 / P2
BTN0 / PF6 / P4
BTN1 / PF7 / P6
LED0 / PF4 / P8
DBG_TDI / PF3 / P10
I2C_SCL / PC10 / P12
FLASH_SCS / PA4 / P14
VCOM_ENABLE / PA5 / P16
PTI_CLK / PB11 / P18
PTI_DATA / PB12 / P20
PTI_FRAME / PB13 / P22
GND
VRF
silabs.com | Smart. Connected. Energy-friendly.

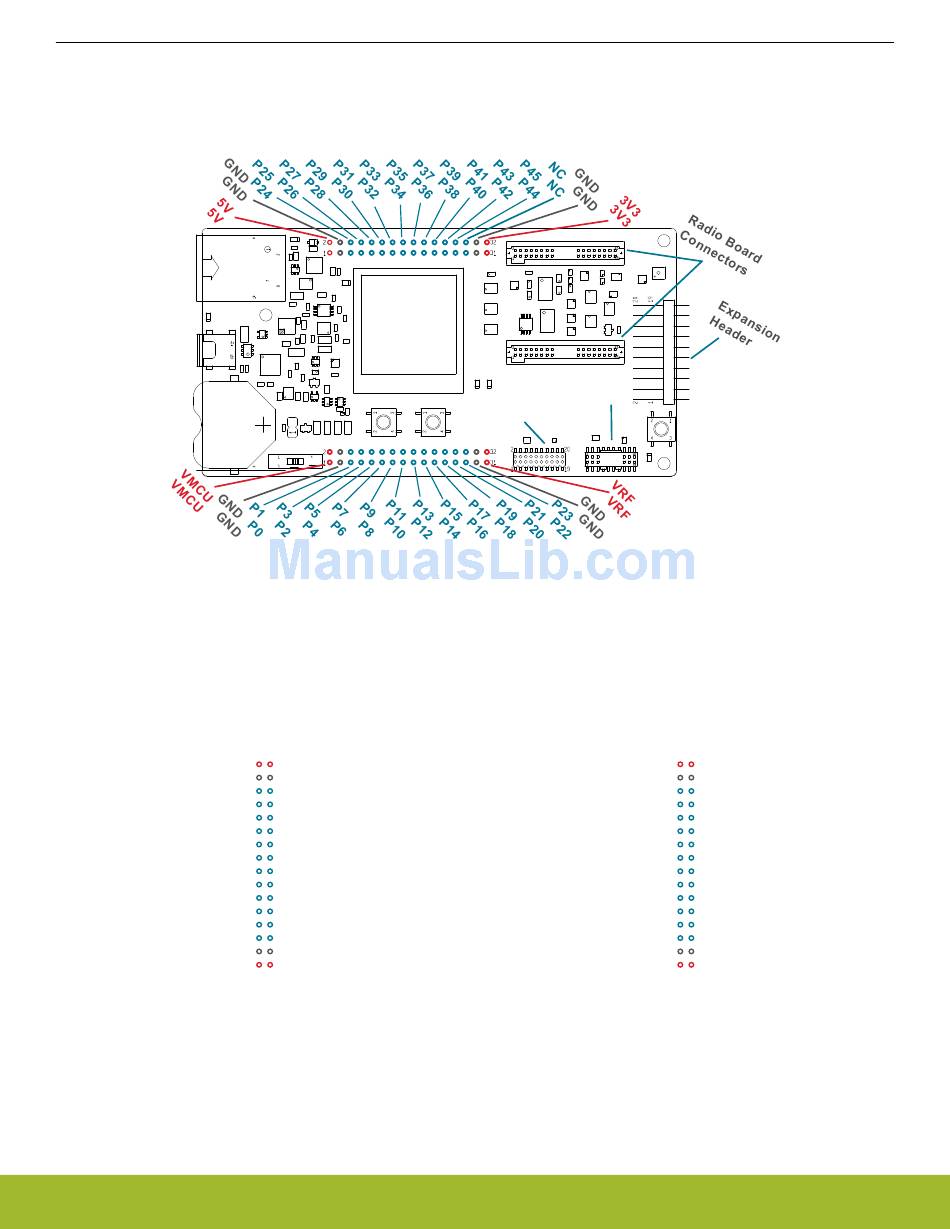

Figure 4.1. Mainboard Connector Layout
J101
VMCU
GND
P1 / PC6 / FLASH_MOSI / DISP_SI
P3 / PC7 / FLASH_MISO
P5 / PC8 / FLASH_SCLK / DISP_SCLK
P7 / PC9
P9 / PA0 / VCOM_TX
P11 / PA1 / VCOM_RX
P13 / PC11 / I2C_SDA
P15 / NC
P17 / NC
P19 / NC
P21 / NC
P23 / NC
GND
VRF
Figure 4.2. Radio Board Pin Mapping on Breakout Pads
UG178: EFR32MG 2400/868 MHz 13 dBm Dual Band Radio Board
In/Out Debug
Simplicity
Header
Connector
DBG_TCK_SWCLK / PF0 / P24
DBG_TMS_SWDIO / PF1 / P26
DBG_TDO_SWO / PF2 / P28
NC / P30
LED1 / PF5 / P32
NC / P34
NC / P36
NC / P38
NC / P40
NC / P42
NC / P44
Connectors
J102
5V 5V
GND GND
P25 / NC
P27 / NC
P29 / NC
P31 / PD13 / DISP_EXTCOMIN
P33 / PD14 / DISP_SCS
P35 / PD15 / DISP_ENABLE
P37 / PD15 / SENSOR_ENABLE
P39 / NC
P41 / NC
P43 / NC
P45 / NC
NC NC
GND GND
3V3 3V3
