3.6 Simplicity Connector

The Simplicity Connector enables the advanced debugging features, such as the AEM, the Virtual COM port and the Packet Trace In-
terface, to be used towards an external target. The pinout is illustrated in the figure below.
Note: Current drawn from the VMCU voltage pin is included in the AEM measurements, while the 3V3 and 5V voltage pins are not. To
monitor the current consumption of an external target with the AEM, unplug the Radio Board from the Wireless STK Mainboard to avoid
that the Radio Board current consumption is added to the measurements.
Pin number(s) Function
1 VMCU
3 3V3
5 5V
2 VCOM_TX
4 VCOM_RX
6 VCOM_CTS
8 VCOM_RTS
10 PTI0_SYNC
12 PTI0_DATA
14 PTI0_CLK
16 PTI1_SYNC
18 PTI1_DATA
20 PTI1_CLK
17 EXT_ID_SCL
19 EXT_ID_SDA
7, 9, 11, 13, 15 GND
silabs.com | Building a more connected world.
VMCU
1
3V3 3
5V 5
GND 7
GND 9
GND 11
GND 13
GND 15
Board ID SCL 17
Board ID SDA 19

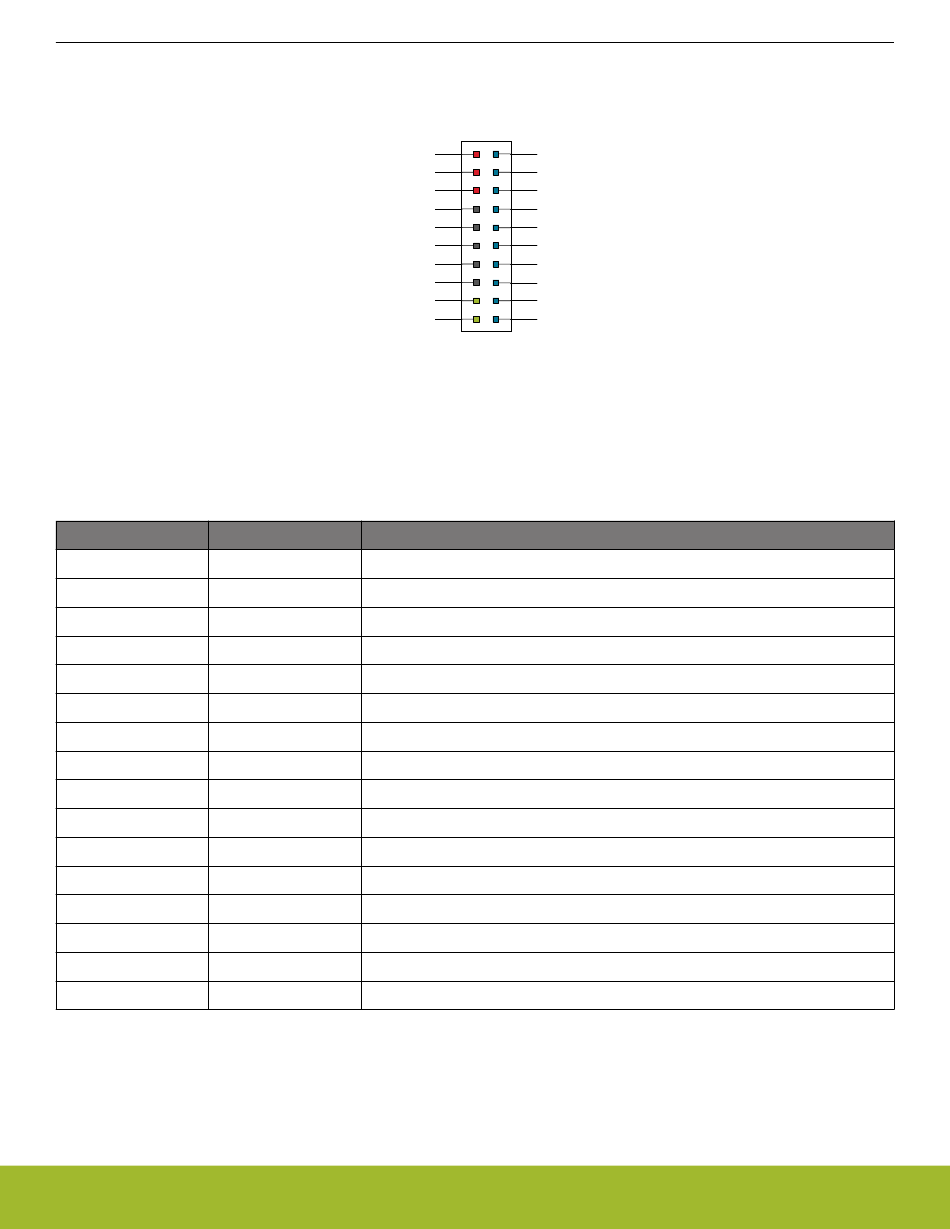

Figure 3.5. Simplicity Connector
Table 3.3. Simplicity Connector Pin Descriptions
Description
3.3 V power rail, monitored by the AEM
3.3 V power rail
5 V power rail
Virtual COM Tx
Virtual COM Rx
Virtual COM CTS
Virtual COM RTS
Packet Trace 0 Sync
Packet Trace 0 Data
Packet Trace 0 Clock
Packet Trace 1 Sync
Packet Trace 1 Data
Packet Trace 1 Clock
Board ID SCL
Board ID SDA
Ground
UG192: EZR32HG 915 MHz 20 dBm Wireless Starter Kit User's Guide
2 VCOM_TX
4
VCOM_RX
6 VCOM_CTS
VCOM_RTS
8
PTI0_SYNC
10
12 PTI0_DATA
14 PTI0_CLK
PTI1_SYNC
16
18 PTI1_DATA
20 PTI1_CLK
Connectors
Rev. 1.01 | 12
