9.2 Debug Modes
Programming external devices is done by connecting to a target board through the provided Debug IN/OUT Connector, and by setting
the debug mode to [Out]. The same connector can also be used to connect an external debugger to the EFR32 Wireless SoC on the
kit, by setting the debug mode to [In]. A summary of the different supported debug modes is given in
Selecting the active debug mode is done with a drop-down menu in the Kit Manager tool in Simplicity Studio.
Debug MCU: In this mode the on-board debugger is connected to the EFR32 on the SLWRB4150A.
Debug OUT: In this mode, the on-board debugger can be used to debug a supported Silicon Labs device mounted on a custom board.
Debug IN: In this mode, the on-board debugger is disconnected, and an external debugger can be connected to debug the EFR32 on
the SLWRB4150A.
silabs.com | Smart. Connected. Energy-friendly.
Board
Host
USB
Controller
Computer

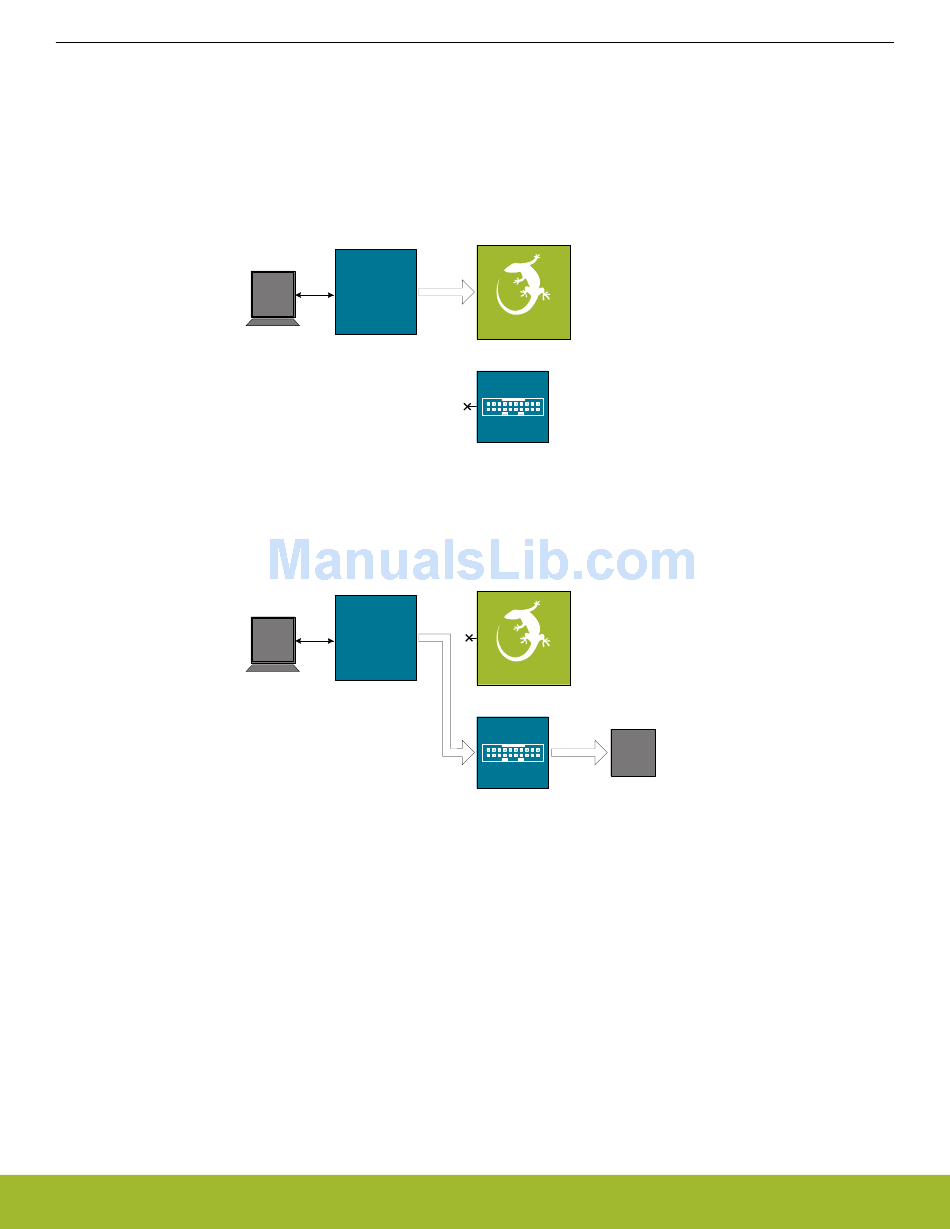

Figure 9.1. Debug MCU
Board
Host
USB
Controller
Computer
Figure 9.2. Debug OUT
UG178: EFR32MG 2400/868 MHz 13 dBm Dual Band Radio Board
RADIO BOARD
External
Hardware
DEBUG HEADER
RADIO BOARD
External
Hardware
DEBUG HEADER
On-Board Debugger
9.2 Debug
Modes.
Rev. 1.00 | 21
