03/14

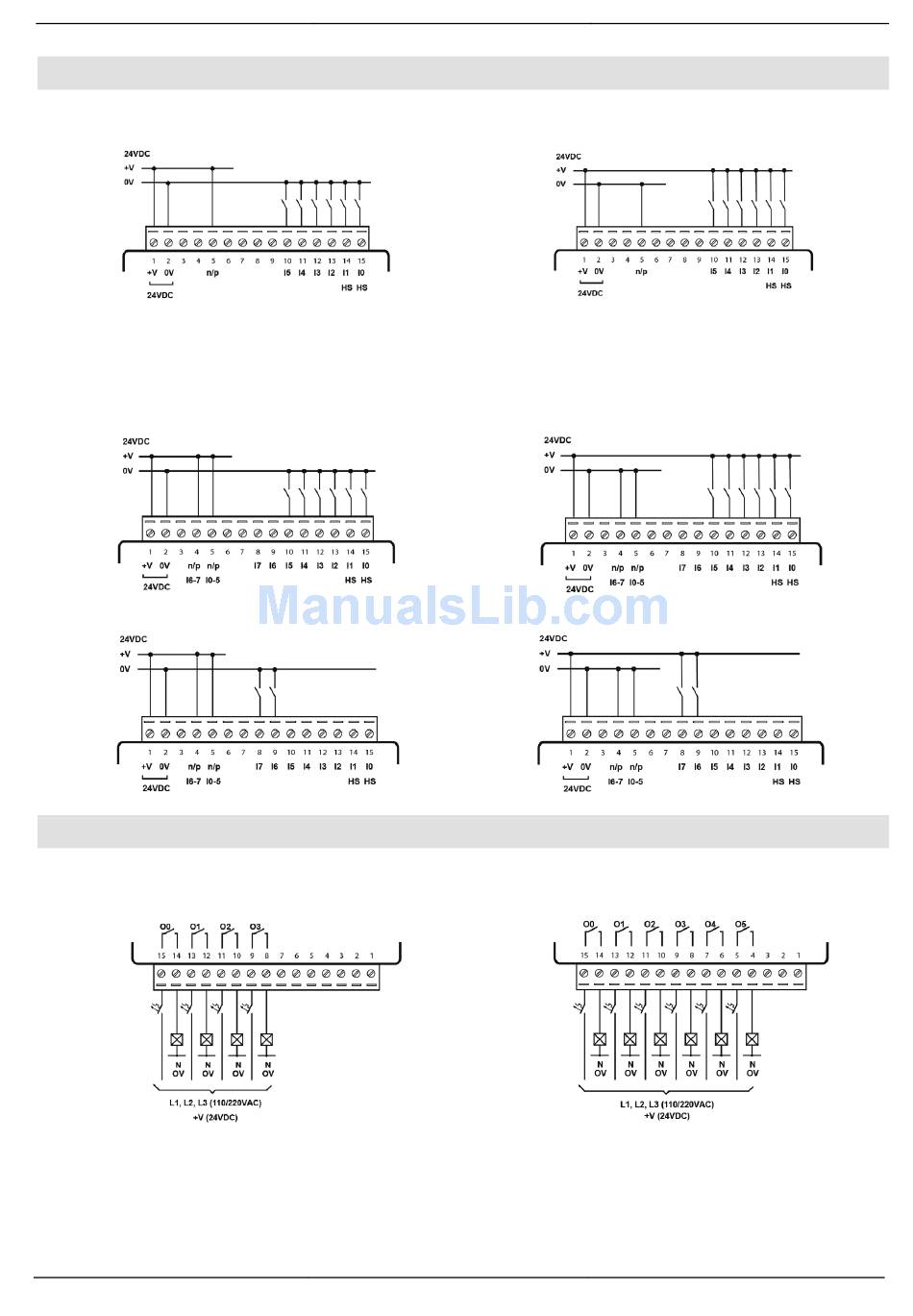

Digital Inputs, Controller's Power Supply
Input wiring (I0-I5), npn (sink)
Note: The inputs are arranged in two groups. You can wire one group as npn and the other as pnp,
or wire both groups as npn, or as pnp. In either case, the npn/pnp pins must be connected.
Input wiring (I0-I5), npn (sink)
Input wiring (I6-I7), npn (sink)
Digital Outputs
JZ20-R10/JZ20-J-R10
4
JZ20-R10/JZ20-J-R10
JZ20-R16/JZ20-J-R16
Output wiring
JZ20-R1X/JZ20-J-R1X
Input wiring (I0-I5), pnp (source)
Input wiring (I0-I5), pnp (source)
Input wiring (I6-I7), pnp (source)
JZ20-R16/JZ20-J-R16
Unitronics
