Unitronics Jazz Micro-OPLC JZ10-11-UN20 Installation Manual

JZ10-11-UN20
Before using this product, the user must read and understand this document.
For additional information regarding this product, refer to the user guide and technical specifications.
All examples and diagrams are intended to aid understanding, and do not guarantee operation.
Unitronics accepts no responsibility for actual use of this product based on these examples.
Please dispose of this product according to local and national standards and regulations.
Only qualified service personnel should open this device or carry out repairs.
Failure to comply with appropriate safety guidelines can cause severe injury or property damage.
Do not attempt to use this device with parameters that exceed permissible levels.
To avoid damaging the system, do not connect/disconnect the device when power is on.
Environmental Considerations
Do not install in areas with: excessive or conductive dust, corrosive or flammable gas,
moisture or rain, excessive heat, regular impact shocks or excessive vibration.
Ventilation: 10mm space required between the controller's top/bottom edges & enclosure walls.
Do not place in water or let water leak onto the unit.
Do not allow debris to fall inside the unit during installation.
Mounting

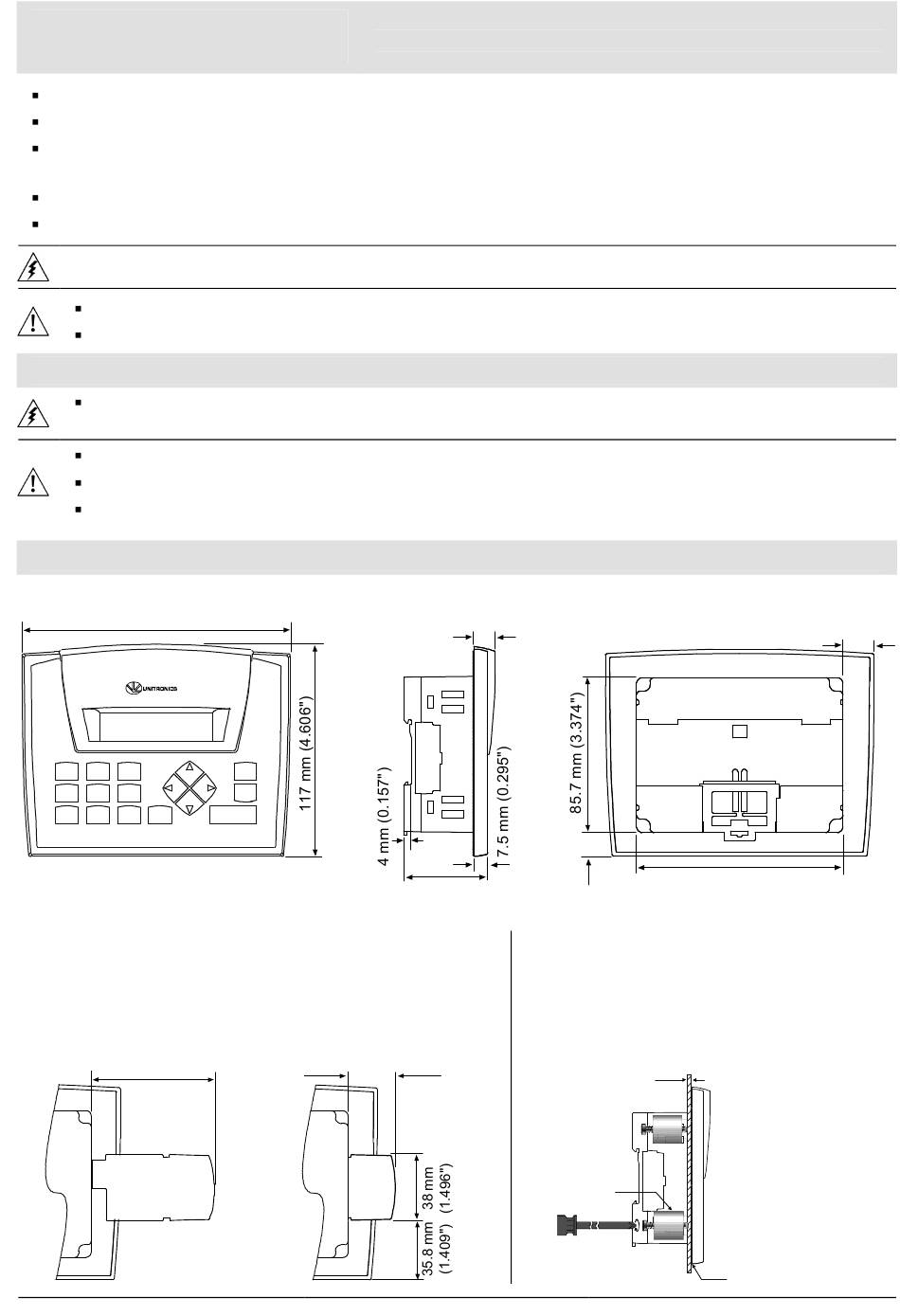

Dimensions
147.5 mm (5.807")
Add-on modules
Note: Installing an add-on module requires space.
During installation
72 mm (2.835")
Unitronics
Jazz™ Micro-OPLC™ Installation Guide
9 Digital, 2 Analog/Digital, 1 Analog, 1 PT100/TC,
5 Relay, 2 PNP Outputs
12 mm (0.472")
46.6 mm (1.835")
After installation
27.5 mm
(1.083")
113.7 mm (4.476")
13.2 mm (0.52")
Panel mounting
- Cut-out:
117 x 89mm (WxH) 4.606"x 3.504"
- Hold bracket against unit while
tightening screw
Panel
5mm (max)
0.197" (max)
Bracket
Gasket
16.8 mm (0.661")
1
