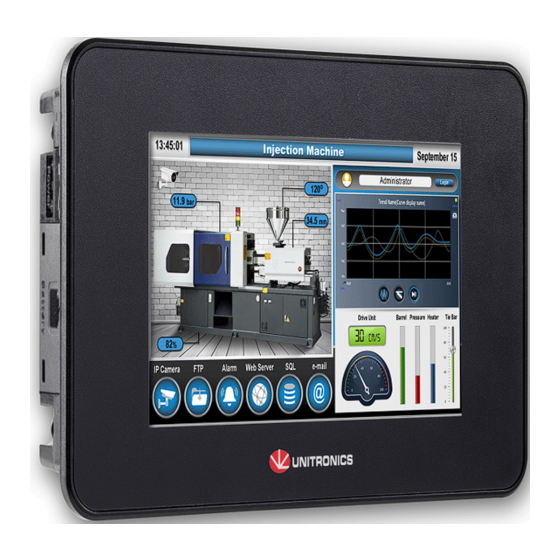

Unitronics UniStream US5-B10-RA28 Installation Manual

Hide thumbs Also See for UniStream US5-B10-RA28:

Advertisement

Quick Links

Download this manual
UniStream
®
Built-in
This guide provides basic installation information for specific UniStream
Technical specifications may be downloaded from the Unitronics website.
General Features
Unitronics' UniStream
a built-in CPU, an HMI panel, and built-in I/Os.
The series is available in two versions: UniStream Built-in and UniStream Built-in Pro.
Note that a model number that includes:
•
B5/C5 refers to UniStream Built-in
•
B10/C10 refers to UniStream Built-in Pro. These models offer additional features, detailed
below.
▪ Resistive Color Touch-screens
HMI
▪ Built-in Trends and Gauges, auto-tuned PID, data tables, data sampling, and Recipes
Power
Features
I/O
▪ Built-in I/O configuration, varies according to model
Options
▪ Built-in ports: 1 Ethernet, 1 USB host, 1 Mini-B USB device port
COM
Options
▪ Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more. Implement any serial
COM
Protocols
Programming
Software
Unitronics
®
Built-in series are PLC+HMI All-in-One programmable controllers that comprise
▪ Rich graphic library for HMI design
▪ UniApps™: Access & edit data, monitor, troubleshoot & debug and more – via HMI or remotely via
VNC
▪ Security: Multi-level password protection
▪ Alarms: Built-in system, ANSI/ISA standards
▪ Local I/O via UAG-CX series I/O expansion adapters and standard UniStream Uni-I/O™ modules
▪ Remote I/O using UniStream Remote I/O or via EX-RC1
▪ Serial and CANbus ports may be added via UAC-CX modules
RS232/485, TCP/IP, or CANbus third-party protocols via Message Composer
▪ Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM, VNC Client, FTP Server/Client
All-in-One software for hardware configuration, communications, and HMI /PLC
applications, available as a free download from Unitronics.
Installation Guide
US5-B5-RA28, US5-B10-RA28,
US5-B5-TA30, US5-B10-TA30,
US5-C5-RA28, US5-C10-RA28,
US5-C5-TA30, US5-C10-TA30
US7-B5-RA28, US7-B10-RA28,
US7-B5-TA30, US7-B10-TA30,
US7-C5-RA28, US7-C10-RA28,
US7-C5-TA30, US7-C10-TA30
US10-B5-RA28, US10-B10-RA28,
US10-B5-TA30, US10-B10-TA30,
US10-C5-RA28, US10-C10-RA28,
US10-C5-TA30, US10-C10-TA30
®
models with built-in I/O.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the UniStream US5-B10-RA28 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitronics UniStream US5-B10-RA28

Summary of Contents for Unitronics UniStream US5-B10-RA28

  • Page 1 US10-C5-RA28, US10-C10-RA28, US10-C5-TA30, US10-C10-TA30 This guide provides basic installation information for specific UniStream ® models with built-in I/O. Technical specifications may be downloaded from the Unitronics website. General Features Unitronics’ UniStream ® Built-in series are PLC+HMI All-in-One programmable controllers that comprise a built-in CPU, an HMI panel, and built-in I/Os.
  • Page 2 ▪ All examples and diagrams are intended to aid understanding, and do not guarantee operation. Unitronics accepts no responsibility for actual use of this product based on these examples. ▪ Please dispose of this product according to local and national standards and regulations.
  • Page 3 Class I, Division 2, Groups A, B, C and D These Release Notes relate to all Unitronics products that bear the UL symbols used to mark products that have been approved for use in hazardous locations, Class I, Division 2, Groups A, B, C and D.
  • Page 4 2, Groups A, B, C et D. Cette note fait référence à tous les produits Unitronics portant le symbole UL - produits qui ont été certifiés pour une utilisation dans des endroits dangereux, Classe I, Division 2, Groupes A, B, C et D.
  • Page 5 Pro models only. This 3.5mm Audio jack enables you to connect external audio equipment. Built-in I/O Model-dependent. Present in models with built-in I/O configurations. Uni-COM™ CX Connection point for up to 3 stack-on modules. These are available by Module Jack separate order. Unitronics...
  • Page 6 Allocate space for: ▪ the controller ▪ any modules that will be installed ▪ access to ports, jacks, and the microSD card slot For exact dimensions, please refer to the Mechanical Dimensions shown below. Mechanical Dimensions UniStream 5” UniStream 7" Unitronics...
  • Page 7 When properly mounted, the panel is squarely situated in the panel cut-out as shown below. ▪ Do not apply torque exceeding 0.35 N·m (3.1 in-lb) of torque to tighten the bracket Caution screws. Using excessive force to tighten the screw can damage this product. UniStream 5” Unitronics...
  • Page 8 First Use The battery is protected by a removable cover on the side of the controller. The battery is supplied installed inside the unit, with a plastic tab preventing contact which must be removed by the user. Unitronics...
  • Page 9 ▪ To avoid damaging the wire, use a maximum torque of 0.5 N·m (4.4 in-lb). ▪ Do not use tin, solder, or any substance on stripped wire that might cause the wire strand to break. ▪ Install at maximum distance from high-voltage cables and power equipment. Unitronics...
  • Page 10 ➢ Keep shield connections as short as possible. ➢ Ensure shield continuity when extending shielded cables. For detailed information, refer to the document System Wiring Guidelines, located in the Technical Library in the Unitronics’ website. Wiring the Power Supply The controller requires an external power supply.
  • Page 11 Each group may be wired together as sink or source. Inputs I10, I11, I12 and I13 can be configured as either normal digital inputs or as high speed inputs that can receive high speed pulse signals from sensors or shaft encoders. Unitronics...
  • Page 12 ▪ Input modes are set both by wiring and software. Input wiring, sink Input wiring, source High Speed Input wiring, sink High Speed Input wiring, source Use sink input wiring to connect a sourcing (pnp) device. Use source input wiring to connect a sinking (npn) device. Unitronics...
  • Page 13 The mode is determined both by wiring and by the hardware configuration within the software application. ▪ Voltage and current modes use distinct points. Connect only the point associated with the selected mode; leave the other point unconnected. Voltage Differential Single-ended Current 2-wire 3-wire 4-wire Unitronics...
  • Page 14 ▪ Use isolated-junction thermocouples, or, if you are not using the analog inputs, you may use up to one exposed-junction thermocouple; ▪ Electrically isolate exposed-junction thermocouples from other electrically-conductive parts of the system. Unitronics...
  • Page 15 To increase the life span of the relay contacts and protect the controller from potential damage by reverse EMF, connect: ▪ a clamping diode in parallel with each inductive DC load, ▪ a RC snubber circuit in parallel with each inductive AC load Unitronics...
  • Page 16 1. Disconnect the power supply. 2. Remove all wiring and disconnect any installed devices according to the device’s installation guide. 3. Unscrew and remove the mounting brackets, taking care to support the device to prevent it from falling during this procedure. Unitronics...
  • Page 17 Built-in series are PLC+HMI All-in-One programmable controllers that comprise built-in HMI and built-in I/Os. UniStream connects directly to UniCloud, Unitronics' IIoT cloud platform using built-in UniCloud connectivity. More information about UniCloud is available at www.unitronics.cloud. Model numbers in this document...
  • Page 18 Add-on Ports Add up to 3 ports to a single controller using Uni-COM™ UAC-CX Modules Internal memory Standard (B5/C5) Pro (B10/C10) RAM: 512MB RAM: 1GB ROM: 3GB system memory ROM: 6GB system memory 1GB user memory 2GB user memory Unitronics...
  • Page 19 Isolation None Cable USB 2.0 compliant; < 3 m (9.84 ft) USB host Number of ports Port type Type A Data rate USB 2.0 (480Mbps) Isolation None Cable USB 2.0 compliant; < 3 m (9.84 ft) Over current protection Unitronics...
  • Page 20 Quadrature Mode figure below). Pulse width Pulse/Direction mode: 5.1s min. for each state in Pulse/Dir Mode figure below). Quadrature mode: 2.5s min. for each state in Quadrature Mode figure below). Cable Shielded twisted pair Quadrature Mode Pulse/Direction mode Unitronics...
  • Page 21 317.3ms 491.5ms 491.5ms 2477.3ms Medium 627.2ms 975.4ms 975.4ms 4947ms Strong 1246.9ms 1943.3ms 1943.3ms 9886.5ms Update time (10) Noise Rejection Frequency Update Time 400Hz 154.9ms 60Hz 242ms 50Hz 242ms 10Hz 1234.9ms Cable Shielded twisted pair Diagnostics Analog input overflow (11) Unitronics...
  • Page 22 (2,192°F < T ≤ 2,282°F) Thermocouple type -200°C ≤ T ≤ 1,372°C Under-range: (-328°F ≤ T ≤ 2,501.6°F) -270°C ≤ T < -200°C (-454°F ≤ T < -328°F) Over-range: 1,372°C < T ≤ 1,400°C (2,501.6°F < T ≤ 2,552°F) Unitronics...
  • Page 23 390Ω < R ≤ 395.85Ω -70mV ≤ V ≤ 70mV Under-range: -71.05mV ≤ V < -70mV Over-range: 70mV ≤ V < 71.05mV * Overflow or Underflow is declared when an input value exceeds the Over- (11) range or Under-range boundaries respectively. Unitronics...
  • Page 24 1242.4ms Weak 317.3ms 491.5ms 491.5ms 2477.3ms Medium 627.2ms 975.4ms 975.4ms 4947ms Strong 1246.9ms 1943.3ms 1943.3ms 9886.5ms Update time Noise Rejection Frequency Update Time (10) 400Hz 154.9ms 60Hz 242ms 50Hz 242ms 10Hz 1234.9ms Thermocouple ±1.5°C (±2.7°F) Cold junction error (15) Unitronics...
  • Page 25 See Source Transistor Outputs Power Supply specification below ON state voltage 0.5V maximum drop OFF state leakage 10µA maximum current Switching times Turn-on: 80s maximum, Turn-off: 155s maximum (Load resistance < 4kΩ ( PWM Frequency O0, O1: (18) 3kHz max. (Load resistance < 4kΩ) Short-circuit protection Unitronics...
  • Page 26 0 ÷ 20mA and 4 ÷ 20mA – 1.7ms (600Ω load), 1.7ms (600Ω + 10mH load) Short circuit protection Yes (no indication) (voltage mode) Cable Shielded twisted pair Diagnostics (11) Current – Open circuit indication Supply level – Normal / Low or missing Unitronics...
  • Page 27 -30°C to 70°C (-22°F to 158°F) temperature Relative Humidity 5% to 95% (non-condensing) (RH) Operating Altitude 2,000 m (6,562 ft) Shock IEC 60068-2-27, 15G, 11ms duration Vibration IEC 60068-2-6, 5Hz to 8.4Hz, 3.5mm constant amplitude, 8.4Hz to 150Hz, 1G acceleration Unitronics...
  • Page 28 0.39 Kg (0.86 lb) US7-xx-RA28 0.7 Kg (1.54 lb) Refer to the images on page 13 US7-xx-TA30 0.68 Kg (1.49 lb) US10-xx-RA28 1.1 Kg (2.43 lb) Refer to the images on page 13 US10-xx-TA30 1.08 Kg (2.38 lb) UniStream 5” Unitronics...
  • Page 29 UniStream ® Built-in UniStream 7" UniStream 10.1" Unitronics...
  • Page 30 Fault Type Registered Value in the Input Tag Overflow 32,767 Underflow -32,767 Connection fault -32,768 14. For temperature measurement, the value is represented in 0.1° units. For example, a temperature of 12.3° is represented as 123 at the Value tag. Unitronics...
  • Page 31 The tradenames, trademarks, logos and service marks presented in this document, including their design, are the property of Unitronics (1989) (R"G) Ltd. or other third parties and you are not permitted to use them without the prior written consent of Unitronics or such third party as may own them.
