Connecting The Electrode Holder And Workpiece Lead - EWM Taurus 351 Basic FKG Operating Instructions Manual

5.4.1

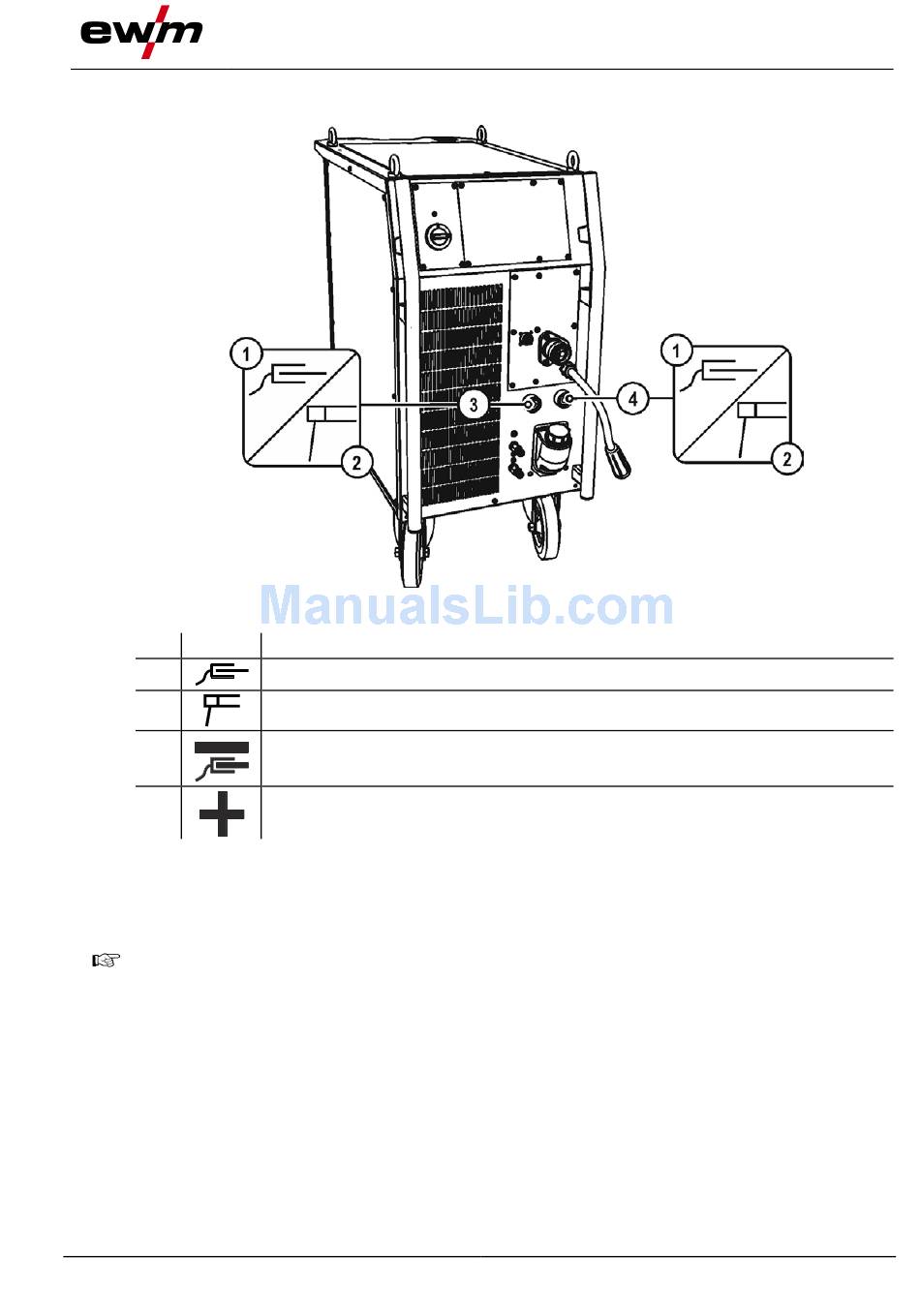

Connecting the electrode holder and workpiece lead

Item Symbol
1
2
3
4
•
Insert cable plug of the electrode holder into either the "+" or "-" welding current connection socket and
lock by turning to the right.
•
Insert cable plug of the workpiece lead into either the "+" or "-" welding current connection socket and
lock by turning to the right.
Polarity depends on the instructions from the electrode manufacturer given on the electrode
packaging.
099-005425-EW501
14.07.2016
Description 0
Workpiece
Electrode holder
Connection socket, "-" welding current
Connection socket, "+" welding current
Design and function
Figure 5-21
MMA welding
