8.5

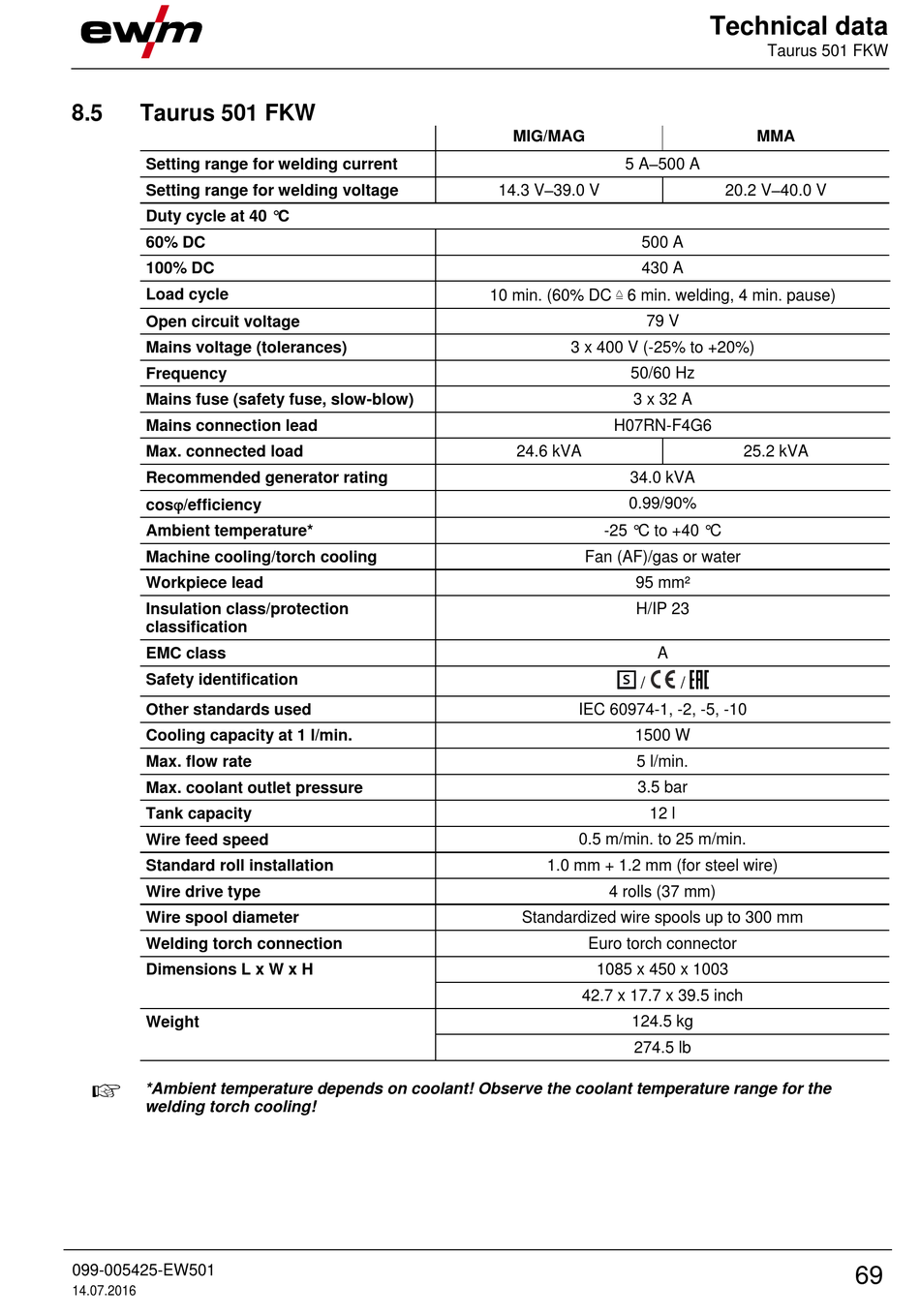

Taurus 501 FKW

Setting range for welding current
Setting range for welding voltage
Duty cycle at 40 °C
60% DC
100% DC
Load cycle
Open circuit voltage
Mains voltage (tolerances)
Frequency
Mains fuse (safety fuse, slow-blow)
Mains connection lead
Max. connected load
Recommended generator rating
cos/efficiency
Ambient temperature*
Machine cooling/torch cooling
Workpiece lead
Insulation class/protection
classification
EMC class
Safety identification
Other standards used
Cooling capacity at 1 l/min.
Max. flow rate
Max. coolant outlet pressure
Tank capacity
Wire feed speed
Standard roll installation
Wire drive type
Wire spool diameter
Welding torch connection
Dimensions L x W x H
Weight
*Ambient temperature depends on coolant! Observe the coolant temperature range for the
welding torch cooling!
099-005425-EW501
14.07.2016
MIG/MAG
5 A–500 A
14.3 V–39.0 V
500 A
430 A

10 min. (60% DC 6 min. welding, 4 min. pause)
79 V
3 x 400 V (-25% to +20%)
50/60 Hz
3 x 32 A
H07RN-F4G6
24.6 kVA
34.0 kVA
0.99/90%
-25 °C to +40 °C
Fan (AF)/gas or water
95 mm²
H/IP 23
A
/
IEC 60974-1, -2, -5, -10
1500 W
5 l/min.
3.5 bar
12 l
0.5 m/min. to 25 m/min.
1.0 mm + 1.2 mm (for steel wire)
4 rolls (37 mm)
Standardized wire spools up to 300 mm
Euro torch connector
1085 x 450 x 1003
42.7 x 17.7 x 39.5 inch
124.5 kg
274.5 lb
Technical data
Taurus 501 FKW
MMA
20.2 V–40.0 V
25.2 kVA
/
