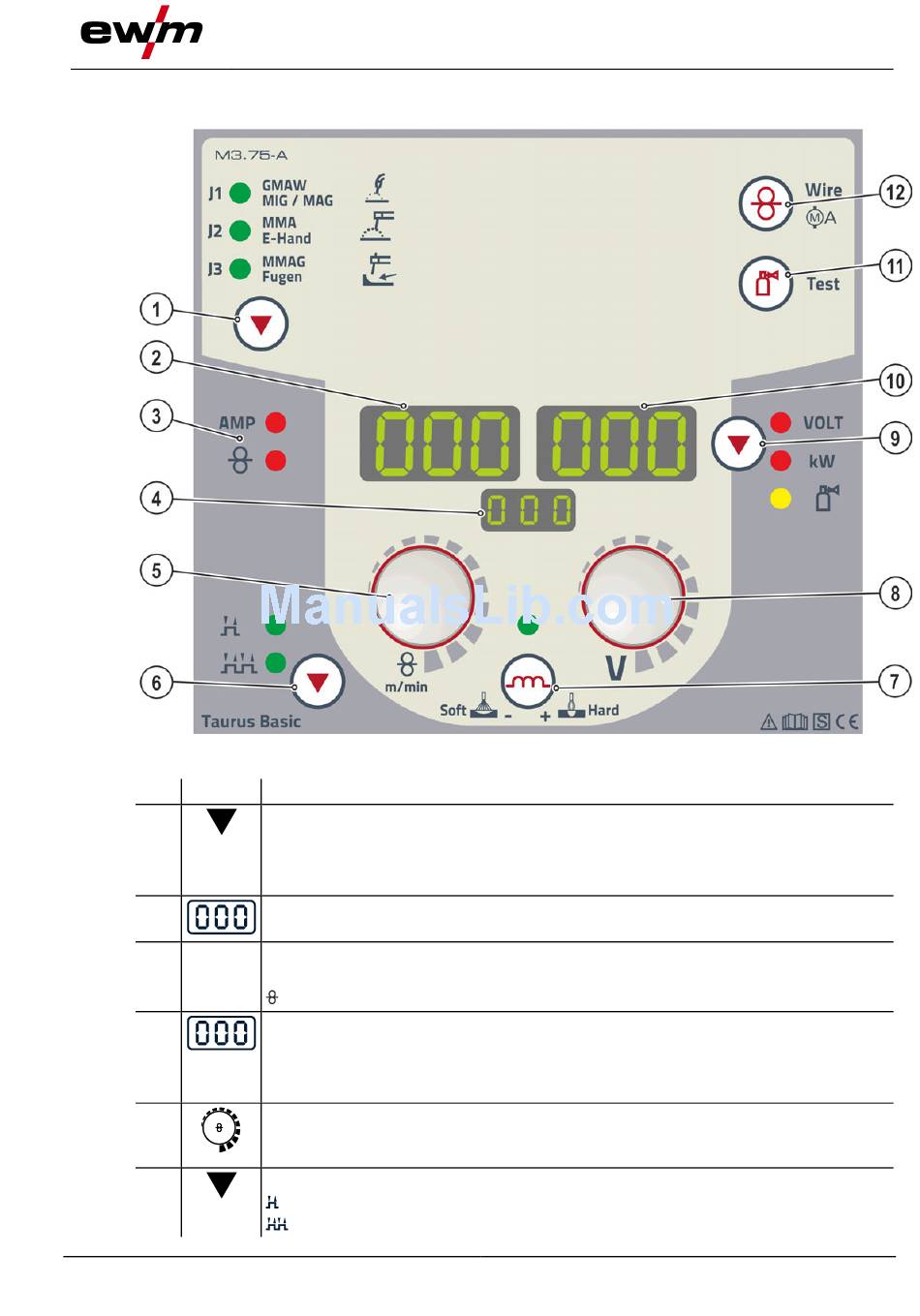

Machine control – Operating elements
4.4
Item Symbol
1
2
3
4
5
6
099-005425-EW501
14.07.2016
Machine description – quick overview
Description 0
Button, welding process
J1 --------- MIG/MAG welding
J2 --------- MMA welding
J3 --------- Air arc gouging
Display, left
Welding current, wire feed speed
Status displays
AMP ----- "Welding current display" signal light
---------- "Wire feed speed display" signal light
Display, welding process
J1 --------- MIG/MAG welding
J2 --------- MMA welding
J3 --------- Gouging
Welding parameter setting, rotary dial
For setting the welding performance, for selecting the JOB (welding task) and for
setting other welding parameters.
Select operating mode button
--------- Non-latched
-------- Latched
Machine control – Operating elements
Figure 4-4
19
