EWM Taurus 351 Basic FKG Operating Instructions Manual page 15

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
099-005425-EW501
14.07.2016

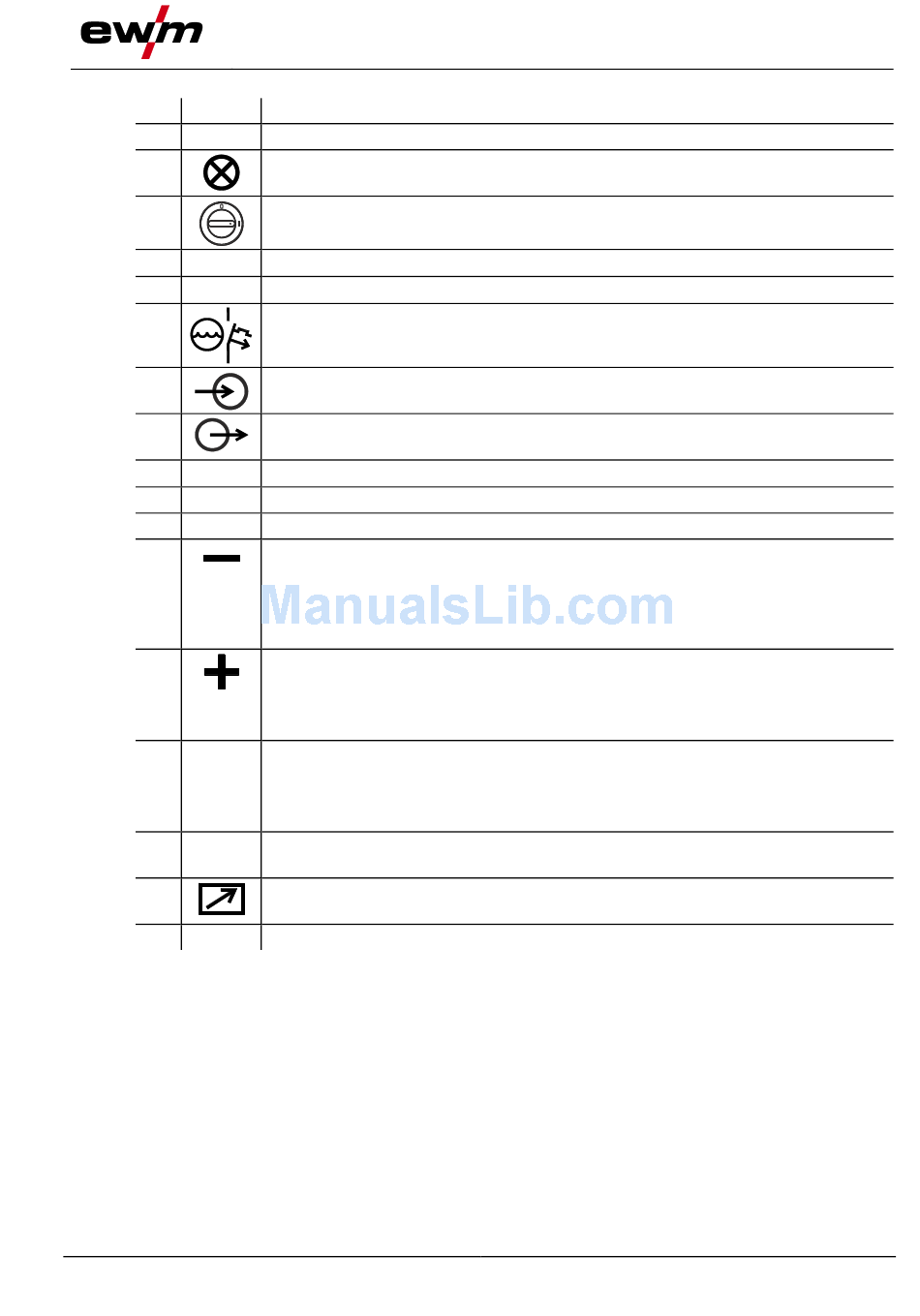

Machine description – quick overview
Description 0
Lifting lug
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Main switch, machine on/off
Carrying handle
Cooling air inlet
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
Quick connect coupling (red)
coolant return
Quick connect coupling (blue)
coolant supply
Wheels, guide castors
Coolant tank
Coolant tank cap
Connection socket, "-" welding current
• ----------- MIG/MAG welding:
• ----------- MIG/MAG cored wire welding:
welding torch
• ----------- MMA welding:
Connection socket, "+" welding current
• ----------- MIG/MAG welding:
• ----------- MIG/MAG cored wire welding:
• ----------- MMA welding:
Welding current cable, polarity selection
Welding current to the central connector/torch, enables polarity selection.
• ----------- MIG/MAG: Connection socket for "+" welding current
• ----------- Self-shielding cored wire
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
19-pole connection socket (analogue)
For connecting analogue remote controls
Machine control > see 4.4 chapter
workpiece connection
welding current connection for the
electrode holder connection
welding current connection for the welding torch
workpiece connection
workpiece connection
Front view
15
