T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
HM1317C series models are 15kg-class Hex shank demolition hammers
with the following main features:
Same high maneuverability as the current models
High durability obtained by strengthening barrel, gears, etc
AVT* for reduced vibration during chipping
Suppression of motor speed during no-load for reduced vibration
when idling
Described in the table below are the specification differences
between the four models in the subject.
Shank type
HM1317C
30mm Hex
HM1307C
HM1317CB
28.6mm Hex
HM1307CB
*Anti-Vibration Technology using Active dynamic vibration absorber
S
pecification
Voltage (V)
110
120
220
230
240
Specifications
Impacts per min: min-
Shank type
Shank diameter: mm (")
AVT (
Anti-Vibration Technology using
Vibration
Active dynamic vibration absorber
absorption
Vibration absorbing handle
Variable speed control by dial
Soft start
Electronic
Constant speed control
control
Suppression of motor speed
during no-load
Double insulation
Power supply cord: m (ft)
Net weight*: kg (lbs)
* Weight according to
S
tandard equipment
Side handle ................... 1 Bull point ...................... 1 Plastic carrying ............. 1
Note: The standard equipment for the tool shown above may vary by country.
O
ptional accessories
Bull points, Cold chisels, Scaling chisels, Clay spade, Rammer, Grease vessel (containing 30g hammer grease),
Safety goggles, Hammer service kit
HM1317C/ HM1307C
HM1317CB/ HM1307CB
Electric Breaker
Constant
Vibration
speed
AVT*
absorbing
control
handle
Yes
No
No
Yes
Yes
No
Current (A)
Cycle (Hz)
15
50/60
14
50/60
8.0
50/60
8.0
50/60
8.0
50/60
Model
=ipm
1
EPTA-Procedure 01/2003
HM1304/ HM1304B
Suppression of
motor speed
during no-load
Yes
No
Yes
No
Continuous Rating (W)
Input
1,510
---
1,510
1,510
1,510
HM1317C/ HM1307C
30 (1-3/16)
Yes/ No
)
Yes/ No
Europe, South Africa, Kuwait, Hong Kong, Cyprus: 4.0 (13.1)
Other countries: 5.0 (16.4)
17.0/ 15.3
(37.5/ 33.8)

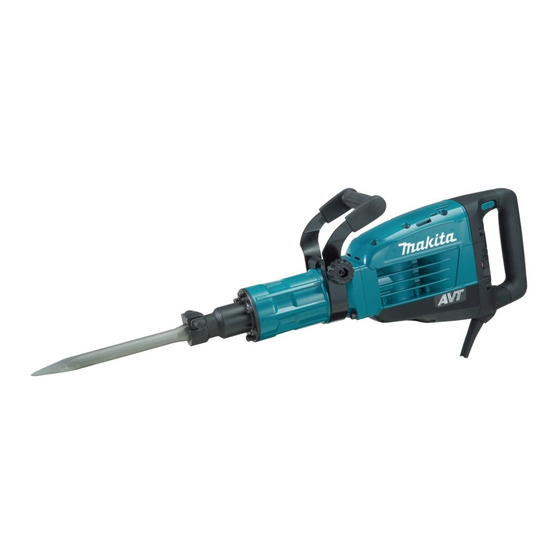

[The image above is HM1317C.]
Dimensions: mm (")
HM1317C
HM1307C
Length (L)
715 (28-1/8) 824 (32-1/2)
Width (W)
129 (5-1/8)
Height (H)
266 (10-1/2)
*HM1307C and HM1307CB do not have
"AVT" logotype.
Max. Output (W)
Output
700
700
800
800
800
HM1317CB/ HM1307CB
730 - 1,450
Hex
28.6 (1-1/8)
Yes/ No
No
Yes
Yes
Yes
Yes/ No
Yes
Brazil: 2.0 (6.6)
19.0/ 17.3
(41.9/ 38.2)
PRODUCT
P 1/ 19
HM1317CB
HM1307CB
1,600
1,600
1,800
1,800
1,800
