MSS DDR Configuration Path

The Peripheral Initialization solution requires that, in addition to specifying MSS DDR configuration
register values, you configure the APB configuration data path in the MSS (FIC_2). The SystemInit()
function writes the data to the MDDR configuration registers via the FIC_2 APB interface.
Note: If you are using System Builder the configuration path is set and connected automatically.

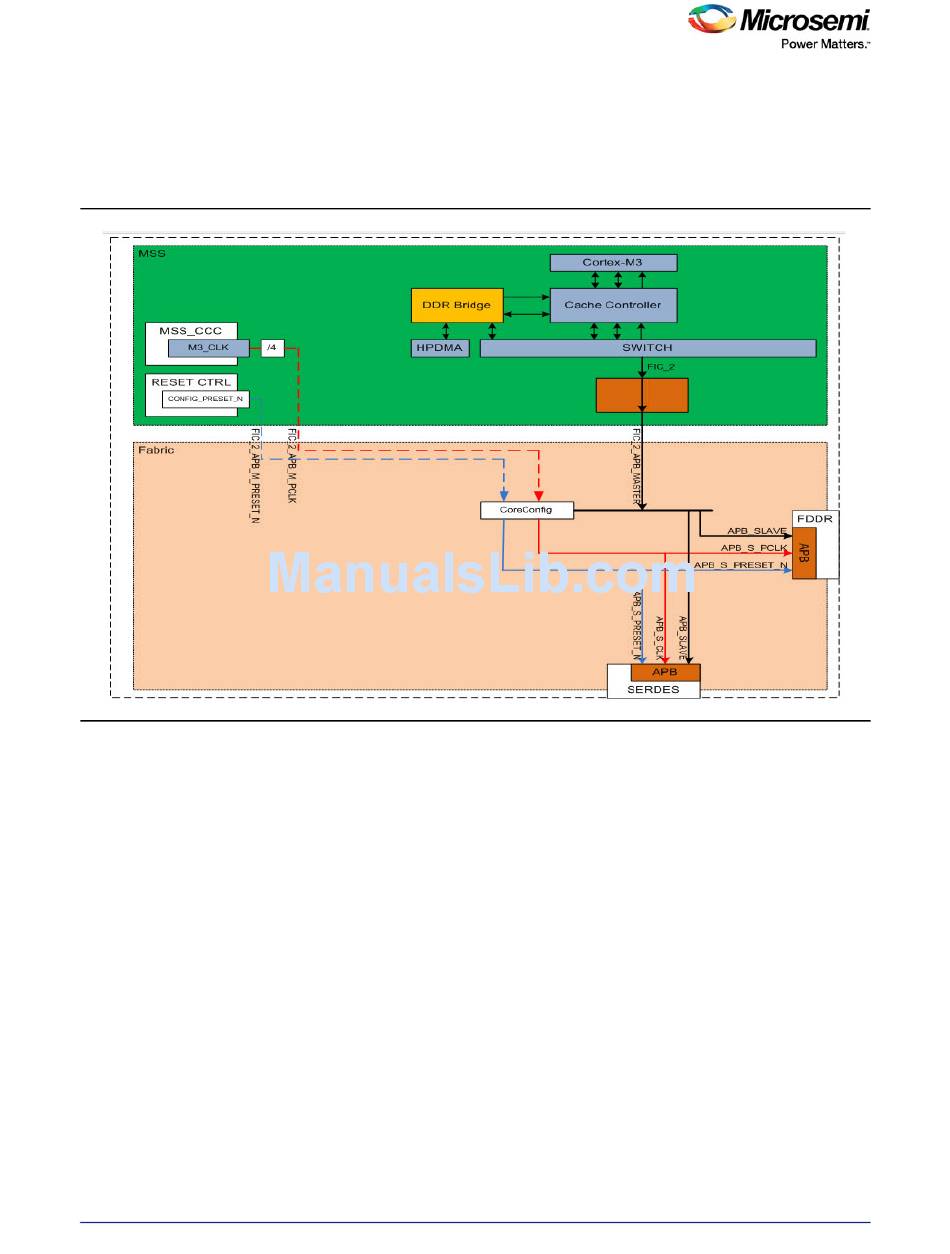

Figure 2-7 • FIC_2 Configurator Overview
To configure the FIC_2 interface:
1. Open the FIC_2 configurator dialog
2. Select the Initialize peripherals using Cortex-M3 option.
3. Make sure that the MSS DDR is checked, as are the Fabric DDR/SERDES blocks if you are using
them.
4. Click OK to save your settings. This will expose the FIC_2 configuration ports (Clock, Reset, and
APB bus interfaces), as shown in
5. Generate the MSS. The FIC_2 ports (FIC_2_APB_MASTER, FIC_2_APB_M_PCLK and
FIC_2_APB_M_RESET_N) are now exposed at the MSS interface and can be connected to the
CoreConfigP and CoreResetP as per the Peripheral Initialization solution specification.
(Figure 2-7) from the MSS configurator.
Figure 2-8.
